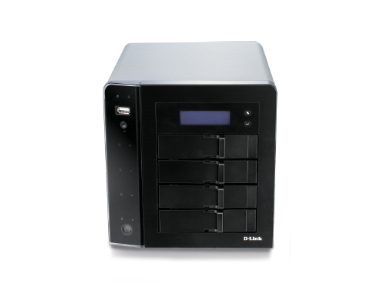

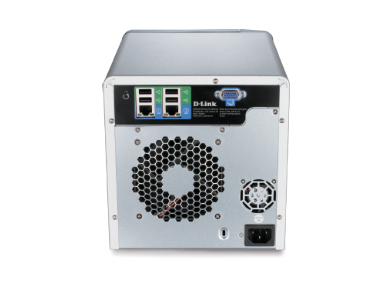

D-Link DNS-1250-04 NAS/storage server Intel Atom® D525

D-Link DNS-1250-04 NAS/storage server Intel Atom® D525

2 GB 12 TB Black

Model DNS-1250-04EAN 790069363184

63 specifications
  • ProcessorIntel Atom®
  • Memory2 GB
  • Weight4.3 kg
  • ColourBlack
  • Total installed storage capacity12 TB
  • Processor manufacturerIntel
See all specifications

Overview

Processor
Intel Atom®
Memory
2 GB
Weight
4.3 kg
Colour
Black
Total installed storage capacity
12 TB
Processor manufacturer
Intel
Brand
D-Link
Model
DNS-1250-04
Part number
DNS-1250-04
EAN / UPC
790069363184, 7900693631846
Also known as
D-Link DNS-1250-04 NAS/storage server Intel Atom® D525 2 GB 12 TB Black

Specifications

63 specifications in 10 groups

Storage

Total installed storage capacity12 TB
Number of storage drives installed4
Storage drive capacity3 TB
Maximum supported storage capacity12 TB
RAID levels0, 1, 5, 6, 10

Processor

Processor manufacturerIntel
Processor familyIntel Atom®
Processor modelD525
Processor frequency1.8 GHz
Processor cores2
Processor threads4
Processor cache1 MB
Bus typeDMI
ECC supported by processorNo
Physical Address Extension (PAE)32 bit
Processing Die size87 mm²
Processor cache typeL2
Processor codeSLBXC
Processor codenamePineview
Processor lithography45 nm
Processor operating modes64-bit
Processor package size22 x 22 mm
Processor socketBGA 559
SteppingB0
Thermal Design Power (TDP)13 W
Tjunction100 °C
Maximum internal memory supported by processor4 GB
Memory bandwidth supported by processor (max)6.4 GB/s
Conflict-Free processorNo

Memory

Internal memory2 GB

Network

DHCP clientYes
DHCP serverYes
Jumbo frames supportYes
Supported network protocolsTCP/IP, iSCSI, HTTP/HTTPS, IPv4/IPv6, SSH, CIFS/SMB/Samba, NFS, AFP, FTP, FTP over SSL, WebDAV, SNMP, Telnet, LLTD, DDNS, PXE Server, LUN Mapping & LUN Masking, NTP

Ports & interfaces

Ethernet LAN (RJ-45) ports2
USB 2.0 ports quantity5
WAN connectionEthernet (RJ-45)

Design

Product colourBlack
LED indicatorsYes

Weight & dimensions

Weight4.3 kg

Processor special features

Embedded options availableYes
Enhanced Intel SpeedStep TechnologyNo
Execute Disable BitYes
Idle StatesNo
Intel 64Yes
Intel Demand Based SwitchingNo
Intel Enhanced Halt StateNo
Intel Trusted Execution TechnologyNo
Intel Virtualization Technology (VT-x)No
Intel Virtualization Technology for Directed I/O (VT-d)No
Intel® AES New Instructions (Intel® AES-NI)No
Intel® Hyper Threading Technology (Intel® HT Technology)Yes
Intel® Turbo Boost TechnologyNo
Number of Processing Die Transistors176 M
Thermal Monitoring TechnologiesNo
Memory channels supported by processorSingle

Operational conditions

Operating temperature (T-T)5 - 35 °C
Operating relative humidity (H-H)10 - 85%

Other features

Dimensions (WxDxH)191 x 188 x 243 mm
Power LEDYes
CertificationBSMI, C-Tick, CE, FCC, UL, VCCI
Processor ARK ID49490
Expansion slotsEXT3, EXT4, FAT32, XFS, HFS+, NTFS
