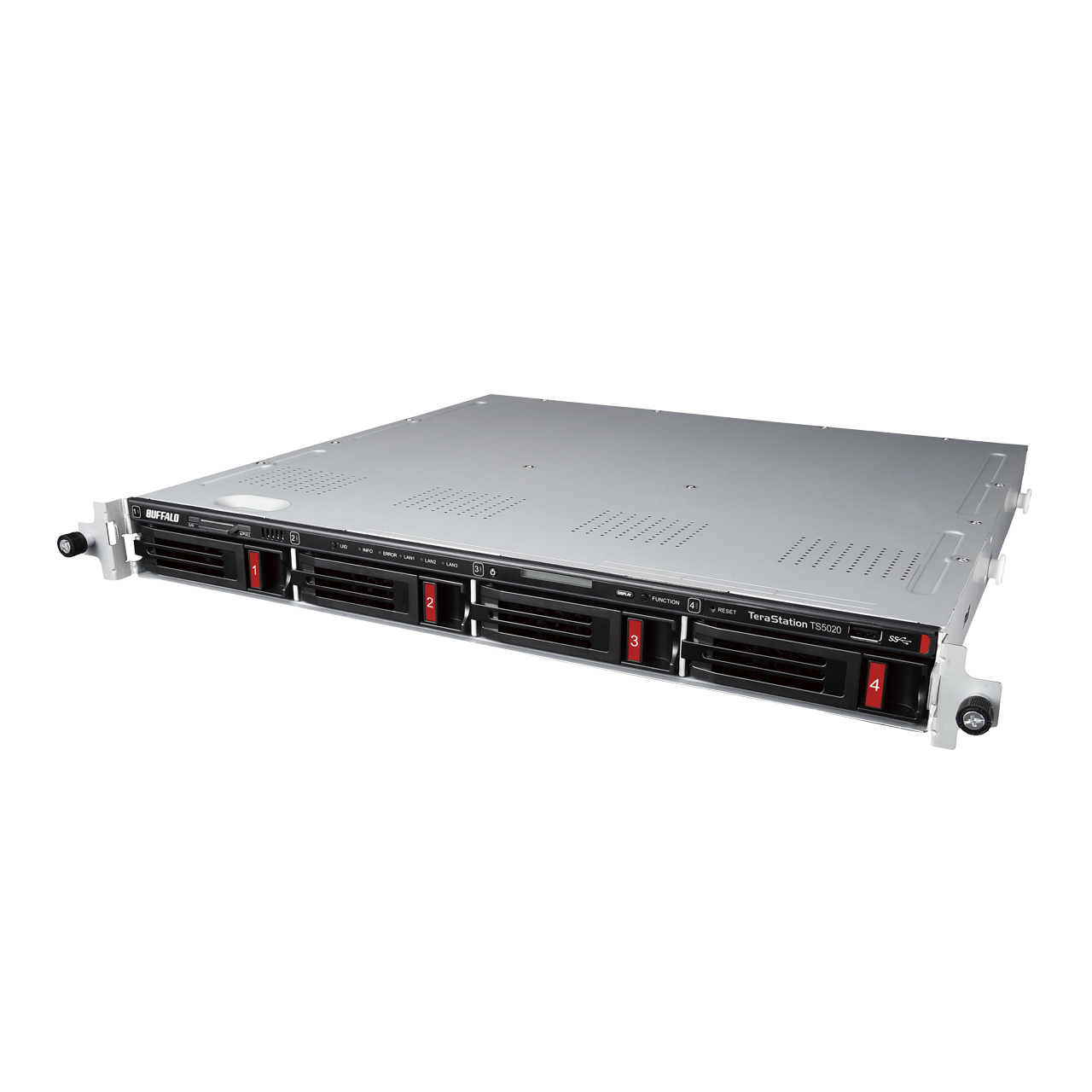

TeraStation TS5420RN NAS Rack (1U) Annapurna Labs
8 GB DDR4 16 TB HDD Black
Model TS5420RNPart no. TS5420RN6404EAN 747464135915
48 specifications
- ProcessorAnnapurna Labs
- Memory8 GB
- TypeNAS
- Weight8.48 kg
- ColourBlack
- Storage drives installedYes
Overview
- Processor
- Annapurna Labs
- Memory
- 8 GB
- Type
- NAS
- Weight
- 8.48 kg
- Colour
- Black
- Storage drives installed
- Yes
- Brand
- Buffalo
- Category
- NAS & Storage Servers
- Model
- TS5420RN
- Part numbers
- TS5420RN6404, TS5420RN4804, TS5420RN3204, TS5420RN1604, TS5420RN8004
- EAN / UPC
- 747464135915, 747464135922, 747464135939, 747464135946 +1 more
- Also known as
- Buffalo TeraStation TS5420RN NAS Rack (1U) Annapurna Labs 8 GB DDR4 16 TB HDD Black
Specifications
48 specifications in 11 groups
Storage
| Specification | Value |
|---|---|
| Storage drives installed | Yes |
| Total installed storage capacity | 16 TB |
| Number of storage drives installed | 4 |
| Number of storage drives supported | 4 |
| Installed storage drive type | HDD |
| Supported storage drive types | HDD |
| Storage drive capacity | 12 GB |
| RAID support | Yes |
| RAID levels | 0, 1, 5, 6, 10, JBOD |
| Hot-swap drive bays | Yes |
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Annapurna Labs |
| Processor family | Annapurna Labs |
| Processor frequency | 2.04 GHz |
| Processor cores | 4 |
Memory
| Specification | Value |
|---|---|
| Internal memory | 8 GB |
| Internal memory type | DDR4 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 1000,10000 Mbit/s |
| Ethernet LAN data rate supported (max) | 10000 Mbit/s |
| iSCSI support | Yes |
| Data link protocols | CIFS/SMB, AFP, FTP/FTPS/SFTP, NFS |
| Supported network protocols | TCP/IP |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 3 |
| USB port | Yes |
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
Design
| Specification | Value |
|---|---|
| Chassis type | Rack (1U) |
| Cooling type | Active |
| Product colour | Black |
Performance
| Specification | Value |
|---|---|
| Type | NAS |
| Backup function | Yes |
| Backup features | iSCSI LUN |
| Snapshot | Yes |
Software
| Specification | Value |
|---|---|
| Windows operating systems supported | Yes |
| Mac operating systems supported | Yes |
Power
| Specification | Value |
|---|---|
| Power consumption (max) | 100 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 430 mm |
| Depth | 430 mm |
| Height | 44.2 mm |
| Weight | 8.48 kg |
| Package width | 309.9 mm |
| Package depth | 358.1 mm |
| Package height | 363.2 mm |
| Package weight | 12.3 kg |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 10 - 85% |
