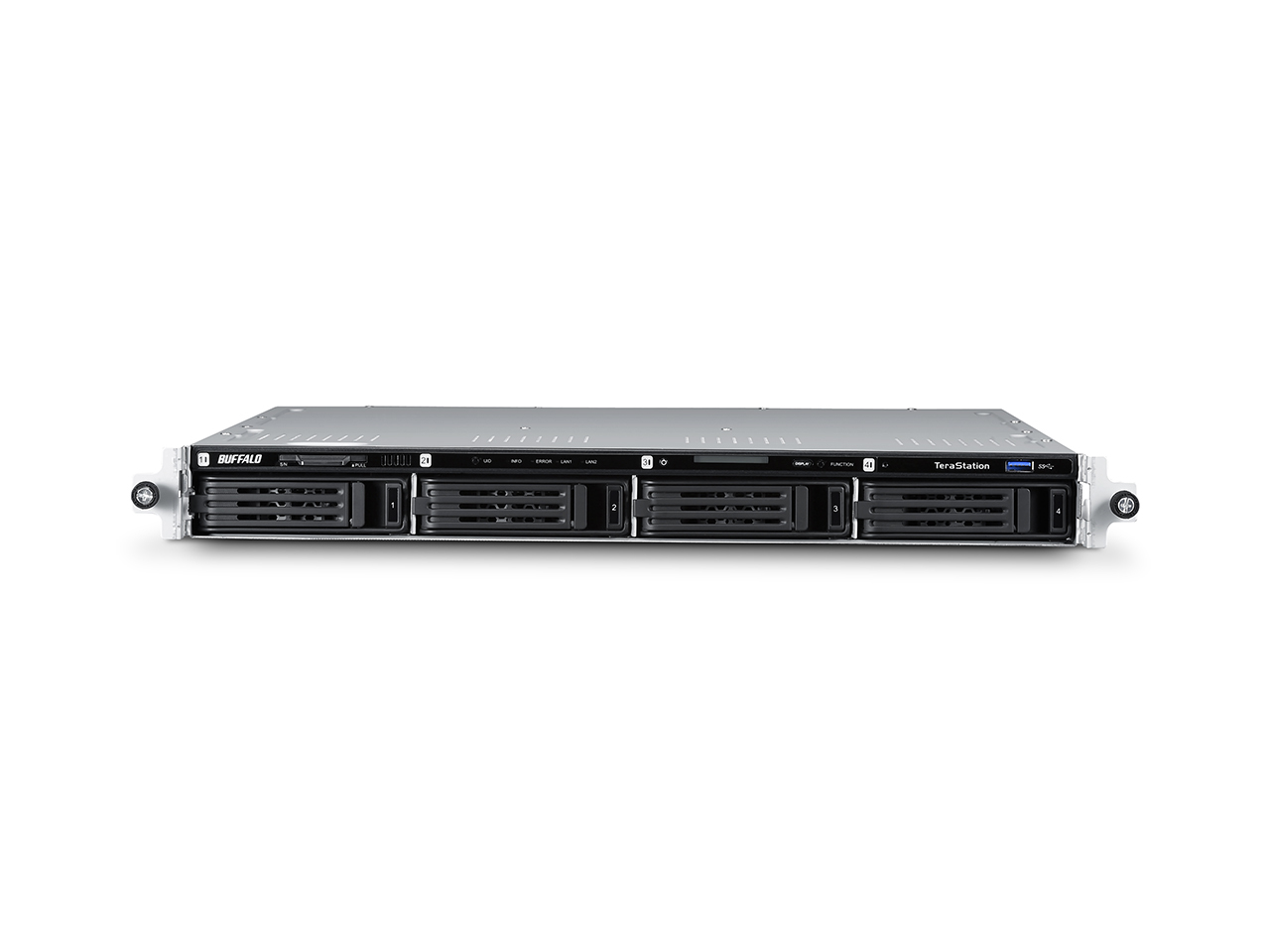

Buffalo TeraStation TS5400RH1604 NAS/storage server Rack (1U) Intel Atom®

Buffalo TeraStation TS5400RH1604 NAS/storage server Rack (1U) Intel Atom®

2 GB DDR3 16 TB HDD Black, Grey

Model TS5400RH1604EAN 747464127835

52 specifications
  • ProcessorIntel Atom®
  • Memory2 GB
  • TypeNAS
  • Weight9 kg
  • ColourBlack, Grey
  • Storage drives installedYes
See all specifications

Overview

Processor
Intel Atom®
Memory
2 GB
Type
NAS
Weight
9 kg
Colour
Black, Grey
Storage drives installed
Yes
Brand
Buffalo
Model
TS5400RH1604
Part number
TS5400RH1604
EAN / UPC
747464127835, 4981254016473, 7474641278358
Also known as
Buffalo TeraStation TS5400RH1604 NAS/storage server Rack (1U) Intel Atom® 2 GB DDR3 16 TB HDD Black, Grey

Specifications

52 specifications in 13 groups

Storage

Storage drives installedYes
Total installed storage capacity16 TB
Number of storage drives installed4
Number of storage drives supported4
Installed storage drive typeHDD
Supported storage drive typesHDD
Storage drive capacity4 TB
Storage drive interfaceSerial ATA II
RAID supportYes
RAID levels0, 1, 5, 6, 10

Processor

Processor familyIntel Atom®
Processor cores2
Processor threads4

Memory

Internal memory2 GB
Internal memory typeDDR3

Network

Ethernet LANYes
Ethernet LAN data rates10,100,1000 Mbit/s
Wi-FiNo
iSCSI supportYes
Auto MDI/MDI-XYes
Supported network protocolsTCP/IP

Ports & interfaces

Ethernet LAN (RJ-45) ports2
USB portYes
USB 2.0 ports quantity2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity3
Fiber ports quantity0
Serial ports quantity1

Design

Chassis typeRack (1U)
Cooling typeActive
Product colourBlack, Grey
Number of fans2 fan(s)
Fan diameter4 cm
LED indicatorsError, LAN

Performance

TypeNAS
Management protocolsSNMP v3

Software

Windows operating systems supportedWindows 10, Windows 2000, Windows 2000 Professional, Windows 7, Windows 8, Windows 8.1, Windows Vista, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64
Mac operating systems supportedMac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.3 Panther, Mac OS X 10.4 Tiger, Mac OS X 10.5 Leopard, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks
Server operating systems supportedWindows Server 2003, Windows Server 2003 R2, Windows Server 2008, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016

Power

Power consumption (max)140 W
Power consumption (typical)74 W
AC input voltage100 V
AC input frequency50 - 60 Hz

Weight & dimensions

Width429.5 mm
Depth430 mm
Height44.3 mm
Weight9 kg

Packaging content

Cables includedAC, LAN (RJ-45)
Resource CDYes

Operational conditions

Operating temperature (T-T)5 - 35 °C
Operating relative humidity (H-H)20 - 80%

Other features

Compliance certificatesRoHS
CertificationVCCI Cl. A
