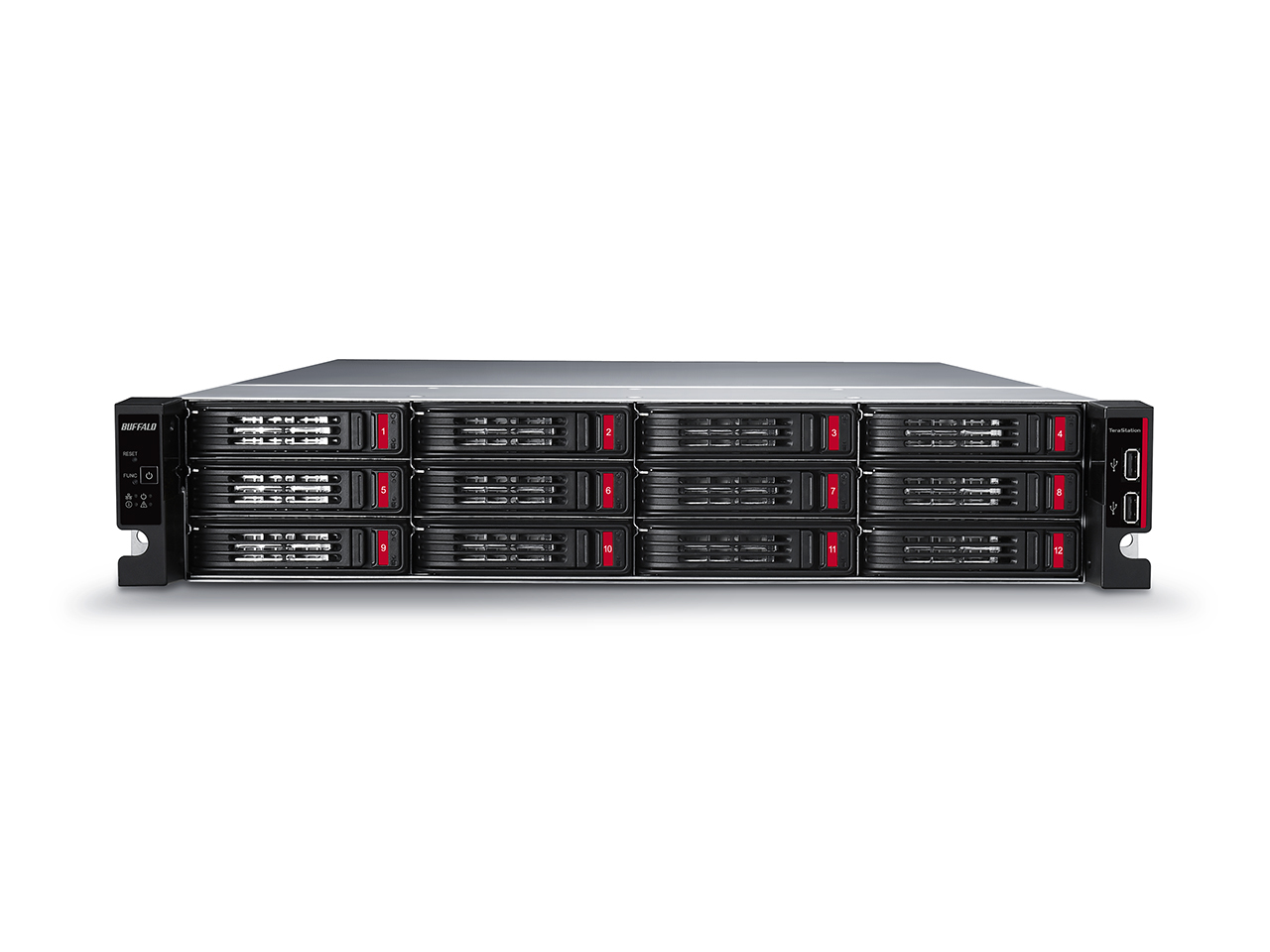

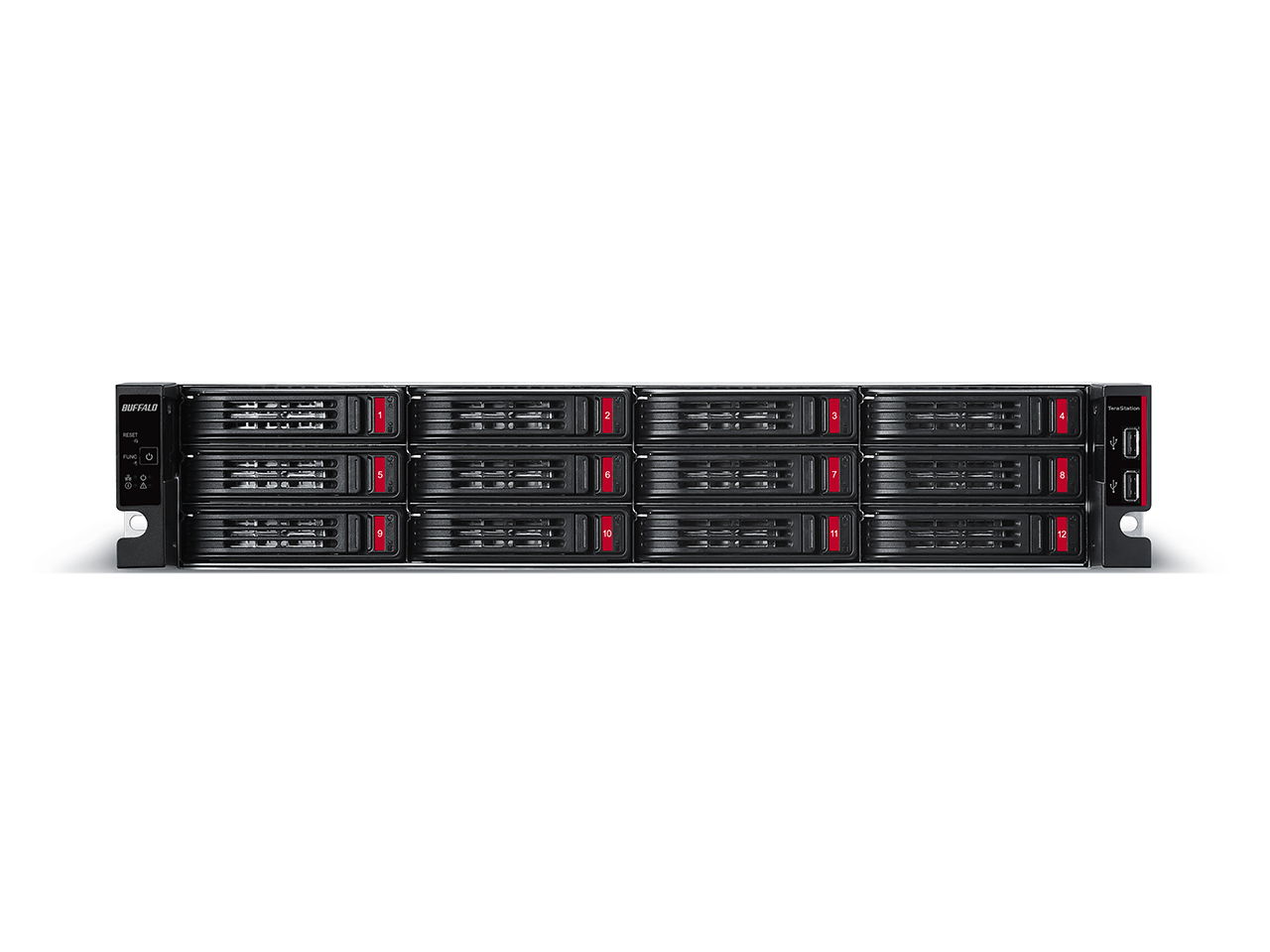

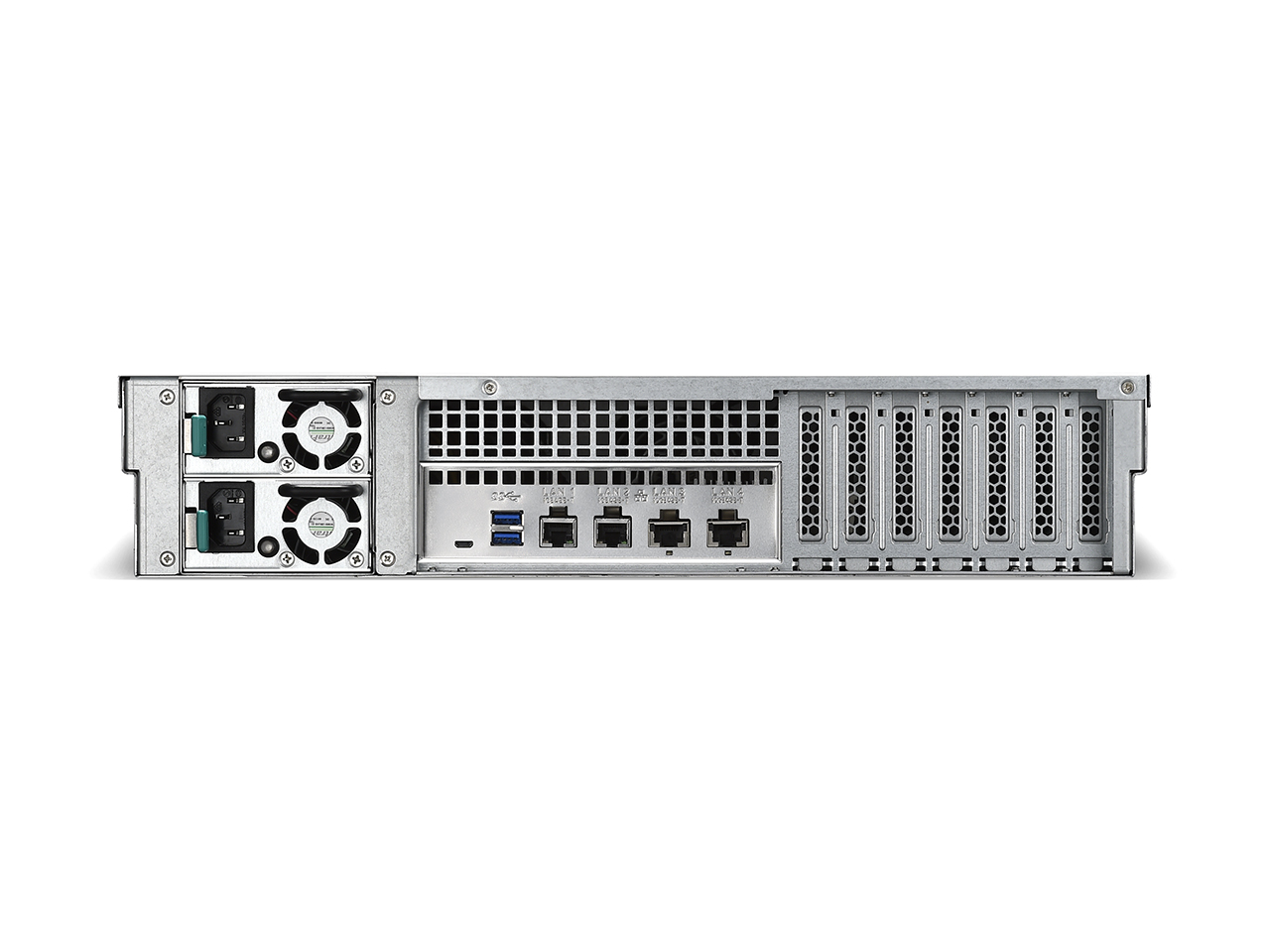

TeraStation TS51220RH6404 NAS/storage server Rack (2U) Annapurna Labs AL524
16 GB DDR4 64 TB HDD Black
Model TS51220RH6404EAN 747464135397
41 specifications
- ProcessorAnnapurna Labs
- Memory16 GB
- TypeNAS
- Weight25.1 kg
- ColourBlack
- Storage drives installedYes
Overview
- Processor
- Annapurna Labs
- Memory
- 16 GB
- Type
- NAS
- Weight
- 25.1 kg
- Colour
- Black
- Storage drives installed
- Yes
- Brand
- Buffalo
- Category
- NAS & Storage Servers
- Model
- TS51220RH6404
- Part number
- TS51220RH6404
- EAN / UPC
- 747464135397
- Also known as
- Buffalo TeraStation TS51220RH6404 NAS/storage server Rack (2U) Annapurna Labs AL524 16 GB DDR4 64 TB HDD Black
Specifications
41 specifications in 11 groups
Storage
| Specification | Value |
|---|---|
| Storage drives installed | Yes |
| Total installed storage capacity | 64 TB |
| Number of storage drives installed | 4 |
| Number of storage drives supported | 12 |
| Installed storage drive type | HDD |
| Storage drive capacity | 240 TB |
| Storage drive interface | Serial ATA III |
| RAID support | Yes |
| RAID levels | 0, 1, 5, 6, 10, JBOD |
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Annapurna Labs |
| Processor family | Annapurna Labs |
| Processor model | AL524 |
| Processor frequency | 2.04 GHz |
| Processor cores | 4 |
Memory
| Specification | Value |
|---|---|
| Internal memory | 16 GB |
| Internal memory type | DDR4 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000,10000 Mbit/s |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 4 |
| USB port | Yes |
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
Design
| Specification | Value |
|---|---|
| Chassis type | Rack (2U) |
| Product colour | Black |
Performance
| Specification | Value |
|---|---|
| Type | NAS |
| Device class | Large Enterprise Business |
Software
| Specification | Value |
|---|---|
| Windows operating systems supported | Windows 10, Windows 11, Windows 8.1 |
| Mac operating systems supported | Mac OS X 10.13 High Sierra |
| Server operating systems supported | Windows Server 2019, Windows Server 2022 |
Power
| Specification | Value |
|---|---|
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 480 mm |
| Depth | 736.6 mm |
| Height | 86.4 mm |
| Weight | 25.1 kg |
| Package width | 581.7 mm |
| Package depth | 977.9 mm |
| Package height | 259.1 mm |
| Package weight | 30.2 kg |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 10 - 85% |
