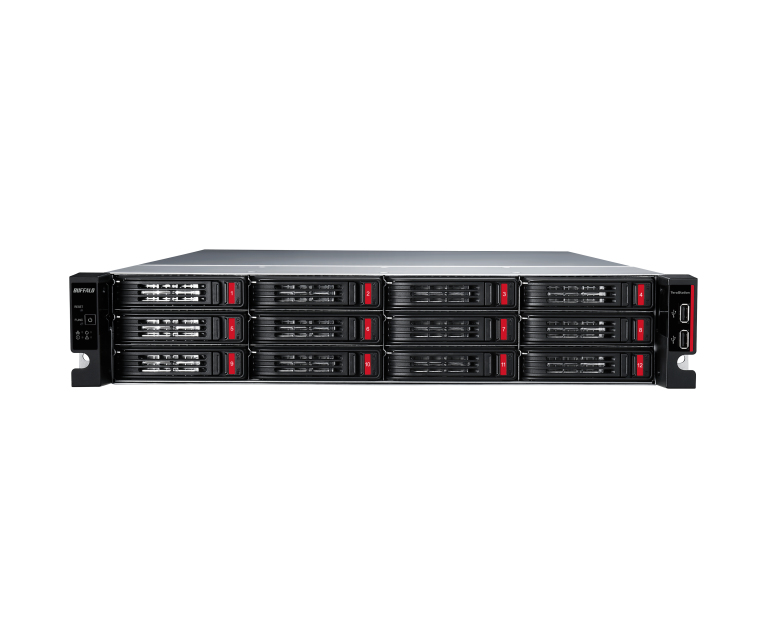

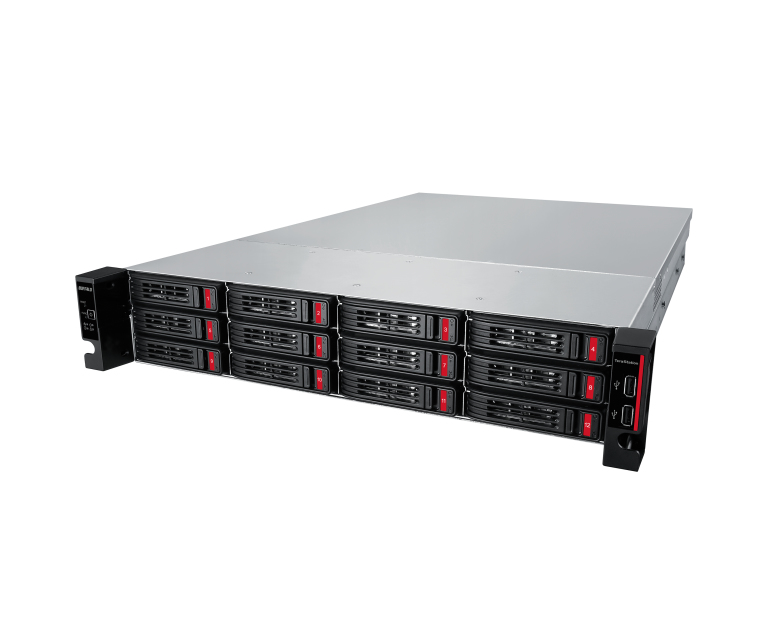

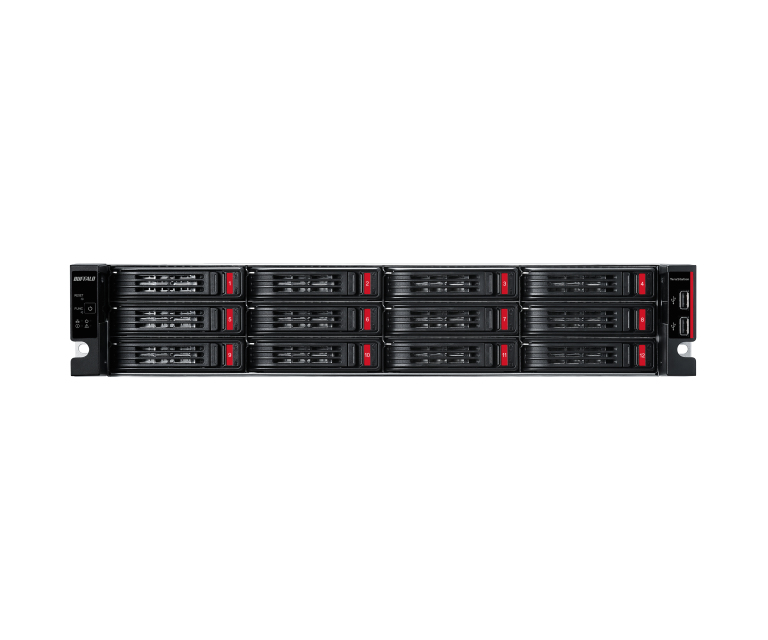

TeraStation TS51210RH4804EU NAS/storage server Rack (2U) Annapurna Labs Alpine AL-314
8 GB DDR3 48 TB HDD Linux Black
Model TS51210RH4804EUEAN 4981254047491
48 specifications
- ProcessorAnnapurna Labs
- Memory8 GB
- TypeNAS
- OSLinux
- ColourBlack
- Storage drives installedYes
Overview
- Processor
- Annapurna Labs
- Memory
- 8 GB
- Type
- NAS
- OS
- Linux
- Colour
- Black
- Storage drives installed
- Yes
- Brand
- Buffalo
- Category
- NAS & Storage Servers
- Model
- TS51210RH4804EU
- Part number
- TS51210RH4804EU
- EAN / UPC
- 4981254047491
- Also known as
- Buffalo TeraStation TS51210RH4804EU NAS/storage server Rack (2U) Annapurna Labs Alpine AL-314 8 GB DDR3 48 TB HDD Linux Black
Specifications
48 specifications in 12 groups
Storage
| Specification | Value |
|---|---|
| Storage drives installed | Yes |
| Total installed storage capacity | 48 TB |
| Number of storage drives installed | 4 |
| Number of storage drives supported | 12 |
| Installed storage drive type | HDD |
| Supported storage drive types | HDD |
| Storage drive capacity | 12 TB |
| Storage drive interface | Serial ATA III |
| Storage drive size | 3.5" |
| RAID support | Yes |
| RAID levels | 0, 1, 5, 6, 10, JBOD |
| Hot-swap drive bays | Yes |
Processor
| Specification | Value |
|---|---|
| Processor family | Annapurna Labs |
| Processor model | Alpine AL-314 |
| Processor frequency | 1.7 GHz |
| Processor cores | 4 |
Memory
| Specification | Value |
|---|---|
| Internal memory | 8 GB |
| Internal memory type | DDR3 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000,10000 Mbit/s |
| Wi-Fi | No |
| iSCSI support | Yes |

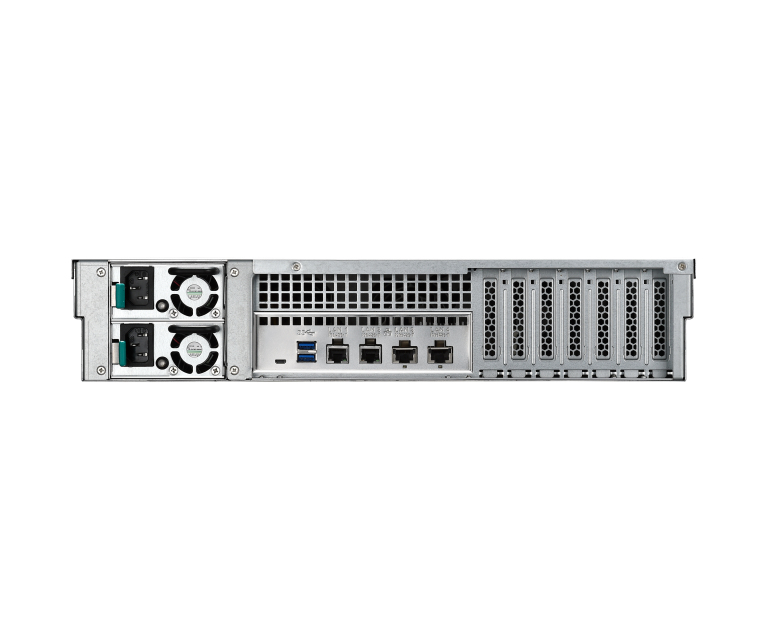

Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 4 |
| USB port | Yes |
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Fiber ports quantity | 0 |
Design
| Specification | Value |
|---|---|
| Chassis type | Rack (2U) |
| Cooling type | Active |
| Product colour | Black |
| LED indicators | Yes |
Performance
| Specification | Value |
|---|---|
| Type | NAS |
| Device class | Small & Medium Business |
| Backup function | Yes |
| Web-based management | Yes |
Software
| Specification | Value |
|---|---|
| Operating system installed | Linux |
Power
| Specification | Value |
|---|---|
| Power supply location | Built-in |
| Number of power supply units | 1 |
| Power consumption (max) | 500 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 736.9 mm |
| Depth | 481 mm |
| Height | 88 mm |
Packaging content
| Specification | Value |
|---|---|
| Cables included | AC, LAN (RJ-45) |
| Quick start guide | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 10 - 85% |
