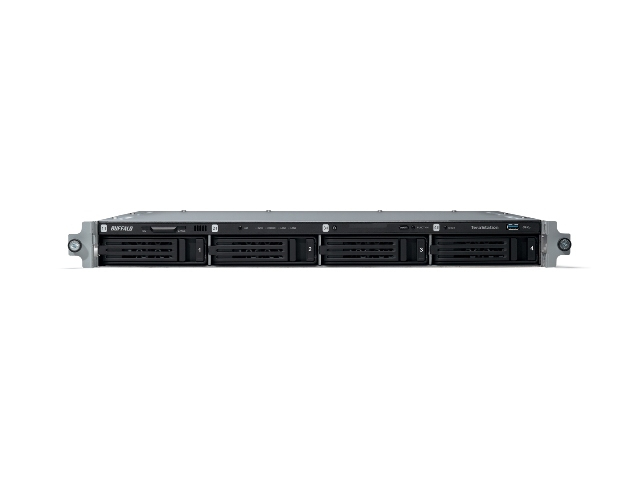

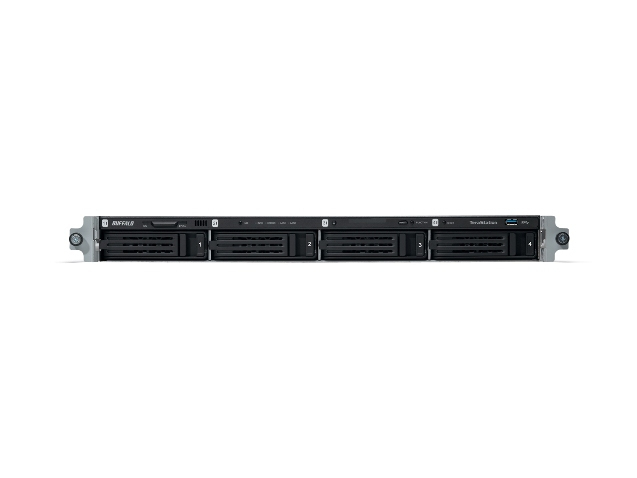

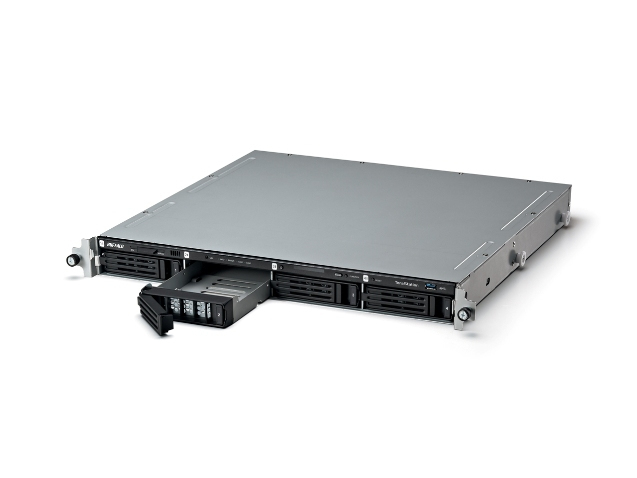

Buffalo TS4400R-EU NAS Rack (1U) Intel Atom® D2700

2 GB DDR3 8 TB HDD Black, Grey

Model TS4400R-EUPart no. TS4400R-EU + 4X ST4000NC000

85 specifications

Overview

Brand: Buffalo
Category: NAS & Storage Servers
Model: TS4400R-EU
Part numbers: TS4400R-EU + 4X ST4000NC000, TS4400R-EU + 4X ST2000VN000, TS4400R-EU + 4X ST3000VN000, TS4400R-EU + 4X ST4000VN000, TS4400R-EU + 4X ST2000VN001, TS4400R-EU + 4X ST4000VN003 +4 more
Also known as: Buffalo TS4400R-EU NAS Rack (1U) Intel Atom® D2700 2 GB DDR3 8 TB HDD Black, Grey

85 specifications in 14 groups

Specification	Value
Storage drives installed	Yes
Total installed storage capacity	8 TB
Number of storage drives installed	4
Number of storage drives supported	4
Installed storage drive type	HDD
Supported storage drive types	HDD
Storage drive capacity	2 TB
Storage drive interface	Serial ATA II
Storage drive size	2.5/3.5"
RAID support	Yes
RAID levels	1, 5, 6, 10, JBOD
Hot-swap drive bays	Yes

Specification	Value
Processor manufacturer	Intel
Processor family	Intel Atom®
Processor model	D2700
Processor frequency	2.13 GHz
Processor cores	2
Processor threads	4
Processor cache	1 MB
L2 cache	1 MB
Bus type	DMI
ECC supported by processor	No
Physical Address Extension (PAE)	36 bit
Processor cache type	L2
Processor code	SR0D9
Processor codename	Cedarview
Processor lithography	32 nm
Processor operating modes	64-bit
Processor package size	22 X 22 mm
Processor socket	BGA 559
Stepping	B2
System bus rate	2.5 GT/s
Thermal Design Power (TDP)	10 W
Tjunction	100 °C
Maximum internal memory supported by processor	4 GB
Memory bandwidth supported by processor (max)	6.4 GB/s

Specification	Value
Internal memory	2 GB
Internal memory type	DDR3

Specification	Value
Ethernet LAN (RJ-45) ports	2
USB 2.0 ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	3
Fiber ports quantity	0
Serial ports quantity	1

Specification	Value
On-board graphics card base frequency	640 MHz
Number of displays supported (on-board graphics)	2

Specification	Value
Type	NAS
Device class	Small & Medium Business
Backup function	Yes
Web-based management	Yes
Powerful backup NovaBACKUP Professional	Yes

Specification	Value
Windows operating systems supported	Yes
Linux operating systems supported	Yes
Mac operating systems supported	Yes

Specification	Value
Embedded options available	No
Enhanced Intel SpeedStep Technology	No
Execute Disable Bit	Yes
Intel 64	Yes
Intel Demand Based Switching	No
Intel Dual Display Capable Technology	Yes
Intel ME Firmware Version	No
Intel Virtualization Technology (VT-x)	No
Intel Virtualization Technology for Directed I/O (VT-d)	No
Intel® High Definition Audio (Intel® HD Audio)	Yes
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® Turbo Boost Technology	No
Maximum number of PCI Express lanes	4
Physical Address Extension (PAE)	Yes
Memory channels supported by processor	Single
Memory types supported by processor	DDR3-SDRAM

Specification	Value
Operating temperature (T-T)	5 - 35 °C

Specification	Value
Processor ARK ID	59683
