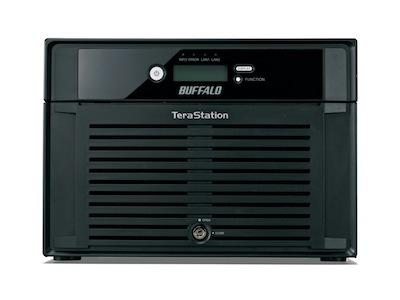

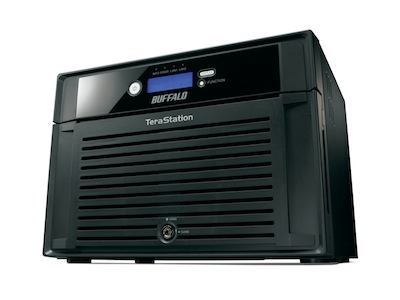

Buffalo TS-8VH: TeraStation Pro 8 Bay

Buffalo TS-8VH: TeraStation Pro 8 Bay

Model TS-8VH: TeraStation Pro 8 BayPart no. TS-8VH16TL/R6EUEAN 5060218471066

63 specifications
  • ProcessorIntel Atom®
  • Memory2 GB
  • Weight12.5 kg
  • Total installed storage capacity16 TB
  • Processor manufacturerIntel
  • Supported network protocolsTCP/IP
See all specifications

Overview

Processor
Intel Atom®
Memory
2 GB
Weight
12.5 kg
Total installed storage capacity
16 TB
Processor manufacturer
Intel
Supported network protocols
TCP/IP
Brand
Buffalo
Model
TS-8VH: TeraStation Pro 8 Bay
Part numbers
TS-8VH16TL/R6EU, TS-8VH8.0TL/R6EU
EAN / UPC
5060218471066
Also known as
Buffalo TS-8VH: TeraStation Pro 8 Bay Intel Atom® D510 2 GB 16 TB

Specifications

63 specifications in 11 groups

Storage

Total installed storage capacity16 TB
Number of storage drives installed8
Storage drive capacity2 TB
Storage drive interfaceSerial ATA
Maximum supported storage capacity16 TB
RAID levels0, 1, 5, 6, 10, 50, 60
Hot-swap drive baysYes

Processor

Processor manufacturerIntel
Processor familyIntel Atom®
Processor modelD510
Processor frequency1.66 GHz
Processor cores2
Processor threads4
Processor cache1 MB
Bus typeDMI
ECC supported by processorNo
Number of processors installed1
Physical Address Extension (PAE)32 bit
Processing Die size87 mm²
Processor cache typeL2
Processor codeSLBLA
Processor codenamePineview
Processor lithography45 nm
Processor operating modes64-bit
Processor package size22 x 22 mm
Processor socketBGA 559
SteppingB0
Thermal Design Power (TDP)13 W
Tjunction100 °C
Maximum internal memory supported by processor4 GB
Memory bandwidth supported by processor (max)6.4 GB/s
Conflict-Free processorNo

Memory

Internal memory2 GB

Network

Compliance industry standardsIEEE802.3ab, IEEE802.3u, IEEE802.3
Supported network protocolsTCP/IP

Ports & interfaces

Ethernet LAN (RJ-45) ports2
USB 2.0 ports quantity2

Design

Display typeLCD

Performance

Management protocolsHTTP, HTTPS
Security algorithms128-bit AES

Weight & dimensions

Weight12.5 kg

Processor special features

Embedded options availableYes
Enhanced Intel SpeedStep TechnologyNo
Execute Disable BitYes
Idle StatesNo
Intel 64Yes
Intel Demand Based SwitchingNo
Intel Enhanced Halt StateNo
Intel Trusted Execution TechnologyNo
Intel Virtualization Technology (VT-x)No
Intel Virtualization Technology for Directed I/O (VT-d)No
Intel® AES New Instructions (Intel® AES-NI)No
Intel® Hyper Threading Technology (Intel® HT Technology)Yes
Intel® Turbo Boost TechnologyNo
Number of Processing Die Transistors176 M
Thermal Monitoring TechnologiesNo
Memory channels supported by processorSingle

Operational conditions

Operating temperature (T-T)5 - 35 °C
Operating relative humidity (H-H)20 - 80%

Other features

Compatible operating systemsWindows 7(32/64-bit), Vista(32/64-bit), XP, Windows Server 2008 R2(64-bit), 2008(32/64-bit), 2003 R2(32-bit), 2003(32-bit), Mac OS 10.4+
Dimensions (WxDxH)300 x 230 x 215 mm
Power requirements100 - 240 V, 50/60 Hz
Processor ARK ID43098
