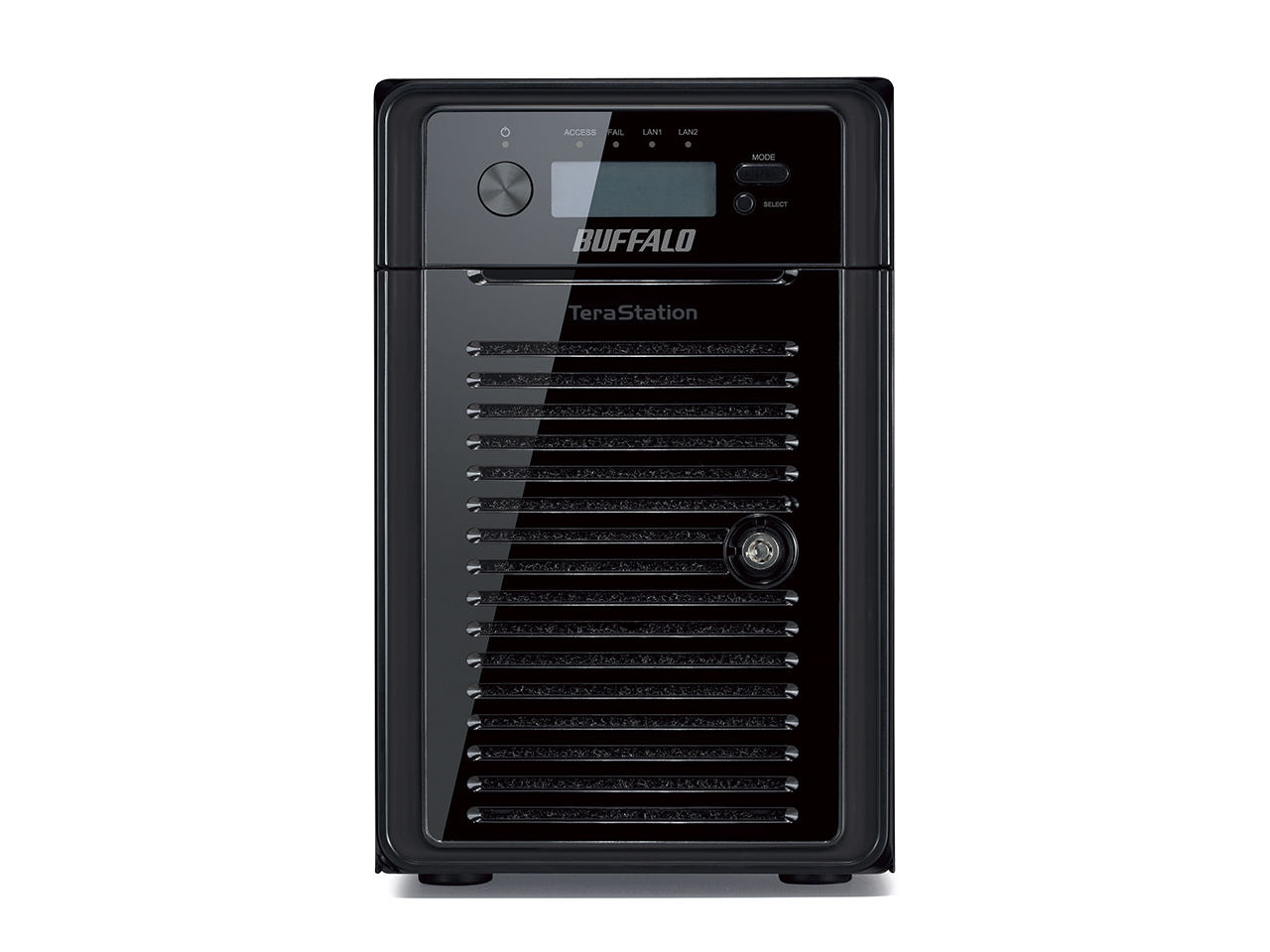

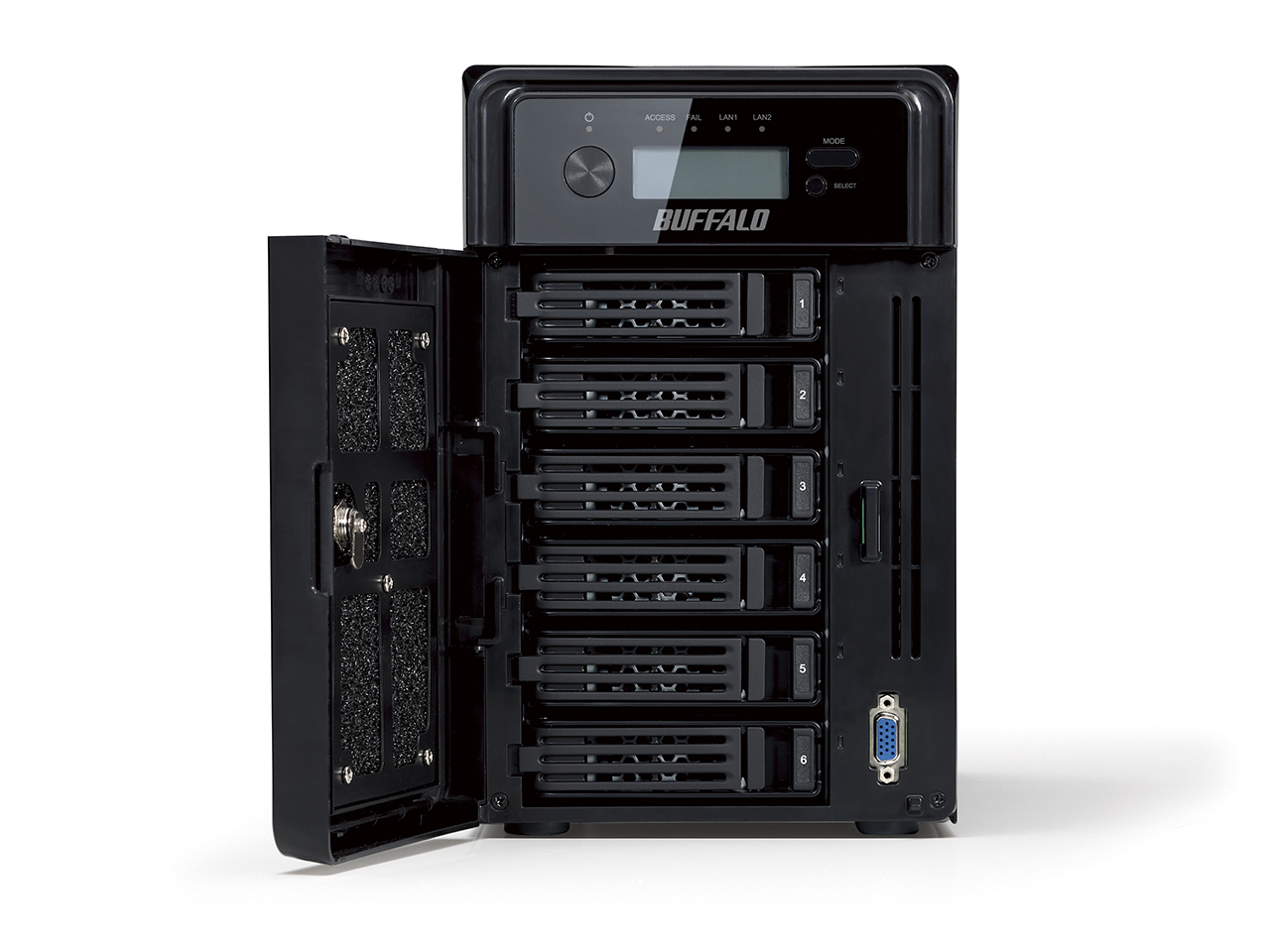

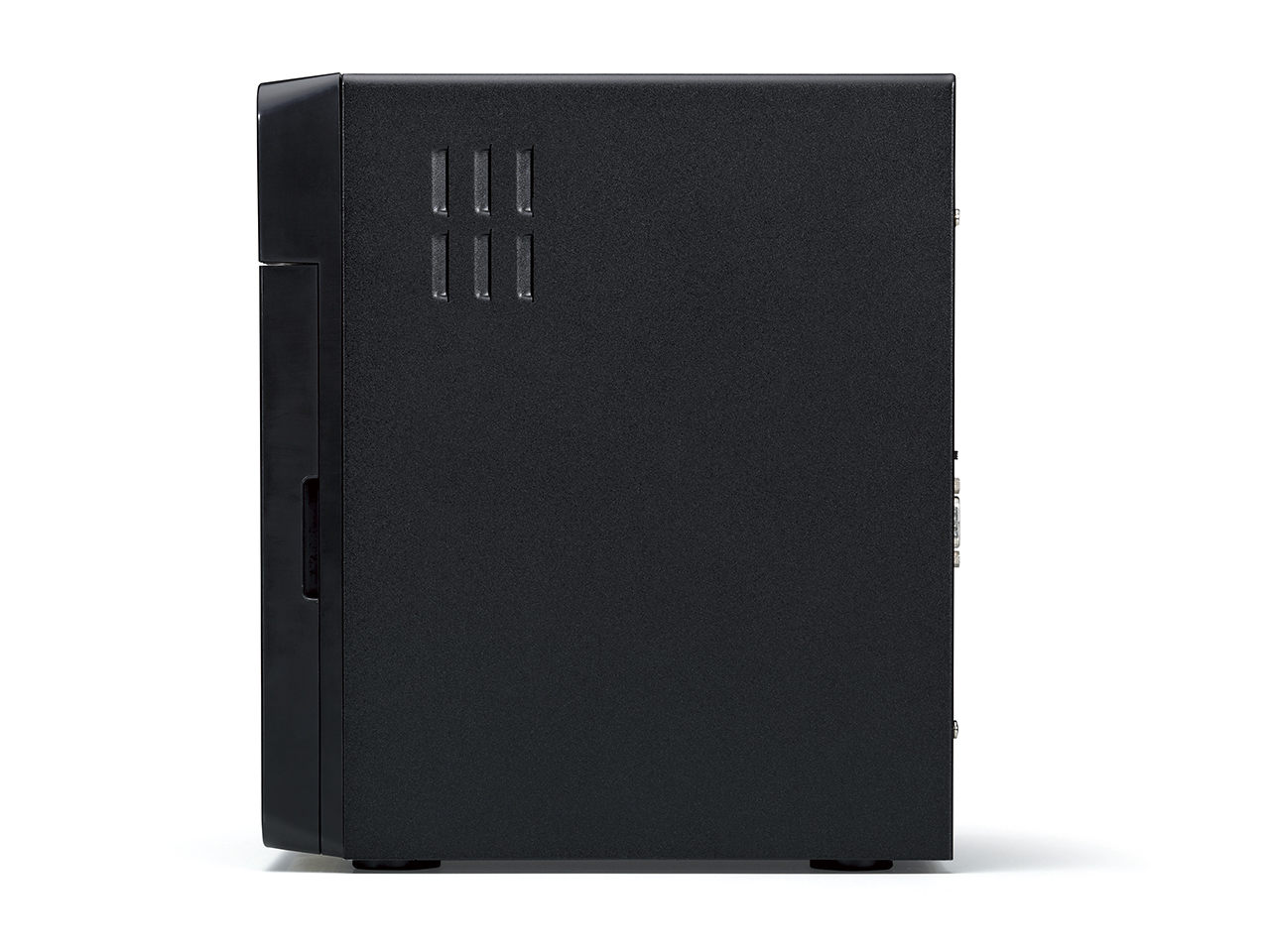

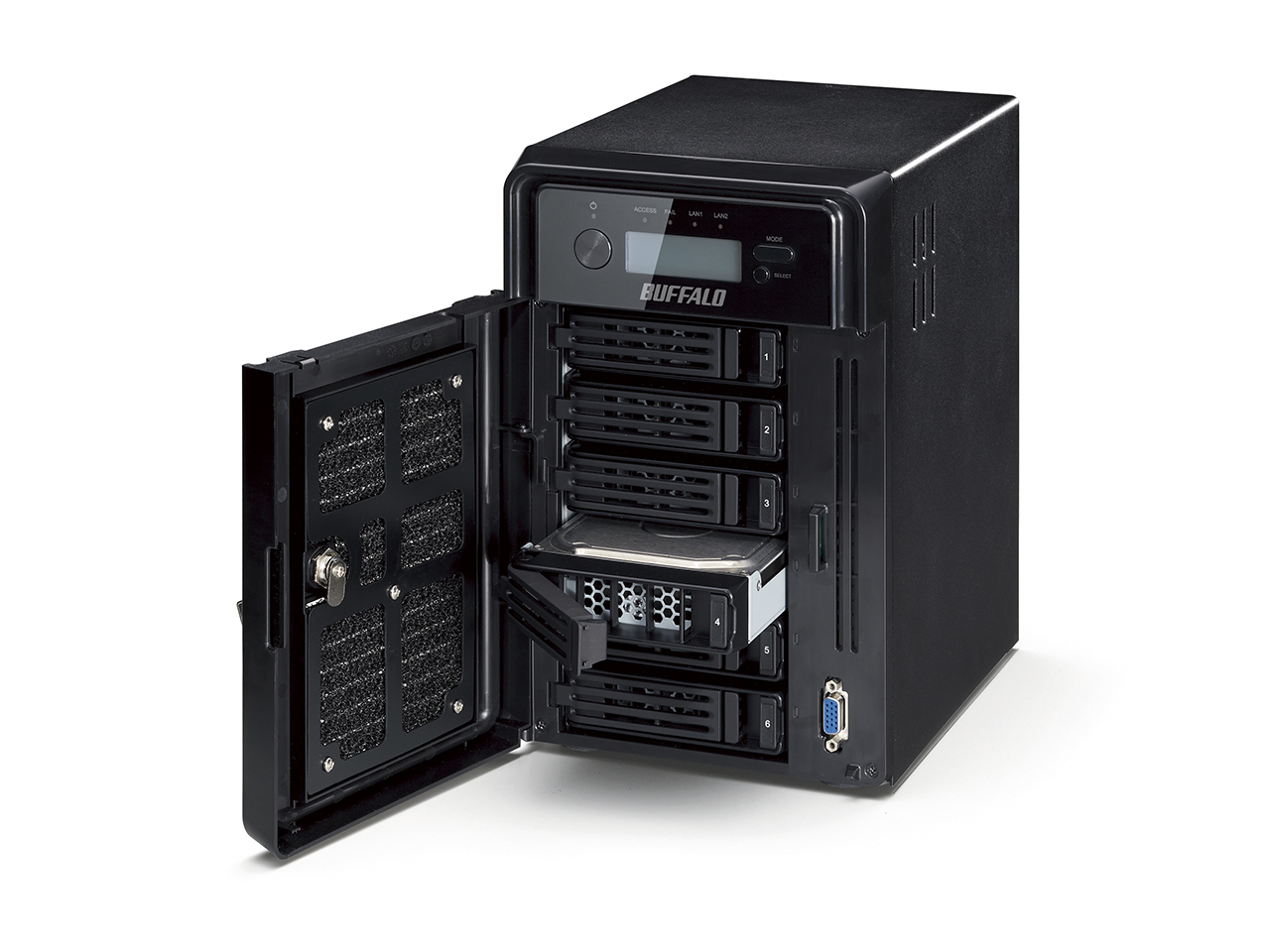

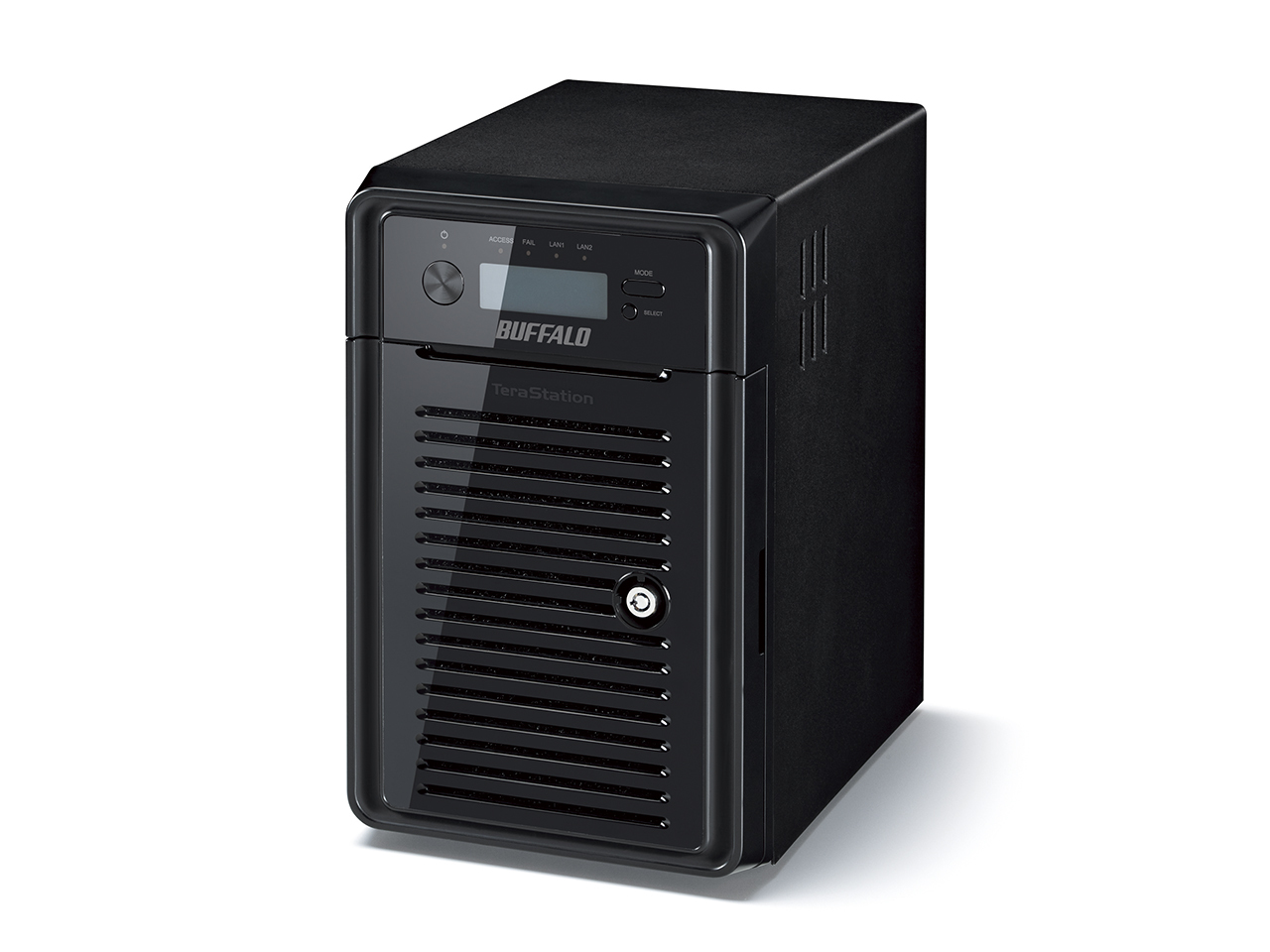

Buffalo TeraStation WSH5610

Model TeraStation WSH5610Part no. WSH5610DN24S2EUEAN 4058154126400

114 specifications

Overview

Brand: Buffalo
Category: NAS & Storage Servers
Model: TeraStation WSH5610
Part numbers: WSH5610DN24S2EU, WSH5610DN12S2EU
EAN / UPC: 4058154126400, 4058154127537, 4981254036310, 4981254036303
Also known as: Buffalo TeraStation WSH5610 NAS Desktop Intel® Celeron® J1900 4 GB DDR3 12 TB HDD Windows Storage Server 2012 R2 Black

114 specifications in 15 groups

Specification	Value
Storage drives installed	Yes
Total installed storage capacity	12 TB
Number of storage drives installed	6
Number of storage drives supported	6
Installed storage drive type	HDD
Supported storage drive types	HDD
Storage drive capacity	2 TB
Storage drive interface	Serial ATA II
Storage drive size	3.5"
RAID support	Yes
RAID levels	0, 5, 6, 10
Hot-swap drive bays	Yes

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Celeron®
Processor model	J1900
Processor frequency	2 GHz
Processor boost frequency	2.42 GHz
Processor cores	4
Processor threads	4
Processor cache	2 MB
CPU configuration (max)	1
ECC supported by processor	No
PCI Express configurations	1x4
PCI Express slots version	2.0
Physical Address Extension (PAE)	36 bit
Processor cache type	L2
Processor code	SR1SC
Processor codename	Bay Trail
Processor lithography	22 nm
Processor operating modes	32-bit, 64-bit
Processor package size	25 X 27 mm
Processor series	Intel Celeron Processor J1000 series for Desktop
Processor socket	BGA 1170
Stepping	B3
Thermal Design Power (TDP)	10 W
Tjunction	105 °C
On-board graphics card model	Intel® HD Graphics
Maximum internal memory supported by processor	8 GB
Conflict-Free processor	Yes

Specification	Value
Internal memory	4 GB
Internal memory type	DDR3

Specification	Value
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Wi-Fi	No
iSCSI support	Yes
Wake-on-LAN ready	Yes
Data link protocols	CIFS/SMB, AFP, HTTP/HTTPS, FTP/SFTP, NFS
Supported network protocols	TCP/IP

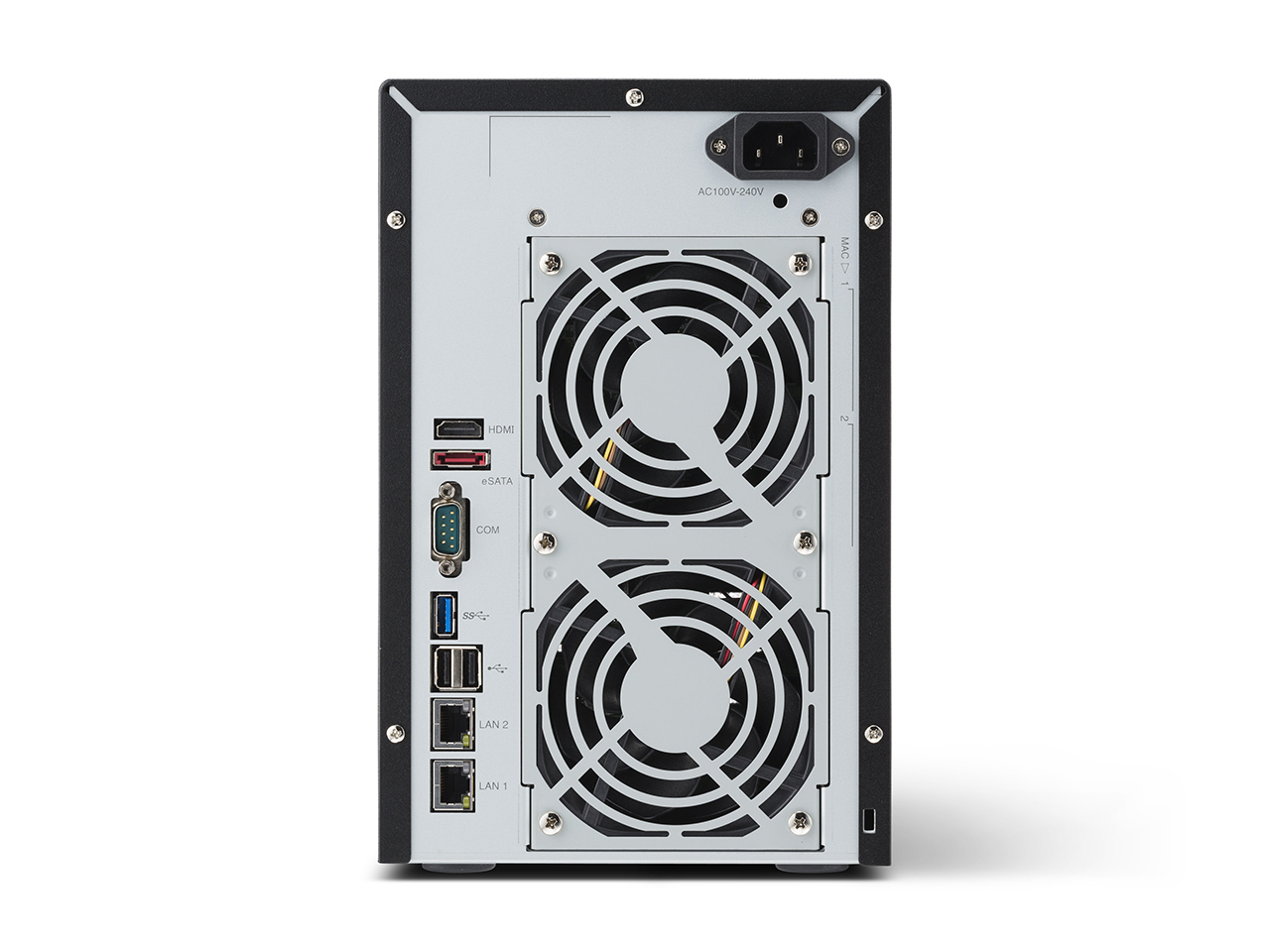

Specification	Value
Ethernet LAN (RJ-45) ports	2
USB port	Yes
USB 2.0 ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	1
Fiber ports quantity	0
eSATA ports quantity	1
HDMI ports quantity	1
Serial ports quantity	1

Specification	Value
On-board graphics card base frequency	688 MHz
On-board graphics card dynamic frequency (max)	854 MHz
Number of displays supported (on-board graphics)	2

Specification	Value
Type	NAS
Device class	Home & Home Office
Backup function	Yes
Management protocols	HTTP/HTTPS
Web-based management	Yes
Network Time Protocol (NTP) client	Yes

Specification	Value
Operating system installed	Windows Storage Server 2012 R2
Windows operating systems supported	Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro x64, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional,
Mac operating systems supported	Mac OS X 10.4 Tiger, Mac OS X 10.5 Leopard, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks
Server operating systems supported	Windows 2000 Server

Specification	Value
Embedded options available	Yes
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Graphics & IMC lithography	22 nm
Intel 64	Yes
Intel FDI Technology	No
Intel Identity Protection Technology version	0.00
Intel Rapid Storage Technology	No
Intel Small Business Advantage (SBA) version	0.00
Intel Stable Image Platform Program (SIPP)	No
Intel Stable Image Platform Program (SIPP) version	0.00
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	No
Intel® AES New Instructions (Intel® AES-NI)	No
Intel® Anti-Theft Technology (Intel® AT)	No
Intel® Hyper Threading Technology (Intel® HT Technology)	No
Intel® Identity Protection Technology (Intel® IPT)	No
Intel® InTru™ 3D Technology	No
Intel® Insider™	No
Intel® Quick Sync Video Technology	Yes
Intel® Turbo Boost Technology	No
Intel® Wireless Display (Intel® WiDi)	No
Maximum number of PCI Express lanes	4
Memory channels supported by processor	Dual
Memory types supported by processor	DDR3L-SDRAM

Specification	Value
Operating temperature (T-T)	5 - 35 °C
Operating relative humidity (H-H)	20 - 80%

Specification	Value
Digital Living Network Alliance (DLNA) certified	Yes
Processor ARK ID	78867
