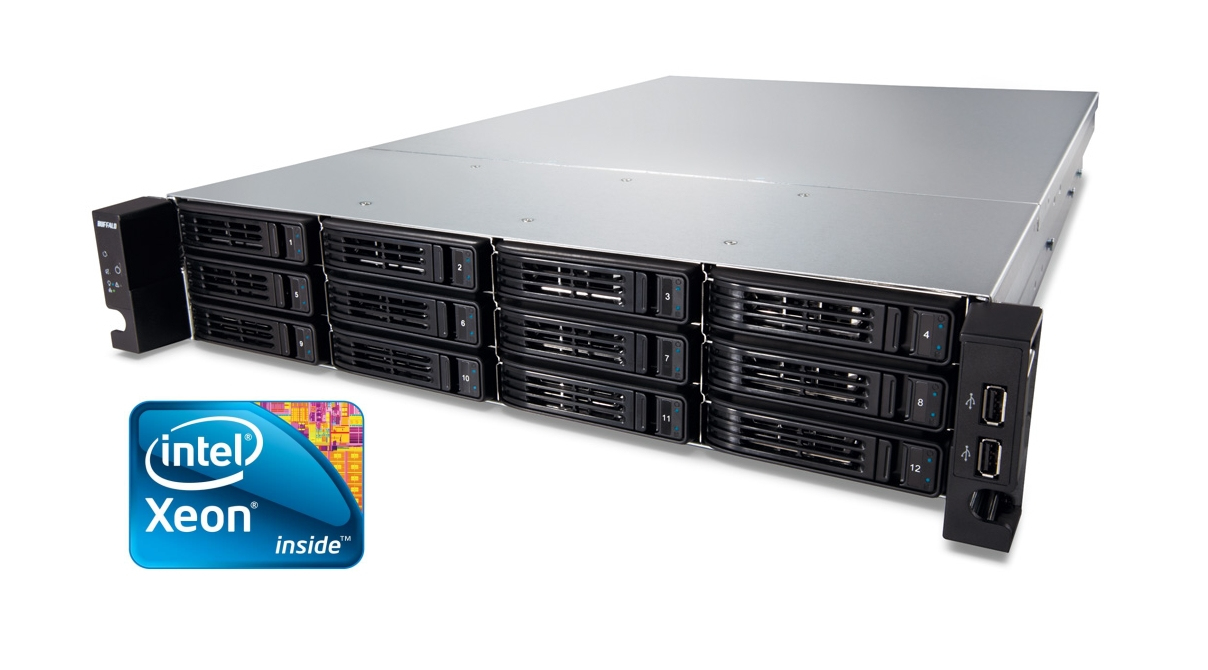

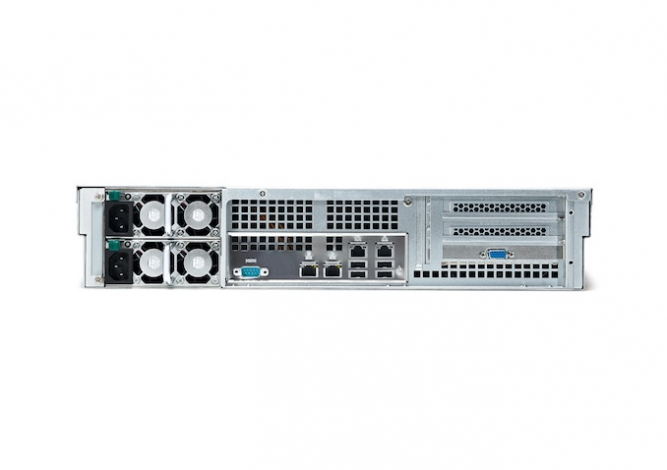

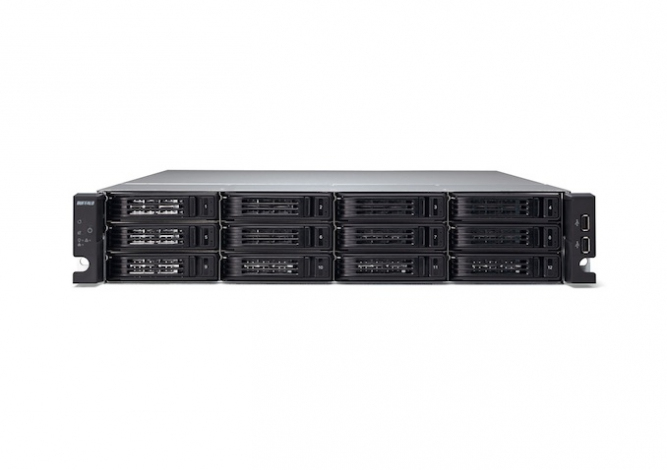

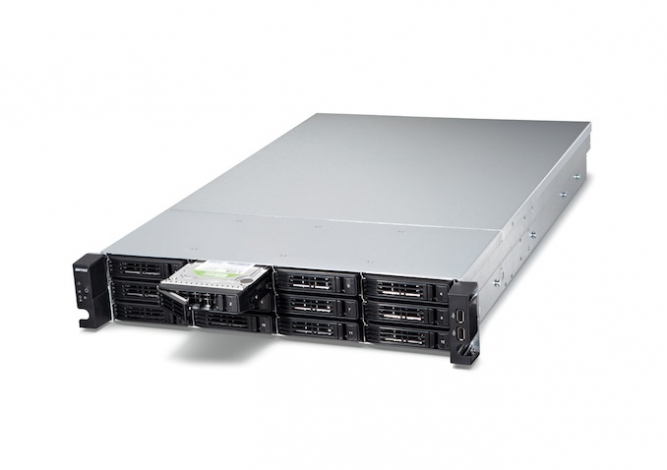

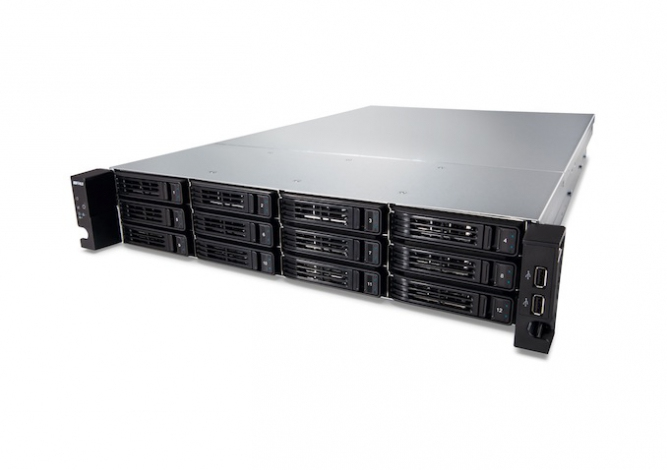

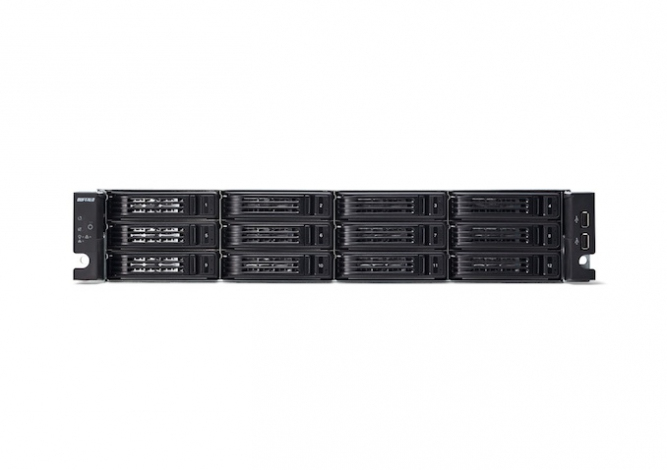

Buffalo TeraStation TS7120r Enterprise

Model TeraStation TS7120r EnterprisePart no. TS-2RZH120T12DEUEAN 4981254038215

117 specifications

Overview

Brand: Buffalo
Category: NAS & Storage Servers
Model: TeraStation TS7120r Enterprise
Part numbers: TS-2RZH120T12DEU, TS-2RZH24T12D-EU, TS-2RZH36T12D-EU, TS-2RZH48T12D-EU, TS-2RZH72T12D-EU, TS-2RZH96T12D-EU
EAN / UPC: 4981254038215, 4053162720688, 5057454716389, 5060218473237 +4 more
Also known as: Buffalo TeraStation TS7120r Enterprise NAS Rack (2U) Intel® Xeon® E3 Family E3-1275 8 GB DDR3 24 TB HDD Linux Black, Silver

117 specifications in 15 groups

Specification	Value
Storage drives installed	Yes
Total installed storage capacity	24 TB
Number of storage drives installed	12
Number of storage drives supported	12
Installed storage drive type	HDD
Supported storage drive types	HDD
Storage drive capacity	2 TB
Storage drive interface	Serial ATA III
Maximum supported storage capacity	48 TB
RAID support	Yes
RAID levels	0, 1, 5, 6, 10, 51, 61, JBOD
Hot-swap drive bays	Yes

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Xeon® E3 Family
Processor model	E3-1275
Processor frequency	3.4 GHz
Processor boost frequency	3.8 GHz
Processor cores	4
Processor threads	8
Processor cache	8 MB
L3 cache	8 MB
Bus type	DMI
CPU configuration (max)	1
CPU multiplier (bus/core ratio)	3.4
ECC supported by processor	Yes
PCI Express slots version	2.0
Processor cache type	Smart Cache
Processor code	SR00P
Processor codename	Sandy Bridge
Processor lithography	32 nm
Processor operating modes	64-bit
Processor package size	37.5 x 37.5 mm
Processor socket	LGA 1155 (Socket H2)
Stepping	D2
System bus rate	5 GT/s
Tcase	72.6 °C
Thermal Design Power (TDP)	95 W
On-board graphics card model	Intel® HD Graphics P3000
Maximum internal memory supported by processor	32 GB
Memory bandwidth supported by processor (max)	21 GB/s

Specification	Value
Internal memory	8 GB
Internal memory type	DDR3

Specification	Value
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Wi-Fi	No
iSCSI support	Yes
Wake-on-LAN ready	Yes
Supported network protocols	TCP/IP

Specification	Value
Ethernet LAN (RJ-45) ports	4
USB 2.0 ports quantity	6
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
VGA (D-Sub) ports quantity	1
Serial ports quantity	1

Specification	Value
On-board graphics card base frequency	850 MHz
On-board graphics card dynamic frequency (max)	1350 MHz
Number of displays supported (on-board graphics)	2

Specification	Value
Type	NAS
Device class	Large Enterprise Business
Backup function	Yes
Built-in optical drive	No
Management protocols	HTTP, HTTPS
Web-based management	Yes
Built-in BitTorrent client	Yes
Powerful backup NovaBACKUP Professional	Yes

Specification	Value
Operating system installed	Linux
Windows operating systems supported	Windows 2000, Windows 2000 Professional, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8
Linux operating systems supported	Yes
Mac operating systems supported	Mac OS X 10.4 Tiger, Mac OS X 10.5 Leopard, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks
Server operating systems supported	Windows 2000 Server, Windows Server 2003, Windows Server 2003 R2, Windows Server 2003 x64, Windows Server 2008, Windows Server 2008 R2, Windows Server 2008 R2 x64, Windows Server 2008 x64

Specification	Value
Power supply location	Built-in
Number of power supply units	2
Redundant power supply (RPS) support	Yes
Power consumption (typical)	250 W
AC input voltage	100-240 V
AC input frequency	50 - 60 Hz

Specification	Value
Quick start guide	Yes

Specification	Value
Embedded options available	Yes
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Idle States	Yes
Intel 64	Yes
Intel Demand Based Switching	Yes
Intel Dual Display Capable Technology	Yes
Intel Enhanced Halt State	Yes
Intel FDI Technology	Yes
Intel Fast Memory Access	Yes
Intel Flex Memory Access	Yes
Intel Identity Protection Technology version	1.00
Intel Trusted Execution Technology	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® Clear Video HD Technology (Intel® CVT HD)	Yes
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® Identity Protection Technology (Intel® IPT)	Yes
Intel® InTru™ 3D Technology	Yes
Intel® Quick Sync Video Technology	Yes
Intel® Smart Cache	Yes
Intel® Turbo Boost Technology	2.0
Intel® Wireless Display (Intel® WiDi)	No
Maximum number of PCI Express lanes	20
Thermal Monitoring Technologies	Yes
Memory channels supported by processor	Dual
Memory types supported by processor	DDR3-SDRAM

Specification	Value
Operating temperature (T-T)	5 - 35 °C
Operating relative humidity (H-H)	20 - 80%

Specification	Value
Digital Living Network Alliance (DLNA) certified	Yes
Processor ARK ID	52277
