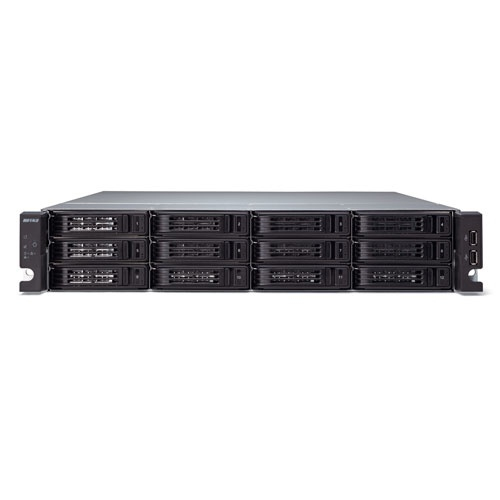

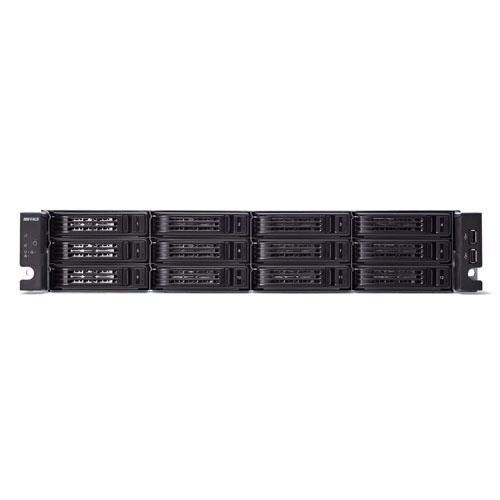

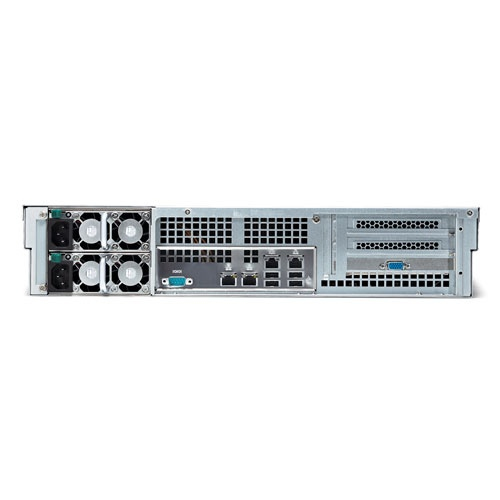

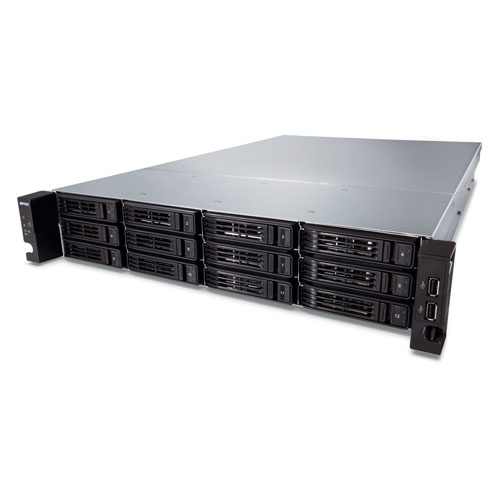

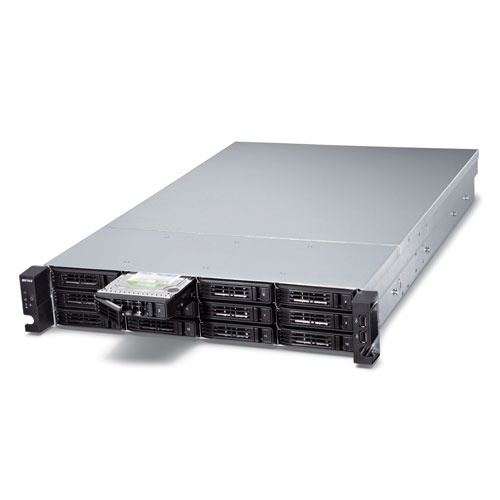

Buffalo TeraStation TS7120 36TB

Model TeraStation TS7120 36TBPart no. TS-2RZH36T12DEAN 747464127156

109 specifications

Overview

Brand: Buffalo
Category: NAS & Storage Servers
Model: TeraStation TS7120 36TB
Part number: TS-2RZH36T12D
EAN / UPC: 747464127156, 7474641271564
Also known as: Buffalo TeraStation TS7120 36TB Rack (2U) Intel® Xeon® E3 Family E3-1275 8 GB DDR3 Black, Grey

109 specifications in 15 groups

Specification	Value
Total installed storage capacity	36 TB
Number of storage drives installed	12
Number of storage drives supported	12
Storage drive capacity	3 TB
Storage drive interface	Serial ATA, Serial ATA II, Serial ATA III
RAID support	Yes
RAID levels	0, 1, 5, 6, 10, 50, 51, 60, 61, JBOD
Hot-swap drive bays	Yes
Supported file systems	DFS

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Xeon® E3 Family
Processor model	E3-1275
Processor frequency	3.4 GHz
Processor boost frequency	3.8 GHz
Processor cores	4
Processor threads	8
Processor cache	8 MB
L3 cache	8 MB
Bus type	DMI
CPU configuration (max)	1
CPU multiplier (bus/core ratio)	3.4
Compatible processor series	Intel® Xeon®
ECC supported by processor	Yes
Number of processors installed	1
PCI Express slots version	2.0
Processor cache type	Smart Cache
Processor code	SR00P
Processor codename	Sandy Bridge
Processor lithography	32 nm
Processor operating modes	64-bit
Processor package size	37.5 x 37.5 mm
Processor socket	LGA 1155 (Socket H2)
Stepping	D2
System bus rate	5 GT/s
Tcase	72.6 °C
Thermal Design Power (TDP)	95 W
On-board graphics card model	Intel® HD Graphics P3000
Maximum internal memory supported by processor	32 GB
Memory bandwidth supported by processor (max)	21 GB/s

Specification	Value
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Wi-Fi	No
Wi-Fi standards	Not supported
iSCSI support	Yes
Compliance industry standards	IEEE802.3ab / IEEE802.3u / IEEE802.3
Cabling technology	10/100/1000Base-T(X)
Supported network protocols	TCP/IP, CIFS/SMB, AFP, HTTP/HTTPS, FTP/SFTP, NFS, LDAP, HTTP/HTTPS, NTP, RTSP

Specification	Value
Ethernet LAN (RJ-45) ports	4
USB 2.0 ports quantity	6
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
Fiber ports quantity	0

Specification	Value
On-board graphics card base frequency	850 MHz
On-board graphics card dynamic frequency (max)	1350 MHz
Number of displays supported (on-board graphics)	2

Specification	Value
Bundled software	NovaBACKUP Business Essentials
Windows operating systems supported	Yes
Mac operating systems supported	Yes

Specification	Value
Redundant power supply (RPS) support	Yes
Power consumption (typical)	250 W
AC input voltage	100-240 V
AC input frequency	50 - 60 Hz

Specification	Value
External power adapter	No

Specification	Value
Embedded options available	Yes
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Idle States	Yes
Intel 64	Yes
Intel Demand Based Switching	Yes
Intel Dual Display Capable Technology	Yes
Intel Enhanced Halt State	Yes
Intel FDI Technology	Yes
Intel Fast Memory Access	Yes
Intel Flex Memory Access	Yes
Intel Identity Protection Technology version	1.00
Intel Trusted Execution Technology	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® Clear Video HD Technology (Intel® CVT HD)	Yes
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® Identity Protection Technology (Intel® IPT)	Yes
Intel® InTru™ 3D Technology	Yes
Intel® Quick Sync Video Technology	Yes
Intel® Smart Cache	Yes
Intel® Turbo Boost Technology	2.0
Intel® Wireless Display (Intel® WiDi)	No
Maximum number of PCI Express lanes	20
Thermal Monitoring Technologies	Yes
Memory channels supported by processor	Dual
Memory types supported by processor	DDR3-SDRAM

Specification	Value
Operating temperature (T-T)	5 - 35 °C
Operating relative humidity (H-H)	20 - 80%

Specification	Value
Digital Living Network Alliance (DLNA) certified	Yes
Certification	DLNA
Processor ARK ID	52277
