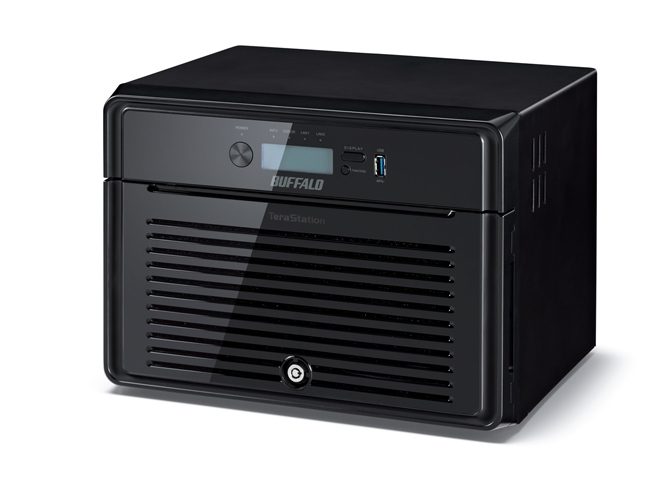

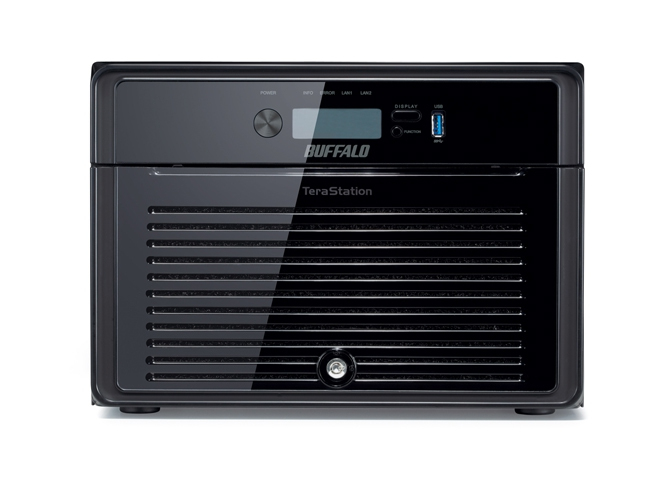

Buffalo TeraStation 5800DWR 16TB

Model TeraStation 5800DWR 16TBPart no. TS5800DWR1608-EUEAN 4053162787605

97 specifications

Overview

Brand: Buffalo
Category: NAS & Storage Servers
Model: TeraStation 5800DWR 16TB
Part number: TS5800DWR1608-EU
EAN / UPC: 4053162787605, 4981254028025
Also known as: Buffalo TeraStation 5800DWR 16TB NAS Intel Atom® D2700 2 GB DDR3 HDD Linux Black

97 specifications in 14 groups

Specification	Value
Storage drives installed	Yes
Total installed storage capacity	16 TB
Number of storage drives installed	8
Number of storage drives supported	8
Installed storage drive type	HDD
Supported storage drive types	HDD
Storage drive capacity	2 TB
Storage drive interface	Serial ATA
Maximum supported storage capacity	32 TB
RAID support	Yes
RAID levels	1, 5, 6, 10, 50, 51, 60, 61, JBOD

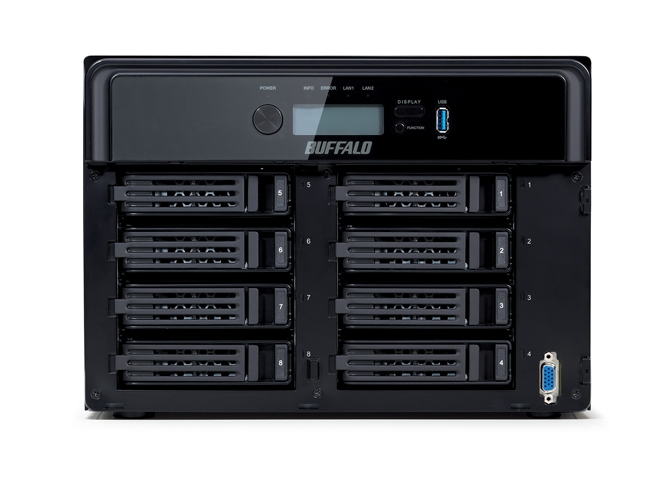

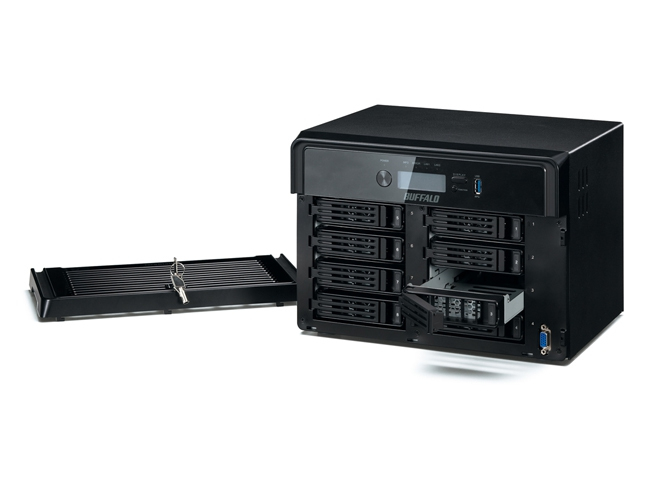

Hot-swap drive bays	Yes

Specification	Value
Processor manufacturer	Intel
Processor family	Intel Atom®
Processor model	D2700
Processor frequency	2.13 GHz
Processor cores	2
Processor threads	4
Processor cache	1 MB
L2 cache	1 MB
Bus type	DMI
ECC supported by processor	No
Physical Address Extension (PAE)	36 bit
Processor cache type	L2
Processor code	SR0D9
Processor codename	Cedarview
Processor lithography	32 nm
Processor operating modes	64-bit
Processor package size	22 X 22 mm
Processor socket	BGA 559
Stepping	B2
System bus rate	2.5 GT/s
Thermal Design Power (TDP)	10 W
Tjunction	100 °C
Maximum internal memory supported by processor	4 GB
Memory bandwidth supported by processor (max)	6.4 GB/s

Specification	Value
Internal memory	2 GB
Internal memory type	DDR3

Specification	Value
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Wi-Fi	No
iSCSI support	Yes

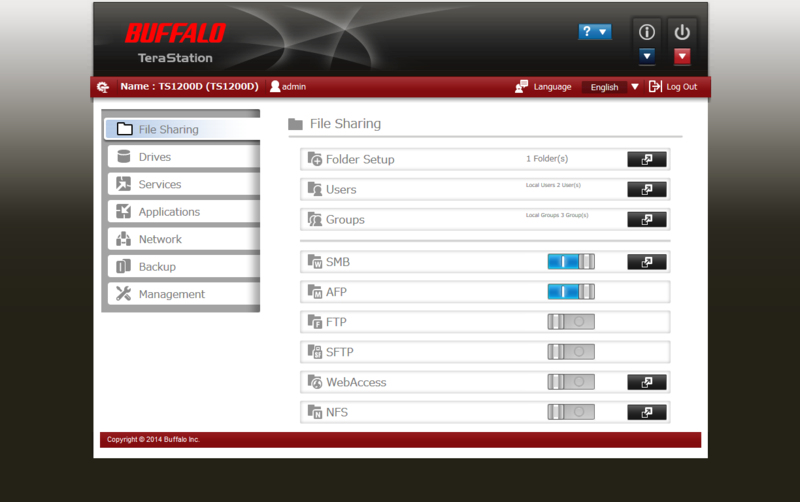

Data link protocols	SMB/CIFS, AFP, FTP/FTPS, SFTP, HTTP/HTTPS, NFS
Supported network protocols	CIFS/SMB, DFS, AFP, HTTP/HTTPS, FTP/SFTP, NFS, LDAP, NTP, SNMP, RTSP, BitTorrent

Specification	Value

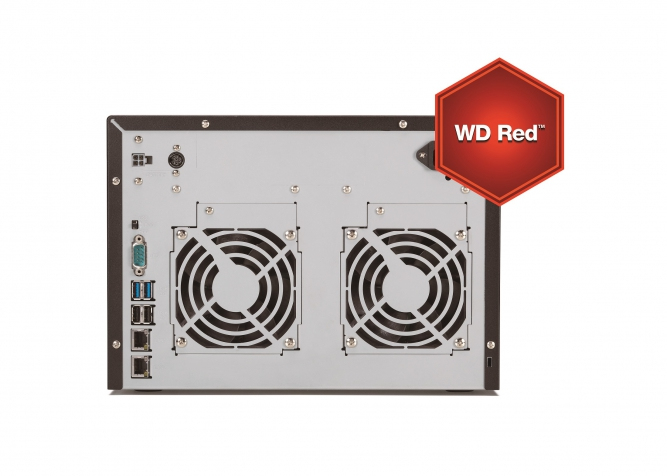

Ethernet LAN (RJ-45) ports	2
USB port	Yes
USB 2.0 ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	3
Fiber ports quantity	0
Serial ports quantity	1

Specification	Value
On-board graphics card base frequency	640 MHz
Number of displays supported (on-board graphics)	2

Specification	Value
Operating system installed	Linux
Windows operating systems supported	Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Win
Mac operating systems supported	Mac OS X 10.4 Tiger, Mac OS X 10.5 Leopard, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks
Server operating systems supported	Windows 2000 Server, Windows Server 2003, Windows Server 2003 R2, Windows Server 2003 x64, Windows Server 2008, Windows Server 2008 R2, Windows Server 2008 R2 x64, Windows Server 2008 x64

Specification	Value
Embedded options available	No
Enhanced Intel SpeedStep Technology	No
Execute Disable Bit	Yes
Intel 64	Yes
Intel Demand Based Switching	No
Intel Dual Display Capable Technology	Yes
Intel ME Firmware Version	No
Intel Virtualization Technology (VT-x)	No
Intel Virtualization Technology for Directed I/O (VT-d)	No
Intel® High Definition Audio (Intel® HD Audio)	Yes
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® Turbo Boost Technology	No
Maximum number of PCI Express lanes	4
Physical Address Extension (PAE)	Yes
Memory channels supported by processor	Single
Memory types supported by processor	DDR3-SDRAM

Specification	Value
Operating temperature (T-T)	5 - 35 °C
Operating relative humidity (H-H)	20 - 80%

Specification	Value
Digital Living Network Alliance (DLNA) certified	Yes
Power management	Yes
Processor ARK ID	59683
