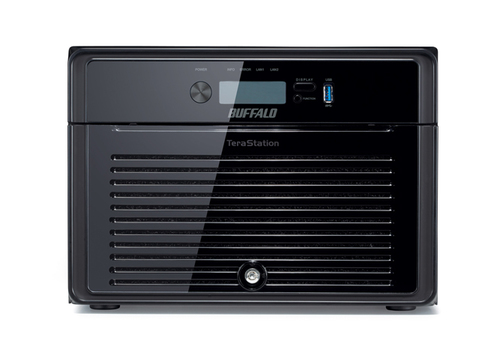

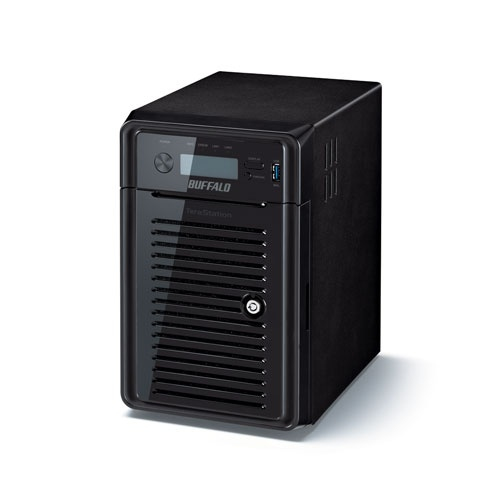

Buffalo TeraStation 5600

Model TeraStation 5600Part no. TS5600D1806EAN 7474641252822

93 specifications

Overview

Brand: Buffalo
Category: NAS & Storage Servers
Model: TeraStation 5600
Part numbers: TS5600D1806, TS5600D1206
EAN / UPC: 7474641252822, 509706789313, 747464125275, 7474641252754 +3 more
Also known as: Buffalo TeraStation 5600 Desktop Intel Atom® D2700 2 GB DDR3 12 TB Black

93 specifications in 15 groups

Specification	Value
Total installed storage capacity	12 TB
Number of storage drives installed	6
Number of storage drives supported	6
Storage drive capacity	2 TB
Storage drive interface	Serial ATA II, Serial ATA III
Storage drive size	3.5"
Maximum supported storage capacity	18 TB
RAID support	Yes
RAID levels	0, 1, 5, 6, 10, 50, 51, JBOD
Hot-swap drive bays	Yes

Specification	Value
Processor manufacturer	Intel
Processor family	Intel Atom®
Processor model	D2700
Processor frequency	2.13 GHz
Processor cores	2
Processor threads	4
Processor cache	1 MB
L2 cache	1 MB
Bus type	DMI
ECC supported by processor	No
Number of processors installed	1
Physical Address Extension (PAE)	36 bit
Processor cache type	L2
Processor code	SR0D9
Processor codename	Cedarview
Processor lithography	32 nm
Processor operating modes	64-bit
Processor package size	22 X 22 mm
Processor socket	BGA 559
Stepping	B2
System bus rate	2.5 GT/s
Thermal Design Power (TDP)	10 W
Tjunction	100 °C
Maximum internal memory supported by processor	4 GB
Memory bandwidth supported by processor (max)	6.4 GB/s

Specification	Value
Internal memory	2 GB
Internal memory type	DDR3

Specification	Value
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Wi-Fi	No
DHCP client	Yes
DHCP server	Yes
Quality of Service (QoS) support	Yes
Cabling technology	10/100/1000Base-T(X)

Specification	Value
Ethernet LAN (RJ-45) ports	2
USB 2.0 ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	3
Fiber ports quantity	0

Specification	Value
On-board graphics card base frequency	640 MHz
Number of displays supported (on-board graphics)	2

Specification	Value
Bundled software	NovaBACKUP Business Essentials v14
Mac operating systems supported	Yes
Pre-installed software	Yes

Specification	Value
Redundant power supply (RPS) support	No
Power consumption (typical)	120 W
AC input voltage	100-240 V
AC input frequency	50 - 60 Hz

Specification	Value
Weight (imperial)	9.98 kg (22 lbs)

Specification	Value
External power adapter	No
Cables included	AC, LAN (RJ-45)

Specification	Value
Embedded options available	No
Enhanced Intel SpeedStep Technology	No
Execute Disable Bit	Yes
Intel 64	Yes
Intel Demand Based Switching	No
Intel Dual Display Capable Technology	Yes
Intel ME Firmware Version	No
Intel Virtualization Technology (VT-x)	No
Intel Virtualization Technology for Directed I/O (VT-d)	No
Intel® High Definition Audio (Intel® HD Audio)	Yes
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® Turbo Boost Technology	No
Maximum number of PCI Express lanes	4
Physical Address Extension (PAE)	Yes
Memory channels supported by processor	Single
Memory types supported by processor	DDR3-SDRAM

Specification	Value
Operating temperature (T-T)	5 - 35 °C
Operating relative humidity (H-H)	20 - 80%
Storage temperature (T-T)	-20 - 60 °C

Specification	Value
Management platform	VMware
Performance management	HTTP, HTTPS
Power LED	Yes
Size (imperial)	23.1 cm (9.1")
Supported protocols	CIFS/SMB, AFP, HTTP/HTTPS, FTP/SFTP/FTPS, NFS
Processor ARK ID	59683
