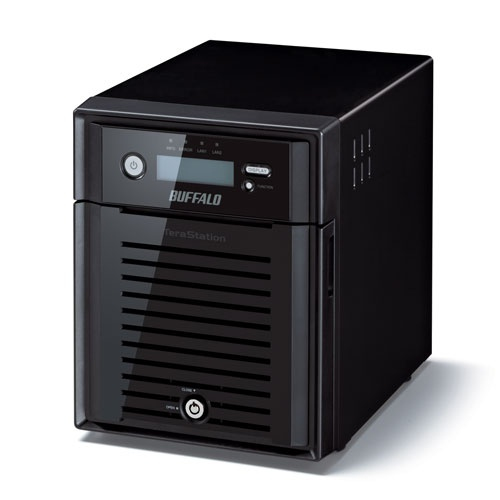

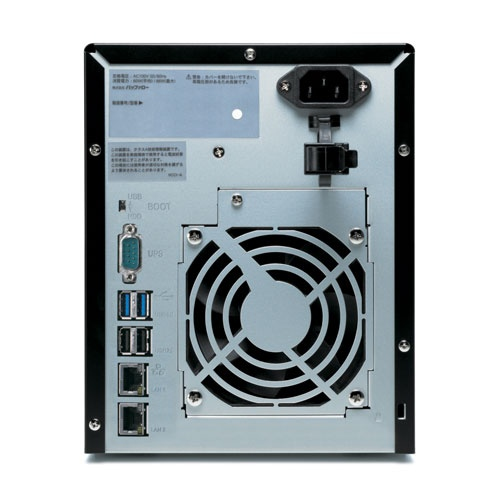

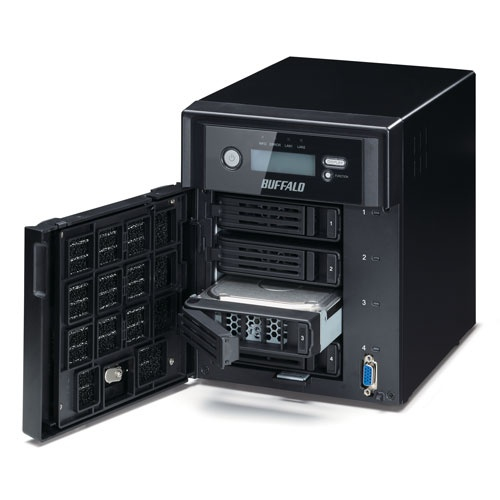

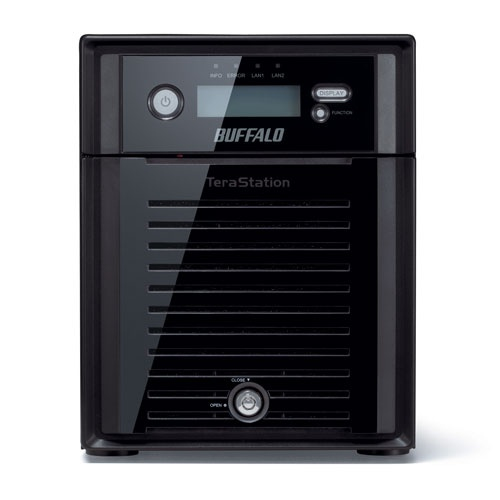

Buffalo TeraStation 5400DN 12TB

Model TeraStation 5400DN 12TBPart no. TS5400DN1204EAN 747464130569

88 specifications

Overview

Brand: Buffalo
Category: NAS & Storage Servers
Model: TeraStation 5400DN 12TB
Part number: TS5400DN1204
EAN / UPC: 747464130569
Also known as: Buffalo TeraStation 5400DN 12TB Storage server Desktop Intel Atom® D2550 2 GB DDR3 HDD Black

88 specifications in 15 groups

Specification	Value
Storage drives installed	Yes
Total installed storage capacity	12 TB
Number of storage drives installed	4
Number of storage drives supported	4
Installed storage drive type	HDD
Supported storage drive types	HDD
Storage drive capacity	3 TB
Storage drive interface	Serial ATA II
Maximum supported storage capacity	24 TB
RAID support	Yes
RAID levels	1, 5, 6, 10, JBOD
Hot-swap drive bays	Yes

Specification	Value
Processor manufacturer	Intel
Processor family	Intel Atom®
Processor model	D2550
Processor frequency	1.86 GHz
Processor cores	2
Processor threads	4
Processor cache	1 MB
L2 cache	1 MB
Bus type	DMI
ECC supported by processor	No
Physical Address Extension (PAE)	36 bit
Processor cache type	L2
Processor code	SR0VY
Processor codename	Cedarview
Processor lithography	32 nm
Processor operating modes	64-bit
Processor package size	22 X 22 mm
Processor socket	BGA 559
Stepping	B3
Thermal Design Power (TDP)	10 W
Tjunction	100 C
Maximum internal memory supported by processor	4 GB
Memory bandwidth supported by processor (max)	6.4 GB/s
Conflict-Free processor	No

Specification	Value
Internal memory	2 GB
Internal memory type	DDR3

Specification	Value
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Wi-Fi	No
Data link protocols	CIFS/SMB, AFP, HTTP/HTTPS, FTP/SFTP, NFS
Supported network protocols	TCP/IP

Specification	Value
Ethernet LAN (RJ-45) ports	2
USB 2.0 ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
Fiber ports quantity	0

Specification	Value
On-board graphics card base frequency	640 MHz
Number of displays supported (on-board graphics)	2

Specification	Value
Windows operating systems supported	Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows
Mac operating systems supported	Mac OS X 10.5 Leopard, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks
Server operating systems supported	Windows Server 2003, Windows Server 2003 R2, Windows Server 2003 x64, Windows Server 2008, Windows Server 2008 R2, Windows Server 2008 R2 x64, Windows Server 2008 x64, Windows Server 2012, Windows Server 2012 R2, Windows Server 2012 R2 x64, Windows Server 2012 x64

Specification	Value
Embedded options available	Yes
Enhanced Intel SpeedStep Technology	No
Intel 64	Yes
Intel Dual Display Capable Technology	Yes
Intel Virtualization Technology (VT-x)	No
Intel Virtualization Technology for Directed I/O (VT-d)	No
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® Turbo Boost Technology	No
Maximum number of PCI Express lanes	4
Physical Address Extension (PAE)	Yes
Memory channels supported by processor	Single
Memory types supported by processor	DDR3-SDRAM

Specification	Value
Operating temperature (T-T)	0 - 35 °C
Operating relative humidity (H-H)	20 - 80%

Specification	Value
Processor ARK ID	65470
