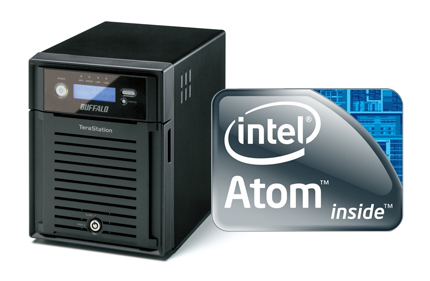

Buffalo TeraStation 5400

Model TeraStation 5400Part no. TS5400D0804V5-EUEAN 4981254006481

92 specifications

Overview

Brand: Buffalo
Category: NAS & Storage Servers
Model: TeraStation 5400
Part numbers: TS5400D0804V5-EU, TS5400D0404-EU, TS5400D0804-EU, TS5400D1204-EU, TS5400D1604-EU
EAN / UPC: 4981254006481, 4053162674172, 5060218473503, 4053162674189 +6 more
Also known as: Buffalo TeraStation 5400 Storage server Intel Atom® D2550 2 GB DDR3 4 TB HDD Black

92 specifications in 14 groups

Specification	Value
Storage drives installed	Yes
Total installed storage capacity	4 TB
Number of storage drives installed	4
Number of storage drives supported	4
Installed storage drive type	HDD
Supported storage drive types	HDD
Storage drive capacity	1 TB
Storage drive interface	Serial ATA
Maximum supported storage capacity	16 TB
RAID support	Yes
RAID levels	0, 1, 5, 6, 10, JBOD
Hot-swap drive bays	Yes
Drive device, transfer rate	375 MB/s

Specification	Value
Processor manufacturer	Intel
Processor family	Intel Atom®
Processor model	D2550
Processor frequency	1.86 GHz
Processor cores	2
Processor threads	4
Processor cache	1 MB
L2 cache	1 MB
Bus type	DMI
ECC supported by processor	No
Number of processors installed	1
Physical Address Extension (PAE)	36 bit
Processor cache type	L2
Processor code	SR0VY
Processor codename	Cedarview
Processor lithography	32 nm
Processor operating modes	64-bit
Processor package size	22 X 22 mm
Processor socket	BGA 559
Stepping	B3
Thermal Design Power (TDP)	10 W
Tjunction	100 C
Maximum internal memory supported by processor	4 GB
Memory bandwidth supported by processor (max)	6.4 GB/s
Conflict-Free processor	No

Specification	Value
Internal memory	2 GB
Internal memory type	DDR3

Specification	Value
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
iSCSI support	Yes
Compliance industry standards	IEEE802.3ab, IEEE802.3u, IEEE802.3
Supported network protocols	TCP/IP, CIFS/SMB, AFP, HTTP/HTTPS, FTP/SFTP, NFS, LDAP, NTP, RTSP

Specification	Value
Ethernet LAN (RJ-45) ports	2
USB 2.0 ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
Fiber ports quantity	0
VGA (D-Sub) ports quantity	0
HDMI ports quantity	0
RS-232 ports	1
External mini-SAS ports	0
FireWire 400	No
FireWire 800	No

Specification	Value
On-board graphics card base frequency	640 MHz
Number of displays supported (on-board graphics)	2

Specification	Value
Type	Storage server
Device class	Small & Medium Business
Backup function	Yes
Management protocols	HTTP, HTTPS
Built-in BitTorrent client	Yes
Powerful backup NovaBACKUP Professional	Yes

Specification	Value
Windows operating systems supported	Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows Vista Business, Windows Vista Business x64, Windows Vi
Mac operating systems supported	Mac OS X 10.4 Tiger, Mac OS X 10.5 Leopard, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion
Server operating systems supported	Windows Server 2003, Windows Server 2003 R2, Windows Server 2003 x64, Windows Server 2008, Windows Server 2008 R2, Windows Server 2008 x64

Specification	Value
Embedded options available	Yes
Enhanced Intel SpeedStep Technology	No
Intel 64	Yes
Intel Dual Display Capable Technology	Yes
Intel Virtualization Technology (VT-x)	No
Intel Virtualization Technology for Directed I/O (VT-d)	No
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® Turbo Boost Technology	No
Maximum number of PCI Express lanes	4
Physical Address Extension (PAE)	Yes
Memory channels supported by processor	Single
Memory types supported by processor	DDR3-SDRAM

Specification	Value
Operating temperature (T-T)	5 - 35 °C
Operating relative humidity (H-H)	20 - 80%

Specification	Value
Digital Living Network Alliance (DLNA) certified	Yes
Processor ARK ID	65470
