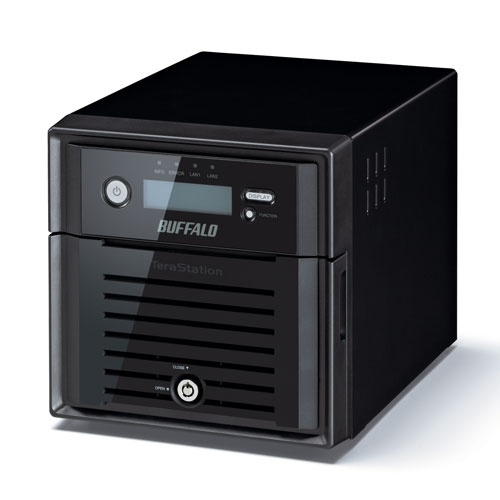

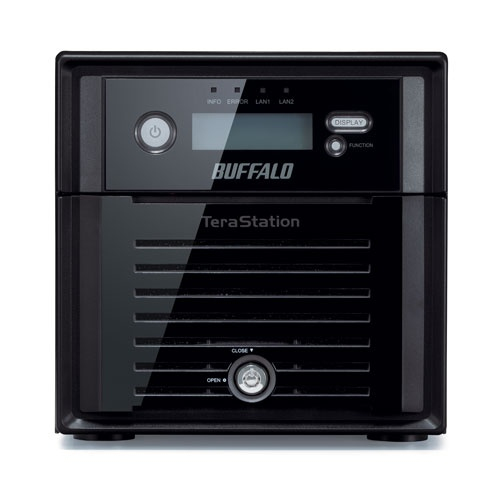

Buffalo TeraStation 5200 8TB

Model TeraStation 5200 8TBPart no. WS5200D0802-EUEAN 5060218474302

88 specifications

Overview

Brand: Buffalo
Category: NAS & Storage Servers
Model: TeraStation 5200 8TB
Part numbers: WS5200D0802-EU, WS5200D0802
EAN / UPC: 5060218474302, 747464126425, 7474641264252
Also known as: Buffalo TeraStation 5200 8TB Storage server Intel Atom® D2550 4 GB DDR3 HDD Windows Storage Server 2012 Black

88 specifications in 14 groups

Specification	Value
Storage drives installed	Yes
Total installed storage capacity	8 TB
Number of storage drives installed	2
Number of storage drives supported	2
Installed storage drive type	HDD
Supported storage drive types	HDD
Storage drive capacity	4 TB
Storage drive interface	Serial ATA
Maximum supported storage capacity	8 TB
RAID support	Yes
RAID levels	0, 1, JBOD

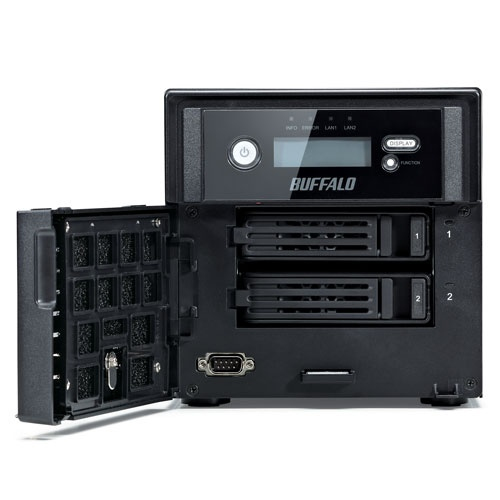

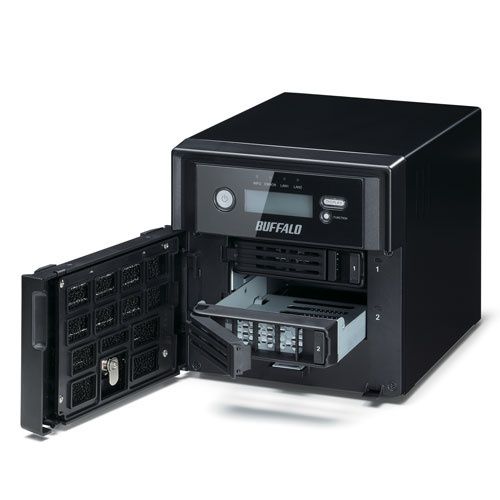

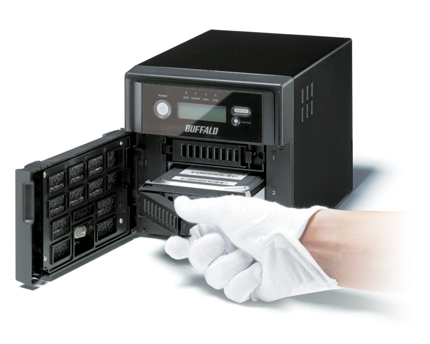

Hot-swap drive bays	Yes
Supported file systems	DFS

Specification	Value
Processor manufacturer	Intel
Processor family	Intel Atom®
Processor model	D2550
Processor frequency	1.86 GHz
Processor cores	2
Processor threads	4
Processor cache	1 MB
L2 cache	1 MB
Bus type	DMI
ECC supported by processor	No
Physical Address Extension (PAE)	36 bit
Processor cache type	L2
Processor code	SR0VY
Processor codename	Cedarview
Processor lithography	32 nm
Processor operating modes	64-bit
Processor package size	22 X 22 mm
Processor socket	BGA 559
Stepping	B3
Thermal Design Power (TDP)	10 W
Tjunction	100 C
Maximum internal memory supported by processor	4 GB
Memory bandwidth supported by processor (max)	6.4 GB/s
Conflict-Free processor	No

Specification	Value
Internal memory	4 GB
Internal memory type	DDR3

Specification	Value
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Wi-Fi	No
iSCSI support	Yes
Supported network protocols	TCP/IP

Specification	Value

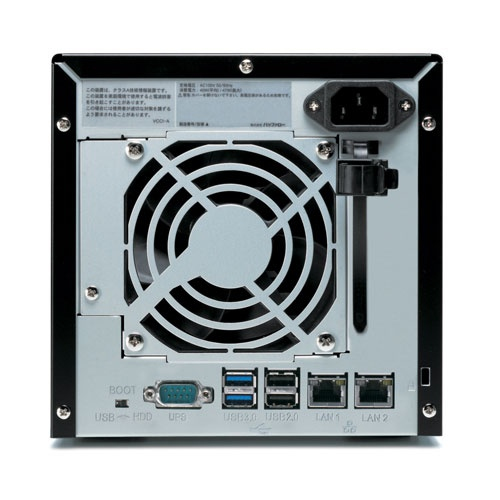

Ethernet LAN (RJ-45) ports	2
USB 2.0 ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
Fiber ports quantity	0

Specification	Value
On-board graphics card base frequency	640 MHz
Number of displays supported (on-board graphics)	2

Specification	Value
Type	Storage server
Device class	Small & Medium Business
Backup function	Yes
Management protocols	HTTP/HTTPS, RDP, Terminal
Built-in BitTorrent client	Yes
On/off switch	Yes
Powerful backup NovaBACKUP Professional	Yes
Reset button	Yes

Specification	Value
Operating system installed	Windows Storage Server 2012
Windows operating systems supported	Yes
Mac operating systems supported	Yes

Specification	Value
Embedded options available	Yes
Enhanced Intel SpeedStep Technology	No
Intel 64	Yes
Intel Dual Display Capable Technology	Yes
Intel Virtualization Technology (VT-x)	No
Intel Virtualization Technology for Directed I/O (VT-d)	No
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® Turbo Boost Technology	No
Maximum number of PCI Express lanes	4
Physical Address Extension (PAE)	Yes
Memory channels supported by processor	Single
Memory types supported by processor	DDR3-SDRAM

Specification	Value
Operating temperature (T-T)	5 - 35 °C
Operating relative humidity (H-H)	20 - 80%

Specification	Value
Digital Living Network Alliance (DLNA) certified	Yes
Processor ARK ID	65470
