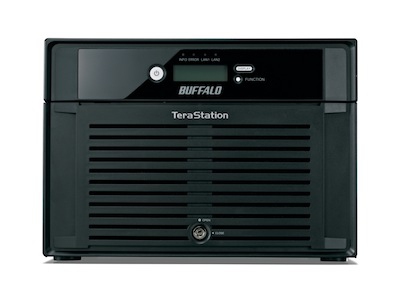

Buffalo 8.0TB TeraStation Pro 8 Bay

Model 8.0TB TeraStation Pro 8 BayPart no. TS-8VH8.0TL/R6E

69 specifications

Overview

Brand: Buffalo
Category: NAS & Storage Servers
Model: 8.0TB TeraStation Pro 8 Bay
Part number: TS-8VH8.0TL/R6E
Also known as: Buffalo 8.0TB TeraStation Pro 8 Bay Intel Atom® D510 2 GB 8 TB

69 specifications in 11 groups

Specification	Value
Total installed storage capacity	8 TB
Number of storage drives installed	8
Number of storage drives supported	8
Storage drive capacity	1 TB
Storage drive interface	Serial ATA
Maximum supported storage capacity	24 TB
RAID levels	0, 1, 5, 6, 10, 50, 51, 60, 61, JBOD

Specification	Value
Processor manufacturer	Intel
Processor family	Intel Atom®
Processor model	D510
Processor frequency	1.66 GHz
Processor cores	2
Processor threads	4
Processor cache	1 MB
Bus type	DMI
ECC supported by processor	No
Number of processors installed	1
Physical Address Extension (PAE)	32 bit
Processing Die size	87 mm²
Processor cache type	L2
Processor code	SLBLA
Processor codename	Pineview
Processor lithography	45 nm
Processor operating modes	64-bit
Processor package size	22 x 22 mm
Processor socket	BGA 559
Stepping	B0
Thermal Design Power (TDP)	13 W
Tjunction	100 °C
Maximum internal memory supported by processor	4 GB
Memory bandwidth supported by processor (max)	6.4 GB/s
Conflict-Free processor	No

Specification	Value
Internal memory	2 GB

Specification	Value
Compliance industry standards	IEEE802.3ab/IEEE802.3u/IEEE802.3
Cabling technology	10/100/1000BASE-T(X)
Maximum data transfer rate	1000 Mbit/s
Supported network protocols	TCP/IP, SMB/CIFS, AFP, FTP/FTPS, SFTP, HTTP/HTTPS, NFS

Specification	Value
Ethernet LAN (RJ-45) ports	2
USB 2.0 ports quantity	2

Specification	Value
Management protocols	HTTP, HTTPS
On/off switch	Yes

Specification	Value
Weight	12.5 kg

Specification	Value
Embedded options available	Yes
Enhanced Intel SpeedStep Technology	No
Execute Disable Bit	Yes
Idle States	No
Intel 64	Yes
Intel Demand Based Switching	No
Intel Enhanced Halt State	No
Intel Trusted Execution Technology	No
Intel Virtualization Technology (VT-x)	No
Intel Virtualization Technology for Directed I/O (VT-d)	No
Intel® AES New Instructions (Intel® AES-NI)	No
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® Turbo Boost Technology	No
Number of Processing Die Transistors	176 M
Thermal Monitoring Technologies	No
Memory channels supported by processor	Single

Specification	Value
Operating temperature (T-T)	5 - 35 °C
Operating relative humidity (H-H)	20 - 80%

Specification	Value
Compatible operating systems	Windows 7(32/64), Vista(32/64), XP, Windows Server 2008 R2(64),2008(32/64), 2003 R2(32), 2003(32), Mac OS 10.4
Dimensions (WxDxH)	300 x 230 x 215 mm
Fan	Yes
Networking features	Gigabit Ethernet
Power requirements	100-240V, 50/60Hz
Processor ARK ID	43098
