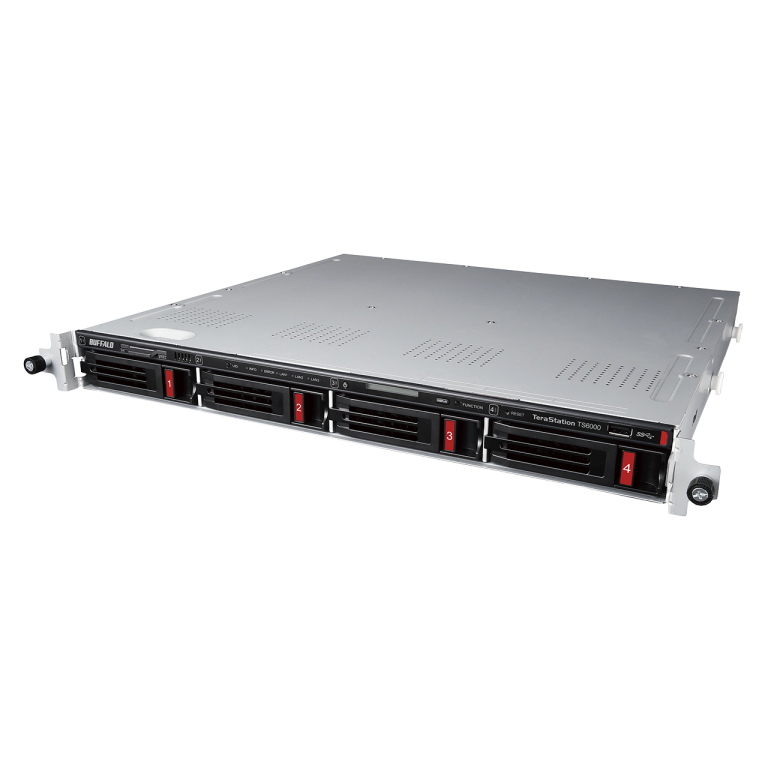

Buffalo TeraStation 6400RN NAS Rack (1U) Intel Atom® C3538
Buffalo

TeraStation 6400RN NAS Rack (1U) Intel Atom® C3538

8 GB DDR4 32 TB HDD Linux Black

Model 6400RNPart no. TS6400RN0802EAN 747464134307

90 specifications
  • ProcessorIntel Atom®
  • Memory8 GB
  • TypeNAS
  • OSLinux
  • Weight8.9 kg
  • ColourBlack
See all specifications

Overview

Processor
Intel Atom®
Memory
8 GB
Type
NAS
OS
Linux
Weight
8.9 kg
Colour
Black
Brand
Buffalo
Model
6400RN
Part numbers
TS6400RN0802, TS6400RN3204-EU, TS6400RN1604-EU, TS6400RN1602
EAN / UPC
747464134307, 4981254052242, 4981254052235, 747464134291
Also known as
Buffalo TeraStation 6400RN NAS Rack (1U) Intel Atom® C3538 8 GB DDR4 32 TB HDD Linux Black

Specifications

90 specifications in 14 groups

Storage

Storage drives installedYes
Total installed storage capacity32 TB
Number of storage drives installed4
Number of storage drives supported4
Installed storage drive typeHDD
Supported storage drive typesHDD
Storage drive capacity8 TB
Storage drive interfaceSerial ATA III
Supported storage drive interfacesSerial ATA III
RAID supportYes
RAID levels0, 1, 5, 6, 10, JBOD
Hot-swap drive baysYes

Processor

Processor manufacturerIntel
Processor familyIntel Atom®
Processor modelC3538
Processor frequency2.1 GHz
Processor boost frequency2.1 GHz
Processor cores4
Processor threads4
Processor cache8 MB
CPU configuration (max)1
PCI Express slots version3.0
Processor cache typeSmart Cache
Processor codeSR3L7
Processor codenameDenverton
Processor lithography14 nm
Processor operating modes64-bit
Processor package size34 x 28 mm
Processor socketBGA 1310
SteppingB1
Tcase87 °C
Thermal Design Power (TDP)15 W
Tjunction100 °C
Maximum internal memory supported by processor256 GB
Conflict-Free processorYes

Memory

Internal memory8 GB
Internal memory typeDDR4

Network

Ethernet LANYes
Ethernet LAN data rates10,100,1000,2500,5000,10000 Mbit/s
Ethernet LAN data rate supported (max)10000 Mbit/s
Wi-FiNo
iSCSI supportYes
Supported network protocolsTCP/IP, UDP

Ports & interfaces

Ethernet LAN (RJ-45) ports3
USB portYes
USB 2.0 ports quantity0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity2
Fiber ports quantity0

Design

Chassis typeRack (1U)
Product colourBlack

Performance

TypeNAS
Device classHome & Home Office
Backup functionYes
Backup featuresCloud, iSCSI LUN
Web-based managementYes

Software

Operating system installedLinux
Windows operating systems supportedWindows 10, Windows 7, Windows 8.1
Mac operating systems supportedMac OS X 10.11 El Capitan
Server operating systems supportedWindows Server 2008, Windows Server 2012, Windows Server 2016

Power

Power consumption (max)100 W
Power consumption (typical)64 W
Power consumption (HDD standby)6 W
AC input voltage100 - 240 V
AC input frequency50 - 60 Hz

Weight & dimensions

Width430 mm
Depth430 mm
Height44.3 mm
Weight8.9 kg

Packaging content

Cables includedAC
Quick start guideYes

Processor special features

Embedded options availableYes
Execute Disable BitYes
Intel QuickAssist TechnologyYes
Intel Secure BootYes
Intel Secure Boot Technology version1.00
Intel Secure Key Technology version1.00
Intel VT-x with Extended Page Tables (EPT)Yes
Intel Virtualization Technology (VT-x)Yes
Intel Virtualization Technology for Directed I/O (VT-d)Yes
Intel® AES New Instructions (Intel® AES-NI)Yes
Intel® Hyper Threading Technology (Intel® HT Technology)No
Intel® OS GuardYes
Intel® Secure KeyYes
Intel® Turbo Boost TechnologyNo
Maximum number of PCI Express lanes12
Number of QPI links0
Memory types supported by processorDDR4-SDRAM

Operational conditions

Operating temperature (T-T)0 - 40 °C
Operating relative humidity (H-H)10 - 85%

Other features

Processor ARK ID97929
