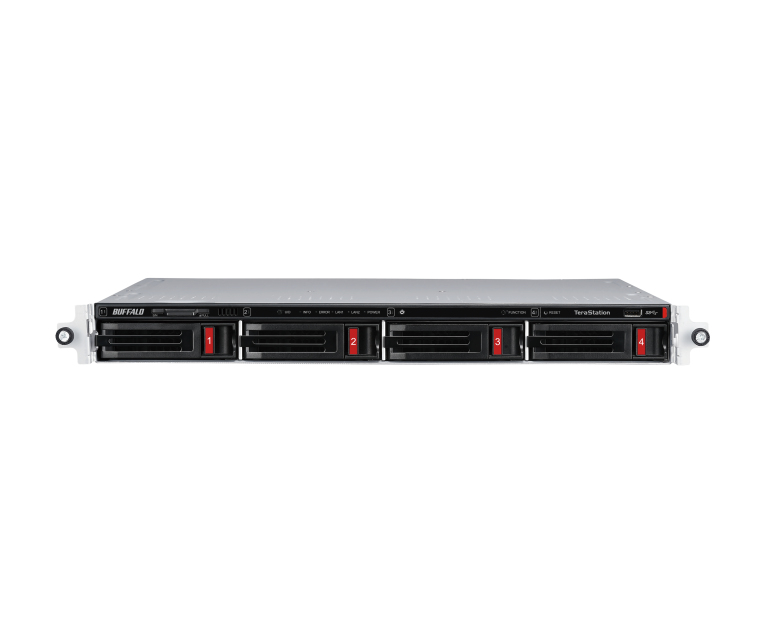

TeraStation 3420RN NAS Rack (1U) Annapurna Labs
1 GB DDR3 16 TB HDD Linux Black
Model 3420RNPart no. TS3420RN0804EAN 747464134161
49 specifications
- ProcessorAnnapurna Labs
- Memory1 GB
- TypeNAS
- OSLinux
- Weight8.6 kg
- ColourBlack
Overview
- Processor
- Annapurna Labs
- Memory
- 1 GB
- Type
- NAS
- OS
- Linux
- Weight
- 8.6 kg
- Colour
- Black
- Brand
- Buffalo
- Category
- NAS & Storage Servers
- Model
- 3420RN
- Part numbers
- TS3420RN0804, TS3420RN1604-EU, TS3420RN3204-EU, TS3420RN0404-EU, TS3420RN1602-EU, TS3420RN0804-EU +4 more
- EAN / UPC
- 747464134161, 4981254053034, 4981254053027, 4981254053058 +6 more
- Also known as
- Buffalo TeraStation 3420RN NAS Rack (1U) Annapurna Labs 1 GB DDR3 16 TB HDD Linux Black
Specifications
49 specifications in 11 groups
Storage
| Specification | Value |
|---|---|
| Storage drives installed | Yes |
| Total installed storage capacity | 16 TB |
| Number of storage drives installed | 4 |
| Number of storage drives supported | 4 |
| Installed storage drive type | HDD |
| Supported storage drive types | HDD & SSD |
| Storage drive capacity | 4 TB |
| Storage drive interface | Serial ATA III |
| Supported storage drive interfaces | Serial ATA III |
| RAID support | Yes |
| RAID levels | 0, 1, 5, 6, 10, JBOD |

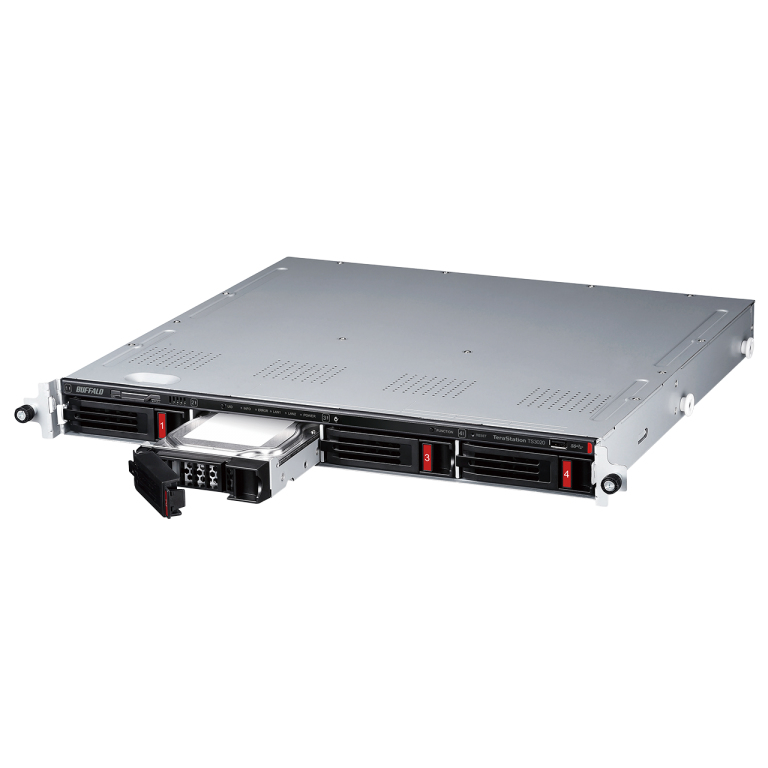

| Hot-swap drive bays | Yes |
Processor
| Specification | Value |
|---|---|
| Processor family | Annapurna Labs |
| Processor frequency | 1.4 GHz |
| Processor cores | 4 |
Memory
| Specification | Value |
|---|---|
| Internal memory | 1 GB |
| Internal memory type | DDR3 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000,2500 Mbit/s |
| Wi-Fi | No |
| iSCSI support | Yes |
| Supported network protocols | TCP/IP |

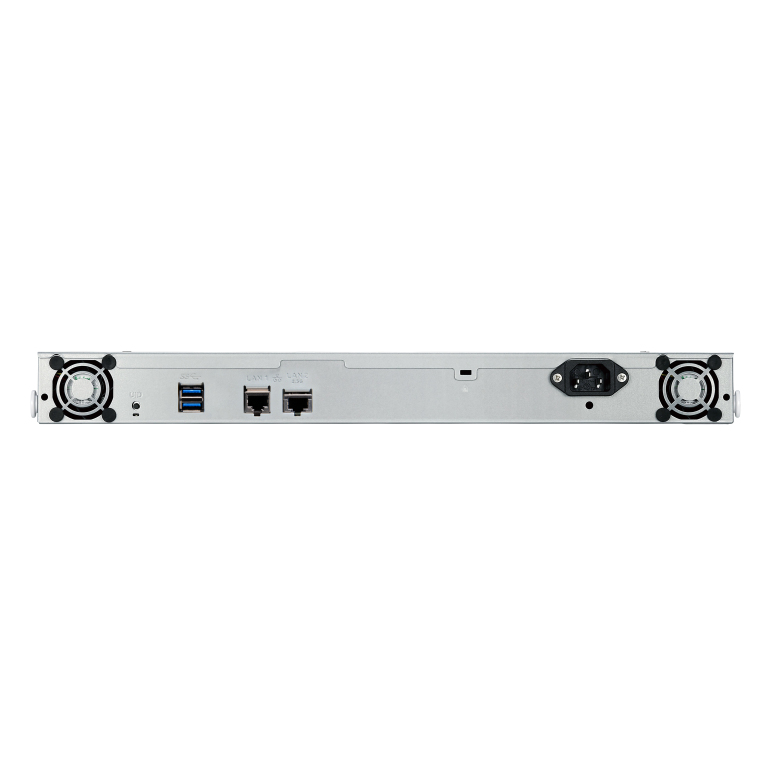

Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 2 |
| USB port | Yes |
| USB 2.0 ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| Fiber ports quantity | 0 |
Design
| Specification | Value |
|---|---|
| Chassis type | Rack (1U) |
| Product colour | Black |
Performance
| Specification | Value |
|---|---|
| Type | NAS |
| Device class | Home & Home Office |
| Backup function | Yes |
| Backup features | Cloud |
| Web-based management | Yes |
Software
| Specification | Value |
|---|---|
| Operating system installed | Linux |
| Windows operating systems supported | Windows 10, Windows 7, Windows 8.1 |
| Mac operating systems supported | Mac OS X 10.11 El Capitan |
| Server operating systems supported | Windows Server 2012, Windows Server 2016, Windows Server 2019 |
Power
| Specification | Value |
|---|---|
| Power consumption (max) | 100 W |
| Power consumption (typical) | 59 W |
| Power consumption (HDD standby) | 0.92 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 430 mm |
| Depth | 430 mm |
| Height | 44.3 mm |
| Weight | 8.6 kg |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 10 - 85% |
