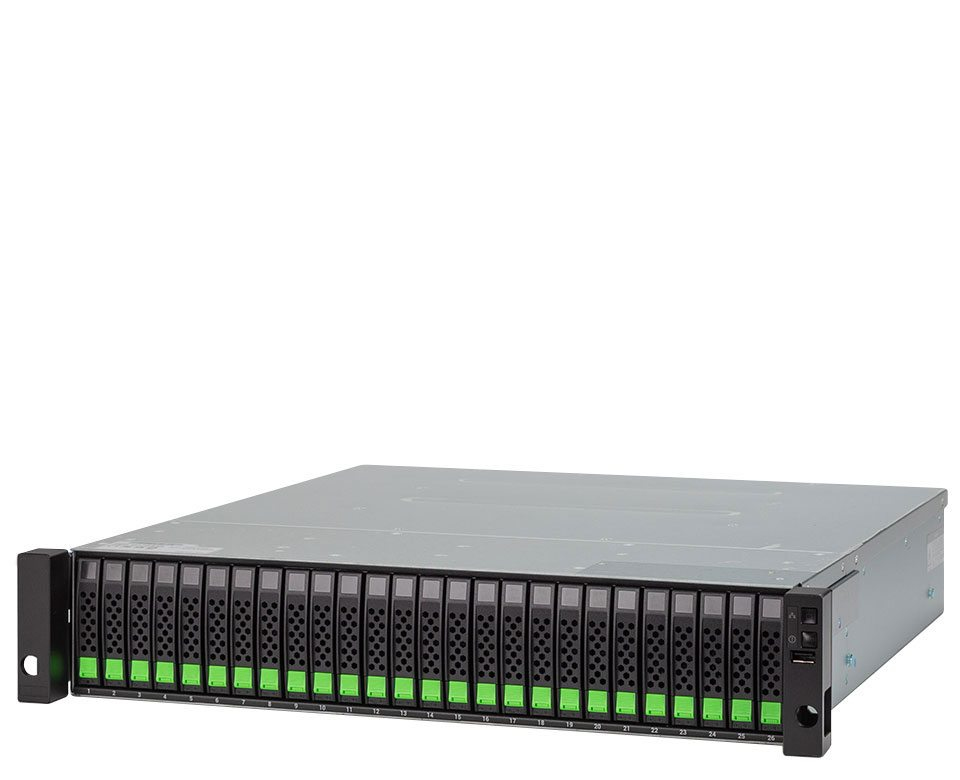

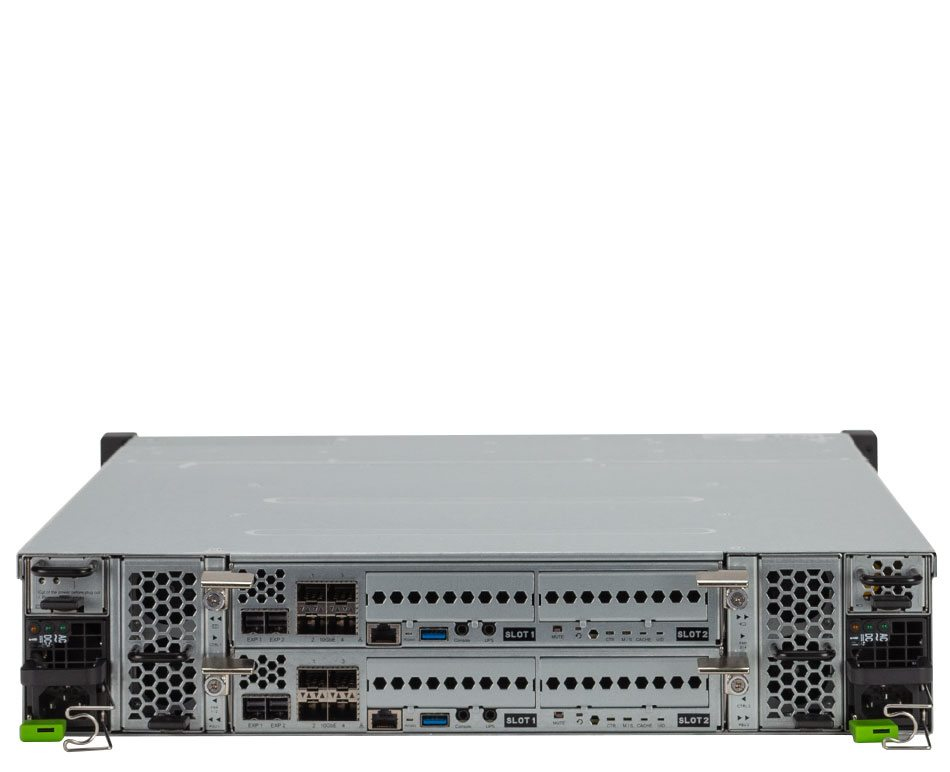

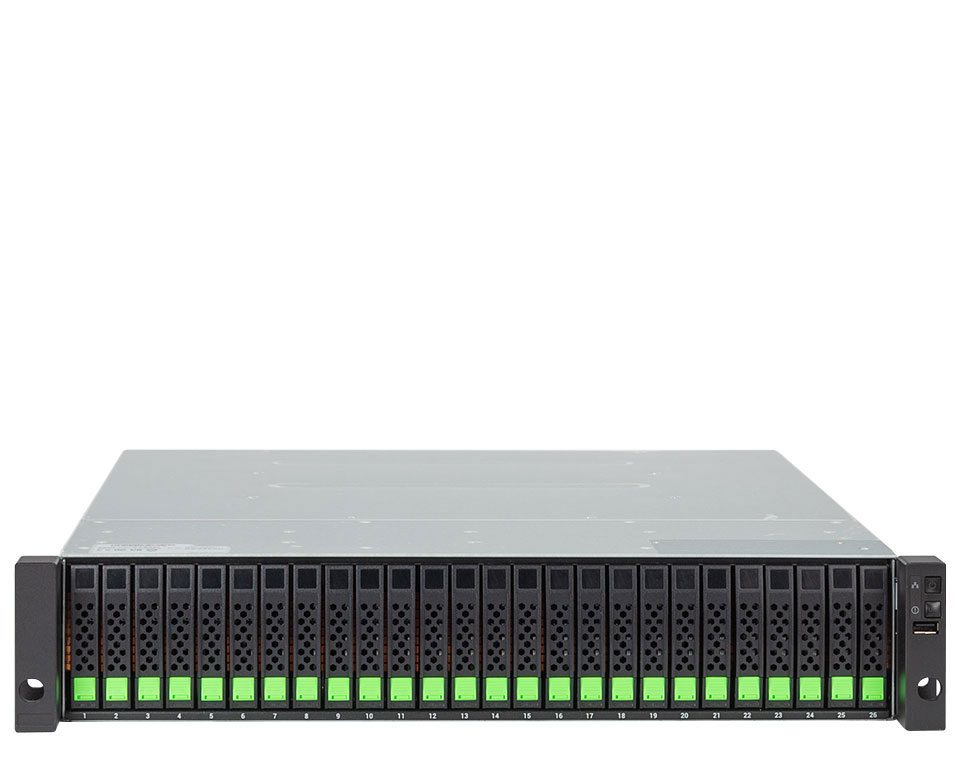

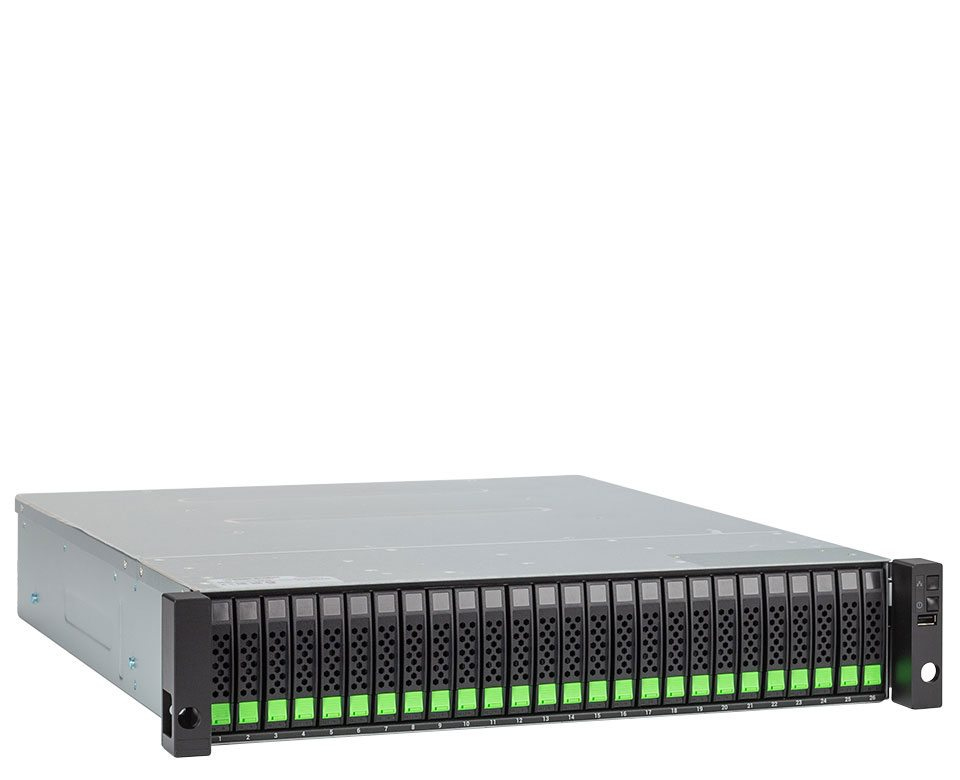

bluechip STORAGEline R62209q

STORAGEline R62209q

Model STORAGEline R62209qPart no. 850539EAN 4250749707258

46 specifications

ProcessorIntel® Xeon®
Memory8 GB
TypeSAN
OSQSAN OS
ColourBlack, Silver
Storage drives installedYes

See all specifications

Overview

Processor: Intel® Xeon®
Memory: 8 GB
Type: SAN
OS: QSAN OS
Colour: Black, Silver
Storage drives installed: Yes

Brand: bluechip
Category: NAS & Storage Servers
Model: STORAGEline R62209q
Part number: 850539
EAN / UPC: 4250749707258
Also known as: bluechip STORAGEline R62209q

Specifications

46 specifications in 10 groups

Storage

Specification	Value
Storage drives installed	Yes
Total installed storage capacity	1.2 TB
Number of storage drives installed	2
Number of storage drives supported	26
Installed storage drive type	HDD
Supported storage drive types	HDD & SSD
Storage drive capacity	600 GB
Storage drive interface	Serial Attached SCSI (SAS)
Supported storage drive interfaces	Near Line SAS (NL-SAS), Serial Attached SCSI (SAS)
Storage drive size	2.5"
Storage drive sizes supported	2.5"
HDD speed	10000 RPM
Maximum supported storage capacity	798 TB
RAID support	Yes
RAID levels	0, 1, 3, 5, 5EE, 6, 10, 30, 50, 60

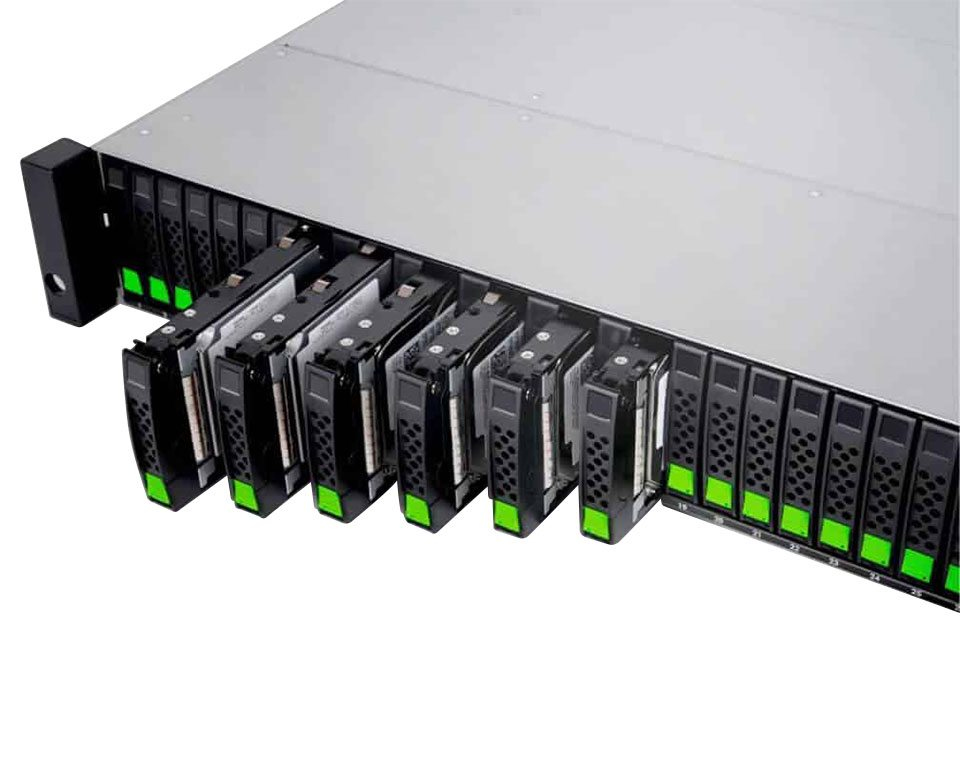

Hot-swap drive bays	Yes

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Xeon®
Processor cores	4
Number of processors supported	1

Memory

Specification	Value
Internal memory	8 GB
Internal memory type	DDR4
Maximum RAM supported	512 GB
ECC	Yes
Memory form factor	DIMM
Memory slots	8

Network

Specification	Value
Ethernet LAN	Yes
Ethernet LAN data rates	1000 Mbit/s
iSCSI support	Yes

Ports & interfaces

Specification	Value
Ethernet LAN (RJ-45) ports	1
USB port	Yes
USB 2.0 ports quantity	3
Fiber ports quantity	2
Fiber optic connector	SFP+
External mini-SAS ports	2

Design

Specification	Value
Chassis type	Rack (2U)
Product colour	Black, Silver

Performance

Specification	Value
Type	SAN
Motherboard manufacturer	QSAN

Software

Specification	Value
Operating system installed	QSAN OS

Power

Specification	Value
Power supply unit (PSU) capacity	850 W
Number of power supply units	2
Redundant power supply (RPS) support	Yes

Weight & dimensions

Specification	Value
Width	438 mm
Depth	491 mm
Height	88 mm
