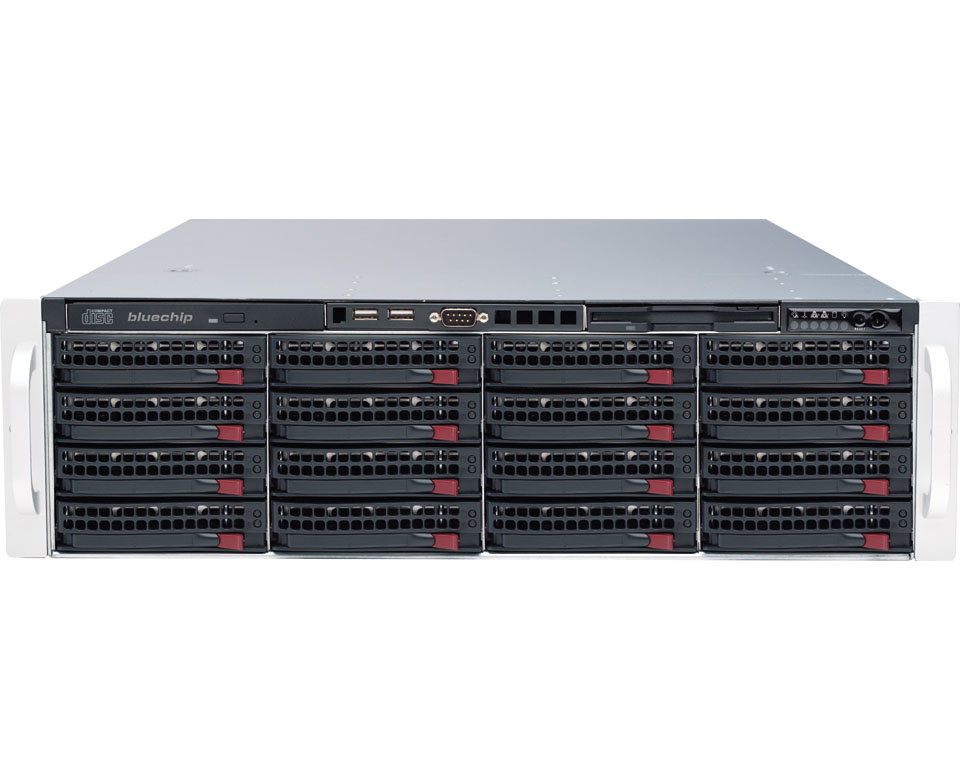

STORAGEline R53303s
Model STORAGEline R53303sPart no. 850253EAN 4250749700419
79 specifications
- ProcessorIntel Xeon Bronze
- Memory16 GB
- TypeStorage server
- ColourBlack
- Storage drives installedYes
- Processor manufacturerIntel
Overview
- Processor
- Intel Xeon Bronze
- Memory
- 16 GB
- Type
- Storage server
- Colour
- Black
- Storage drives installed
- Yes
- Processor manufacturer
- Intel
- Brand
- bluechip
- Category
- NAS & Storage Servers
- Model
- STORAGEline R53303s
- Part number
- 850253
- EAN / UPC
- 4250749700419
- Also known as
- bluechip STORAGEline R53303s
Specifications
79 specifications in 11 groups
Storage
| Specification | Value |
|---|---|
| Storage drives installed | Yes |
| Total installed storage capacity | 2 TB |
| Number of storage drives installed | 2 |
| Number of storage drives supported | 16 |
| Installed storage drive type | HDD |
| Storage drive capacity | 1 TB |
| Storage drive interface | Serial ATA III |
| Supported storage drive interfaces | Serial ATA III, Serial Attached SCSI (SAS) |
| Storage drive size | 3.5" |
| Storage drive sizes supported | 2.5,3.5" |
| HDD speed | 7200 RPM |
| RAID support | Yes |
| RAID levels | 0, 1, 5, 10, 50, 60, JBOD |
| Hot-swap drive bays | Yes |
| Storage controller | Avago 9560-8i |
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel Xeon Bronze |
| Processor generation | 2nd Generation Intel® Xeon® Scalable |
| Processor model | 3204 |
| Processor frequency | 1.9 GHz |
| Processor boost frequency | 1.9 GHz |
| Processor cores | 6 |
| Processor threads | 6 |
| Processor cache | 8.25 MB |
| Motherboard chipset | Intel® C621 |
| PCI Express configurations | 4x16 |
| PCI Express slots version | 3.0 |
| Processor codename | Cascade Lake |
| Processor lithography | 14 nm |
| Processor operating modes | 64-bit |
| Processor package size | 76.0 x 56.5 mm |
| Processor socket | LGA 3647 (Socket P) |
| Scalability | 2S |
| Tcase | 77 °C |
| Thermal Design Power (TDP) | 85 W |
| On-board graphics card model | Not available |
| Maximum internal memory supported by processor | 1 TB |
Memory
| Specification | Value |
|---|---|
| Internal memory | 16 GB |
| Internal memory type | DDR4 |
| Memory clock speed | 2666 MHz |
| Maximum RAM supported | 2 TB |
| Memory form factor | DIMM |
| Memory slots | 16 |
| Flash memory | 32768 MB |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 1000 Mbit/s |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 2 |
| USB port | Yes |
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Fiber ports quantity | 0 |
| VGA (D-Sub) ports quantity | 1 |
| Serial ports quantity | 1 |
| PCI Express x8 (Gen 3.x) slots | 2 |
Design
| Specification | Value |
|---|---|
| Chassis type | Rack (3U) |
| Cooling type | Active |
| Product colour | Black |
Performance
| Specification | Value |
|---|---|
| Type | Storage server |
Power
| Specification | Value |
|---|---|
| Power supply location | Built-in |
| Power supply unit (PSU) capacity | 1200 W |
| Redundant power supply (RPS) support | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 437 mm |
| Depth | 647 mm |
| Height | 132 mm |
Processor special features
| Specification | Value |
|---|---|
| Embedded options available | No |
| Enhanced Intel SpeedStep Technology | Yes |
| Execute Disable Bit | Yes |
| Intel 64 | Yes |
| Intel TSX-NI | Yes |
| Intel Trusted Execution Technology | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) | No |
| Intel® Turbo Boost Technology | No |
| Maximum number of PCI Express lanes | 48 |
| Memory types supported by processor | DDR4-SDRAM |
Other features
| Specification | Value |
|---|---|
| Processor ARK ID | 193381 |
