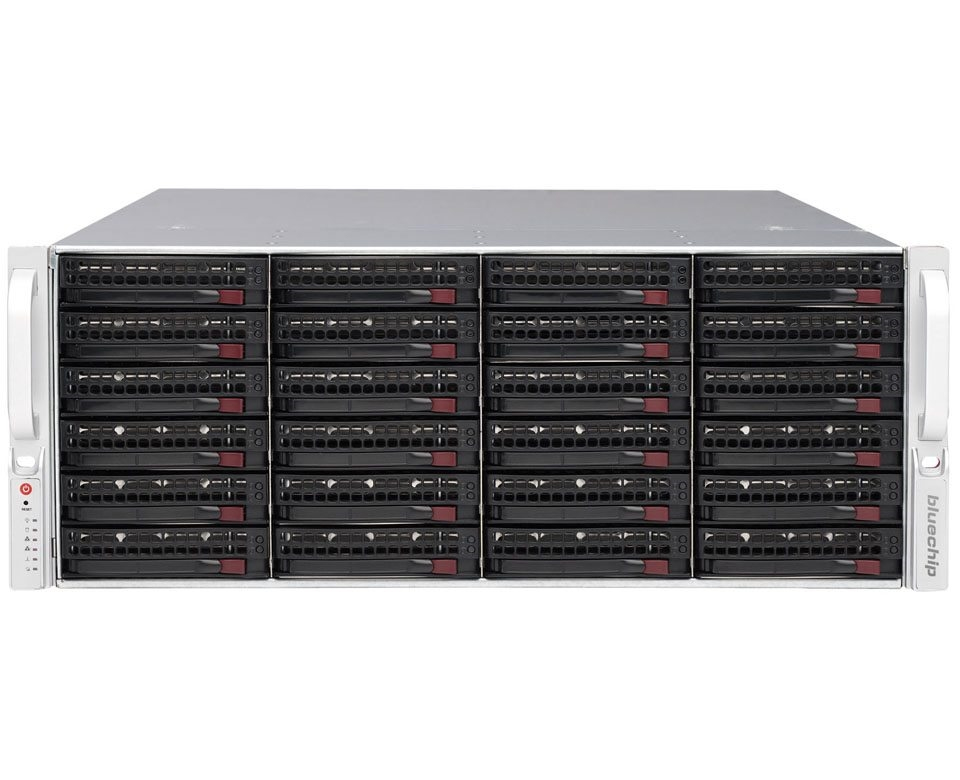

STORAGEline R44301s
Model STORAGEline R44301sPart no. 850442EAN 4250749707814
60 specifications
- ProcessorIntel Xeon Silver
- Memory16 GB
- TypeStorage server
- ColourBlack
- Storage drives installedYes
- Processor manufacturerIntel
Overview
- Processor
- Intel Xeon Silver
- Memory
- 16 GB
- Type
- Storage server
- Colour
- Black
- Storage drives installed
- Yes
- Processor manufacturer
- Intel
- Brand
- bluechip
- Category
- NAS & Storage Servers
- Model
- STORAGEline R44301s
- Part numbers
- 850442, 850531, 850555
- EAN / UPC
- 4250749707814, 4250749705599, 4250749707111
- Also known as
- bluechip STORAGEline R44301s
Specifications
60 specifications in 10 groups
Storage
| Specification | Value |
|---|---|
| Storage drives installed | Yes |
| Total installed storage capacity | 2 TB |
| Number of storage drives installed | 2 |
| Number of storage drives supported | 36 |
| Installed storage drive type | HDD |
| Supported storage drive types | HDD & SSD |
| Storage drive capacity | 1 TB |
| Storage drive interface | Serial ATA III |
| Supported storage drive interfaces | Serial ATA, Serial Attached SCSI (SAS) |
| Storage drive size | 3.5" |
| Storage drive sizes supported | 2.5,3.5" |
| HDD speed | 7200 RPM |
| RAID support | Yes |
| RAID levels | 0, 1, 5, 10, 50, 60, JBOD |
| Hot-swap drive bays | Yes |
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel Xeon Silver |
| Processor generation | 3rd Generation Intel® Xeon® Scalable |
| Processor model | 4310 |
| Processor frequency | 2.1 GHz |
| Processor boost frequency | 3.3 GHz |
| Processor cores | 12 |
| Processor threads | 24 |
| Processor cache | 18 MB |
| Motherboard chipset | Intel C621A |
| Number of processors supported | 1 |
| Processor socket | LGA 4189 |
| On-board graphics card model | Aspeed AST2600 |
Memory
| Specification | Value |
|---|---|
| Internal memory | 16 GB |
| Internal memory type | DDR4 |
| Memory clock speed | 3200 MHz |
| Maximum RAM supported | 2 TB |
| ECC | Yes |
| Memory form factor | DIMM |
| Memory slots | 8 |
| Flash memory | 16000 MB |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| LAN controller | Intel I210 |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 2 |
| USB port | Yes |
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| VGA (D-Sub) ports quantity | 1 |
| PCI Express x8 (Gen 4.x) slots | 2 |
| PCI Express x16 (Gen 4.x) slots | 2 |
Design
| Specification | Value |
|---|---|
| Chassis type | Rack (4U) |
| Cooling type | Active |
| Product colour | Black |
Performance
| Specification | Value |
|---|---|
| Type | Storage server |
| Device class | Small & Medium Business |
| Motherboard manufacturer | Supermicro |
Power
| Specification | Value |
|---|---|
| Power supply location | Built-in |
| Power supply unit (PSU) capacity | 1200 W |
| Number of power supply units | 2 |
| Redundant power supply (RPS) support | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 437 mm |
| Depth | 699 mm |
| Height | 178 mm |
Other features
| Specification | Value |
|---|---|
| Storage drive controller | Avago 9560-8i |
