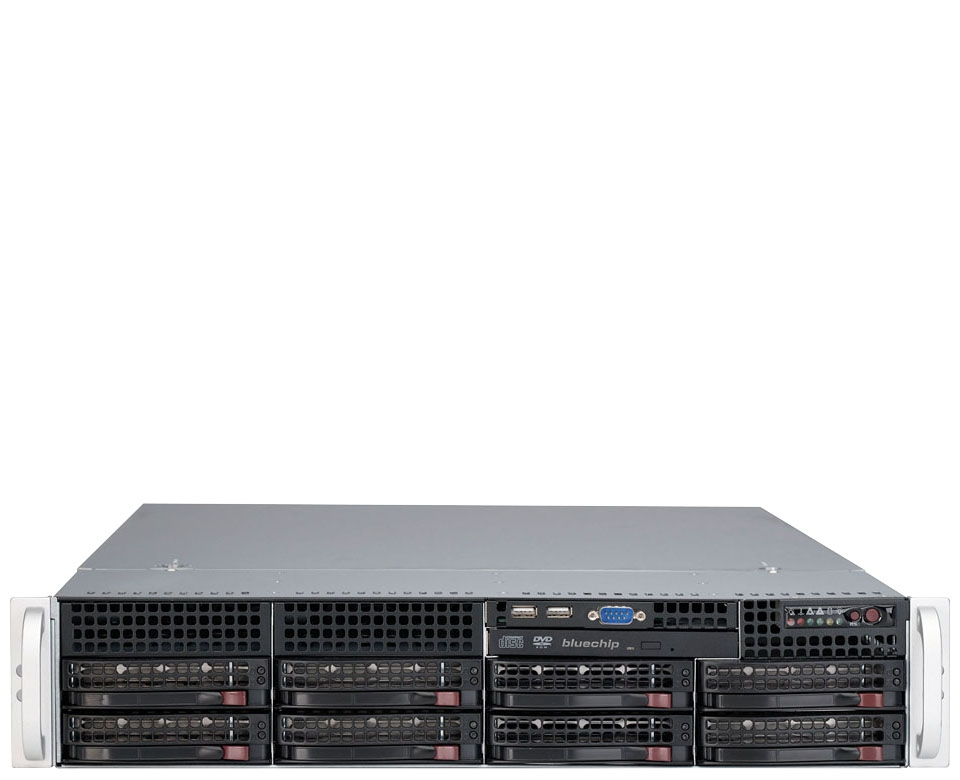

bluechip STORAGEline R42309s

STORAGEline R42309s

Model STORAGEline R42309sPart no. 850556EAN 4250749707821

58 specifications

ProcessorIntel Xeon Silver
Memory32 GB
TypeNAS
ColourBlack
Storage drives installedYes
Processor manufacturerIntel

See all specifications

Overview

Processor: Intel Xeon Silver
Memory: 32 GB
Type: NAS
Colour: Black
Storage drives installed: Yes
Processor manufacturer: Intel

Brand: bluechip
Category: NAS & Storage Servers
Model: STORAGEline R42309s
Part numbers: 850556, 850643, 850441, 850532
EAN / UPC: 4250749707821, 4250749710548, 4250749705582, 4250749707128
Also known as: bluechip STORAGEline R42309s 2 HE Rack, Intel® Xeon® Silver 4310 Prozessor / bis zu 3.30 GHz, 32 GB DDR4, 2 x 960 GB SSD, 128 GB Flash SMC, Avago 9560-8i NVMe/S

Specifications

58 specifications in 10 groups

Storage

Specification	Value
Storage drives installed	Yes
Total installed storage capacity	1.92 TB
Number of storage drives installed	2
Number of storage drives supported	8
Installed storage drive type	SSD
Supported storage drive types	HDD & SSD
Storage drive capacity	960 GB
Storage drive interface	Serial ATA III
Supported storage drive interfaces	SAS, Serial ATA
Storage drive size	2.5"
Storage drive sizes supported	2.5,3.5"
RAID support	Yes
RAID levels	0, 1, 5, 10, 50, 60, JBOD
Hot-swap drive bays	Yes

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel Xeon Silver
Processor generation	3rd Generation Intel® Xeon® Scalable
Processor model	4310
Processor frequency	2.1 GHz
Processor boost frequency	3.3 GHz
Processor cores	12
Processor threads	24
Processor cache	18 MB
Motherboard chipset	Intel C621A
Number of processors installed	1
Processor socket	LGA 4189
On-board graphics card model	Aspeed AST2600

Memory

Specification	Value
Internal memory	32 GB
Internal memory type	DDR4-SDRAM
Memory clock speed	2666 MHz
Maximum RAM supported	2 TB
ECC	Yes
Memory form factor	DIMM
Memory slots	8x DIMM
Flash memory	1280 MB

Network

Specification	Value
Ethernet LAN	Yes
Ethernet LAN data rates	1000 Mbit/s
LAN controller	Intel I210
Cabling technology	10/100/1000Base-T(X)

Ports & interfaces

Specification	Value
Ethernet LAN (RJ-45) ports	2
USB port	Yes
USB 2.0 ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
VGA (D-Sub) ports quantity	1
PCI Express x8 (Gen 3.x) slots	3
PCI Express x8 (Gen 4.x) slots	2
PCI Express x16 (Gen 4.x) slots	2

Design

Specification	Value
Chassis type	Rack (2U)
Product colour	Black

Performance

Specification	Value
Type	NAS
Remotely operated	Yes
Motherboard manufacturer	Supermicro X12SPL-F

Power

Specification	Value
Power supply unit (PSU) capacity	600 W

Weight & dimensions

Specification	Value
Width	437 mm
Depth	647 mm
Height	89 mm

Other features

Specification	Value
80 PLUS certification	80 PLUS Platinum
Storage drive controller	Avago 9560-8i
