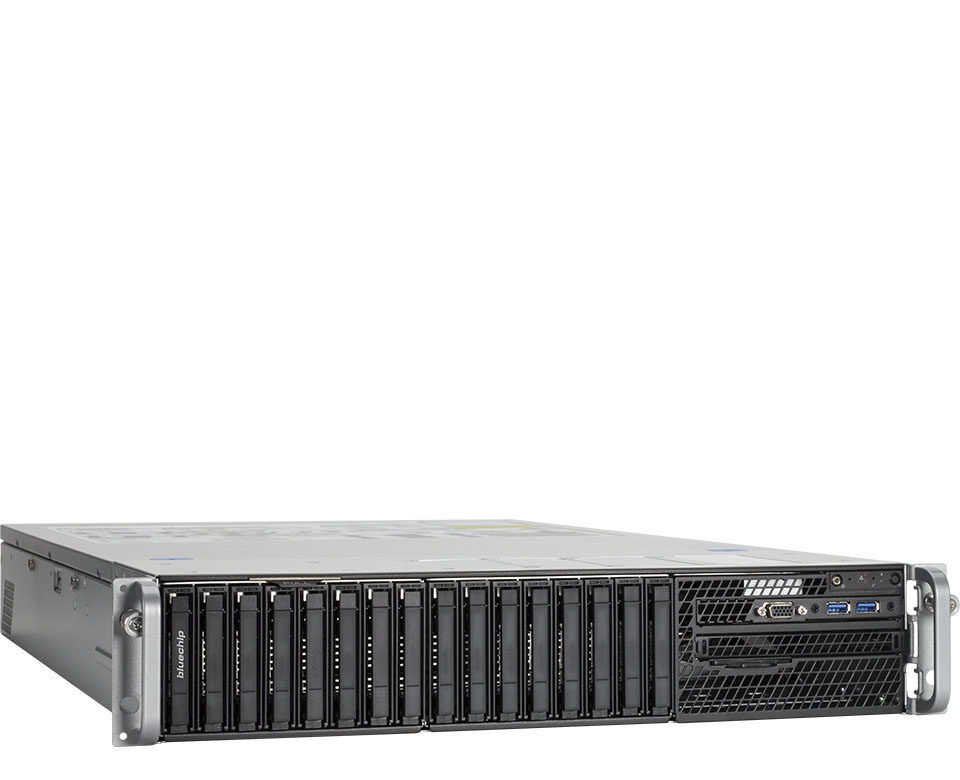

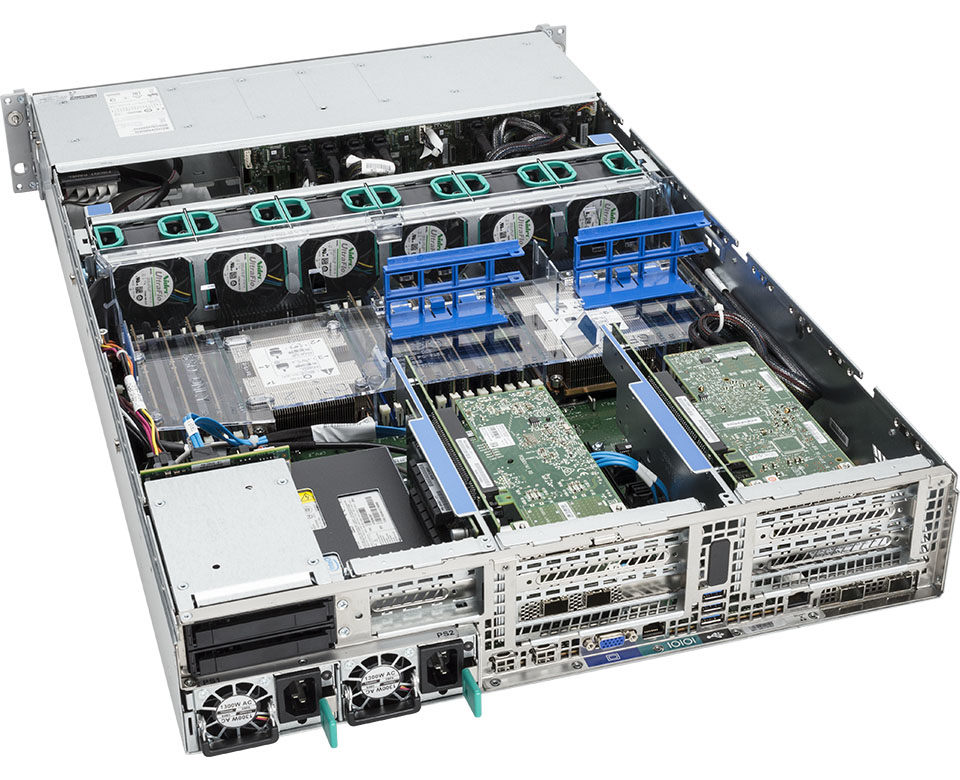

SERVERline All-Flash-Storage (Optane + NVMe)
Model SERVERline All-Flash-Storage (Optane + NVMe)Part no. 850252EAN 4250749700402
74 specifications
- ProcessorIntel® Xeon® Gold
- Memory768 GB
- TypeStorage server
- OSWindows Server 2016 Datacenter
- ColourBlack
- Storage drives installedYes
Overview
- Processor
- Intel® Xeon® Gold
- Memory
- 768 GB
- Type
- Storage server
- OS
- Windows Server 2016 Datacenter
- Colour
- Black
- Storage drives installed
- Yes
- Brand
- bluechip
- Category
- NAS & Storage Servers
- Model
- SERVERline All-Flash-Storage (Optane + NVMe)
- Part number
- 850252
- EAN / UPC
- 4250749700402
- Also known as
- bluechip SERVERline All-Flash-Storage (Optane + NVMe)
Specifications
74 specifications in 12 groups
Storage
| Specification | Value |
|---|---|
| Storage drives installed | Yes |
| Total installed storage capacity | 25.98 TB |
| Number of storage drives installed | 17 |
| Installed storage drive type | SSD |
| Storage drive interface | Serial ATA III |
| Storage drive size | 2.5" |
| Hot-swap drive bays | Yes |
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Xeon® Gold |
| Processor generation | 1st Generation Intel® Xeon® Scalable |
| Processor model | 6152 |
| Processor frequency | 2.1 GHz |
| Processor boost frequency | 3.7 GHz |
| Processor cores | 22 |
| Processor threads | 44 |
| Processor cache | 30.25 MB |
| Motherboard chipset | Intel® C624 |
| Number of processors installed | 2 |
| PCI Express slots version | 3.0 |
| Processor cache type | L3 |
| Processor code | SR3B4 |
| Processor codename | Skylake |
| Processor lithography | 14 nm |
| Processor operating modes | 64-bit |
| Processor package size | 76.0 x 56.5 mm |
| Processor socket | LGA 3647 (Socket P) |
| Scalability | S4S |
| Stepping | H0 |
| Tcase | 92 °C |
| Thermal Design Power (TDP) | 140 W |
| Maximum internal memory supported by processor | 768 GB |
| Conflict-Free processor | Yes |
Memory
| Specification | Value |
|---|---|
| Internal memory | 768 GB |
| Internal memory type | DDR4 |
| Memory clock speed | 2666 MHz |
| Maximum RAM supported | 1.53 TB |
| Memory form factor | DIMM |
| Memory slots | 24 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10000 Mbit/s |
| Ethernet LAN data rate supported (max) | 10000 Mbit/s |
Ports & interfaces
| Specification | Value |
|---|---|
| USB port | Yes |
| USB 2.0 ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 5 |
| Fiber ports quantity | 4 |
| Fiber optic connector | SFP+ |
| VGA (D-Sub) ports quantity | 1 |
Design
| Specification | Value |
|---|---|
| Chassis type | Rack (2U) |
| Cooling type | Active |
| Product colour | Black |
Performance
| Specification | Value |
|---|---|
| Type | Storage server |
Software
| Specification | Value |
|---|---|
| Operating system installed | Windows Server 2016 Datacenter |
Power
| Specification | Value |
|---|---|
| Power supply location | Built-in |
| Power supply unit (PSU) capacity | 1300 W |
| Redundant power supply (RPS) support | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 430 mm |
| Depth | 710 mm |
| Height | 89 mm |
Processor special features
| Specification | Value |
|---|---|
| Embedded options available | No |
| Enhanced Intel SpeedStep Technology | Yes |
| Execute Disable Bit | Yes |
| Intel 64 | Yes |
| Intel TSX-NI | Yes |
| Intel TSX-NI version | 1.00 |
| Intel Trusted Execution Technology | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® Turbo Boost Technology | 2.0 |
| Maximum number of PCI Express lanes | 48 |
| Memory types supported by processor | DDR4-SDRAM |
Other features
| Specification | Value |
|---|---|
| Processor ARK ID | 120491 |
