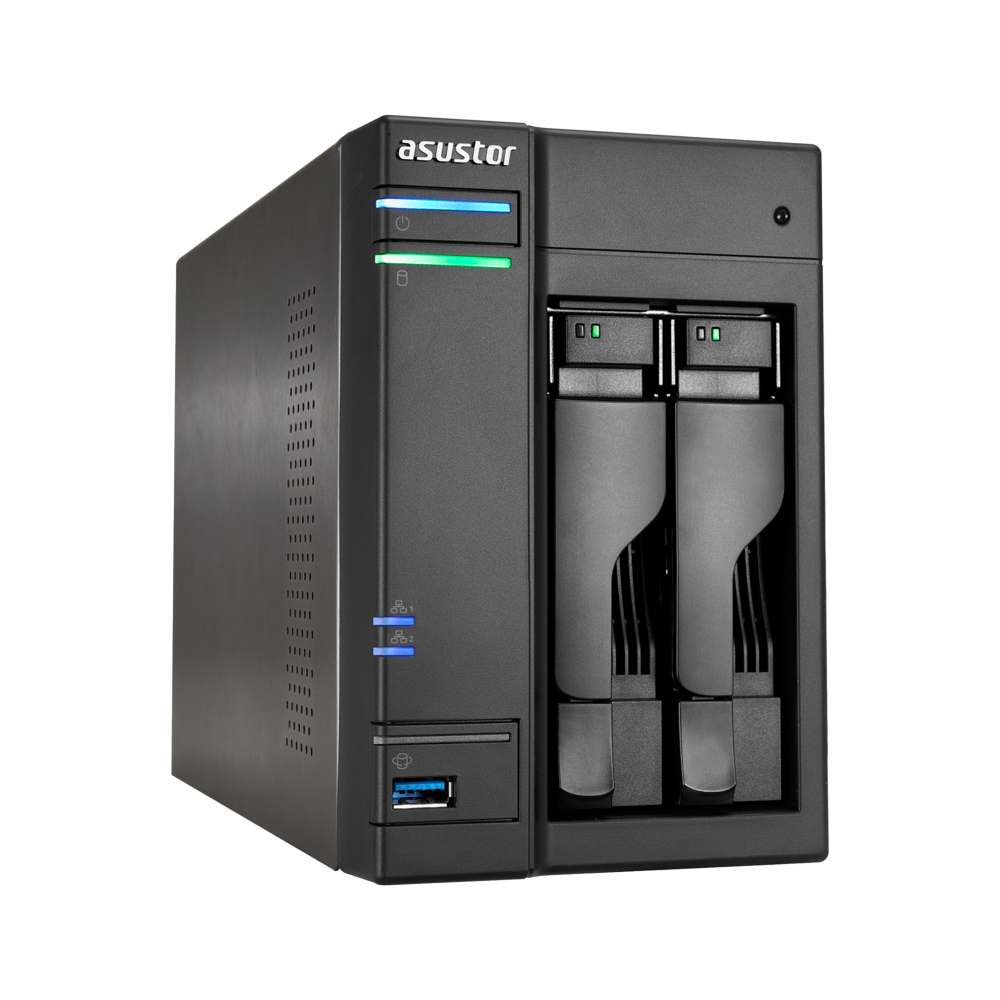

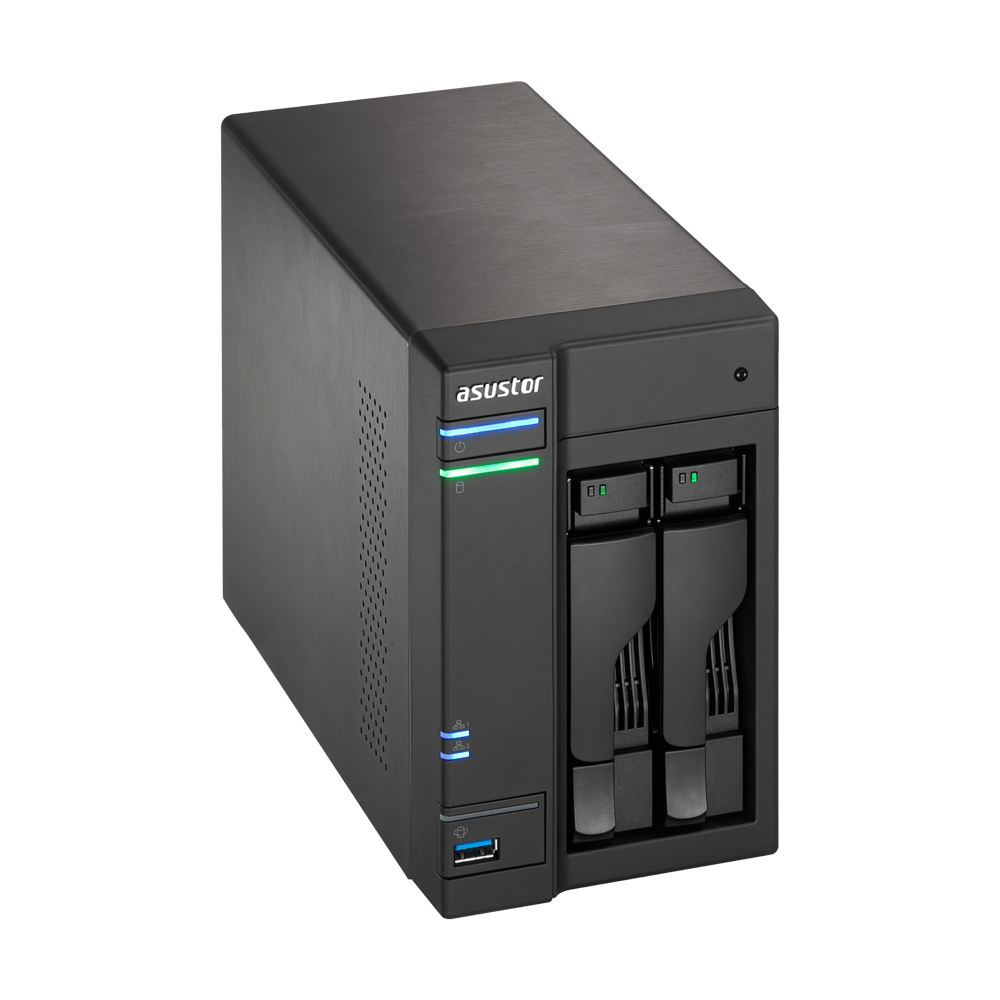

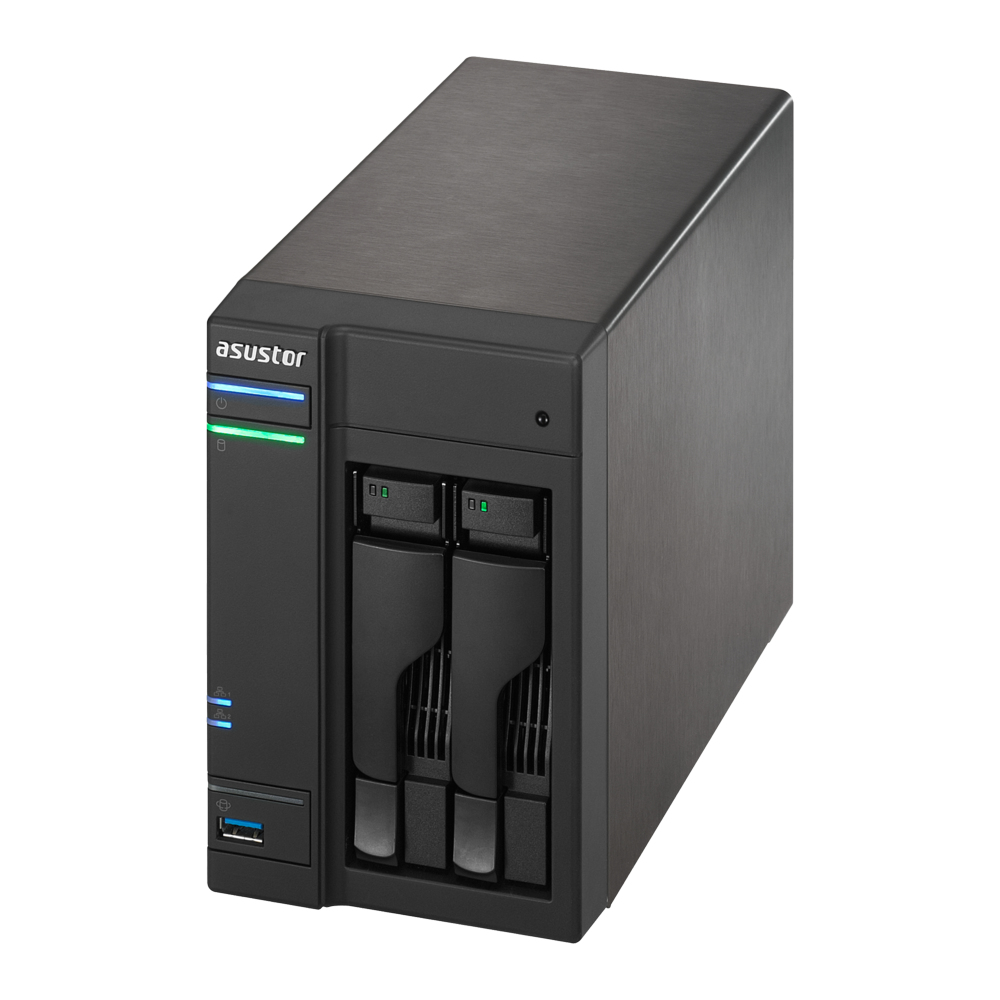

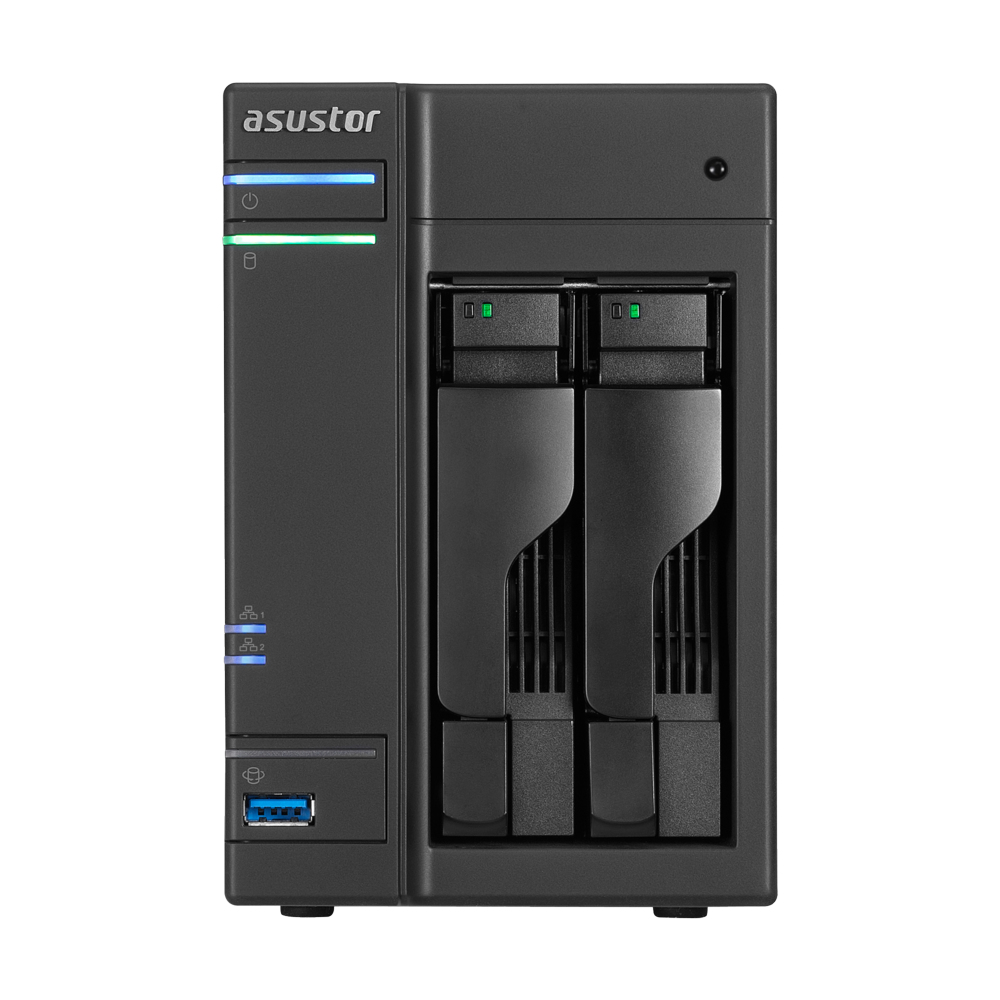

ASUS AS6102T NAS Intel® Celeron® N3050

2 GB DDR3L 0 TB ADM Black

Model AS6102TPart no. 90IX00G1-BW3S10EAN 887372000711

134 specifications

ProcessorIntel® Celeron®
Memory2 GB
Noise17.7 dB
TypeNAS
OSADM
Weight2 kg

See all specifications

Overview

Processor: Intel® Celeron®
Memory: 2 GB
Noise: 17.7 dB
Type: NAS
OS: ADM
Weight: 2 kg

Brand: ASUS
Category: NAS & Storage Servers
Model: AS6102T
Part number: 90IX00G1-BW3S10
EAN / UPC: 887372000711, 4058154022504, 4710474830695
Also known as: ASUS AS6102T NAS Intel® Celeron® N3050 2 GB DDR3L 0 TB ADM Black

Specifications

134 specifications in 14 groups

Storage

Specification	Value
Storage drives installed	No
Total installed storage capacity	0 TB
Number of storage drives installed	0
Number of storage drives supported	2
Installed storage drive type	No
Supported storage drive types	HDD & SSD
Storage drive interface	Serial ATA II, Serial ATA III
Storage drive size	2.5/3.5"
Maximum supported storage capacity	16 TB
RAID support	Yes
RAID levels	0, 1
Hot-swap drive bays	Yes
Supported file systems	FAT32, NTFS, ext4

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Celeron®
Processor model	N3050
Processor frequency	1.6 GHz
Processor boost frequency	2.16 GHz
Processor cores	2
Processor threads	2
Processor cache	2 MB
L2 cache	2 MB
CPU configuration (max)	1
ECC supported by processor	No
Integrated 4G WiMAX	No
PCI Express slots version	2.0
Processor cache type	L2
Processor codename	Braswell
Processor lithography	14 nm
Processor operating modes	64-bit
Processor package size	25 x 27 mm
Processor series	Intel Celeron N3000 series
Processor socket	BGA 1170
Scenario Design Power (SDP)	4 W
Stepping	C0
System bus rate	5 GT/s
Thermal Design Power (TDP)	6 W
Tjunction	90 °C
On-board graphics card model	Intel® HD Graphics
Maximum internal memory supported by processor	8 GB
Conflict-Free processor	Yes

Memory

Specification	Value
Internal memory	2 GB
Internal memory type	DDR3L
Memory clock speed	1600 MHz
Maximum RAM supported	8 GB

Network

Specification	Value
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Wi-Fi	No
DHCP client	Yes
Jumbo frames support	Yes
iSCSI support	Yes
Wake-on-LAN ready	Yes

Ports & interfaces

Specification	Value
Ethernet LAN (RJ-45) ports	2
USB 2.0 ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	3
Fiber ports quantity	0
eSATA ports quantity	2
HDMI ports quantity	1

Graphics

Specification	Value
On-board graphics card base frequency	320 MHz
On-board graphics card burst frequency	600 MHz
Maximum on-board graphics card memory	8 GB
Number of displays supported (on-board graphics)	3

Design

Specification	Value
Cooling type	Active
Product colour	Black
Number of fans	1 fan(s)
Fan diameter	7 cm

Performance

Specification	Value
Type	NAS
Device class	Home & Home Office
Backup function	Yes
Backup features	Cloud
Multilingual support	Yes
Noise level (idle)	17.7 dB

Software

Specification	Value
Operating system installed	ADM
Operating system version	2.6
Windows operating systems supported	Yes
Linux operating systems supported	Yes
Mac operating systems supported	Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks
Server operating systems supported	Windows Server 2003, Windows Server 2008

Power

Specification	Value
Power consumption (max)	16.6 W
Power consumption (typical)	9.5 W
Power consumption (sleep)	0.96 W
AC input voltage	100-240 V

Weight & dimensions

Specification	Value
Width	108 mm
Depth	230 mm
Height	163.5 mm
Weight	2 kg

Processor special features

Specification	Value
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Idle States	Yes
Intel 64	Yes
Intel Clear Video Technology	Yes
Intel Enhanced Halt State	Yes
Intel Identity Protection Technology version	1.00
Intel Rapid Storage Technology	No
Intel Secure Boot	Yes
Intel Secure Boot Technology version	1.00
Intel Secure Key Technology version	1.00
Intel Small Business Advantage (SBA) version	0.00
Intel Smart Connect Technology	No
Intel Smart Connect Technology version	0.00
Intel Smart Response Technology version	0.00
Intel Stable Image Platform Program (SIPP)	No
Intel Stable Image Platform Program (SIPP) version	0.00
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	No
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® Anti-Theft Technology (Intel® AT)	No
Intel® Clear Video HD Technology (Intel® CVT HD)	Yes
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	Yes
Intel® High Definition Audio (Intel® HD Audio)	Yes
Intel® Hyper Threading Technology (Intel® HT Technology)	No
Intel® Identity Protection Technology (Intel® IPT)	Yes
Intel® InTru™ 3D Technology	No
Intel® Insider™	No
Intel® OS Guard	No
Intel® Quick Sync Video Technology	Yes
Intel® Secure Key	Yes
Intel® Small Business Advantage (Intel® SBA)	No
Intel® Smart Response Technology	No
Intel® Turbo Boost Technology	No
Intel® Wireless Display (Intel® WiDi)	Yes
Maximum number of PCI Express lanes	4
Number of execution units	12
Thermal Monitoring Technologies	Yes
UART	Yes
Memory channels supported by processor	Dual
Memory types supported by processor	DDR3L-SDRAM

Operational conditions

Specification	Value
Operating temperature (T-T)	5 - 35 °C
Operating relative humidity (H-H)	5 - 95%

Other features

Specification	Value
Certification	FCC, CE, VCCI, BSMI, C-TICK
Processor ARK ID	87257
