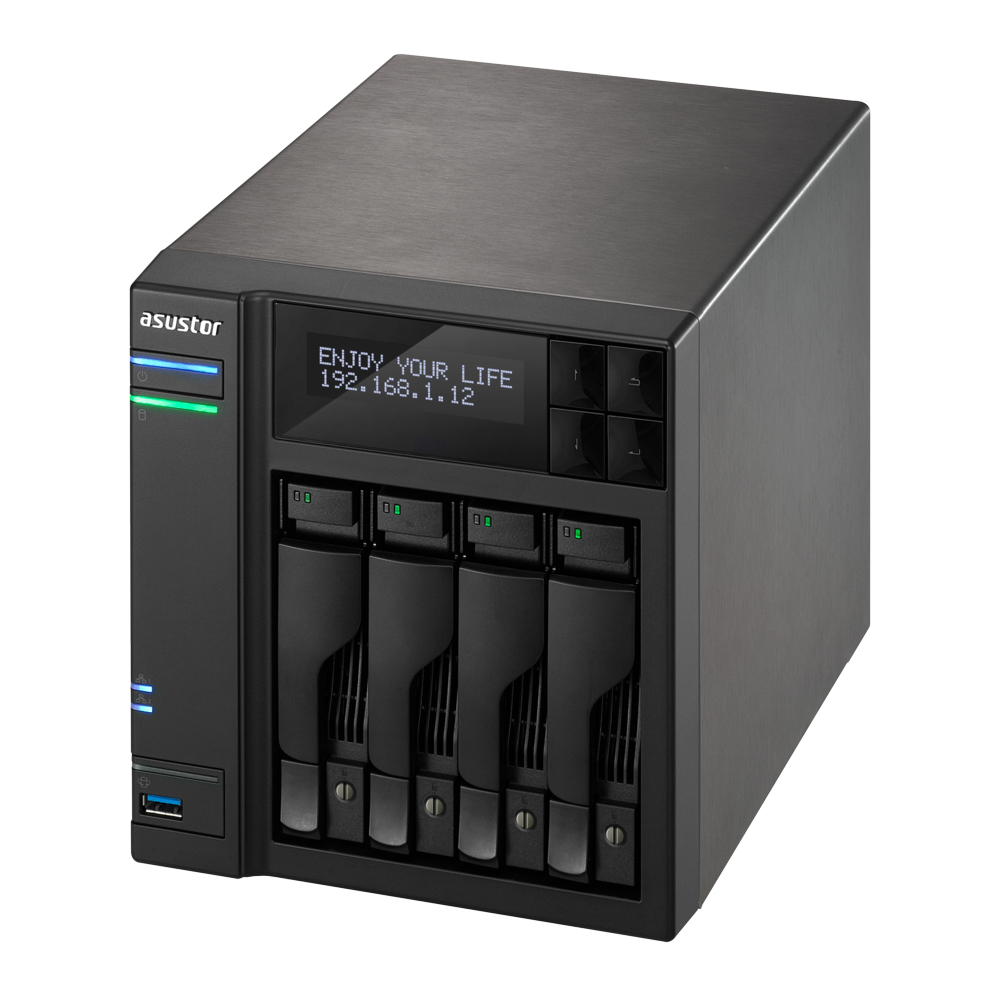

ASUS AS5104T NAS/storage server Desktop Intel® Celeron®

AS5104T NAS/storage server Desktop Intel® Celeron®

2 GB DDR3L 0 TB ADM Black

Model AS5104T

92 specifications

ProcessorIntel® Celeron®
Memory2 GB
Noise17.6 dB
TypeNAS
OSADM
Weight2.93 kg

See all specifications

Overview

Processor: Intel® Celeron®
Memory: 2 GB
Noise: 17.6 dB
Type: NAS
OS: ADM
Weight: 2.93 kg

Brand: ASUS
Category: NAS & Storage Servers
Model: AS5104T
Part number: AS5104T
Also known as: ASUS AS5104T NAS/storage server Desktop Intel® Celeron® 2 GB DDR3L 0 TB ADM Black

Specifications

92 specifications in 13 groups

Storage

Specification	Value
Storage drives installed	No
Total installed storage capacity	0 TB
Number of storage drives installed	0
Number of storage drives supported	2
Installed storage drive type	No
Supported storage drive types	HDD & SSD
Storage drive capacity	0 GB
Supported storage drive interfaces	Serial ATA II, Serial ATA III
Storage drive sizes supported	2.5,3.5"
Maximum supported storage capacity	72 TB
RAID support	Yes
RAID levels	0, 1, 5, 6, 10
Hot-swap drive bays	Yes
Supported file systems	BTRFS, FAT32, HFS+, NTFS, ext3, ext4
Bad block scan	Yes

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Celeron®
Processor frequency	2 GHz
Processor boost frequency	2.41 GHz
Processor cores	4

Memory

Specification	Value
Internal memory	2 GB
Internal memory type	DDR3L
Maximum RAM supported	8 GB
Memory form factor	SO-DIMM
Memory slots	2

Network

Specification	Value
Ethernet LAN	Yes
Ethernet LAN data rates	1000 Mbit/s
Jumbo frames support	Yes
iSCSI support	Yes
Dynamic DNS (DDNS)	Yes
Link aggregation	Yes
Load balancing system	Yes
Supported network protocols	CIFS / SMB, SMB 2.0 / 3.0, AFP, NFS, FTP, TFTP, WebDAV, Rsync, SSH, SFTP, iSCSI/IP-SAN, HTTP, HTTPS, Proxy, SNMP, Syslog
WLAN adapter supported	Yes

Ports & interfaces

Specification	Value
Ethernet LAN (RJ-45) ports	2
USB port	Yes
USB 2.0 ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	3
Fiber ports quantity	0
eSATA ports quantity	2
HDMI ports quantity	1
HDMI version	1.4a

Design

Specification	Value
Chassis type	Desktop
Cooling type	Active
Product colour	Black
Number of fans	1 fan(s)
Fan diameter	12 cm
Built-in display	Yes
Display type	LCD

Performance

Specification	Value
Type	NAS
Device class	Small & Medium Business
Backup function	Yes
Backup features	Cloud
Multilingual support	Yes
Noise level	17.6 dB
Snapshot	Yes
Web-based management	Yes
Access Control List (ACL)	Yes
Browser supported	Internet Explore 11+, FireFox, Chrome, Safari, Microsoft Edge
Built-in FTP server	Yes
Built-in iTunes server	Yes
S.M.A.R.T. support	Yes
Security algorithms	256-bit AES
System log	Yes
Universal Plug and Play (UPnP)	Yes

Software

Specification	Value
Operating system installed	ADM
Operating system version	3.5
Windows operating systems supported	Windows 10, Windows 7, Windows 8, Windows Vista, Windows XP
Linux operating systems supported	Yes
Mac operating systems supported	Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks
Server operating systems supported	Windows Server 2003, Windows Server 2008, Windows Server 2012

Power

Specification	Value
Power supply location	External
Power supply unit (PSU) capacity	90 W
Number of power supply units	1
Power consumption (typical)	31.5 W
Power consumption (sleep)	1.8 W
Power consumption (HDD standby)	12.3 W
AC input voltage	100-240 V

Weight & dimensions

Specification	Value
Width	170 mm
Depth	230 mm
Height	185.5 mm
Weight	2.93 kg
Package width	300 mm
Package depth	240 mm
Package height	324 mm
Package weight	4.03 kg

Packaging content

Specification	Value
External power adapter	Yes
Cables included	AC, LAN (RJ-45)
Number of screws	32

Operational conditions

Specification	Value
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	5 - 95%

Other features

Specification	Value
Certification	FCC, CE, VCCI, BSMI, C-TICK
