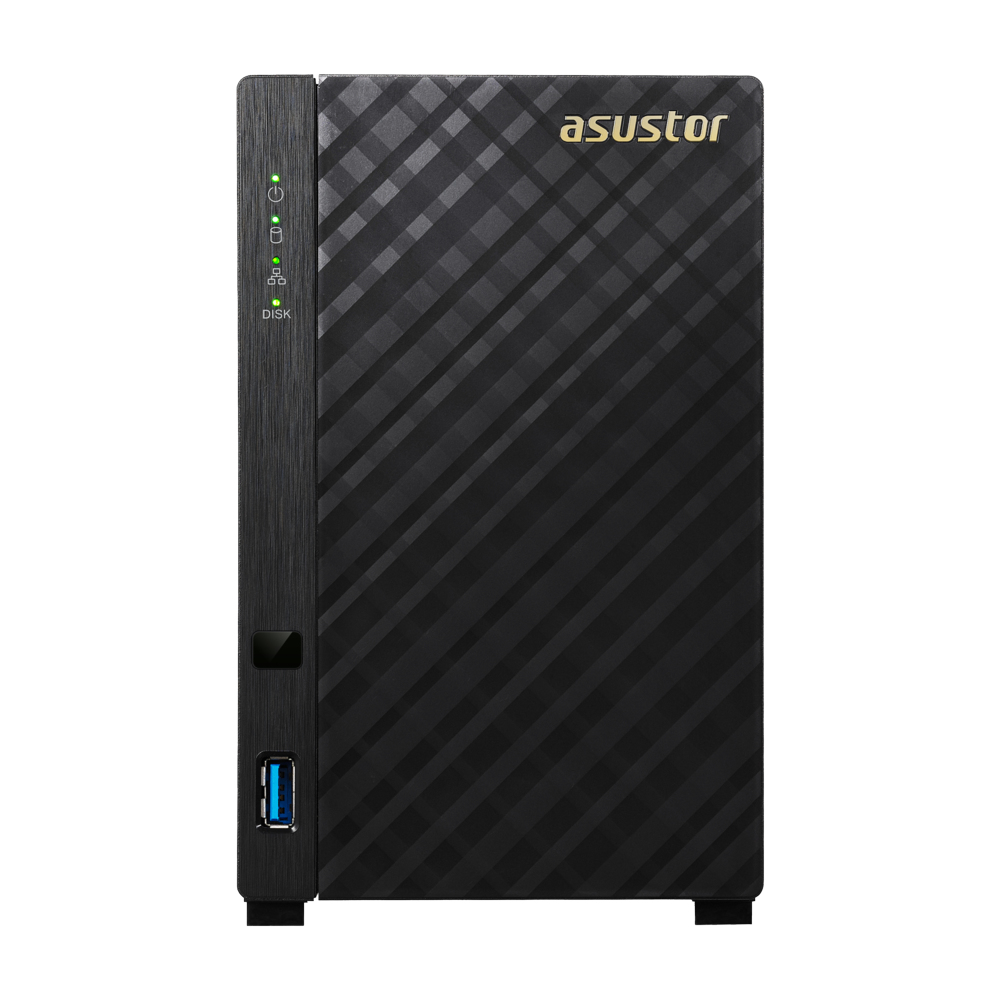

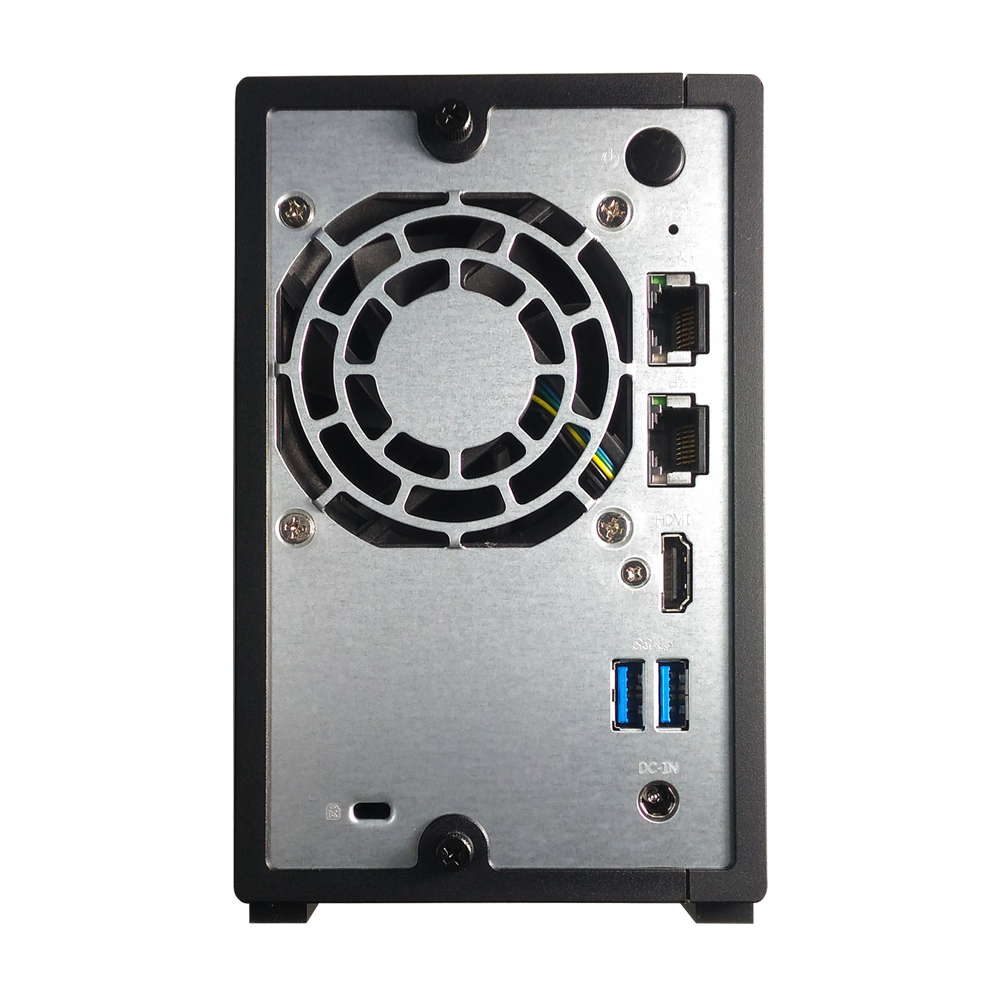

ASUS AS3102T v2

ASUS AS3102T v2

Model AS3102T v2Part no. 90IX00M1-BW3S20EAN 887372001138

66 specifications
  • ProcessorIntel® Celeron®
  • Noise18.6 dB
  • TypeNAS
  • OSADM
  • Weight1.17 kg
  • ColourBlack
See all specifications

Overview

Processor
Intel® Celeron®
Noise
18.6 dB
Type
NAS
OS
ADM
Weight
1.17 kg
Colour
Black
Brand
ASUS
Model
AS3102T v2
Part number
90IX00M1-BW3S20
EAN / UPC
887372001138, 4710474831128
Also known as
ASUS AS3102T v2 NAS Intel® Celeron® DDR3L ADM Black

Specifications

66 specifications in 13 groups

Storage

Storage drives installedNo
Number of storage drives installed0
Number of storage drives supported2
Installed storage drive typeNo
Supported storage drive typesHDD
Storage drive capacity0 GB
Storage drive interfaceSerial ATA III
Storage drive size3.5"
Maximum supported storage capacity24 TB
RAID supportYes
RAID levels0, 1, JBOD
Supported file systemsFAT32, HFS+, NTFS, exFAT, ext3, ext4

Processor

Processor familyIntel® Celeron®
Processor frequency1.6 GHz
Processor cores2

Memory

Internal memory typeDDR3L

Network

Ethernet LANYes
Ethernet LAN data rates10,100,1000 Mbit/s
Wi-FiNo
iSCSI supportYes
Wake-on-LAN readyYes
Supported network protocolsCIFS / SMB, SMB 2.0 / 3.0, AFP, NFS, FTP (Unicode Supported), TFTP, WebDAV, Rsync, SSH, SFTP, iSCSI/IP-SAN, HTTP, HTTPS, Proxy, SNMP, Syslog

Ports & interfaces

Ethernet LAN (RJ-45) ports2
USB portYes
USB 2.0 ports quantity0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity3
Fiber ports quantity0
HDMI ports quantity1
HDMI version1.4b

Design

Cooling typeActive
Product colourBlack
Number of fans1 fan(s)
Fan diameter7 cm
LED indicatorsYes
Built-in displayYes

Performance

TypeNAS
Device classHome & Home Office
Backup functionYes
Backup featuresCloud
Number of users4096 user(s)
Noise level18.6 dB
Access Control List (ACL)Yes
Built-in UPnP AV media serverYes
Built-in iTunes serverYes
Security algorithms256-bit AES

Software

Operating system installedADM
Operating system version3.1
Windows operating systems supportedWindows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home
Linux operating systems supportedYes
Mac operating systems supportedMac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks
Server operating systems supportedWindows Server 2003, Windows Server 2003 R2, Windows Server 2003 x64, Windows Server 2008, Windows Server 2008 R2, Windows Server 2008 R2 x64, Windows Server 2008 x64, Windows Server 2012, Windows Server 2012 R2, Windows Server 2012 R2 x64, Windows Server 2012 x64

Power

Power supply locationExternal
Power consumption (typical)14.6 W
Power consumption (sleep)0.89 W
AC input voltage100 - 240 V

Weight & dimensions

Width102 mm
Depth218 mm
Height165 mm
Weight1.17 kg

Packaging content

External power adapterYes
Cables includedAC, LAN (RJ-45)
Quick start guideYes
Number of screws8

Operational conditions

Operating temperature (T-T)0 - 40 °C
Operating relative humidity (H-H)5 - 95%

Other features

CertificationFCC, CE, VCCI, BSMI, C-TICK
