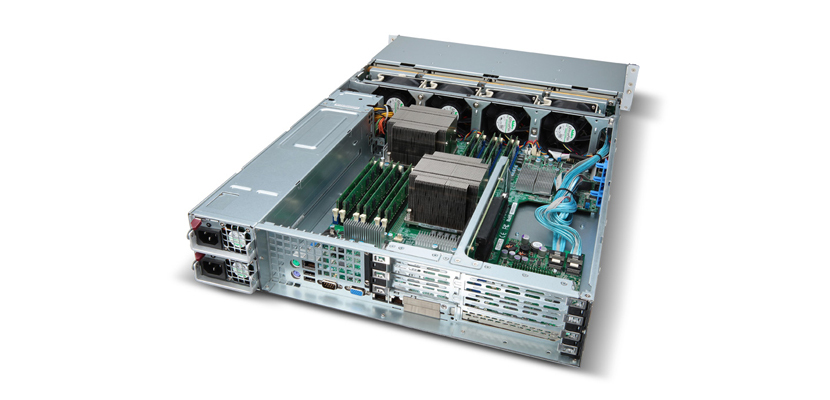

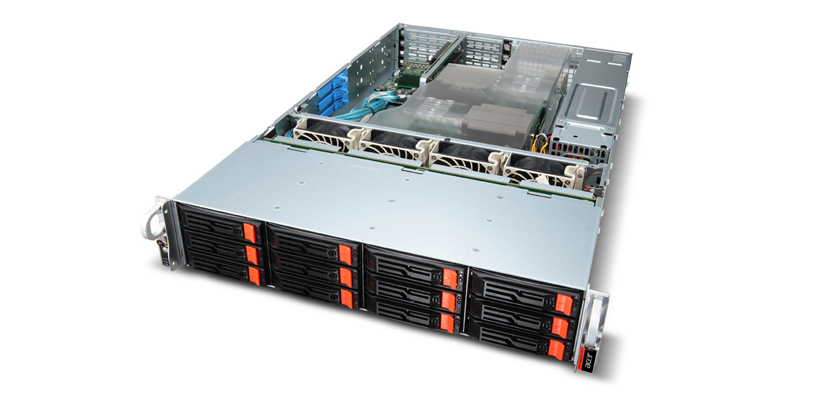

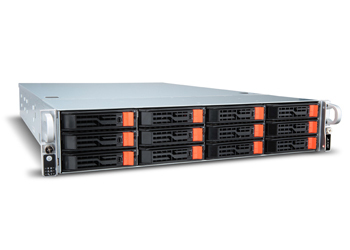

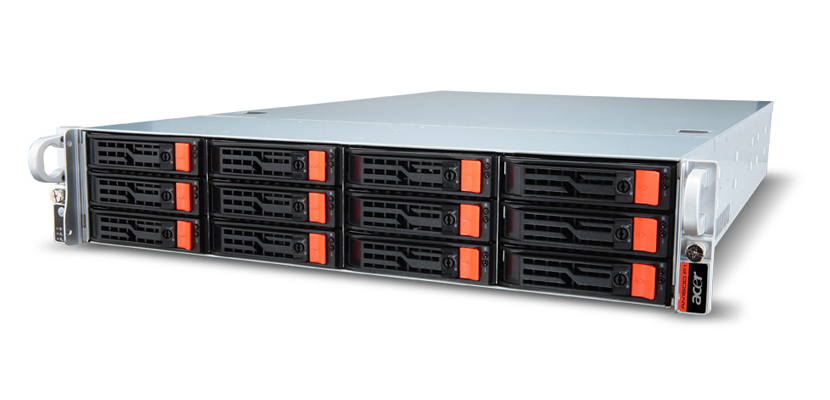

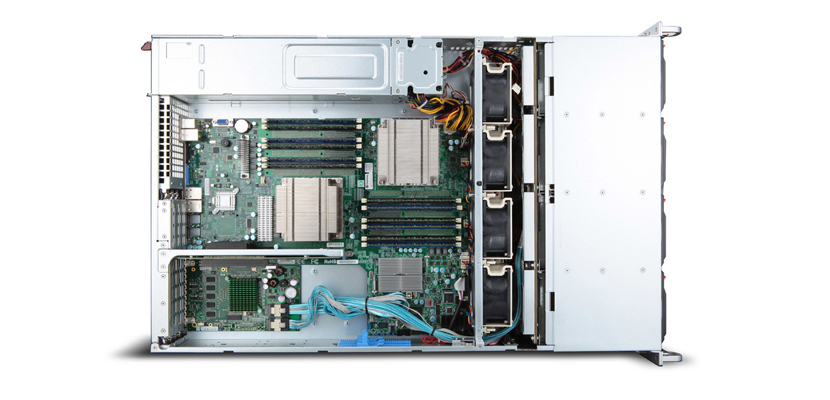

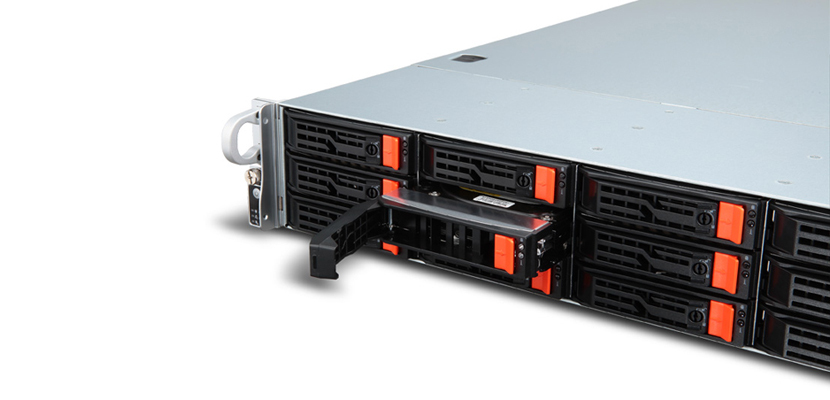

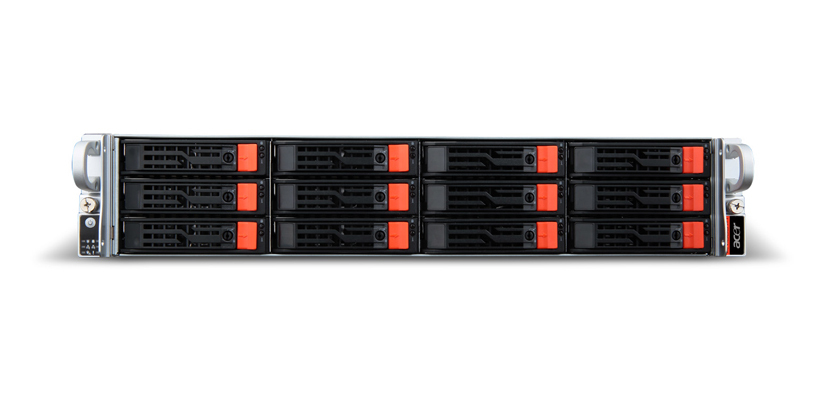

Acer AN TS.R760R.020 NAS/storage server Rack (2U) Intel® Xeon® 5000 Sequence E5620

6 GB DDR3 4.096 TB Windows Storage Server 2008 R2 Black

Model TS.R760R.020EAN 4717276742126

82 specifications

Overview

Brand: Acer
Category: NAS & Storage Servers
Model: TS.R760R.020
Part number: TS.R760R.020
EAN / UPC: 4717276742126
Also known as: Acer AN TS.R760R.020 NAS/storage server Rack (2U) Intel® Xeon® 5000 Sequence E5620 6 GB DDR3 4.096 TB Windows Storage Server 2008 R2 Black

82 specifications in 11 groups

Specification	Value
Total installed storage capacity	4.096 TB
Number of storage drives installed	2
Number of storage drives supported	12
Storage drive capacity	2 TB
Storage drive interface	Serial ATA
Storage drive size	3.5"
HDD speed	7200 RPM
Maximum supported storage capacity	24 TB
RAID levels	0, 1, 5, 6, 10, 50, 60
Hot-swap drive bays	Yes

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Xeon® 5000 Sequence
Processor model	E5620
Processor frequency	2.4 GHz
Processor boost frequency	2.66 GHz
Processor cores	4
Processor threads	8
Processor cache	12 MB
L3 cache	12 MB
Bus type	QPI
CPU configuration (max)	2
CPU multiplier (bus/core ratio)	18
ECC supported by processor	Yes
Motherboard chipset	Intel® 5520
Number of processors installed	1
Physical Address Extension (PAE)	40 bit
Processor cache type	Smart Cache
Processor code	SLBV4
Processor lithography	32 nm
Processor operating modes	64-bit
Processor package size	42.5 X 45 mm
Processor socket	Socket B (LGA 1366)
Stepping	B1
System bus rate	5.86 GT/s
Tcase	77.6 °C
Thermal Design Power (TDP)	80 W
Maximum internal memory supported by processor	288 GB
Memory bandwidth supported by processor (max)	25.6 GB/s
Conflict-Free processor	No

Specification	Value
Operating system installed	Windows Storage Server 2008 R2
Bundled software	Acer Smart Console Acer Smart Server Manager LSI MSM LSI WebConsole

Specification	Value
Power supply unit (PSU) capacity	720 W
Number of power supply units	1
Redundant power supply (RPS) support	Yes

Specification	Value
External power adapter	No
Cables included	AC

Specification	Value
Embedded options available	Yes
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Idle States	Yes
Intel 64	Yes
Intel Demand Based Switching	Yes
Intel Enhanced Halt State	Yes
Intel Trusted Execution Technology	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® Turbo Boost Technology	1.0
Number of QPI links	2
Thermal Monitoring Technologies	No
Memory channels supported by processor	Triple

Specification	Value
Operating temperature (T-T)	0 - 35 °C
Operating relative humidity (H-H)	8 - 90%
Storage relative humidity (H-H)	5 - 95%
Storage temperature (T-T)	-40 - 70 °C
