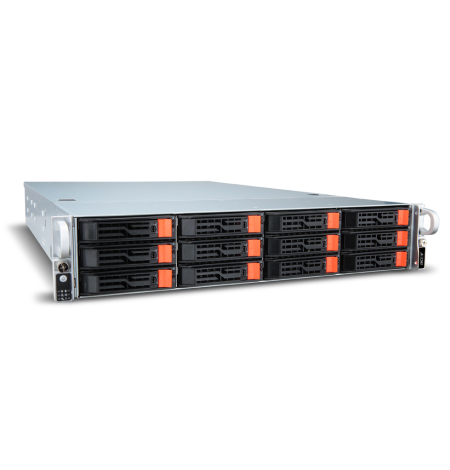

Acer 1600 F1

Model 1600 F1Part no. TS.R760R.014EAN 8844839747574

91 specifications

Overview

Brand: Acer
Category: NAS & Storage Servers
Model: 1600 F1
Part numbers: TS.R760R.014, TS.R760R.011, TS.R760R.012, TS.R760R.013
EAN / UPC: 8844839747574, 884483974726, 8844839747260, 884483974733 +4 more
Also known as: Acer AN 1600 F1 Rack (2U) Intel® Xeon® 5000 Sequence E5620 8 GB DDR3 3.6 TB Windows Storage Server 2008 R2 Black, Orange, Silver

91 specifications in 13 groups

Specification	Value
Total installed storage capacity	3.6 TB
Number of storage drives installed	12
Number of storage drives supported	12
Storage drive capacity	300 GB
Storage drive interface	Serial Attached SCSI (SAS)
Storage drive size	3.5"
HDD speed	15000 RPM
Maximum supported storage capacity	24 TB
RAID levels	1, 5, 6, 10, 50, 60

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Xeon® 5000 Sequence
Processor model	E5620
Processor frequency	2.4 GHz
Processor boost frequency	2.66 GHz
Processor cores	4
Processor threads	8
Processor cache	12 MB
L3 cache	12 MB
Bus type	QPI
CPU configuration (max)	2
CPU multiplier (bus/core ratio)	18
Compatible processor series	Intel® Xeon®
ECC supported by processor	Yes
Motherboard chipset	Intel® 5520
Number of processors installed	2
Physical Address Extension (PAE)	40 bit
Processor cache type	Smart Cache
Processor code	SLBV4
Processor lithography	32 nm
Processor operating modes	64-bit
Processor package size	42.5 X 45 mm
Processor socket	Socket B (LGA 1366)
Stepping	B1
System bus rate	5.86 GT/s
Tcase	77.6 °C
Thermal Design Power (TDP)	80 W
Maximum internal memory supported by processor	288 GB
Memory bandwidth supported by processor (max)	25.6 GB/s
Conflict-Free processor	No

Specification	Value
Compliance industry standards	IEEE 802.3, IEEE 802.3ab, IEEE 802.3u
Maximum data transfer rate	1000 Mbit/s

Specification	Value
Ethernet LAN (RJ-45) ports	3
USB 2.0 ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
VGA (D-Sub) ports quantity	1
eSATA ports quantity	0
HDMI ports quantity	0
Serial ports quantity	1
External mini-SAS ports	0
FireWire 400	No
FireWire 800	No
eSATA	No

Specification	Value
On/off switch	Yes

Specification	Value
Operating system installed	Windows Storage Server 2008 R2

Specification	Value
Power supply unit (PSU) capacity	720 W
Number of power supply units	2
Redundant power supply (RPS) support	Yes

Specification	Value
Embedded options available	Yes
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Idle States	Yes
Intel 64	Yes
Intel Demand Based Switching	Yes
Intel Enhanced Halt State	Yes
Intel Trusted Execution Technology	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® Turbo Boost Technology	1.0
Number of QPI links	2
Thermal Monitoring Technologies	No
Memory channels supported by processor	Triple

Specification	Value
Operating temperature (T-T)	0 - 35 °C
Operating relative humidity (H-H)	8 - 90%
Storage relative humidity (H-H)	5 - 95%
Storage temperature (T-T)	-40 - 70 °C
