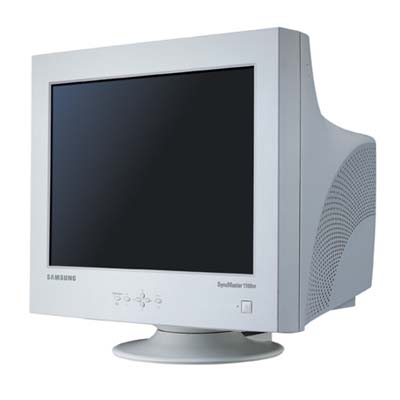

Samsung SM1100DF 21" CRT Monitor
Model SM1100DF 21" CRT MonitorPart no. CF21GSBU/GSBB
18 specifications
- Display53.3 cm (21")
- Resolution2048 x 1536 pixels
- TypeDynaFlat
- Weight28 kg
- Plug and PlayYes
- I/O portsVGA (15 D-sub) BNC-5
Overview
- Display
- 53.3 cm (21")
- Resolution
- 2048 x 1536 pixels
- Type
- DynaFlat
- Weight
- 28 kg
- Plug and Play
- Yes
- I/O ports
- VGA (15 D-sub) BNC-5
- Brand
- Samsung
- Category
- Monitors CRT
- Model
- SM1100DF 21" CRT Monitor
- Part number
- CF21GSBU/GSBB
- Also known as
- Samsung SM1100DF 21" CRT Monitor monitor CRT 2048 x 1536 pixels 53.3 cm (21")
Specifications
18 specifications in 7 groups
Display
| Specification | Value |
|---|---|
| Display diagonal | 53.3 cm (21") |
| Type | DynaFlat |
| Display resolution | 2048 x 1536 pixels |
| Vertical scan range | 50 - 160 Hz |
| Horizontal scan range | 30 - 121 kHz |
| Display viewable area (HxV) | 406 x 305 mm |
| Pixel pitch | 0.2 |
| Recommended resolution | 1280x1024@85Hz |
Features
| Specification | Value |
|---|---|
| Plug and Play | Yes |
| Certification | TCO '03 |
Ports & interfaces
| Specification | Value |
|---|---|
| I/O ports | VGA (15 D-sub) BNC-5 |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 120 W |
| Power consumption (standby) | 2 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 504 x 500 x 508 mm |
| Weight | 28 kg |
System requirements
| Specification | Value |
|---|---|
| Mac compatibility | No |
Technical details
| Specification | Value |
|---|---|
| Monitor max. video input bandwidth | 340 MHz |
| Technical features | MagicTune Natural Color sRGB |
