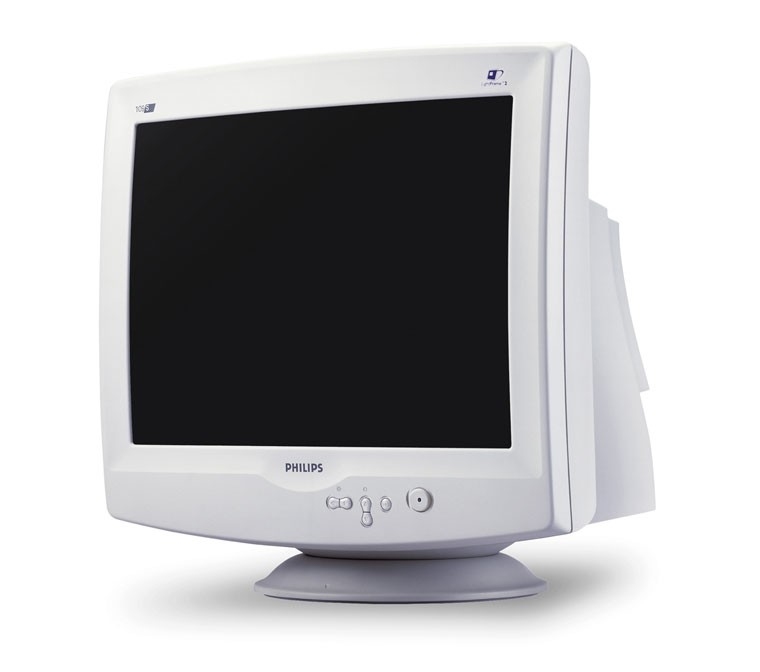

Philips 19" (18.0" VIS) XSD™ monitor

Philips 19" (18.0" VIS) XSD™ monitor

Model 19" (18.0" VIS) XSD™ monitorPart no. 109S40/00

22 specifications

Display48.3 cm (19")
Resolution1920 x 1440 pixels
Weight19.4 kg
I/O ports15-pin
Power consumption (typical)83 W
Operating relative humidity (H-H)5 - 95%

See all specifications

Overview

Display: 48.3 cm (19")
Resolution: 1920 x 1440 pixels
Weight: 19.4 kg
I/O ports: 15-pin
Power consumption (typical): 83 W
Operating relative humidity (H-H): 5 - 95%

Brand: Philips
Category: Monitors CRT
Model: 19" (18.0" VIS) XSD™ monitor
Part number: 109S40/00
Also known as: Philips 19" (18.0" VIS) XSD™ monitor monitor CRT 1920 x 1440 pixels 48.3 cm (19")

Specifications

22 specifications in 7 groups

Display

Specification	Value
Display diagonal	48.3 cm (19")
Display resolution	1920 x 1440 pixels
Viewable size diagonal	46 cm
Vertical scan range	50 - 160 Hz
Horizontal scan range	30 - 92 kHz
Pixel pitch	0.23 x 0.27 mm
Recommended resolution	1280 x 1024

Features

Specification	Value
Certification	- TCO ‘99 - MPR-II Low Emission - TÜV/GS,TÜV-Ergo,TÜV/9241-3 - FCC-B, UL, CSA, DHHS - SEMKO, Poland-B sign, C-Tick - CE, BCIQ, PSB - NUTEK, Energy Star

Ports & interfaces

Specification	Value
I/O ports	15-pin

Power

Specification	Value
Power consumption (typical)	83 W
Power consumption (standby)	2 W
Power requirements	90 - 264 VAC, 50/60Hz

Operational conditions

Specification	Value
Operating relative humidity (H-H)	5 - 95%
Storage temperature (T-T)	-25 - 65 °C
Operating temperature (T-T)	0 - 40 °C
Operating temperature (T-T)	32 - 104 °F

Weight & dimensions

Specification	Value
Depth	441 mm
Dimensions (W x D x H) with stand	440 x 447 x 441 mm
Height	399 mm
Weight	19.4 kg
Width	440 mm

System requirements

Specification	Value
Compatible operating systems	Microsoft Windows 95/98/ME & 2000/NT/XP
