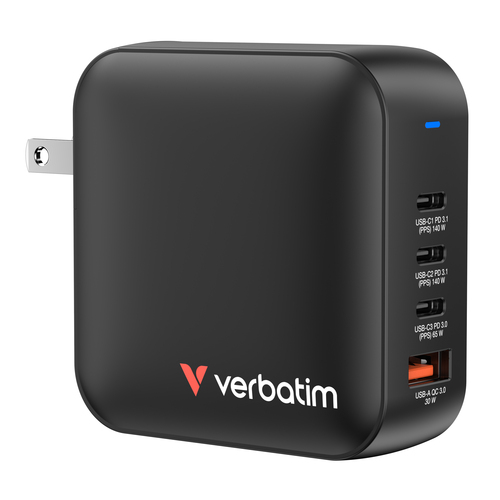

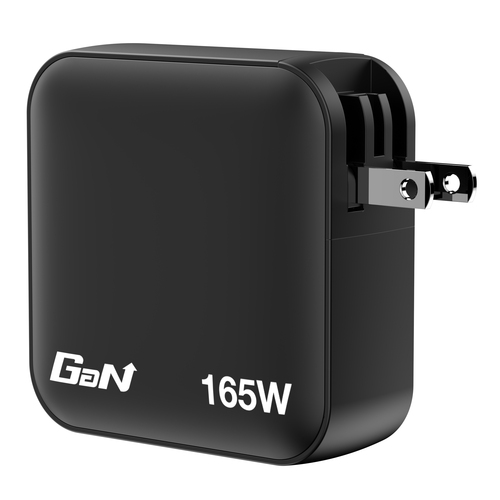

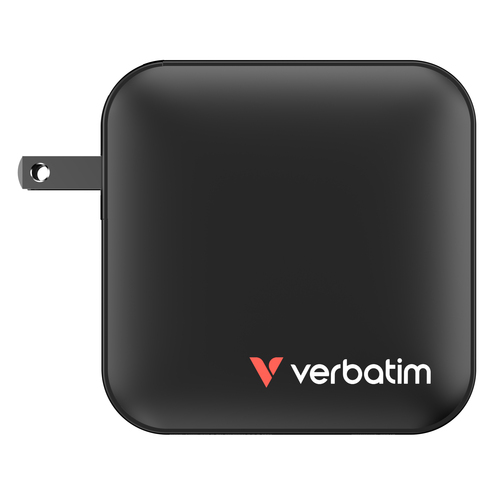

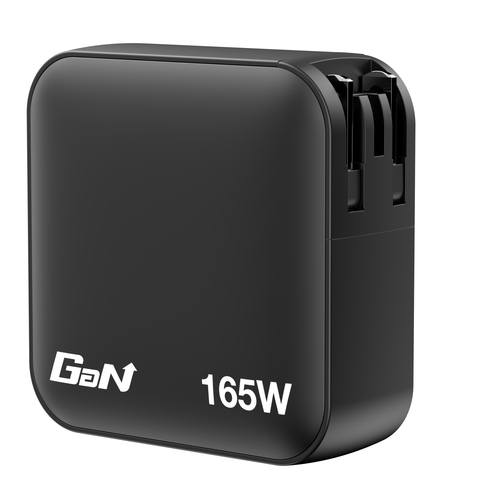

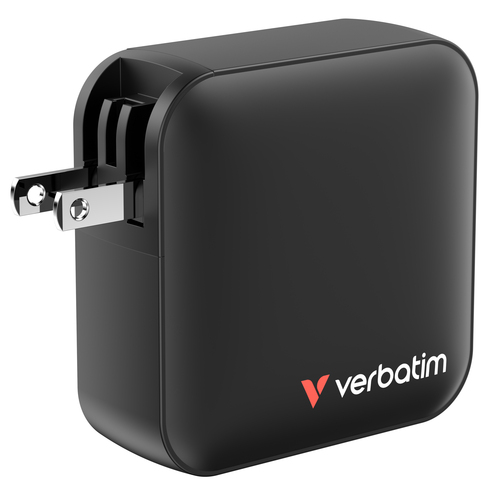

Mini GaN Charger 165W
Model Mini GaN Charger 165WPart no. 32216EAN 023942322160
53 specifications
- Power165 W
- Weight245 g
- ColourBlack
- Charger typeIndoor
- Input voltage100 - 240 V
- Width31 mm
Overview
- Power
- 165 W
- Weight
- 245 g
- Colour
- Black
- Charger type
- Indoor
- Input voltage
- 100 - 240 V
- Width
- 31 mm
- Brand
- Verbatim
- Category
- Mobile Device Charger
- Model
- Mini GaN Charger 165W
- Part number
- 32216
- EAN / UPC
- 023942322160
- Also known as
- Verbatim Mini GaN Charger 165W 4 Port US plug with EU and UK adaptors
Specifications
53 specifications in 8 groups
Performance
| Specification | Value |
|---|---|
| Charger type | Indoor |
| Charger compatibility | Universal |
| Power source type | AC |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| USB Type-C ports quantity | 3 |
| Fast charging | Yes |
| Fast charging technology | Quick Charge 3.0 |
| Number of simultaneously connected devices (max) | 4 |
| Programmable power supply (PPS) | Yes |
| Operating principle | Contact |
| USB Power Delivery (USB PD) | Yes |
| USB Power Delivery revision | 3.1 |
| USB Power Delivery up to | 100 W |
| Power protection features | Over current, Over voltage, Overheating, Short circuit |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Housing material | Polycarbonate (PC) |
| LED indicators | Yes |
| Plug and Play | Yes |
| Gallium nitride (GaN) transistors | Yes |
Power
| Specification | Value |
|---|---|
| Input voltage | 100 - 240 V |
| Input frequency | 50/60 Hz |
| Input current | 2.3 A |
| Maximum power | 165 W |
| Maximum output voltage | 28 V |
| Minimum output voltage | 3.3 V |

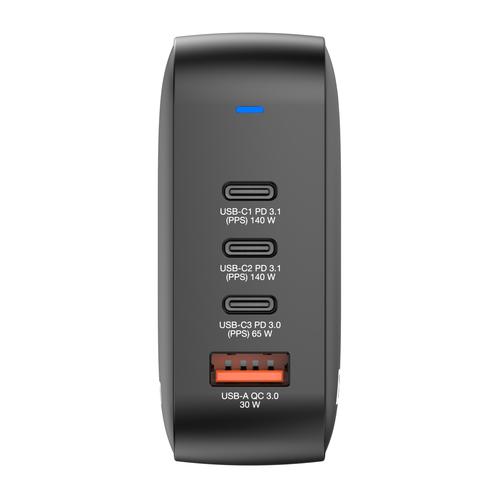

| Port 1 output power | 140 W |
| Port 2 output power | 100 W |
| Port 3 output power | 65 W |
| Port 4 output power | 30 W |
| Port 1 output current | 5 A |
| Port 2 output current | 5 A |
| Port 3 output current | 5 A |
| Port 4 output current | 5 A |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 31 mm |
| Depth | 72 mm |
| Height | 72 mm |
| Weight | 245 g |
Packaging data
| Specification | Value |
|---|---|
| Package width | 47 mm |
| Package depth | 110 mm |
| Package height | 140 mm |
| Package weight | 365 g |
| Package type | Box |
Packaging content
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
| AC adapter included | Yes |

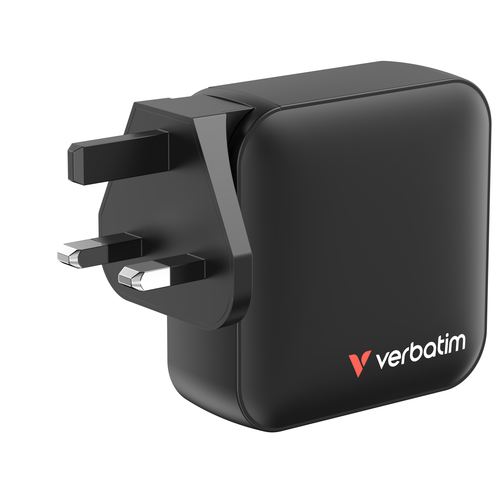

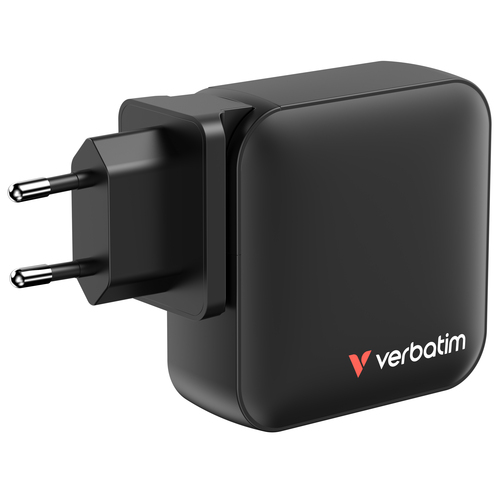

| Included power plug types | EU, UK, US |
Logistics data
| Specification | Value |
|---|---|
| Master (outer) cases per pallet layer | 12 pc(s) |
| Layers per pallet | 4 pc(s) |
| Warranty period | 2 year(s) |
Other features
| Specification | Value |
|---|---|
| User guide | Yes |
| Inner carton dimensions (W x D x H) | 255 x 300 x 130 mm |
| Net weight inner carton | 4000 kg |
| Net weight of outer carton | 8750 kg |
| Outer carton dimensions (W x D x H) | 270 x 320 x 290 mm |
