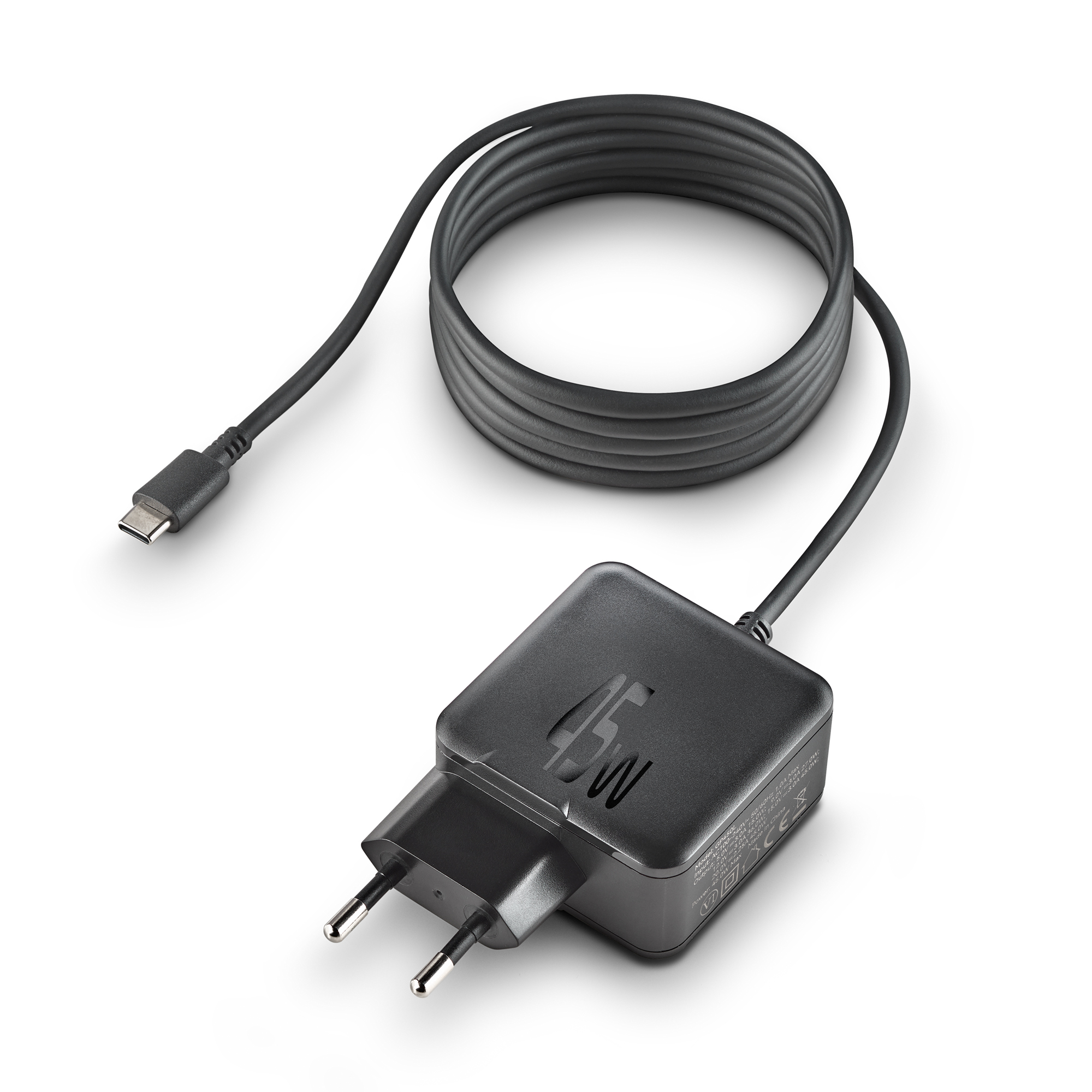

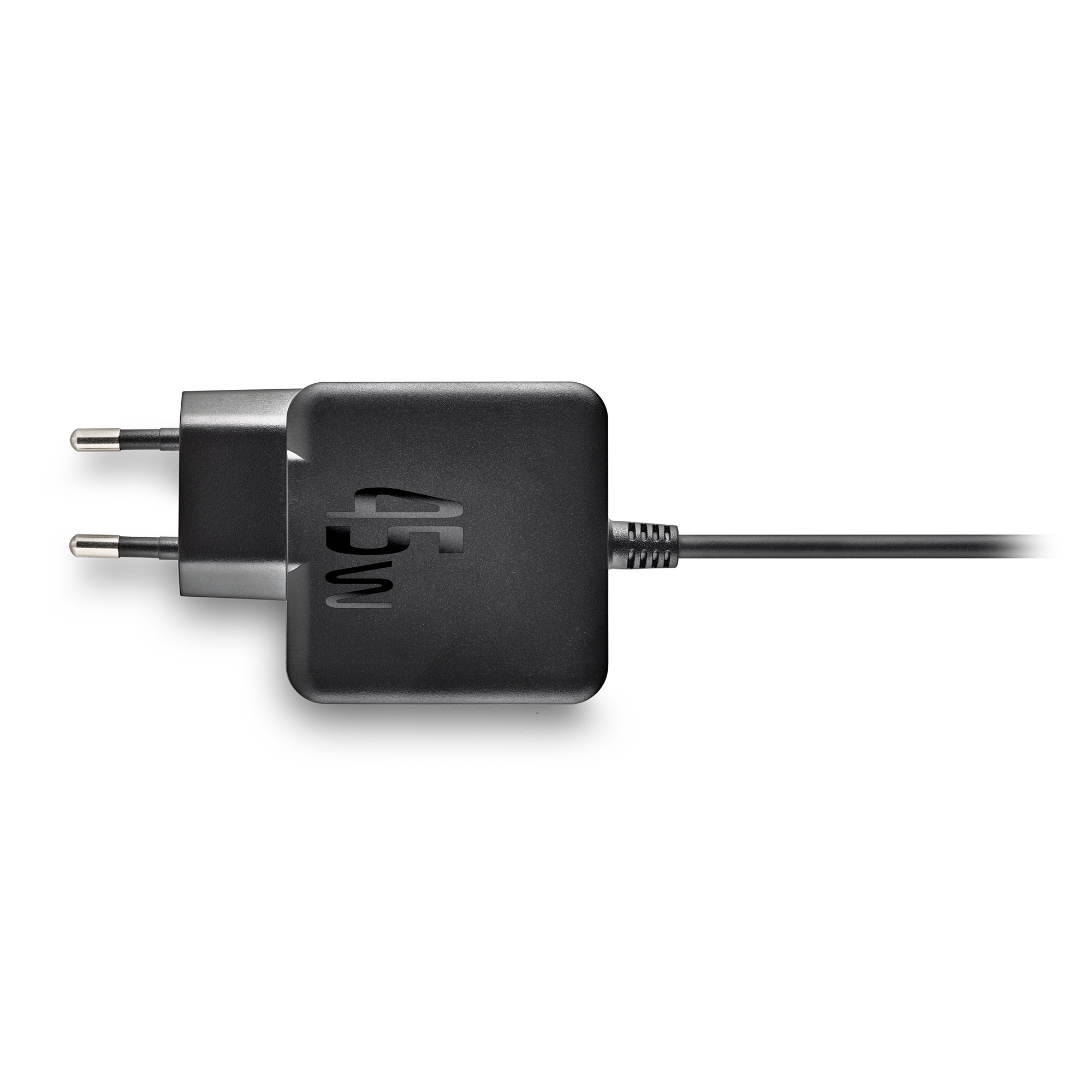

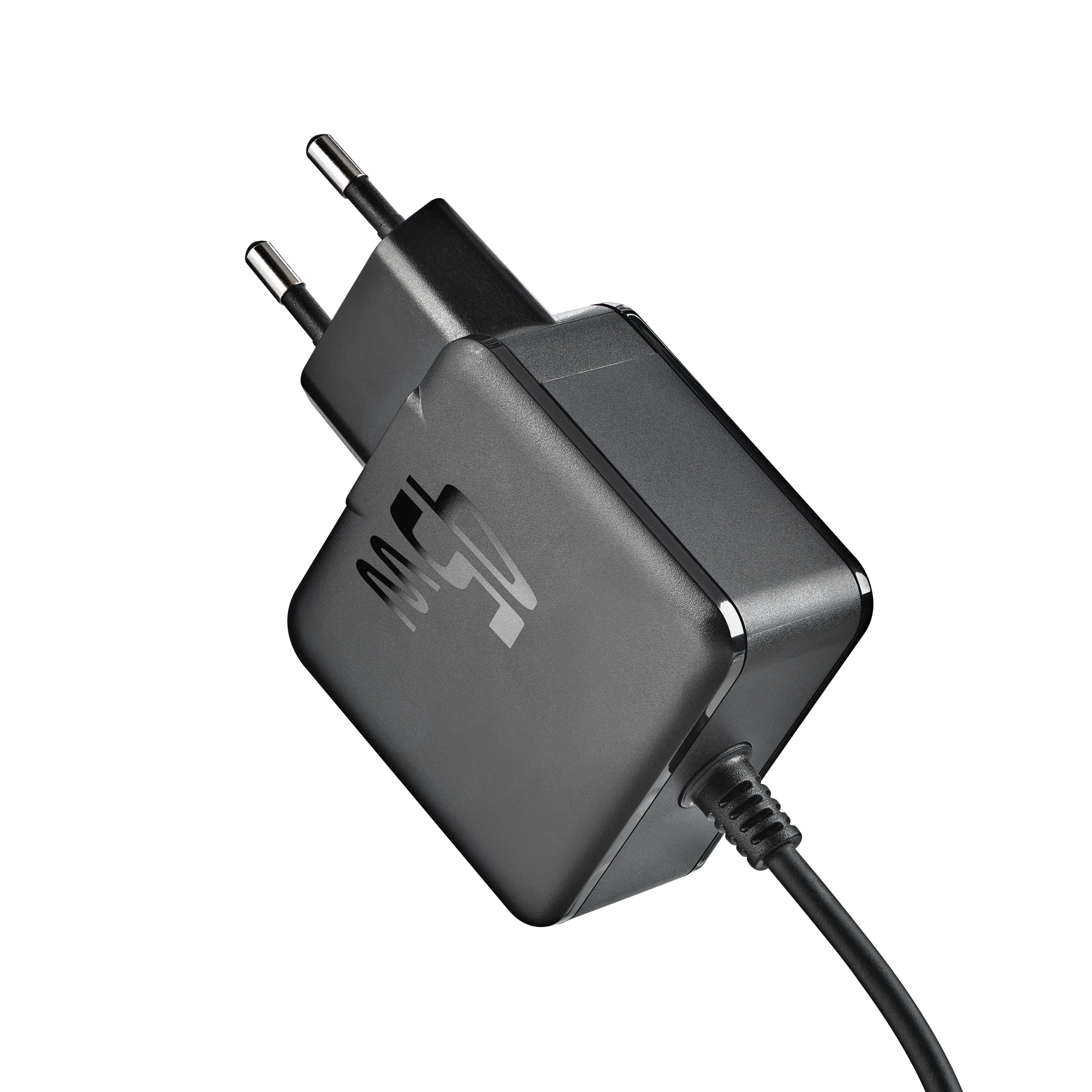

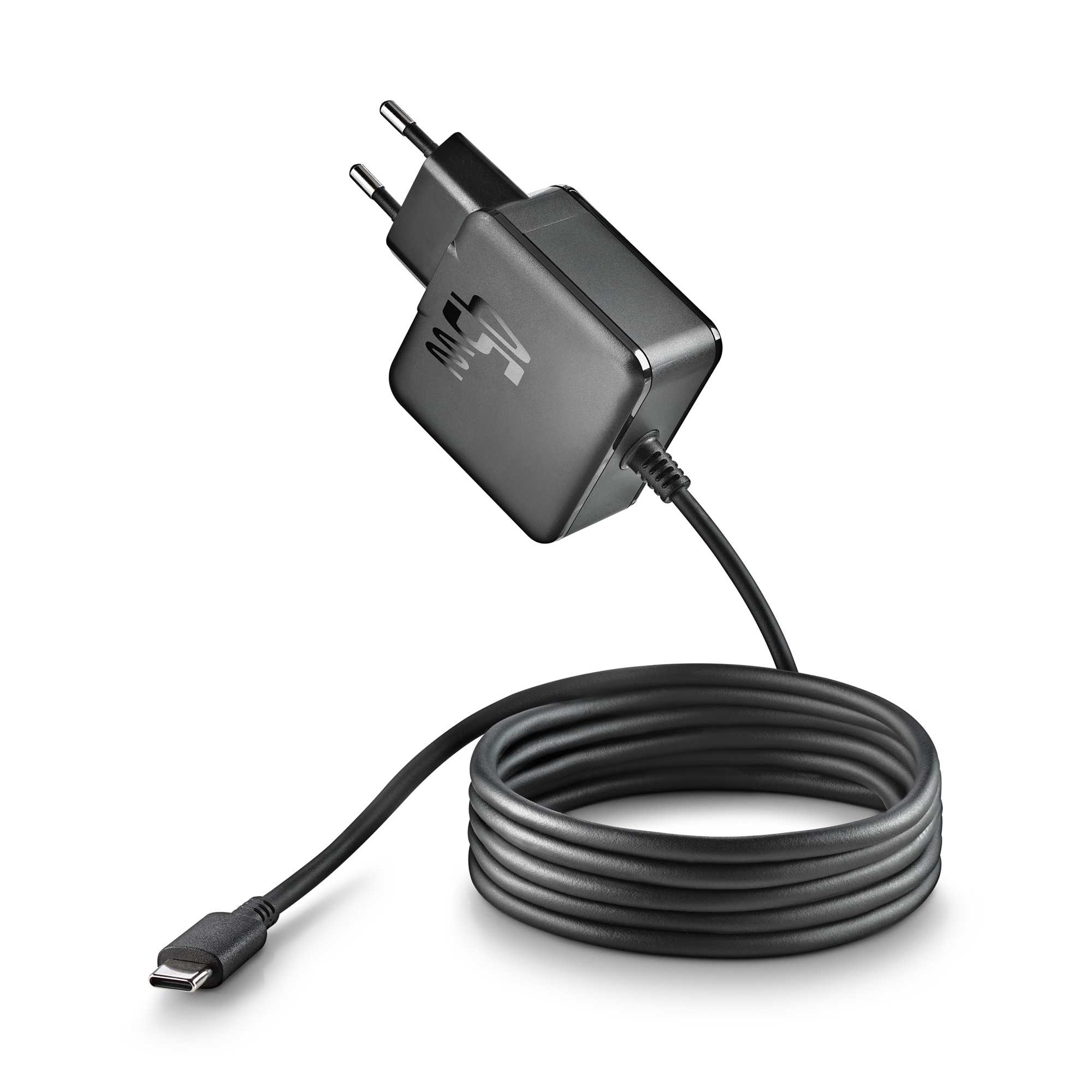

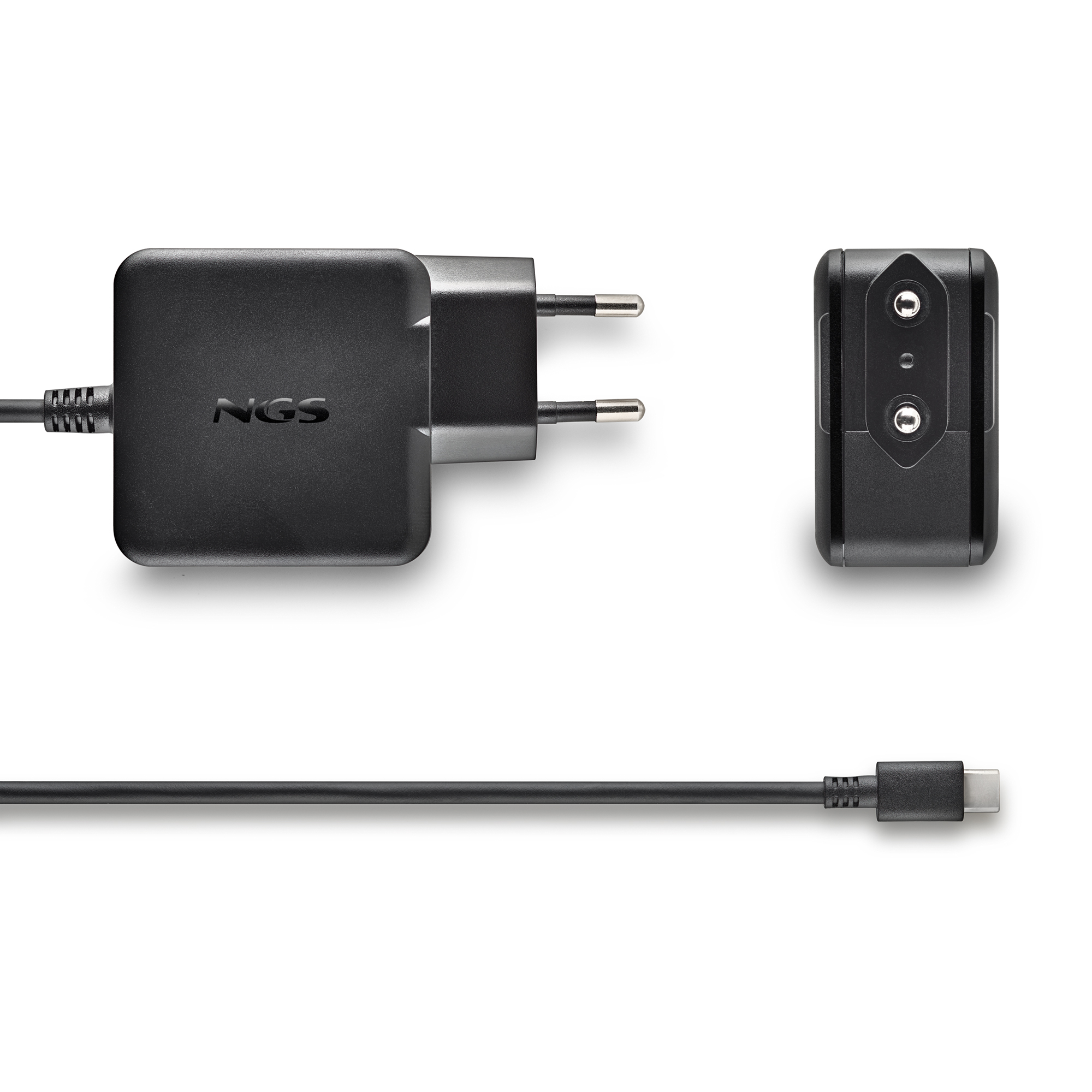

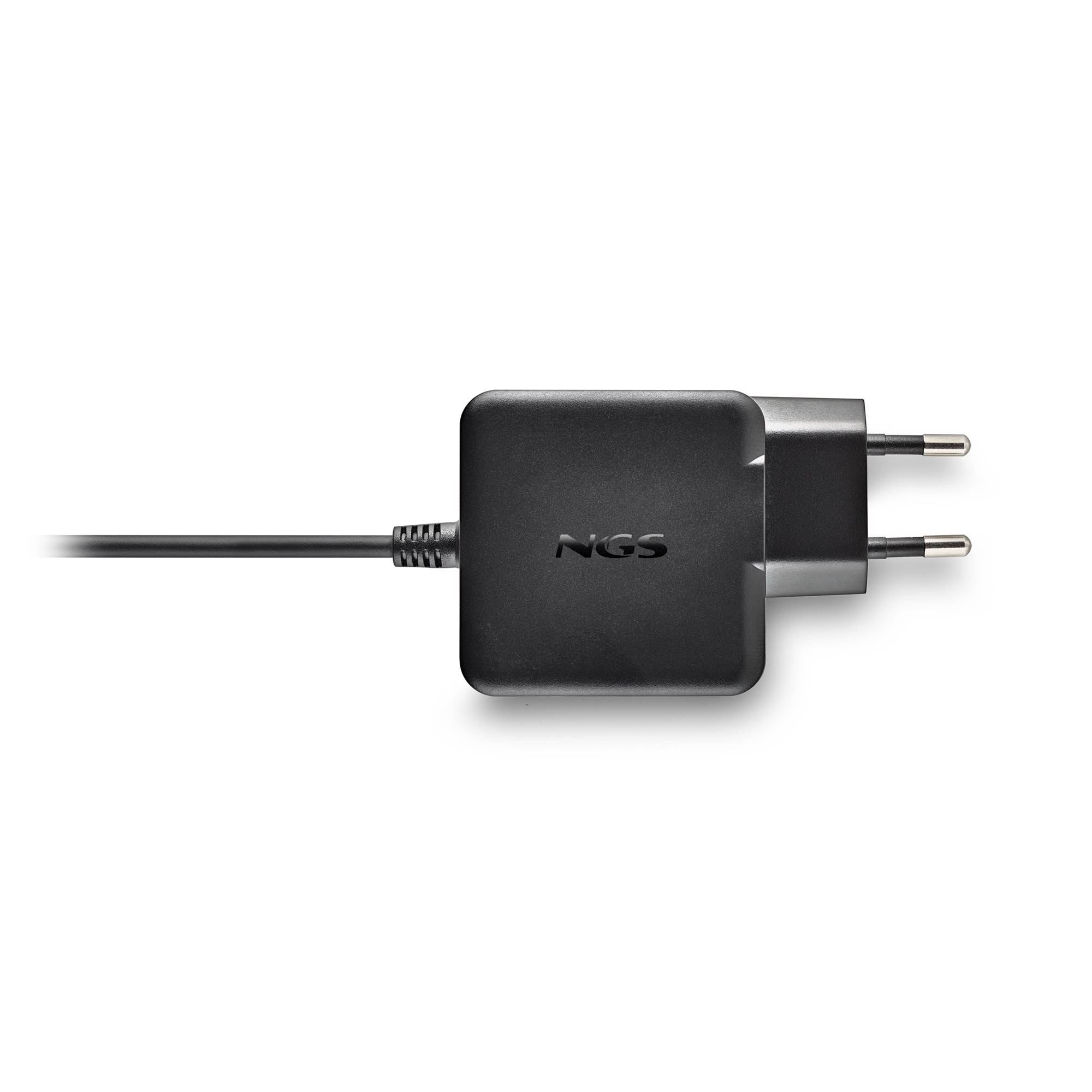

GAN 45W-C
Model GAN 45W-CPart no. NGS-ACCESORIOS-0351EAN 8435430627626
42 specifications
- Power45 W
- Weight127 g
- ColourBlack
- Charger typeIndoor
- Input voltage100 - 240 V
- Width54 mm
Overview
- Power
- 45 W
- Weight
- 127 g
- Colour
- Black
- Charger type
- Indoor
- Input voltage
- 100 - 240 V
- Width
- 54 mm
- Brand
- NGS
- Category
- Mobile Device Charger
- Model
- GAN 45W-C
- Part number
- NGS-ACCESORIOS-0351
- EAN / UPC
- 8435430627626
- Also known as
- NGS GAN 45W-C Universal Black AC Indoor
Specifications
42 specifications in 8 groups
Performance
| Specification | Value |
|---|---|
| Charger type | Indoor |
| Charger compatibility | Universal |
| Power source type | AC |
| USB Type-C ports quantity | 1 |
| Wireless charging | No |
| Socket type | Type F |
| Number of simultaneously connected devices (max) | 1 |
| Programmable power supply (PPS) | Yes |
| Operating principle | Contact |
| USB Power Delivery (USB PD) | Yes |
| USB Power Delivery revision | 3.0 |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Cable length | 1.5 m |
| Gallium nitride (GaN) transistors | Yes |
Power
| Specification | Value |
|---|---|
| Input voltage | 100 - 240 V |
| Input frequency | 50/60 Hz |
| Input current | 1.2 A |
| Maximum power | 45 W |
| Maximum output voltage | 20 V |
| Minimum output voltage | 5 V |
| AC adapter output current | 3 A |
| Port 1 output power | 45 W |
| Output current (5V) | 3 A |
| Output current (9V) | 3 A |
| Output current (12V) | 3 A |
| Output current (15V) | 3 A |
| Port 1 output current | 3 A |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 54 mm |
| Depth | 91 mm |
| Height | 29 mm |
| Weight | 127 g |
Packaging data
| Specification | Value |
|---|---|
| Package width | 119 mm |
| Package depth | 36 mm |
| Package height | 148 mm |
| Package weight | 183 g |
| Package type | Hanging box |
Packaging content
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
| Included power plug types | EU |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | CE |
Logistics data
| Specification | Value |
|---|---|
| Master (outer) case width | 285 mm |
| Master (outer) case length | 200 mm |
| Master (outer) case height | 190 mm |
