JUP37185W 185W GaN PD 3.1 USB-C® 3-Port Charger-UK, Black
Model JUP37185W-FNEAN 4712795088564
51 specifications
- Power185 W
- Weight440 g
- ColourWhite
- Charger typeIndoor
- Input voltage100 - 240 V
- Width68 mm
Overview
- Power
- 185 W
- Weight
- 440 g
- Colour
- White
- Charger type
- Indoor
- Input voltage
- 100 - 240 V
- Width
- 68 mm
- Brand
- j5create
- Category
- Mobile Device Charger
- Model
- JUP37185W-FN
- Part number
- JUP37185W-FN
- EAN / UPC
- 4712795088564
- Also known as
- j5create JUP37185W 185W GaN PD 3.1 USB-C® 3-Port Charger-UK, Black
Specifications
51 specifications in 11 groups
Performance
| Specification | Value |
|---|---|
| Charger type | Indoor |
| Charger compatibility | Universal |
| Power source type | AC |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| USB Type-C ports quantity | 2 |
| Fast charging | Yes |
| Fast charging technology | Power Delivery |
| Number of simultaneously connected devices (max) | 3 |
| USB Power Delivery (USB PD) | Yes |
| USB Power Delivery revision | 3.1 |
| USB Power Delivery up to | 185 W |
Design
| Specification | Value |
|---|---|
| Product colour | White |
| Housing material | Plastic |
| Gallium nitride (GaN) transistors | Yes |
Power
| Specification | Value |
|---|---|
| Input voltage | 100 - 240 V |
| Input frequency | 50/60 Hz |
| Input current | 1.5 A |
| Maximum power | 185 W |
| Maximum output voltage | 20 V |
| Minimum output voltage | 5 V |

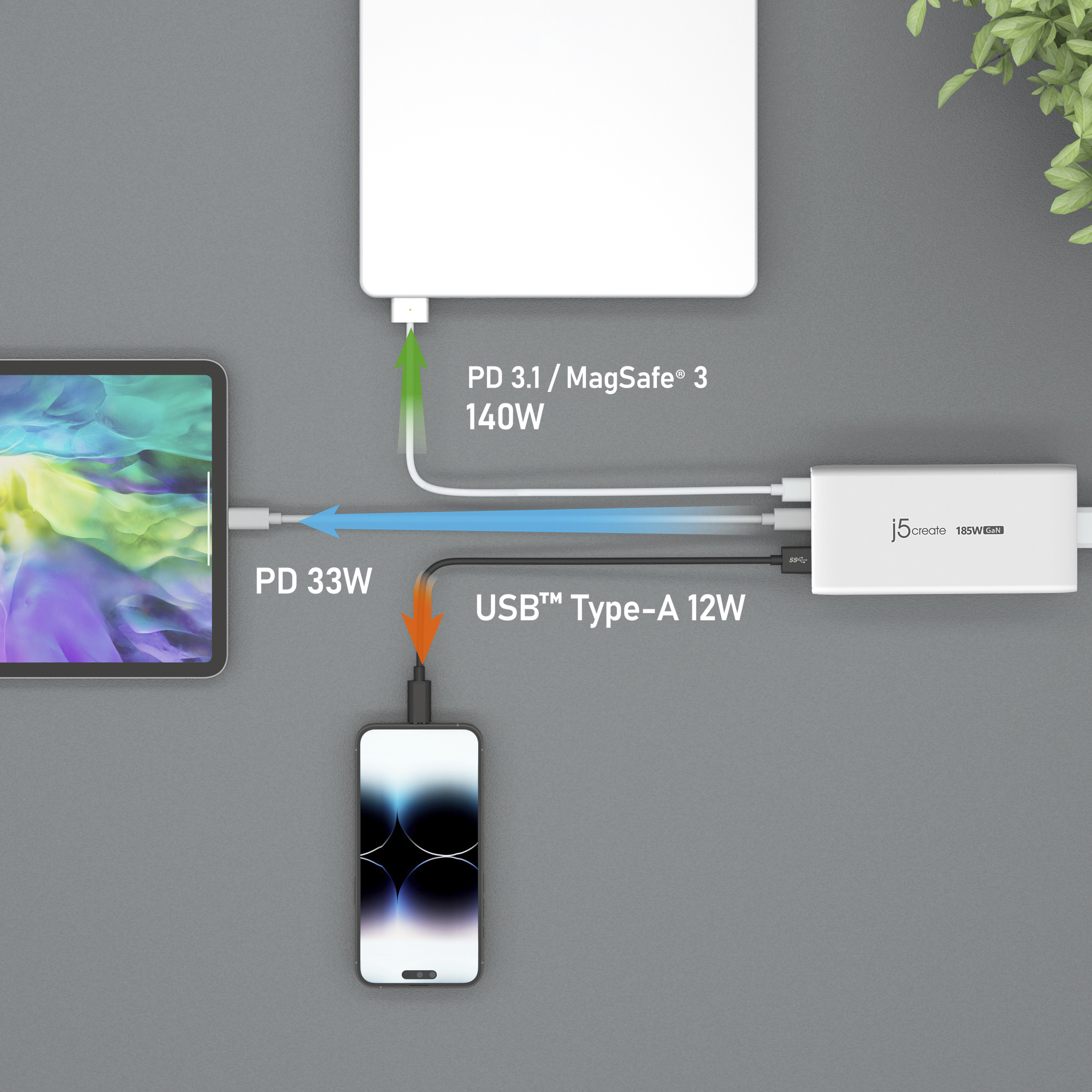

| Port 1 output power | 140 W |
| Port 2 output power | 45 W |
| Port 3 output power | 12 W |
| Output current (5V) | 3 A |
| Output current (9V) | 3 A |
| Output current (12V) | 3 A |
| Output current (15V) | 3 A |
| Output current (20V) | 5 A |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 68 mm |
| Depth | 141.8 mm |
| Height | 28 mm |
| Weight | 440 g |
Packaging data
| Specification | Value |
|---|---|
| Package width | 104 mm |
| Package depth | 177 mm |
| Package height | 85 mm |
| Package weight | 883 g |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 30 °C |
Packaging content
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
| Included power plug types | UK |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | CE, REACH, RoHS |
Sustainability
| Specification | Value |
|---|---|
| Sustainability compliance | Yes |
Logistics data
| Specification | Value |
|---|---|
| Export Control Classification Number (ECCN) | EAR99 |
| Master (outer) case net weight | 2.9 kg |
| Master (outer) case width | 207 mm |
| Master (outer) case length | 275 mm |
| Master (outer) case height | 155 mm |
| Products per master (outer) case | 3 pc(s) |
| Master (outer) case GTIN (EAN/UPC) | 24712795088568 |
| Country of origin | China |
| Warranty period | 2 year(s) |
Other features
| Specification | Value |
|---|---|

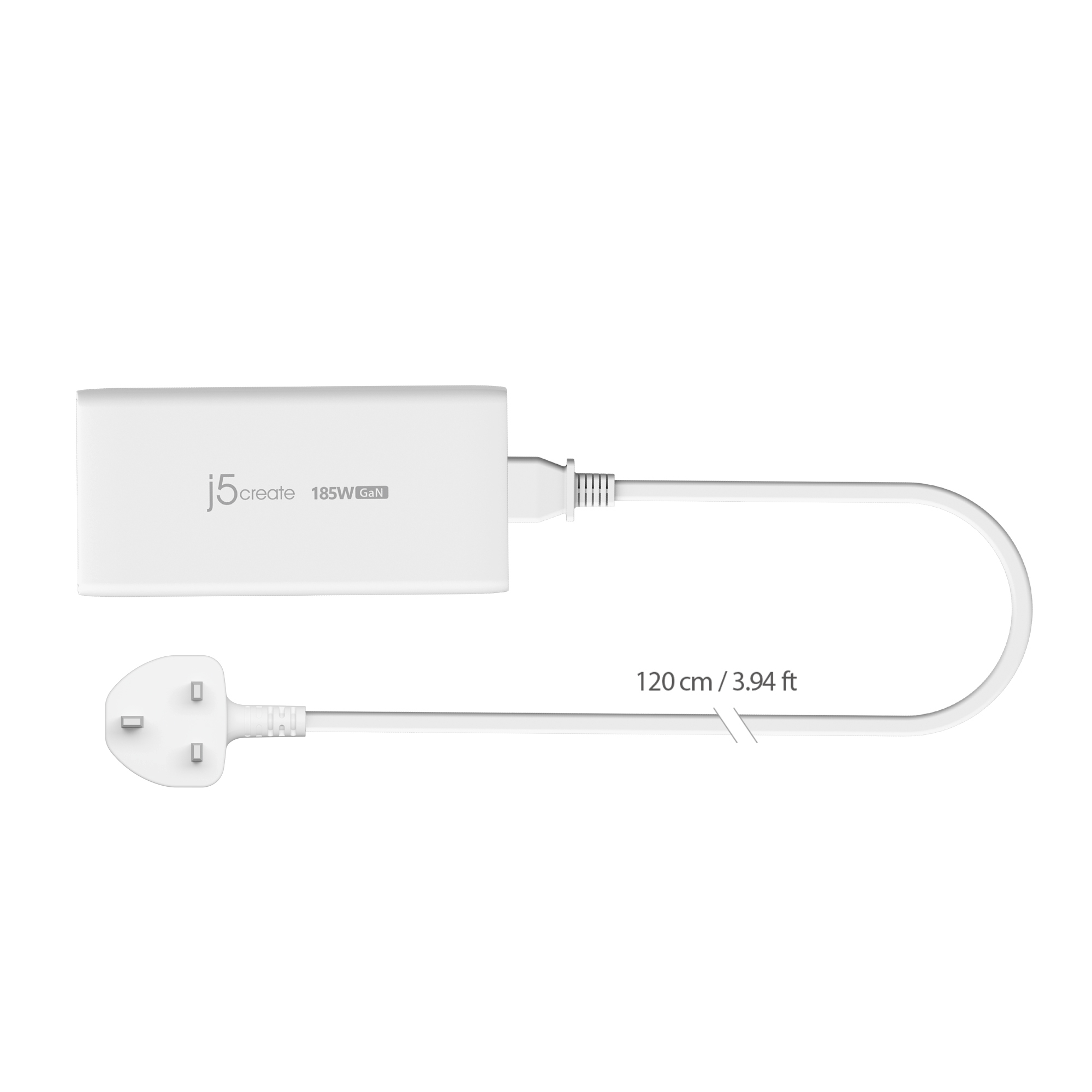

| Packaging content | 185W GaN PD3.1 USB-C® 3-Port Charger (JUP37185W) Detachable Power Cord: 47.24 in /120 cm |
