JUP1565DCF3A-FN

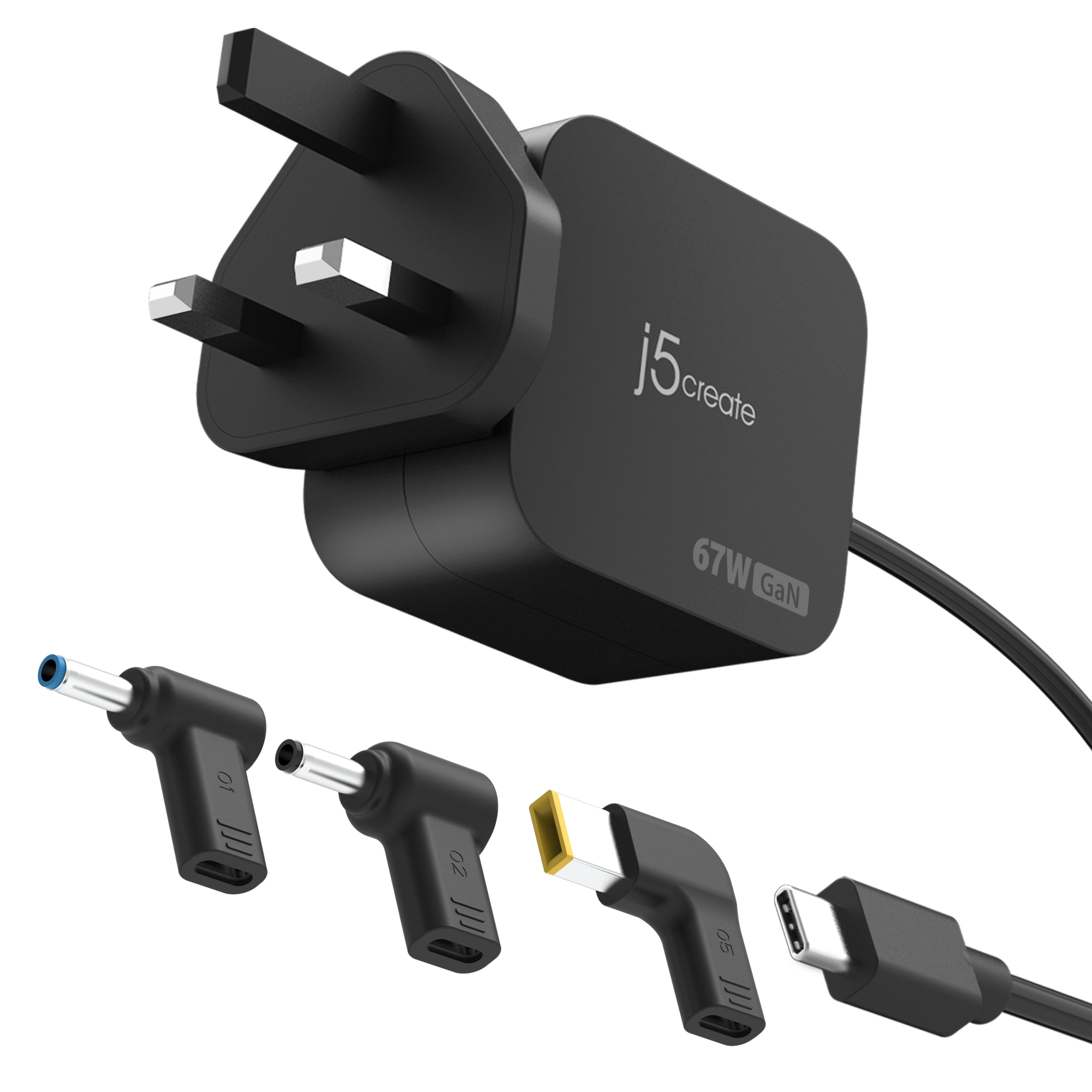

67W GaN PD USB-C® Mini Charger with 3 Types of DC Connector - UK
Model JUP1565DCF3A-FNEAN 4712795088007
22 specifications
- Weight164 g
- ColourBlack
- Input voltage100 - 240 V
- Width86 mm
- Operating temperature (T-T)-20 - 40 °C
Overview
- Weight
- 164 g
- Colour
- Black
- Input voltage
- 100 - 240 V
- Width
- 86 mm
- Operating temperature (T-T)
- -20 - 40 °C
- Brand
- j5create
- Category
- Mobile Device Charger
- Model
- JUP1565DCF3A-FN
- Part number
- JUP1565DCF3A-FN
- EAN / UPC
- 4712795088007
- Also known as
- j5create JUP1565DCF3A-FN 67W GaN PD USB-C® Mini Charger with 3 Types of DC Connector - UK
Specifications
22 specifications in 7 groups
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Housing material | Plastic |
Power
| Specification | Value |
|---|---|
| Input voltage | 100 - 240 V |
| Input current | 1.5 A |
| Output power | 67 W |
| Output voltage | USB-C® cable: 5V, 9V, 12V, 15V, 20V, 20.3V |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 86 mm |
| Depth | 51.3 mm |
| Height | 41.5 mm |
| Weight | 164 g |
Packaging data
| Specification | Value |
|---|---|
| Package width | 154.9 mm |
| Package depth | 94.9 mm |
| Package height | 39.8 mm |
| Package weight | 216 g |
| Package type | Box |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -20 - 40 °C |
| Storage temperature (T-T) | -20 - 80 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage relative humidity (H-H) | 10 - 90% |
Packaging content
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
Other features
| Specification | Value |
|---|---|
| Power supply type | Universal |

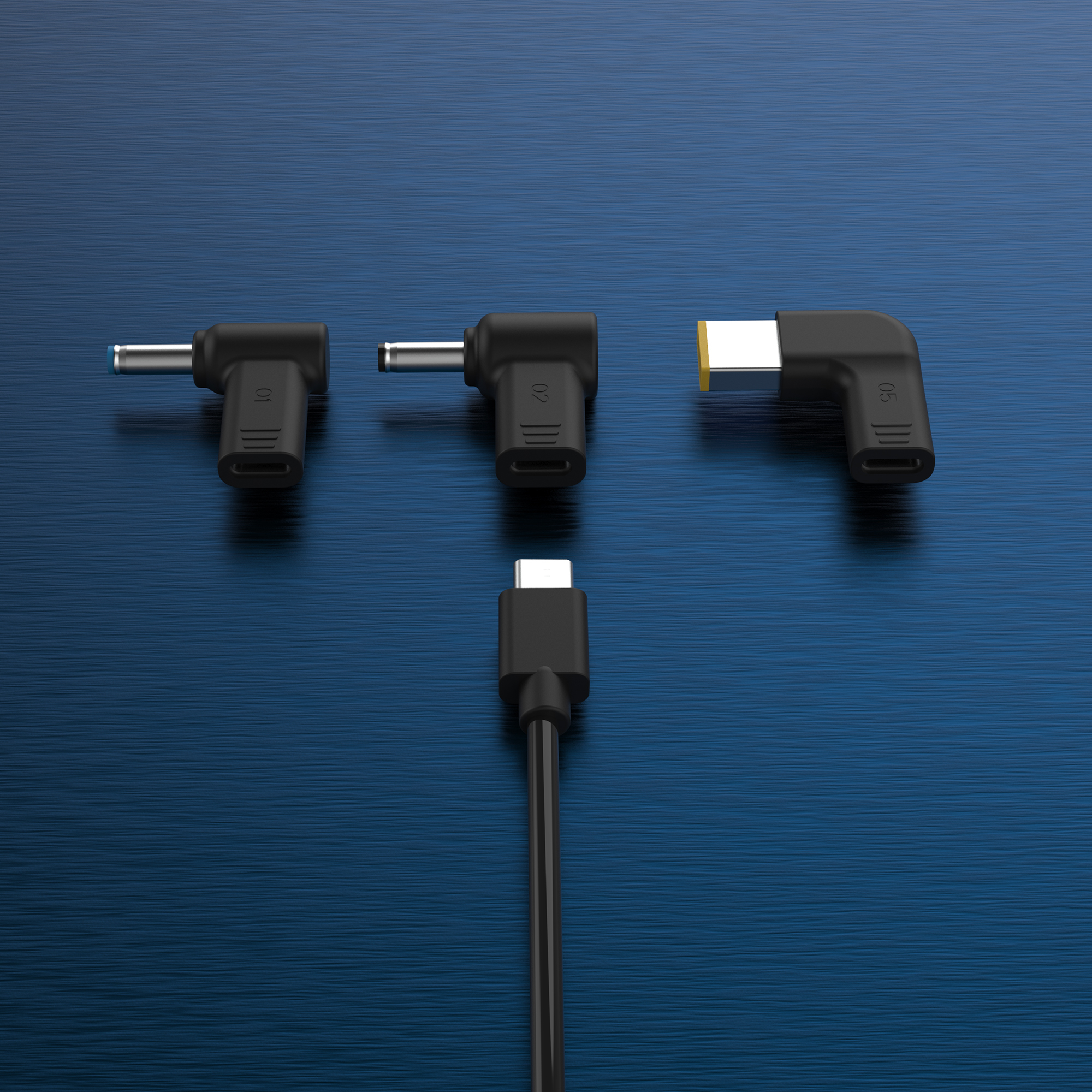

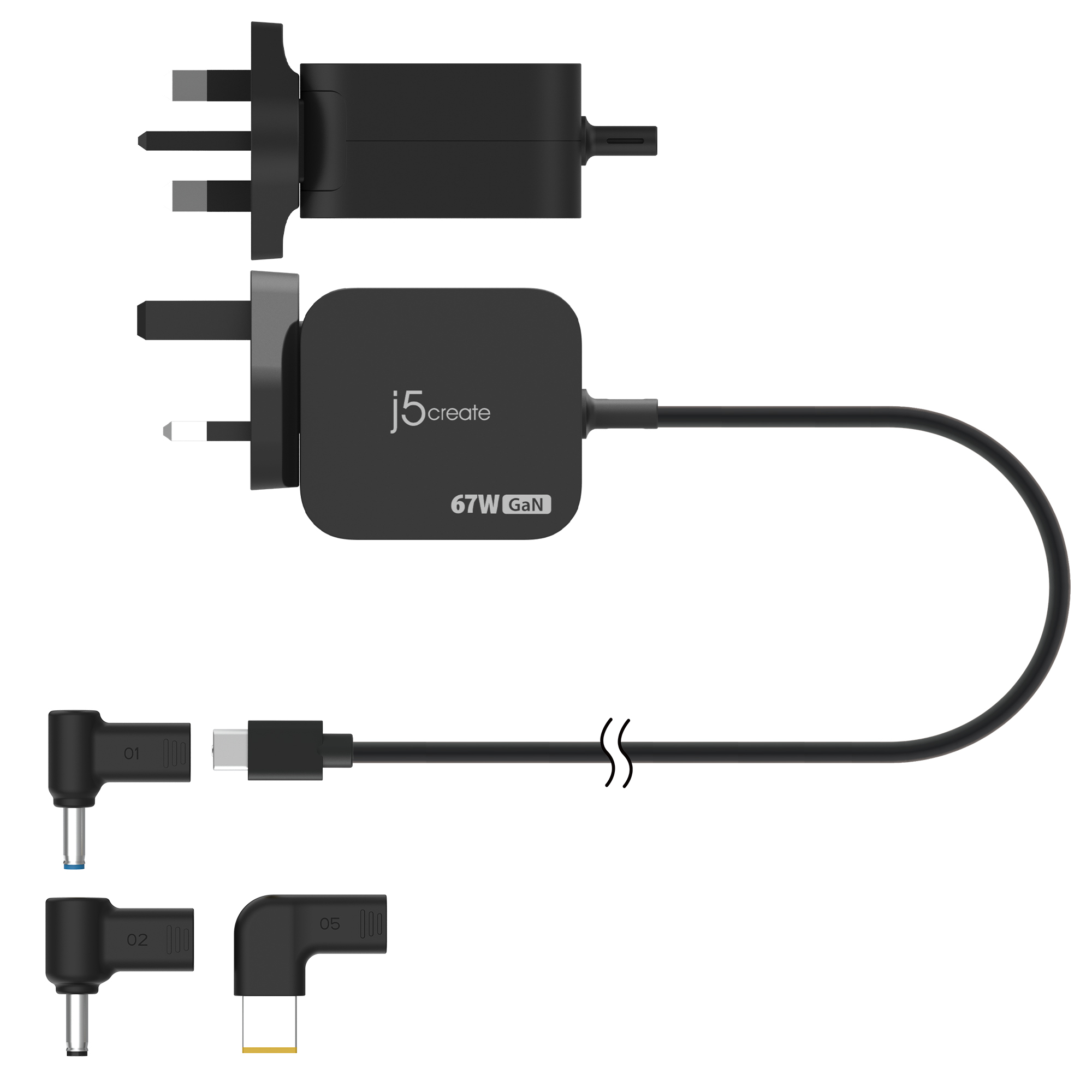

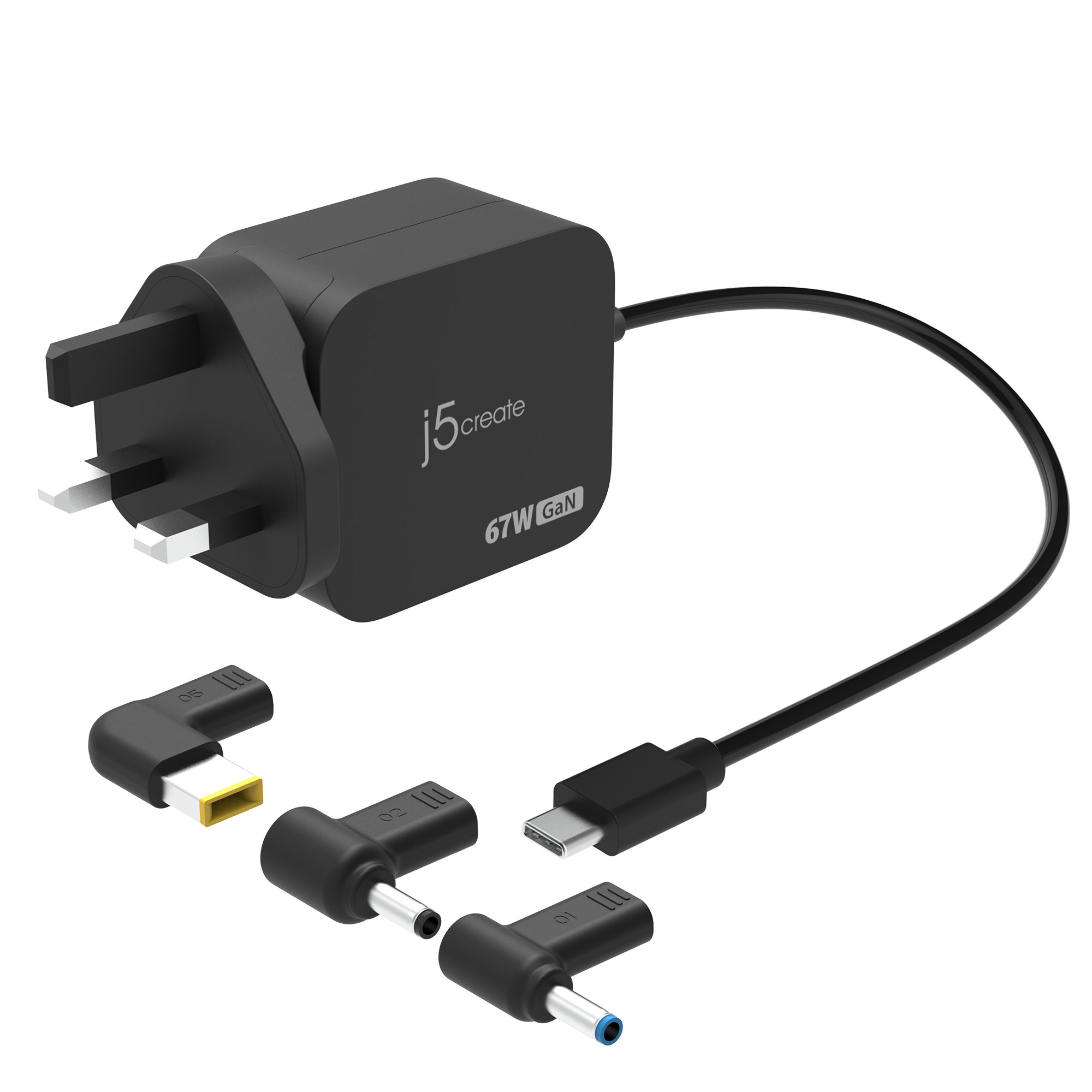

| Packaging content | • 1 - 67W GaN PD USB-C Mini Charger with 3 Types of DC Connector (JUP1565DCF3A) • 3 - USB-C to DC Jack connector (3 Types) • 1 - Quick Installation Guide (QIG) |
