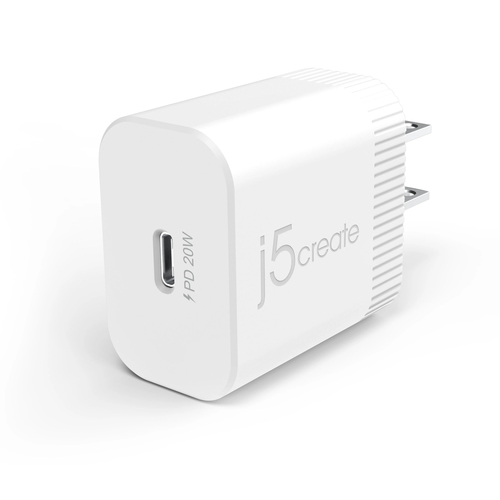

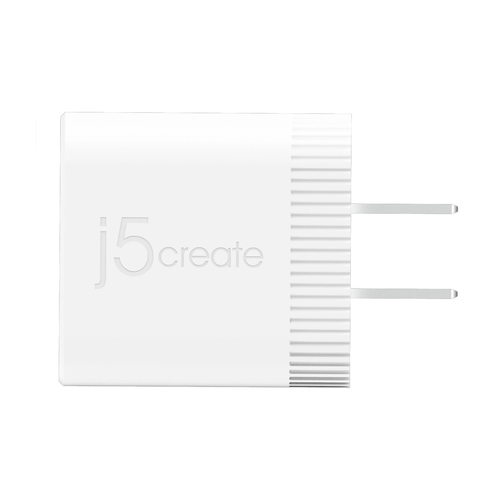

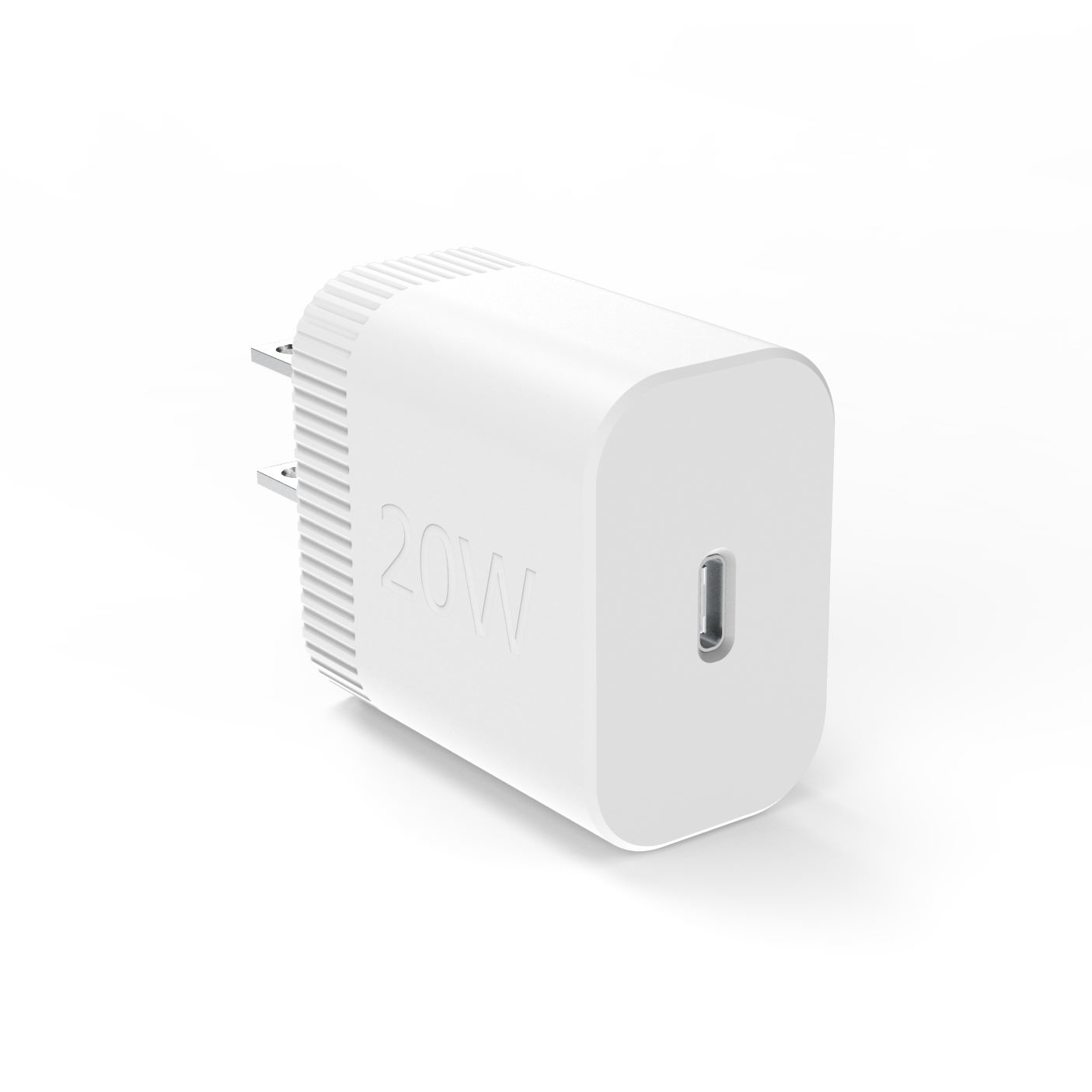

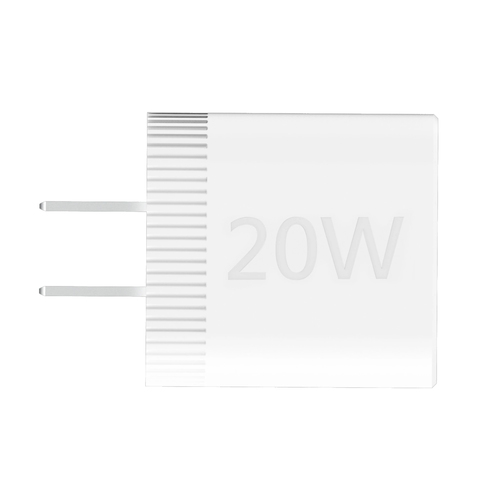

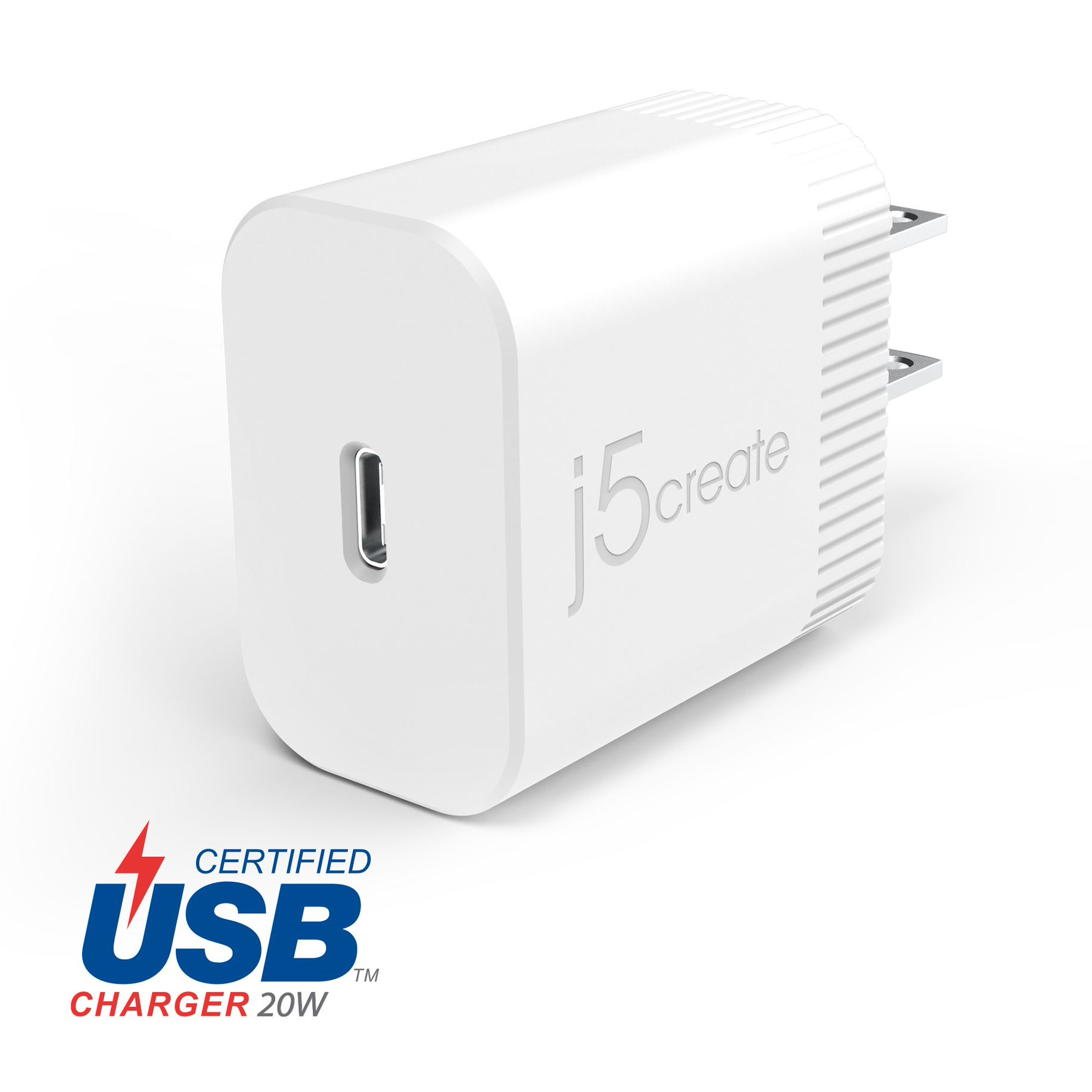

JUP1420 20W PD USB-C® Wall Charger
Model JUP1420
44 specifications
- Weight55 g
- ColourWhite
- Charger typeIndoor
- Input voltage100 - 240 V
- Width41 mm
- Operating temperature (T-T)0 - 40 °C
Overview
- Weight
- 55 g
- Colour
- White
- Charger type
- Indoor
- Input voltage
- 100 - 240 V
- Width
- 41 mm
- Operating temperature (T-T)
- 0 - 40 °C
- Brand
- j5create
- Category
- Mobile Device Charger
- Model
- JUP1420
- Part number
- JUP1420
- Also known as
- j5create JUP1420 20W PD USB-C® Wall Charger
Specifications
44 specifications in 10 groups
Performance
| Specification | Value |
|---|---|
| Charger type | Indoor |
| Charger compatibility | Universal |
| Power source type | AC |
| USB Type-C ports quantity | 1 |
| Fast charging | Yes |
| USB Power Delivery (USB PD) | Yes |
| USB Power Delivery revision | 3.0 |
| USB Power Delivery up to | 20 W |
| Compatibility | USB-C® devices including Samsung® Galaxy™, Google Pixel™ and more |
Design
| Specification | Value |
|---|---|
| Product colour | White |
| Housing material | Plastic |
Power
| Specification | Value |
|---|---|
| Input voltage | 100 - 240 V |
| Input current | 0.5 A |
| Maximum output voltage | 12 V |
| Minimum output voltage | 5 V |
| AC adapter power | 20 W |
| AC adapter output current | 3 A |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 41 mm |
| Depth | 43.5 mm |
| Height | 26 mm |
| Weight | 55 g |
Packaging data
| Specification | Value |
|---|---|
| Package width | 120 mm |
| Package depth | 98 mm |
| Package height | 50 mm |
| Package weight | 90 g |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -10 - 65 °C |
Packaging content
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
Technical details
| Specification | Value |
|---|---|
| Box contents | 1 x 20W PD USB-C® Wall Charger |
Logistics data
| Specification | Value |
|---|---|
| Commodity Classification Automated Tracking System (CCATS) | 8504.40.3000 |
| Export Control Classification Number (ECCN) | EAR99 |
| Master (outer) case width | 280 mm |
| Master (outer) case length | 210 mm |
| Master (outer) case height | 145 mm |
| Master (outer) case gross weight | 1.2 kg |
| Products per master (outer) case | 10 pc(s) |
| Master (outer) case GTIN (EAN/UPC) | 24712795085789 |
| Country of origin | China |
| Warranty period | 2 year(s) |
Other features
| Specification | Value |
|---|---|
| Integrated USB cable | No |
| Charging connector | Yes |
| USB connectivity | Yes |
| USB ports quantity | 1 |
| Packaging content | 1 x 20W PD USB-C Wall Charger |
