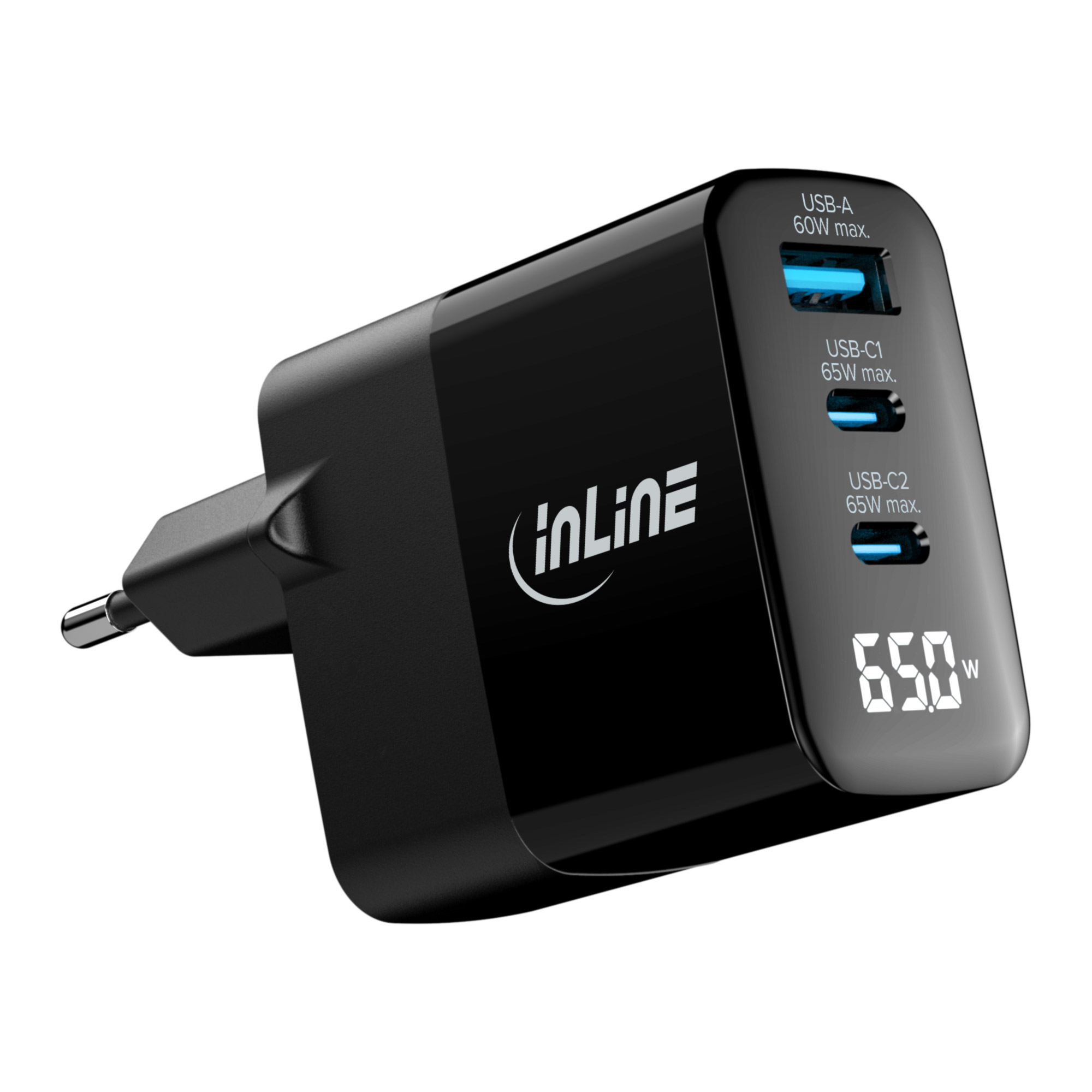

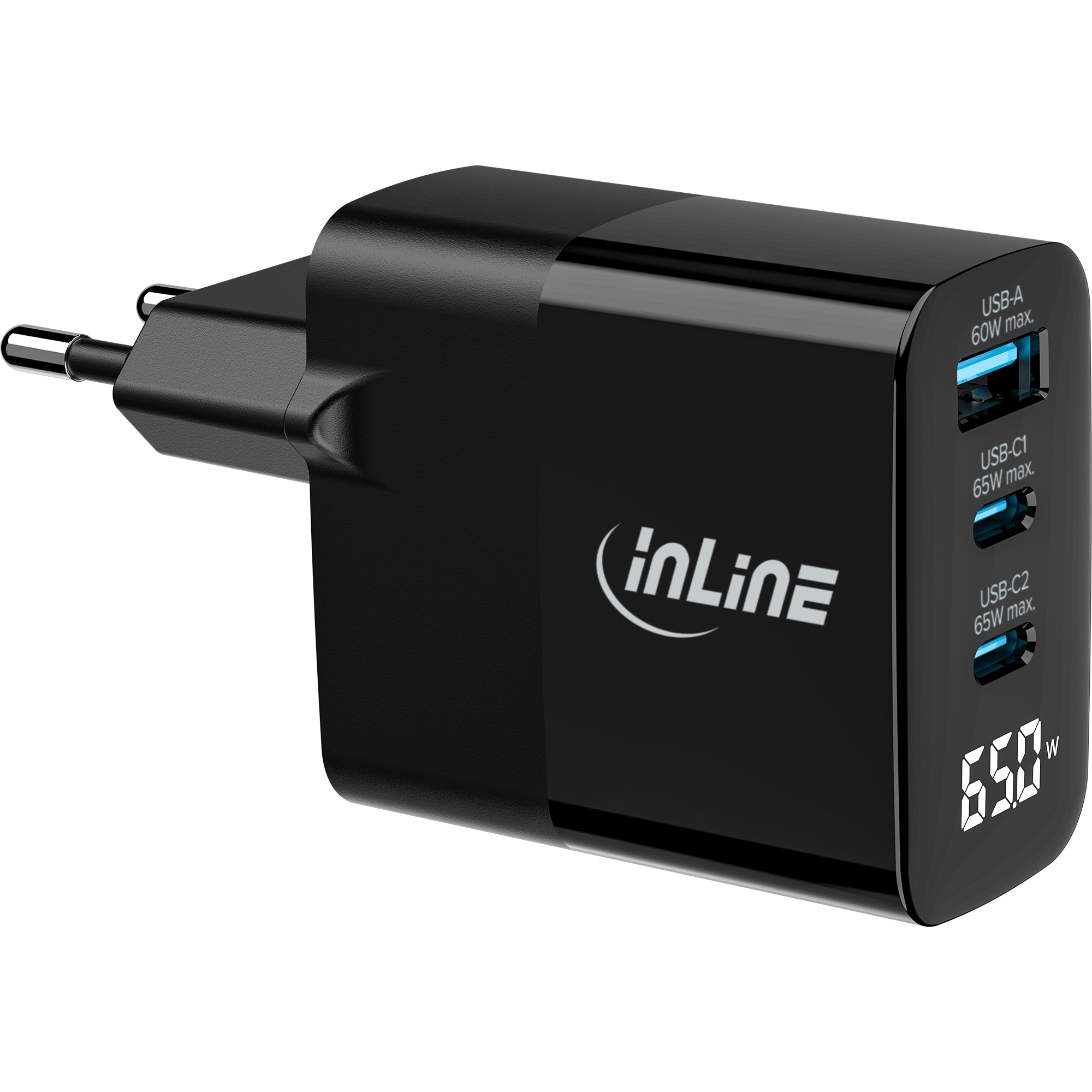

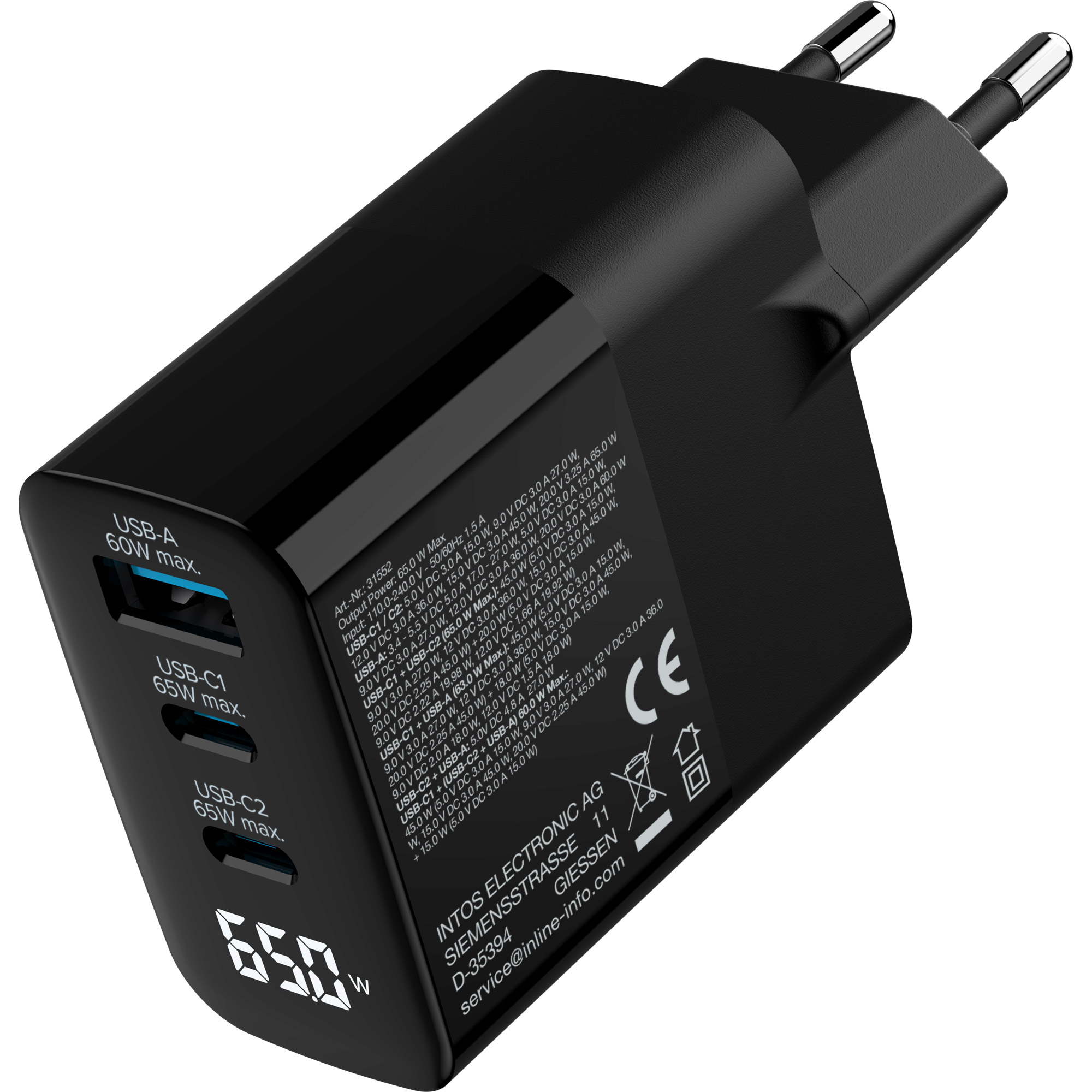

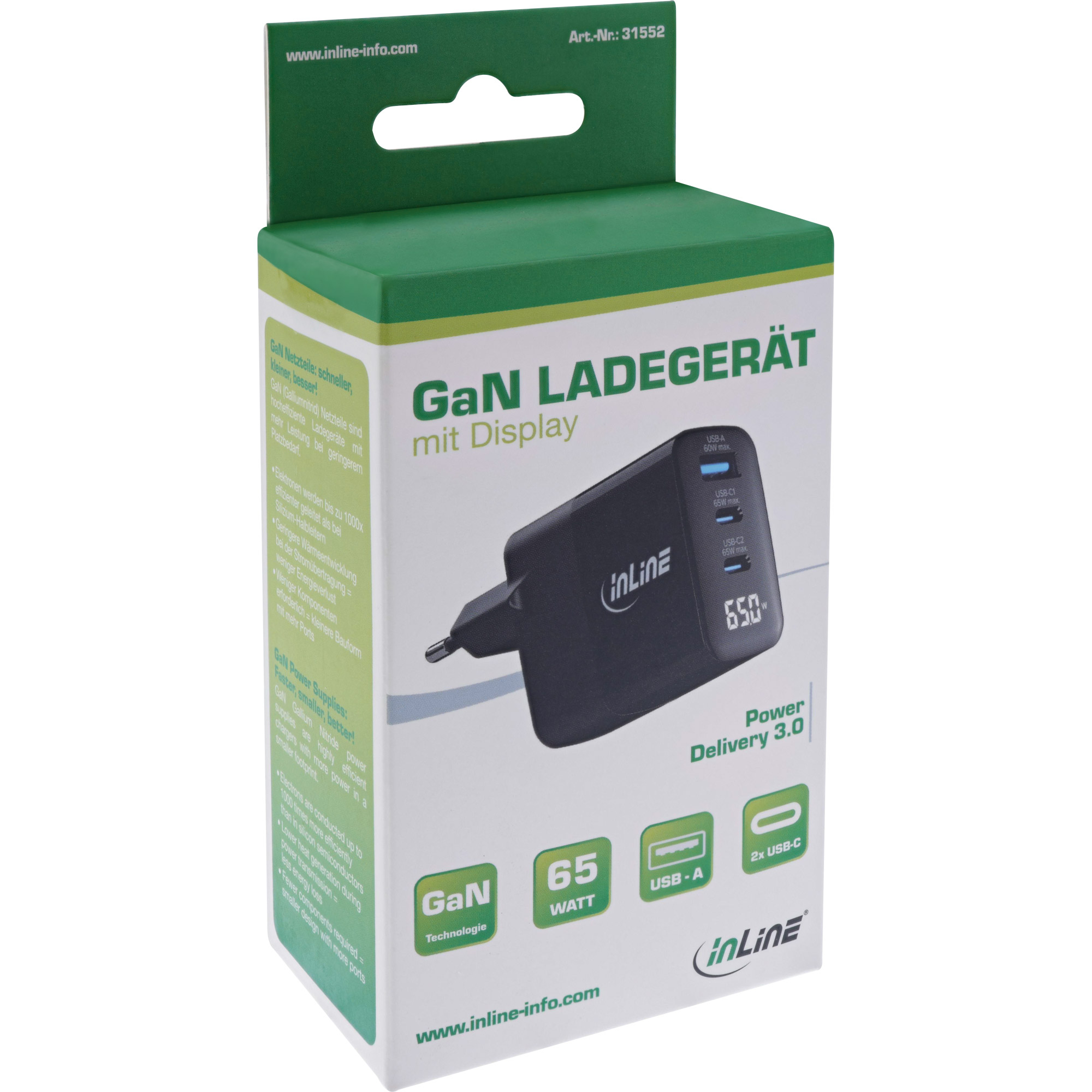

USB PD power supply, GaN charger, 3-port, USB-C + USB-A
65W, w/ display
Model 31552EAN 4043718334179
45 specifications
- Power65 W
- Weight118 g
- ColourBlack
- Charger typeIndoor
- Input voltage100 - 240 V
- Width53 mm
Overview
- Power
- 65 W
- Weight
- 118 g
- Colour
- Black
- Charger type
- Indoor
- Input voltage
- 100 - 240 V
- Width
- 53 mm
- Brand
- InLine
- Category
- Mobile Device Charger
- Model
- 31552
- Part number
- 31552
- EAN / UPC
- 4043718334179
- Also known as
- InLine USB PD power supply, GaN charger, 3-port, USB-C + USB-A, 65W, w/ display
Specifications
45 specifications in 8 groups
Performance
| Specification | Value |
|---|---|
| Charger type | Indoor |
| Charger compatibility | Universal |
| Power source type | AC |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB Type-C ports quantity | 1 |
| Wireless charging | No |
| Fast charging | Yes |
| Fast charging technology | Quick Charge 3.0 |
| Number of simultaneously connected devices (max) | 3 |
| USB Power Delivery (USB PD) | Yes |
| USB Power Delivery revision | 3.0 |
| Power protection features | Over voltage, Short circuit |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Gallium nitride (GaN) transistors | Yes |
Power
| Specification | Value |
|---|---|
| Input voltage | 100 - 240 V |
| Input frequency | 50/60 Hz |
| Input current | 1.5 A |
| Maximum power | 65 W |
| Maximum output voltage | 20 V |
| Minimum output voltage | 3.4 V |
| AC adapter output current | 5 A |
| Port 1 output power | 65 W |
| Port 2 output power | 65 W |
| Port 3 output power | 60 W |
| Port 1 output current | 3 A |
| Port 2 output current | 3 A |
| Port 3 output current | 5 A |
| Power consumption (no load) | 0.28 W |
| Average active efficiency | 89.98% (230V, 50 Hz, USB-C1+USB-C2 20.0V/2.25A + 12.0V/1.66A) / 90.02% (230V, 50 Hz, USB-C1+USB-C2+USB-A 20.0V/2.25A + 5.0V/1.5A + 5.0V/1.5A) / 84.31% (230V, 50 Hz, USB-C1+USB-C2+USB-A 5.0V/3.0A + 5.0V/1.5A + 5.0V/1.5A) |
| Efficiency at low load (10%) | Yes |
| Efficiency (@10 %) | 85.25% |
| Power plug type | Type C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 53 mm |
| Depth | 95 mm |
| Height | 30 mm |
| Weight | 118 g |
Packaging data
| Specification | Value |
|---|---|
| Package width | 61 mm |
| Package depth | 125 mm |
| Package height | 40 mm |
| Package volume | 300 cm³ |
| Package weight | 148 g |
| Package type | Hanging box |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | CE |
Logistics data
| Specification | Value |
|---|---|
| Country of origin | China |
Other features
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 53 x 95 x 30 mm |
