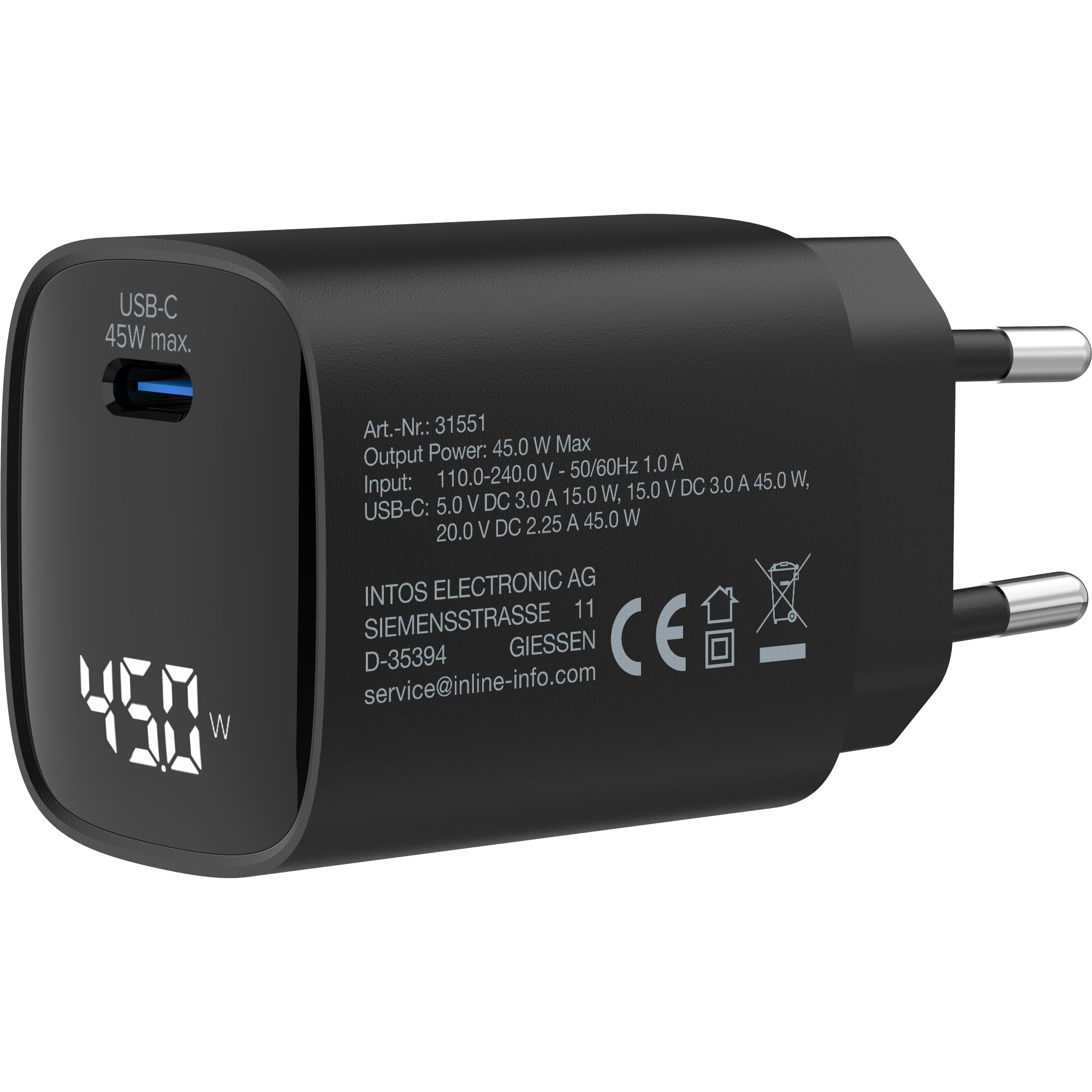

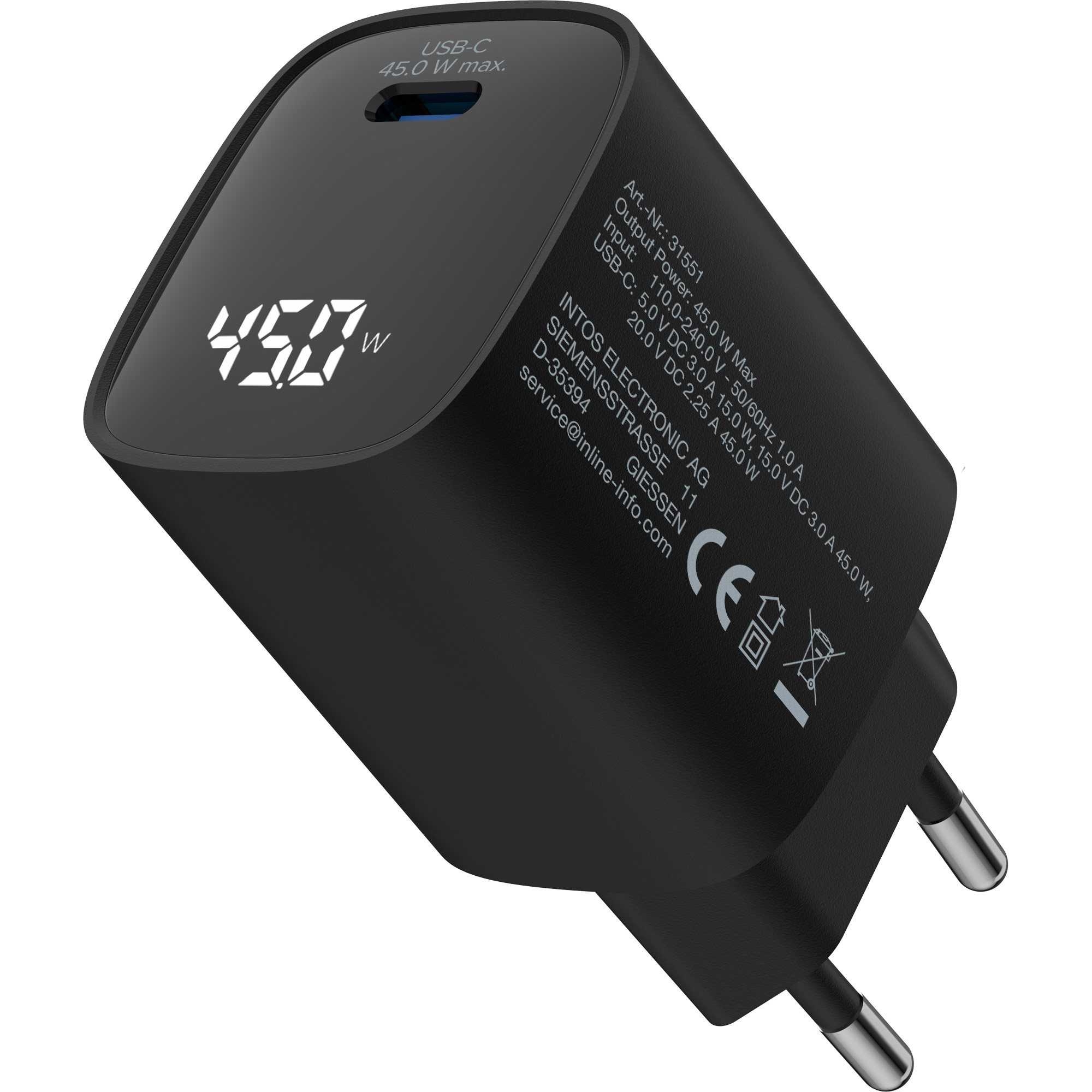

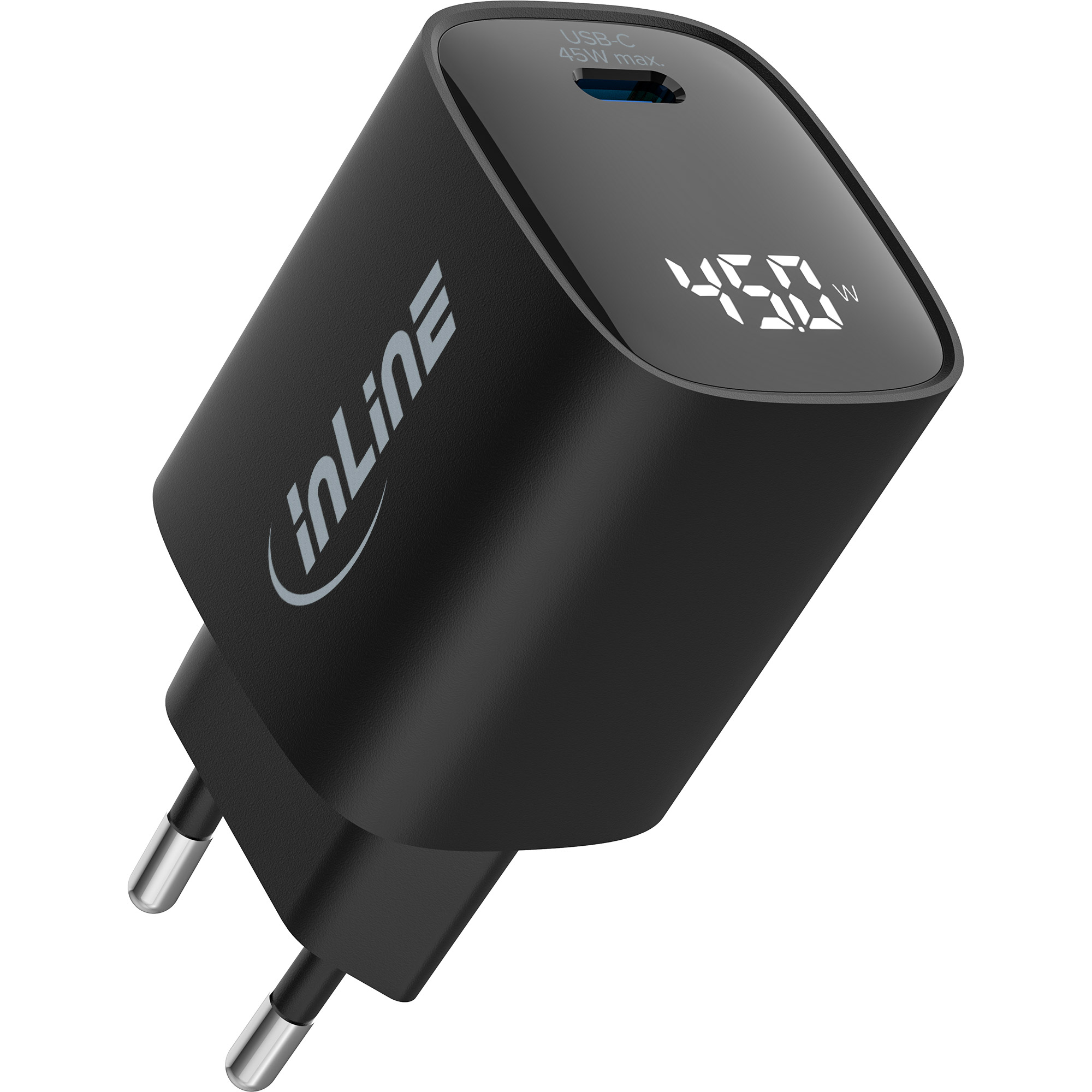

USB PD power supply, GaN charger, 1-port, USB-C
45W, with display
Model 31551EAN 4043718334148
42 specifications
- Power45 W
- Weight93 g
- ColourBlack
- Charger typeIndoor
- Input voltage100 - 240 V
- Width40 mm
Overview
- Power
- 45 W
- Weight
- 93 g
- Colour
- Black
- Charger type
- Indoor
- Input voltage
- 100 - 240 V
- Width
- 40 mm
- Brand
- InLine
- Category
- Mobile Device Charger
- Model
- 31551
- Part number
- 31551
- EAN / UPC
- 4043718334148
- Also known as
- InLine USB PD power supply, GaN charger, 1-port, USB-C, 45W, with display
Specifications
42 specifications in 8 groups
Performance
| Specification | Value |
|---|---|
| Charger type | Indoor |
| Charger compatibility | Universal |
| Power source type | AC |
| USB Type-C ports quantity | 1 |
| Wireless charging | No |
| Fast charging | Yes |
| Number of simultaneously connected devices (max) | 1 |
| USB Power Delivery (USB PD) | Yes |
| USB Power Delivery revision | 3.0 |
| Power protection features | Over voltage, Short circuit |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Gallium nitride (GaN) transistors | Yes |
Power
| Specification | Value |
|---|---|
| Input voltage | 100 - 240 V |
| Input frequency | 50/60 Hz |
| Input current | 1 A |
| Maximum power | 45 W |
| Maximum output voltage | 20 V |
| Minimum output voltage | 5 V |
| Port 1 output power | 45 W |
| Output current (5V) | 3 A |
| Output current (9V) | 3 A |
| Output current (12V) | 3 A |
| Output current (15V) | 3 A |
| Output current (20V) | 2.25 A |
| Power consumption (no load) | 0.09 W |
| Average active efficiency | 83.87% (230V, 50Hz, 5.0V/3.0A) / 88.70% (230V, 50Hz, 20.0V/2.25A) |
| Efficiency at low load (10%) | Yes |
| Efficiency (@10 %) | 80.91% |
| Power plug type | Type C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 40 mm |
| Depth | 82 mm |
| Height | 35 mm |
| Weight | 93 g |
Packaging data
| Specification | Value |
|---|---|
| Package width | 61 mm |
| Package depth | 125 mm |
| Package height | 41 mm |
| Package volume | 300 cm³ |
| Package weight | 100 g |
| Package type | Hanging box |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | CE |
Logistics data
| Specification | Value |
|---|---|
| Country of origin | China |
Other features
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 40 x 82 x 35 mm |
