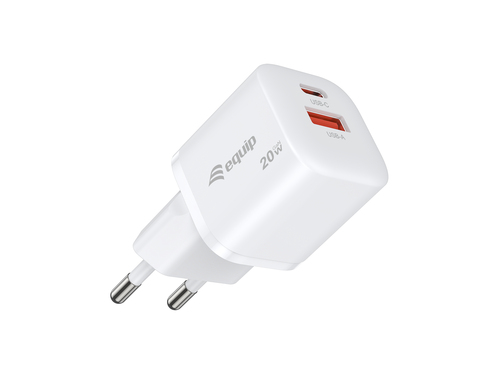

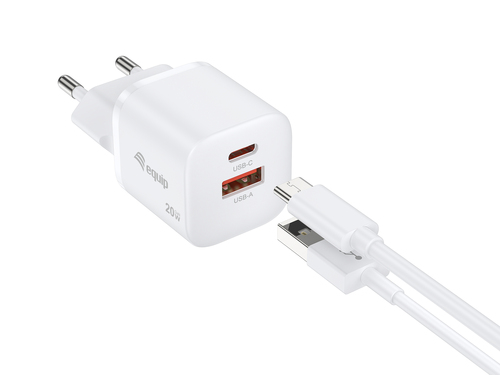

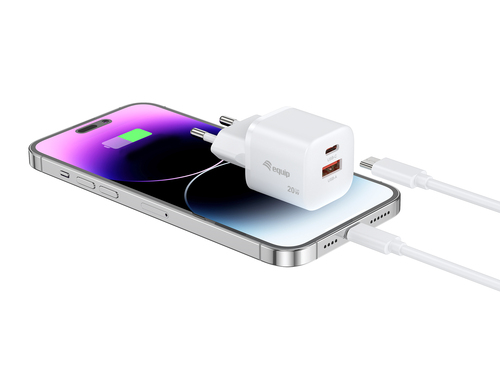

2-Port 20W GaN USB PD Charger, USB-C x 1, USB-A x 1
Model 245526EAN 4015867245163
41 specifications
- Power20 W
- Weight36 g
- ColourWhite
- Charger typeIndoor
- Input voltage100 - 240 V
- Width70 mm
Overview
- Power
- 20 W
- Weight
- 36 g
- Colour
- White
- Charger type
- Indoor
- Input voltage
- 100 - 240 V
- Width
- 70 mm
- Brand
- Equip
- Category
- Mobile Device Charger
- Model
- 245526
- Part number
- 245526
- EAN / UPC
- 4015867245163
- Also known as
- Equip 2-Port 20W GaN USB PD Charger, USB-C x 1, USB-A x 1
Specifications
41 specifications in 8 groups
Performance
| Specification | Value |
|---|---|
| Charger type | Indoor |
| Charger compatibility | Universal |
| Power source type | AC |

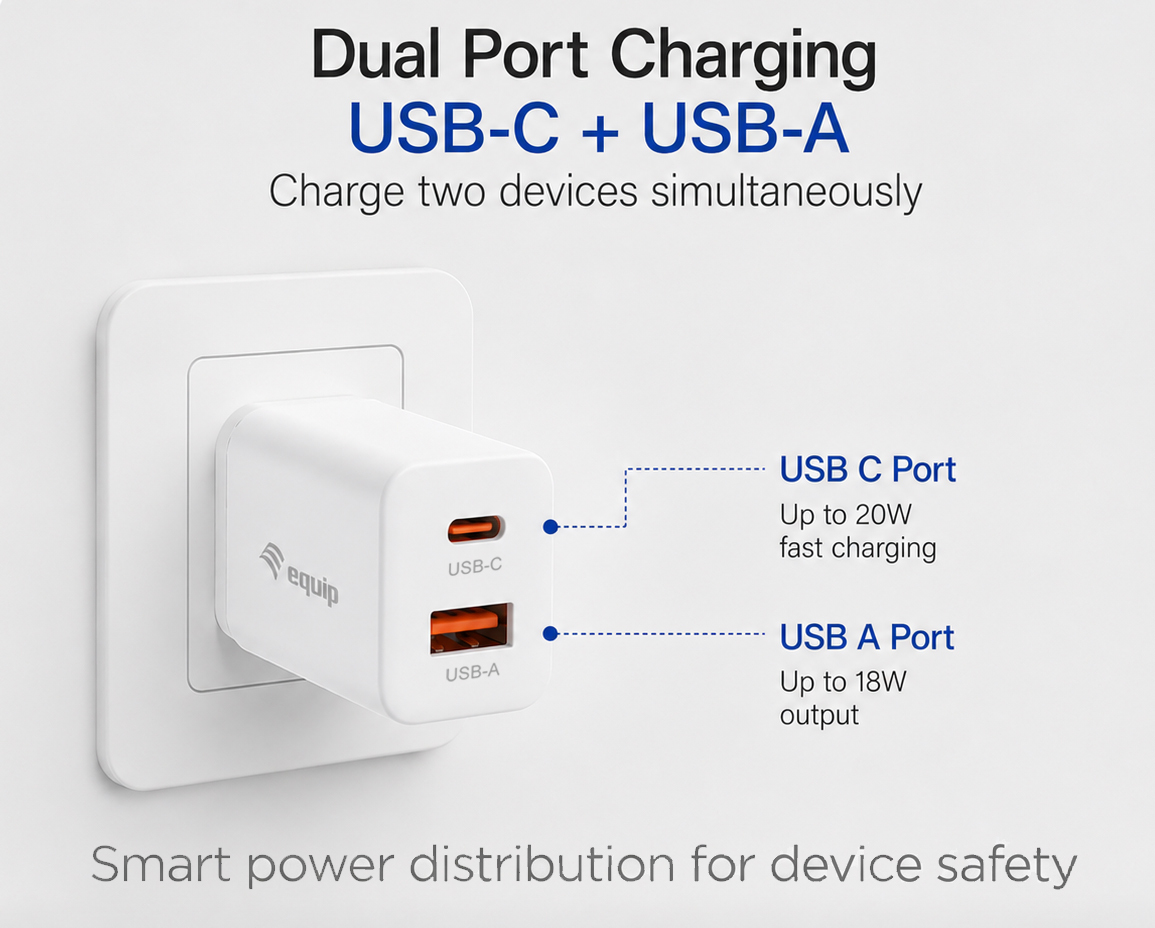

| USB Type-A ports quantity | 1 |
| USB Type-C ports quantity | 1 |
| Wireless charging | No |
| Fast charging | Yes |

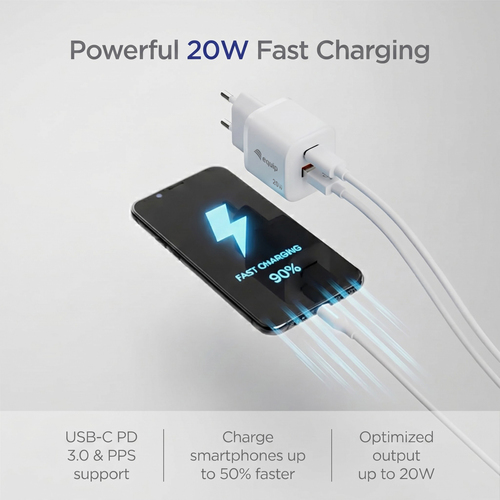

| Fast charging technology | Programmable Power Supply (PPS), Power Delivery 3.0 |
| Number of simultaneously connected devices (max) | 2 |
| Programmable power supply (PPS) | Yes |
| USB Power Delivery (USB PD) | Yes |
| USB Power Delivery revision | 3.0 |

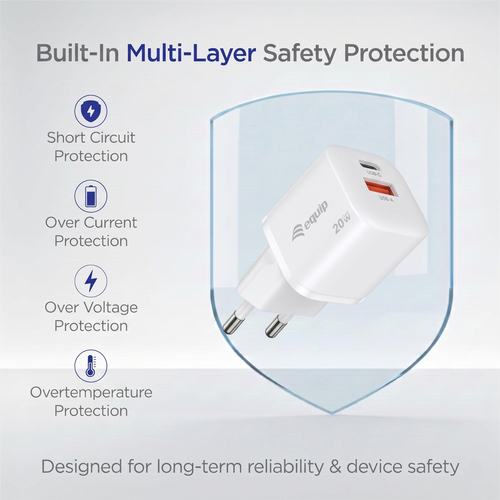

| Power protection features | Short circuit, Over current, Over voltage, Overheating, Overload |
Design
| Specification | Value |
|---|---|
| Product colour | White |
| Gallium nitride (GaN) transistors | Yes |
Power
| Specification | Value |
|---|---|
| Input voltage | 100 - 240 V |
| Input frequency | 50 - 60 Hz |
| Input current | 0.6 A |
| Maximum power | 20 W |
| Maximum output voltage | 12 V |
| Minimum output voltage | 5 V |
| Port 1 output current | 3 A |
| Port 2 output current | 3 A |

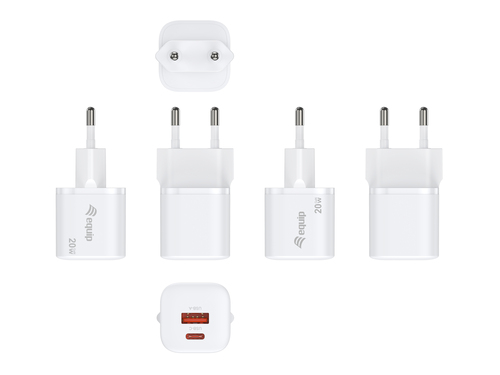

Weight & dimensions
| Specification | Value |
|---|---|
| Width | 70 mm |
| Depth | 32 mm |
| Height | 32 mm |
| Weight | 36 g |
Packaging data
| Specification | Value |
|---|---|
| Package width | 75 mm |
| Package depth | 38 mm |
| Package height | 38 mm |
| Package weight | 50 g |
Packaging content
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | RoHS, REACH |
Logistics data
| Specification | Value |
|---|---|
| Customs product code (TARIC) | 8504408390 |
| Harmonized System (HS) code | 850440 |
| Master (outer) case width | 385 mm |
| Master (outer) case length | 205 mm |
| Master (outer) case height | 170 mm |
| Master (outer) case gross weight | 5.4 kg |
| Products per master (outer) case | 100 pc(s) |
| Country of origin | China |
