2-Port 20W GaN Slim USB PD Charger, USB-C x1, USB-A x1
Model 245522EAN 4015867242681
45 specifications
- Power20 W
- Weight52 g
- ColourWhite
- Charger typeIndoor
- Input voltage100 - 240 V
- Width15 mm
Overview
- Power
- 20 W
- Weight
- 52 g
- Colour
- White
- Charger type
- Indoor
- Input voltage
- 100 - 240 V
- Width
- 15 mm
- Brand
- Equip
- Category
- Mobile Device Charger
- Model
- 245522
- Part number
- 245522
- EAN / UPC
- 4015867242681
- Also known as
- Equip 2-Port 20W GaN Slim USB PD Charger, USB-C x1, USB-A x1
Specifications
45 specifications in 8 groups
Performance
| Specification | Value |
|---|---|
| Charger type | Indoor |
| Charger compatibility | Universal |
| Power source type | AC |
| USB 2.0 ports quantity | 1 |
| USB Type-C ports quantity | 1 |
| Fast charging | Yes |
| Fast charging technology | Power Delivery 3.0, Quick Charge 3.0 |

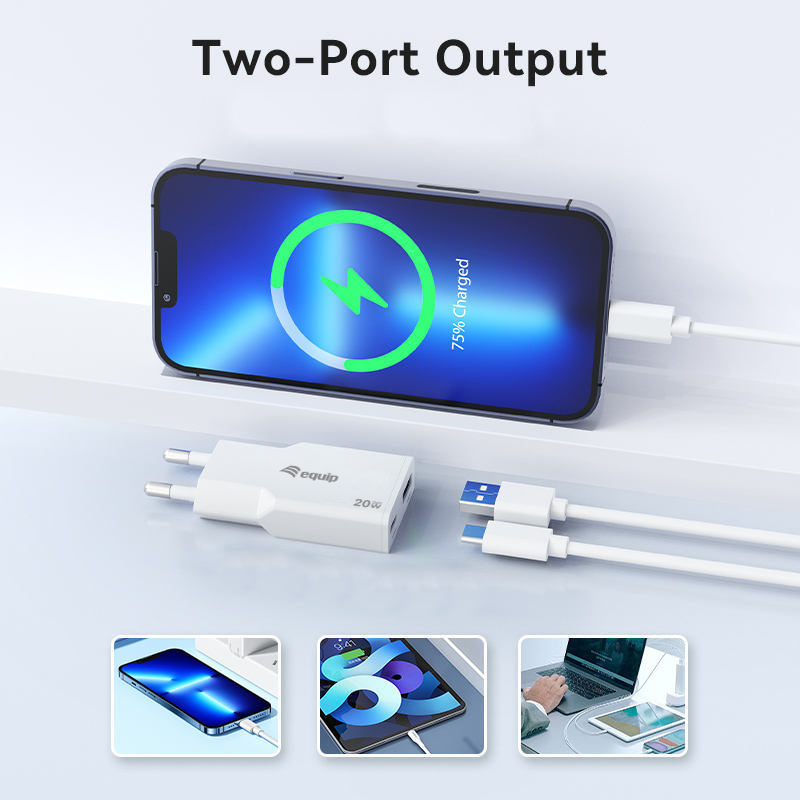

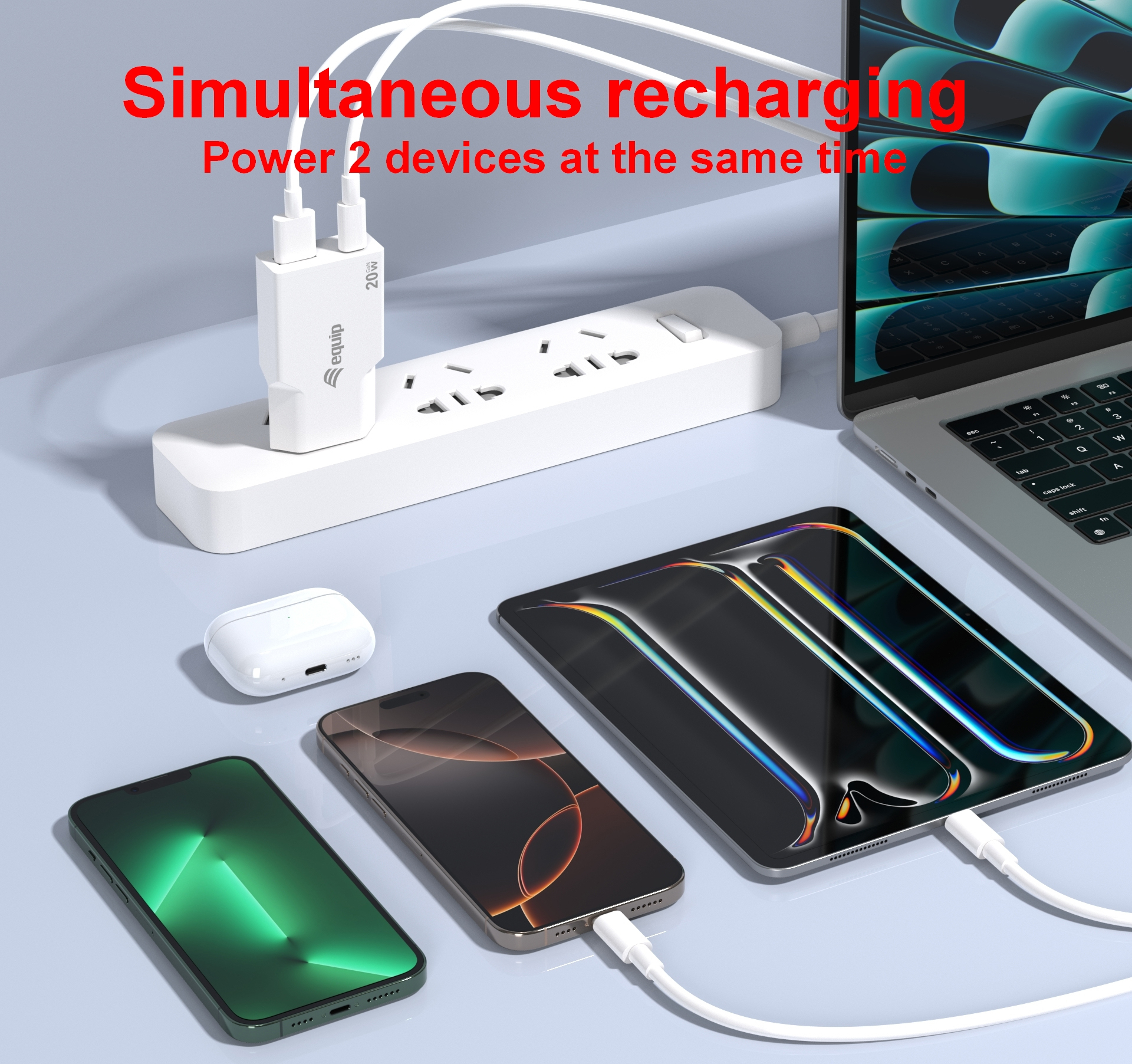

| Number of simultaneously connected devices (max) | 2 |
| USB Power Delivery (USB PD) | Yes |
| USB Power Delivery revision | 3.0 |
| USB Power Delivery up to | 20 W |
| Power protection features | Over current, Over voltage, Overload, Short circuit |
Design
| Specification | Value |
|---|---|
| Product colour | White |
| Plug and Play | Yes |
| Gallium nitride (GaN) transistors | Yes |
Power
| Specification | Value |
|---|---|
| Input voltage | 100 - 240 V |
| Input frequency | 50/60 Hz |
| Input current | 0.6 A |
| Maximum power | 20 W |
| Maximum output voltage | 12 V |
| Minimum output voltage | 5 V |

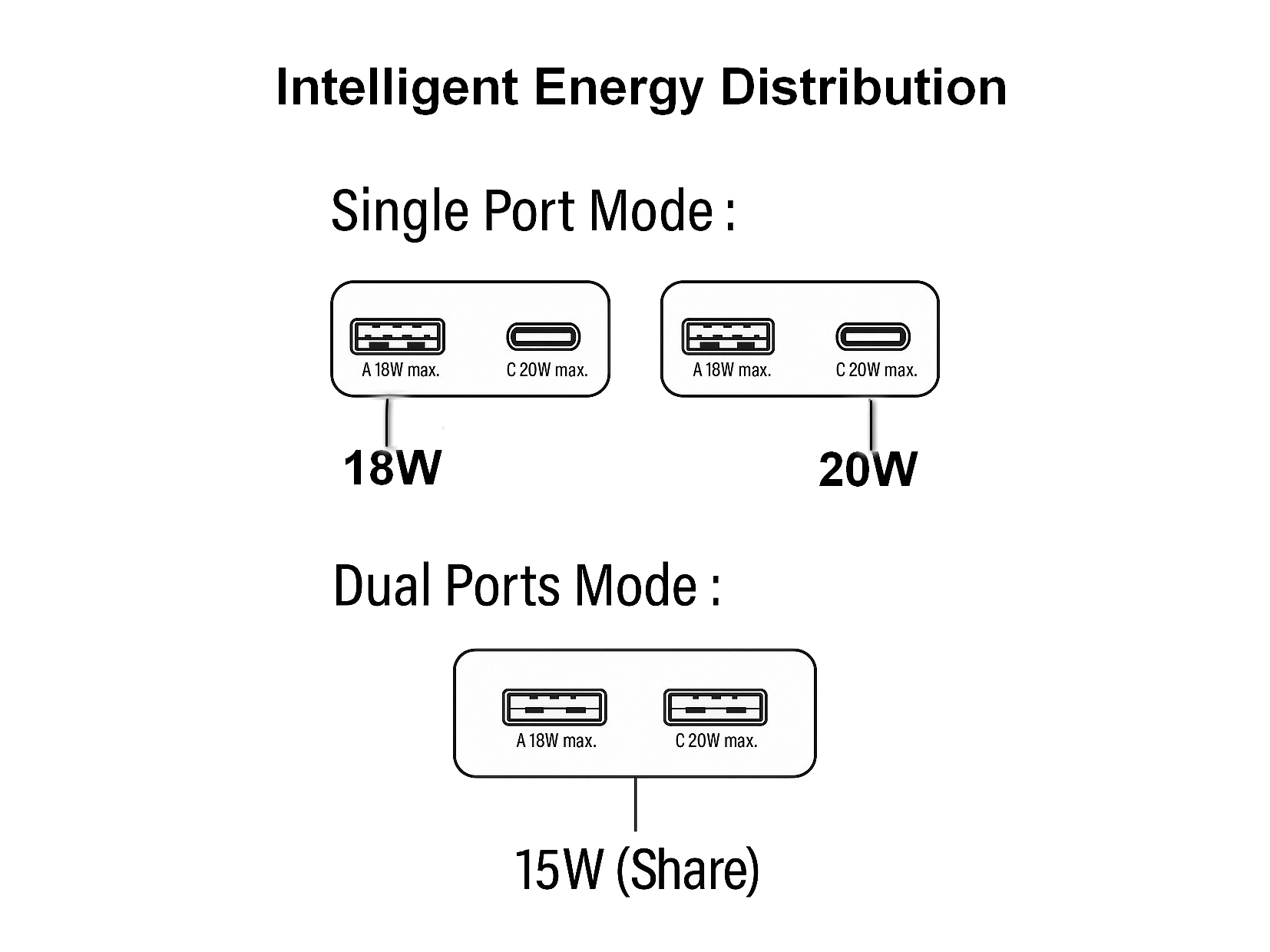

| Port 1 output power | 20 W |
| Port 2 output power | 18 W |
| Output current (5V) | 3 A |
| Output current (9V) | 2.22 A |
| Output current (12V) | 1.67 A |
| Port 1 output current | 3 A |
| Port 2 output current | 3 A |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 15 mm |
| Depth | 36 mm |
| Height | 81 mm |
| Weight | 52 g |
Packaging data
| Specification | Value |
|---|---|
| Package width | 20 mm |
| Package depth | 78 mm |
| Package height | 115 mm |
| Package weight | 62 g |
Packaging content
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | CE, RoHS |
Logistics data
| Specification | Value |
|---|---|
| Customs product code (TARIC) | 8504409090 |
| Master (outer) case width | 410 mm |
| Master (outer) case length | 250 mm |
| Master (outer) case height | 235 mm |
| Master (outer) case gross weight | 6.68 kg |
| Products per master (outer) case | 100 pc(s) |
| Country of origin | China |
