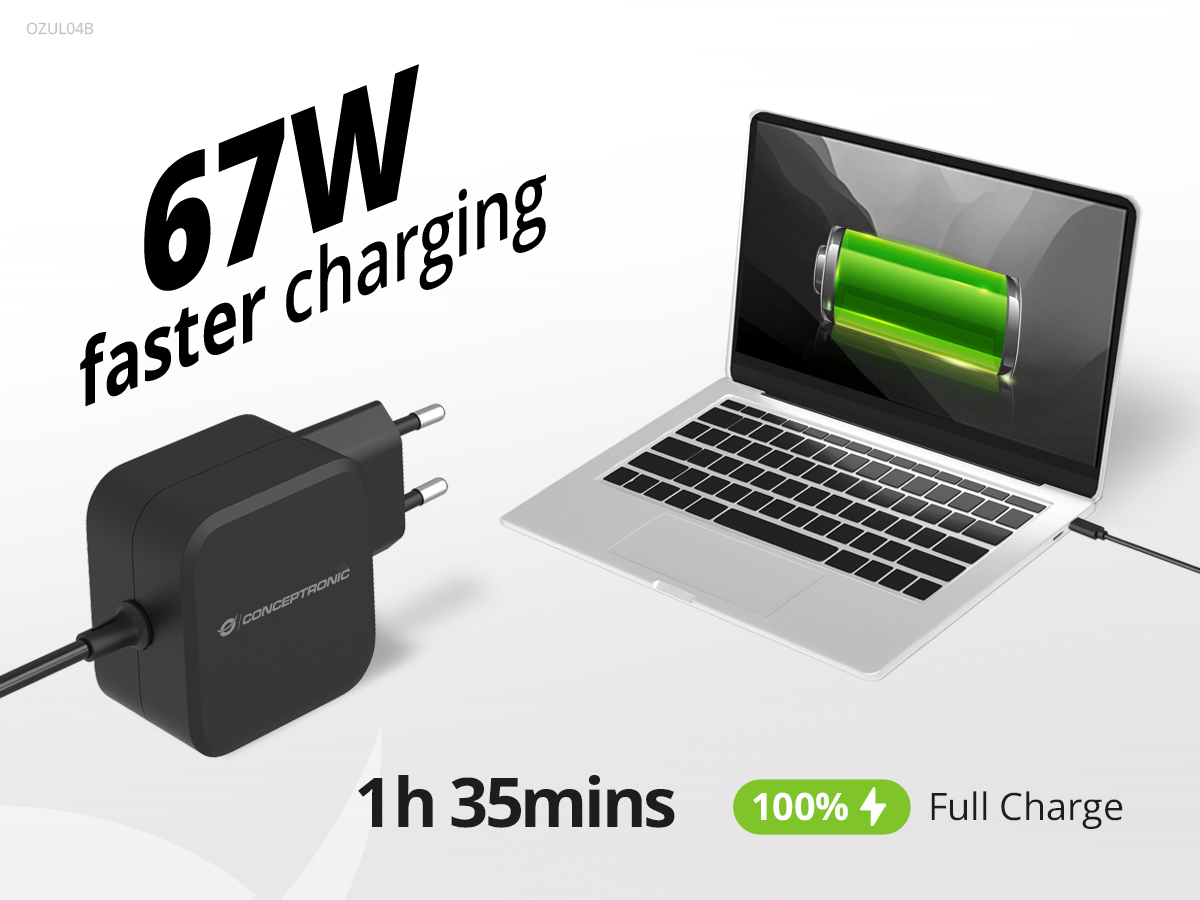

OZUL04BE 67W GaN USB PD Charger, Built-in USB-C Cable
Model OZUL04BEEAN 4015867235591
57 specifications
- Weight158 g
- ColourBlack
- Charger typeIndoor
- Input voltage100 - 240 V
- Width50 mm
- Operating temperature (T-T)0 - 40 °C
Overview
- Weight
- 158 g
- Colour
- Black
- Charger type
- Indoor
- Input voltage
- 100 - 240 V
- Width
- 50 mm
- Operating temperature (T-T)
- 0 - 40 °C
- Brand
- Conceptronic
- Category
- Mobile Device Charger
- Model
- OZUL04BE
- Part number
- OZUL04BE
- EAN / UPC
- 4015867235591, 4015867245576
- Also known as
- Conceptronic OZUL04BE 67W GaN USB PD Charger, Built-in USB-C Cable
Specifications
57 specifications in 11 groups
Performance
| Specification | Value |
|---|---|
| Charger type | Indoor |
| Charger compatibility | Universal |
| Power source type | AC |
| Number of simultaneously connected devices (max) | 1 |
| Programmable power supply (PPS) | Yes |
| USB Power Delivery (USB PD) | Yes |
| USB Power Delivery revision | 3.0 |
| USB Power Delivery up to | 67 W |
| Power protection features | Overheating, Overload, Short circuit |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Cable length | 1.8 m |
| Plug and Play | Yes |
| Gallium nitride (GaN) transistors | Yes |
Power
| Specification | Value |
|---|---|
| Input voltage | 100 - 240 V |
| Input frequency | 50/60 Hz |
| Input current | 1.6 A |
| Maximum output voltage | 21 V |
| Minimum output voltage | 3.3 V |
| Output current (5V) | 3 A |
| Output current (9V) | 3 A |
| Output current (12V) | 3 A |
| Output current (15V) | 3 A |
| Output current (20V) | 3.25 A |

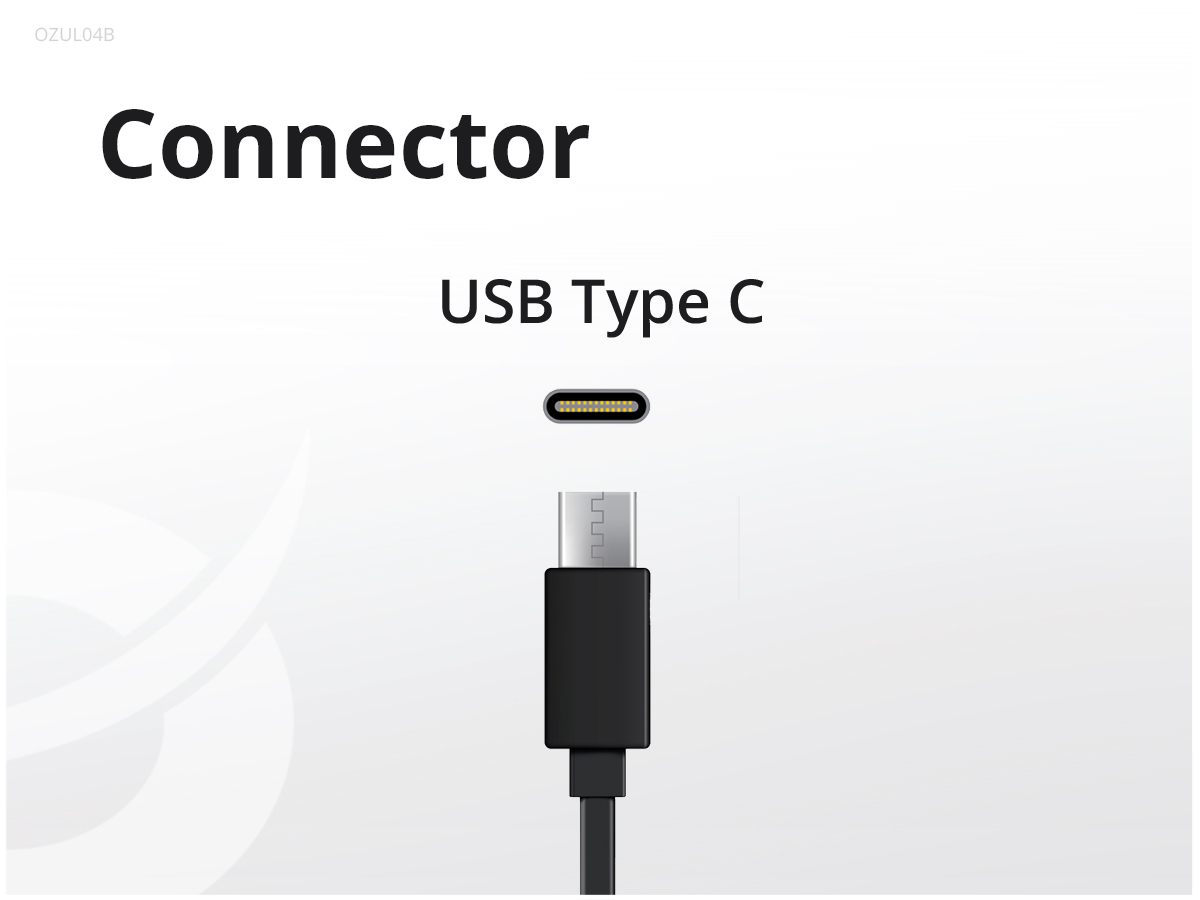

| Power plug type | Type C |

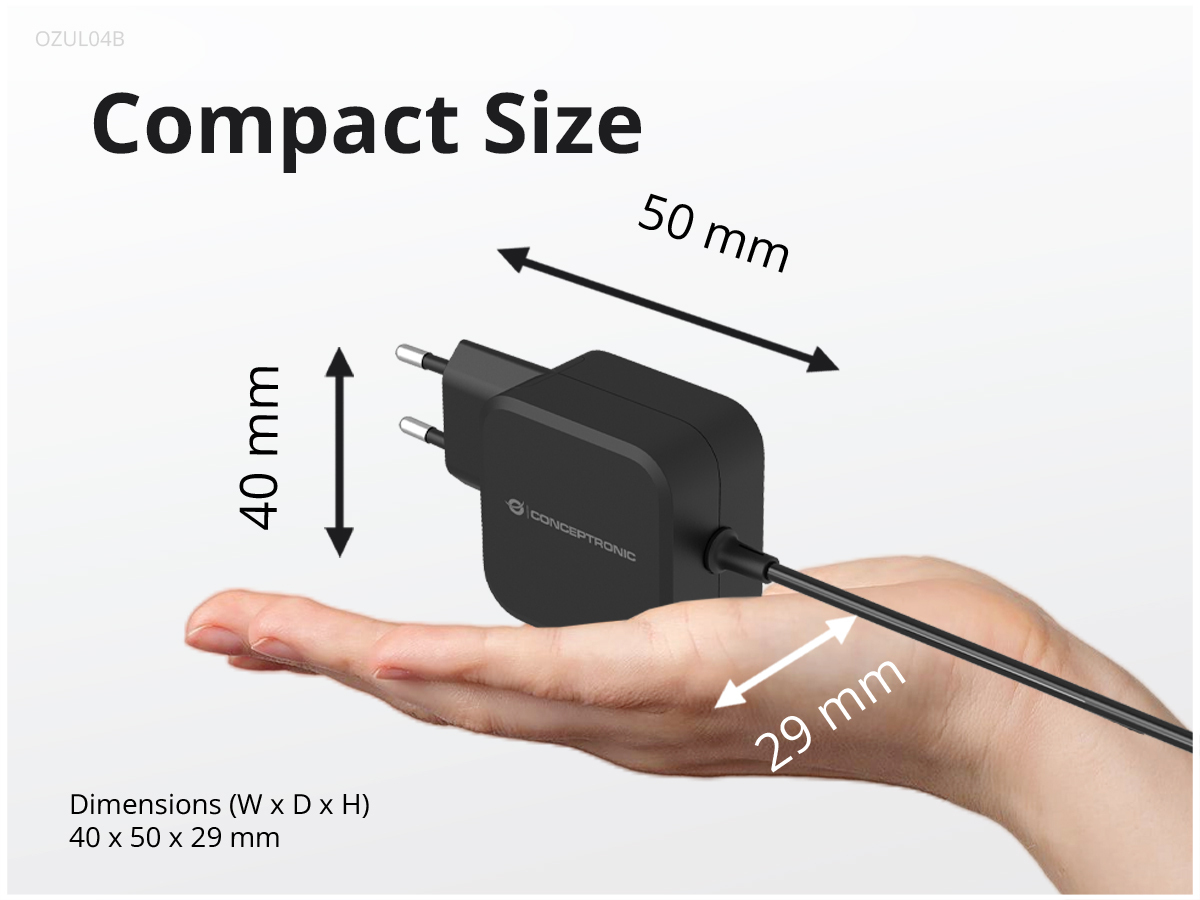

Weight & dimensions
| Specification | Value |
|---|---|
| Width | 50 mm |
| Depth | 29 mm |
| Height | 40 mm |
| Weight | 158 g |
Packaging data
| Specification | Value |
|---|---|
| Package width | 153 mm |
| Package depth | 136 mm |
| Package height | 36 mm |
| Package weight | 36 g |
| Package type | Box |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 80 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage relative humidity (H-H) | 10 - 90% |
Packaging content
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
| AC adapter included | Yes |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | CE, RoHS |
Sustainability
| Specification | Value |
|---|---|
| Sustainability certificates | ErP |
| Sustainability compliance | Yes |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 8504408390 |
| Pallet net height | 135.2 cm |
| Pallet net length | 80 cm |
| Pallet net width | 120 cm |
| Pallet gross width | 120 cm |
| Pallet gross length | 80 cm |
| Pallet gross height | 135.2 cm |
| Master (outer) case width | 325 mm |
| Master (outer) case length | 405 mm |
| Master (outer) case height | 288 mm |
| Master (outer) case gross weight | 9 kg |
| Products per master (outer) case | 40 pc(s) |
| Country of origin | China |
Other features
| Specification | Value |
|---|---|
| Gross weight of outer carton | 9 kg |
| Outer carton dimensions (W x D x H) | 325 x 405 x 288 mm |
