2-Port 20W GaN USB PD Charger, USB-C x 1, USB-A x 1, QC 3.0, PPS
Model ALTHEA15WEAN 4015867236468
46 specifications
- Power20 W
- Weight50 g
- ColourWhite
- Charger typeIndoor
- Input voltage100 - 240 V
- Width35 mm
Overview
- Power
- 20 W
- Weight
- 50 g
- Colour
- White
- Charger type
- Indoor
- Input voltage
- 100 - 240 V
- Width
- 35 mm
- Brand
- Conceptronic
- Category
- Mobile Device Charger
- Model
- ALTHEA15W
- Part number
- ALTHEA15W
- EAN / UPC
- 4015867236468
- Also known as
- Conceptronic 2-Port 20W GaN USB PD Charger, USB-C x 1, USB-A x 1, QC 3.0, PPS
Specifications
46 specifications in 10 groups
Performance
| Specification | Value |
|---|---|
| Charger type | Indoor |
| Charger compatibility | Universal |
| Power source type | AC |

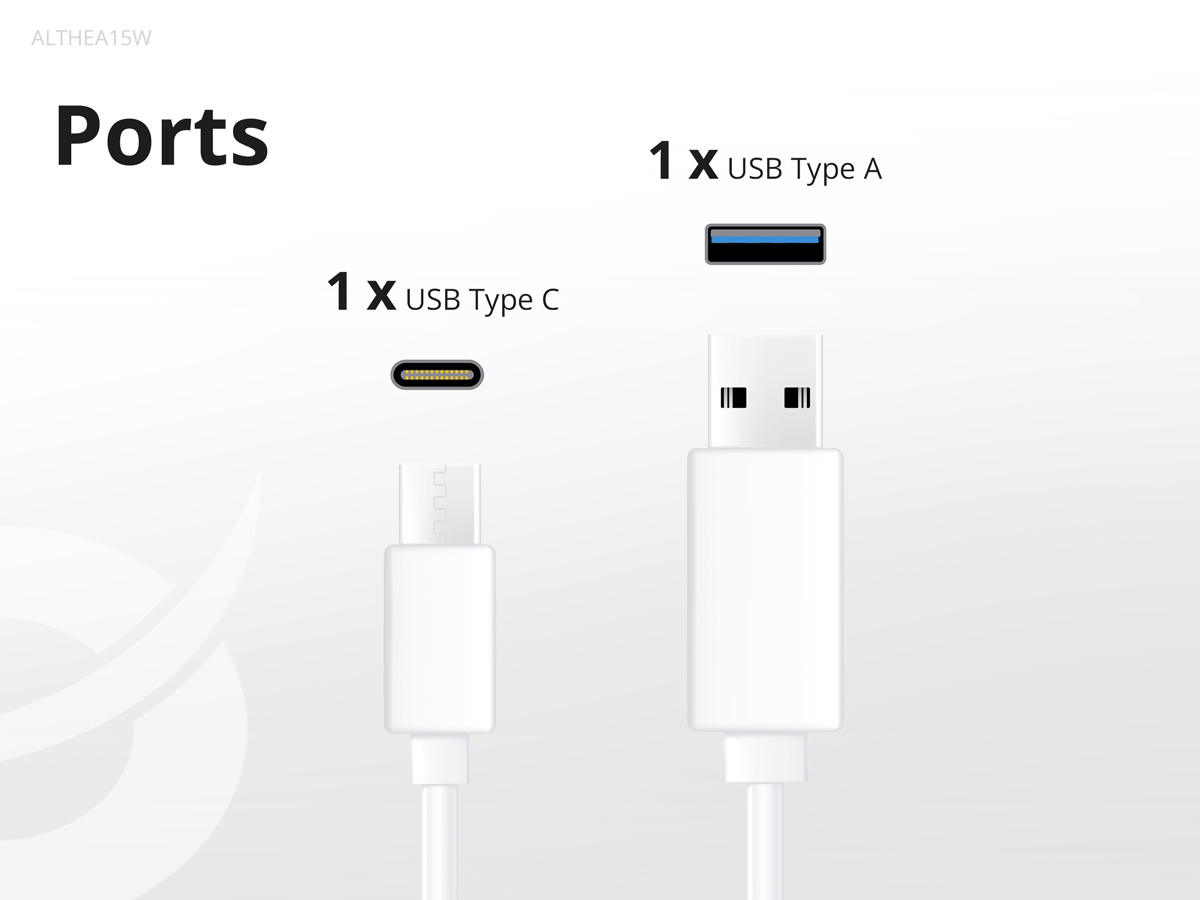

| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| USB Type-C ports quantity | 1 |
| Fast charging | Yes |
| Fast charging technology | Power Delivery, Quick Charge 3.0 |
| Number of simultaneously connected devices (max) | 2 |
| Power protection features | Overheating, Overload, Short circuit |
Design
| Specification | Value |
|---|---|
| Product colour | White |
| Gallium nitride (GaN) transistors | Yes |
Power
| Specification | Value |
|---|---|
| Input voltage | 100 - 240 V |
| Input frequency | 50 - 60 Hz |
| Input current | 0.5 A |
| Maximum power | 20 W |
| Maximum output voltage | 12 V |
| Minimum output voltage | 3.3 V |
| Output current (5V) | 3 A |
| Output current (9V) | 2.22 A |
| Output current (12V) | 1.67 A |

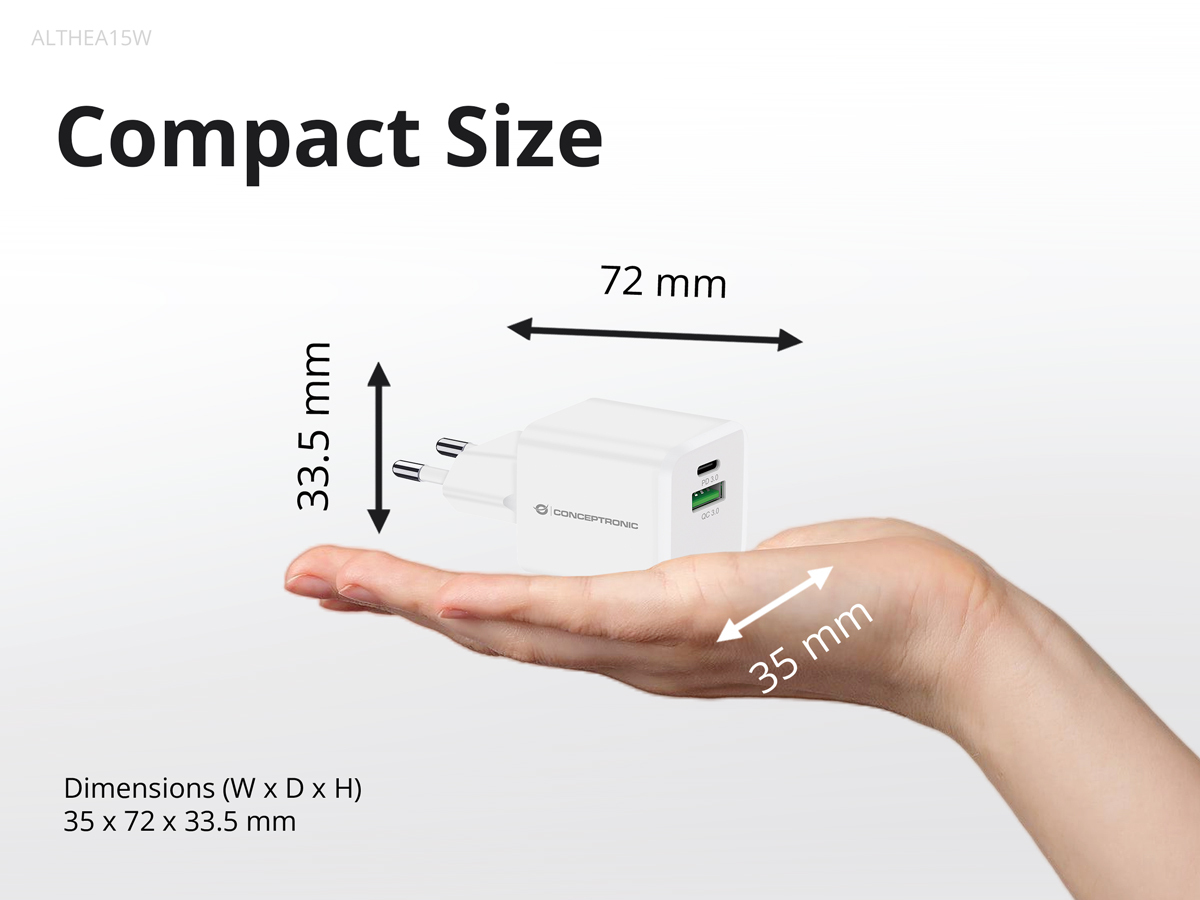

Weight & dimensions
| Specification | Value |
|---|---|
| Width | 35 mm |
| Depth | 72 mm |
| Height | 34 mm |
| Weight | 50 g |
Packaging data
| Specification | Value |
|---|---|
| Package width | 54 mm |
| Package depth | 172 mm |
| Package height | 37 mm |
| Package weight | 37 g |
| Package type | Box |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 80 °C |
| Operating relative humidity (H-H) | 5 - 95% |
Packaging content
| Specification | Value |
|---|---|
| Manual | Yes |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | CE, REACH, RoHS |
Sustainability
| Specification | Value |
|---|---|
| Sustainability certificates | ErP |
| Sustainability compliance | Yes |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 8504408390 |
| Pallet gross width | 120 cm |
| Pallet gross length | 80 cm |
| Pallet gross height | 180 cm |
| Master (outer) case width | 450 mm |
| Master (outer) case length | 450 mm |
| Master (outer) case height | 380 mm |
| Master (outer) case gross weight | 6.8 kg |
| Products per master (outer) case | 100 pc(s) |
| Country of origin | China |
