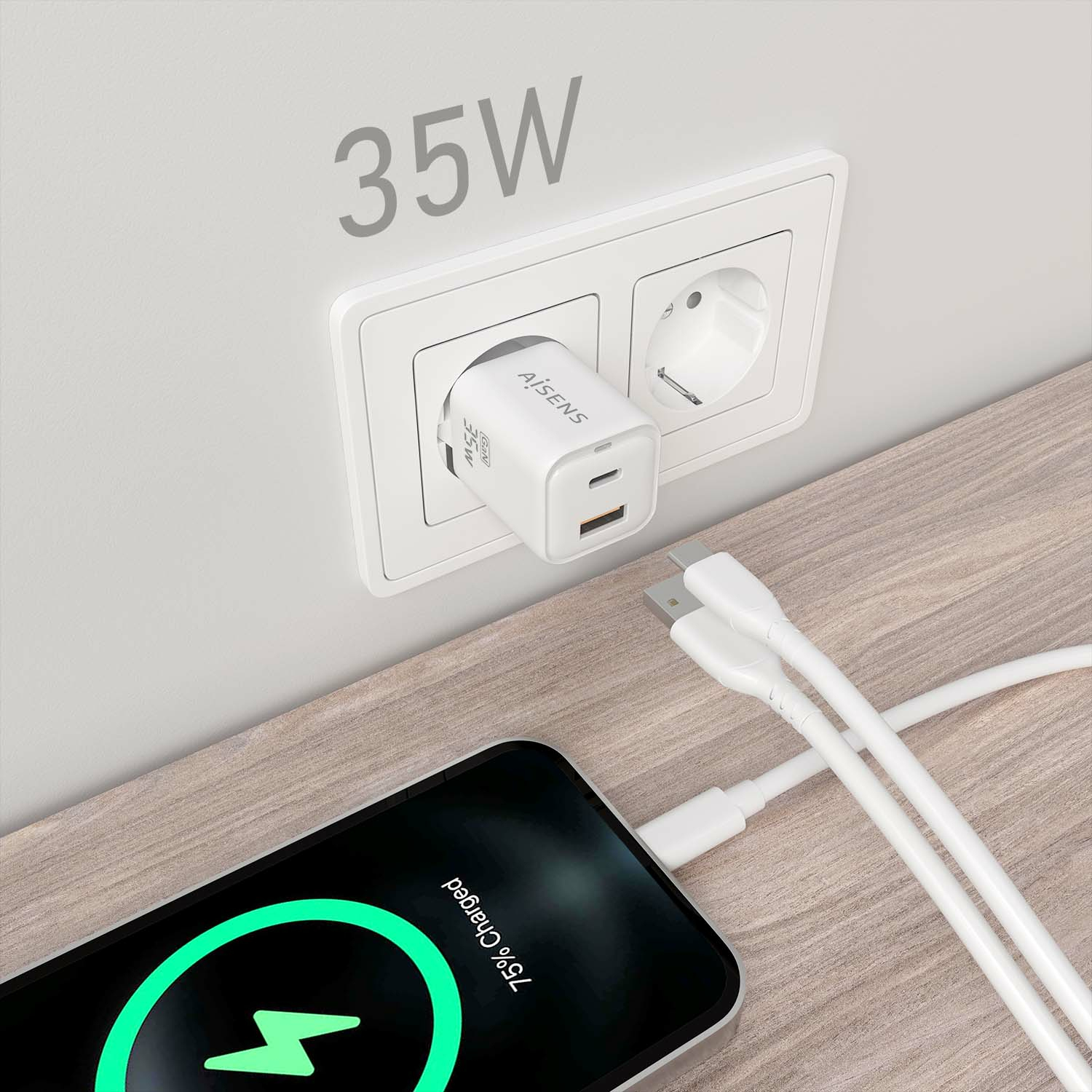

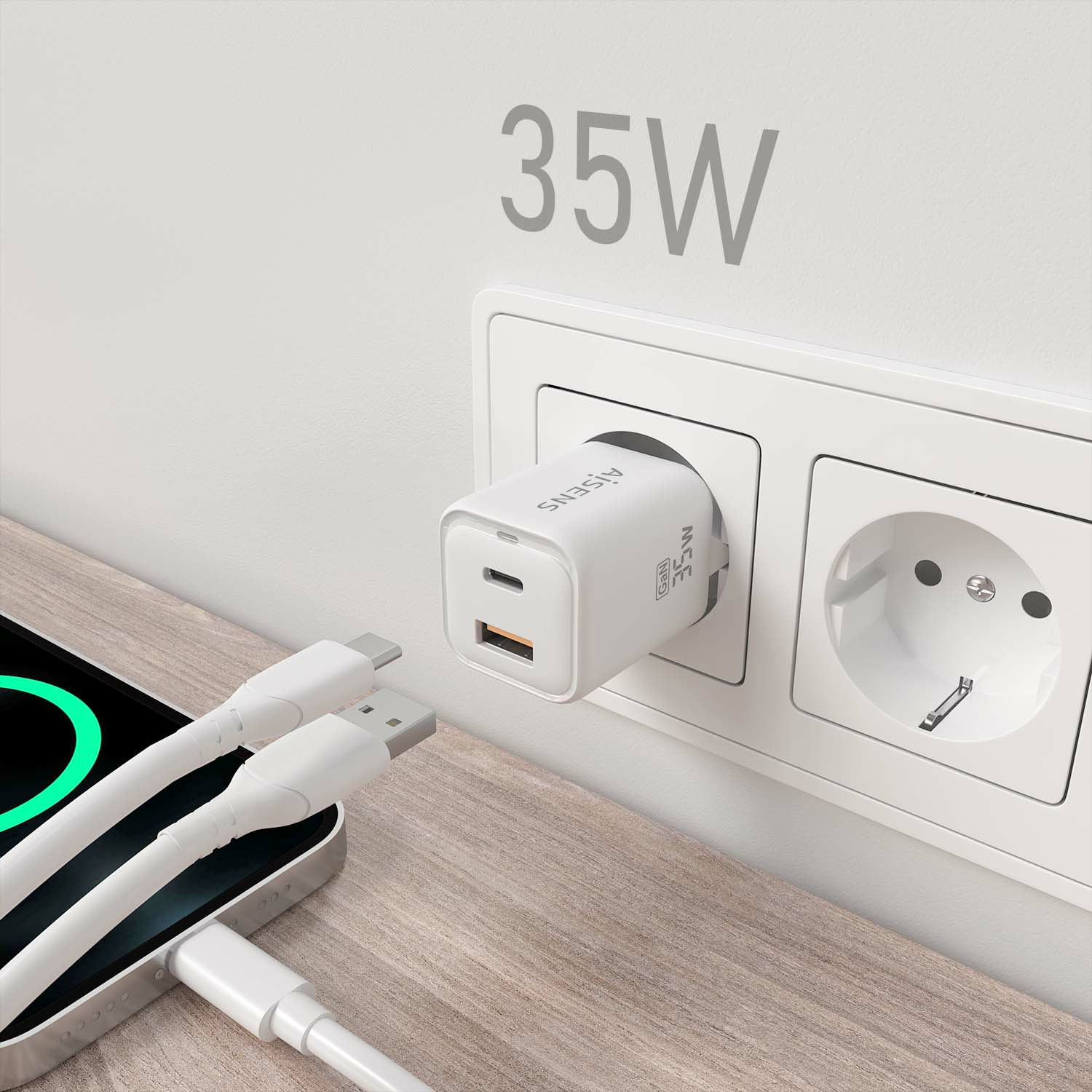

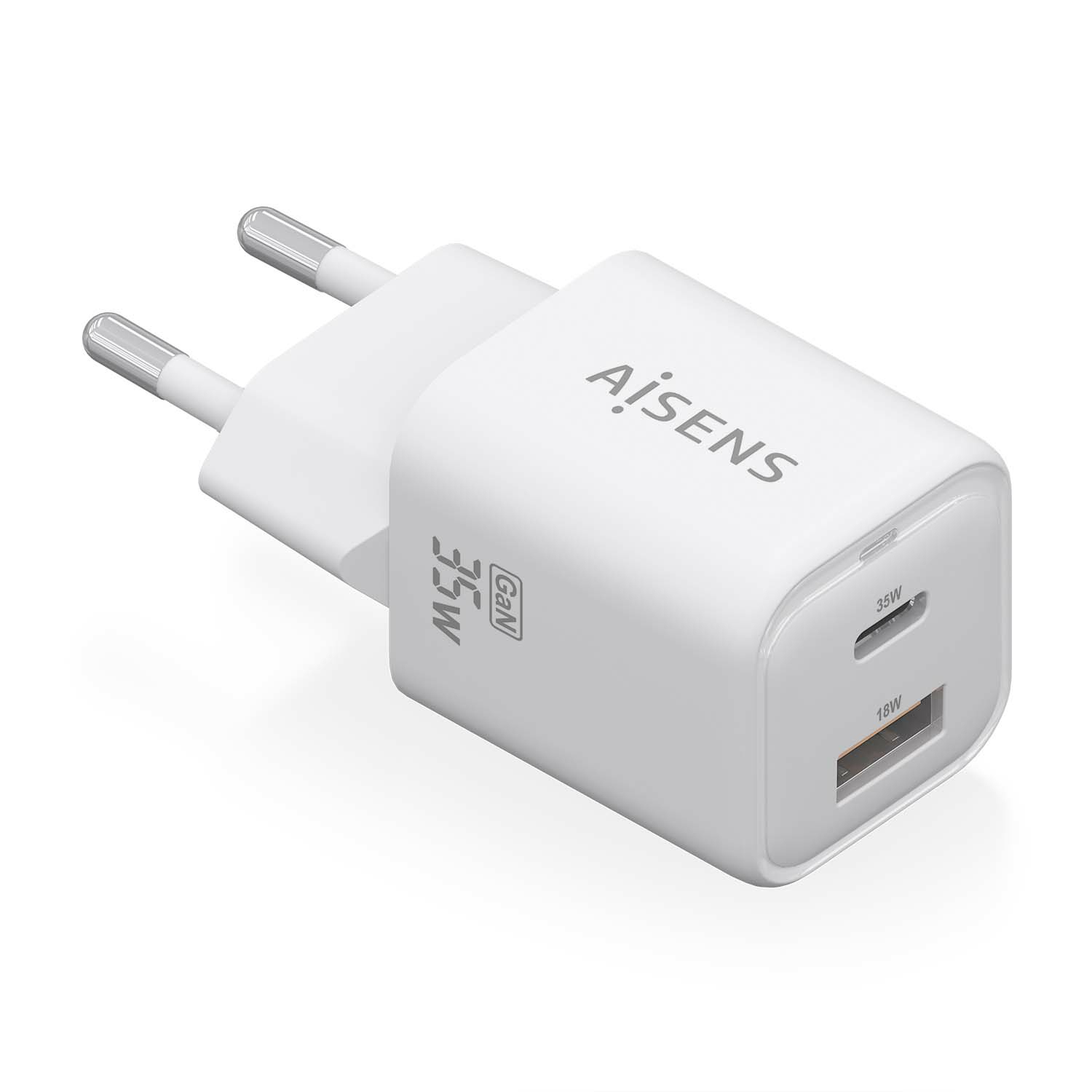

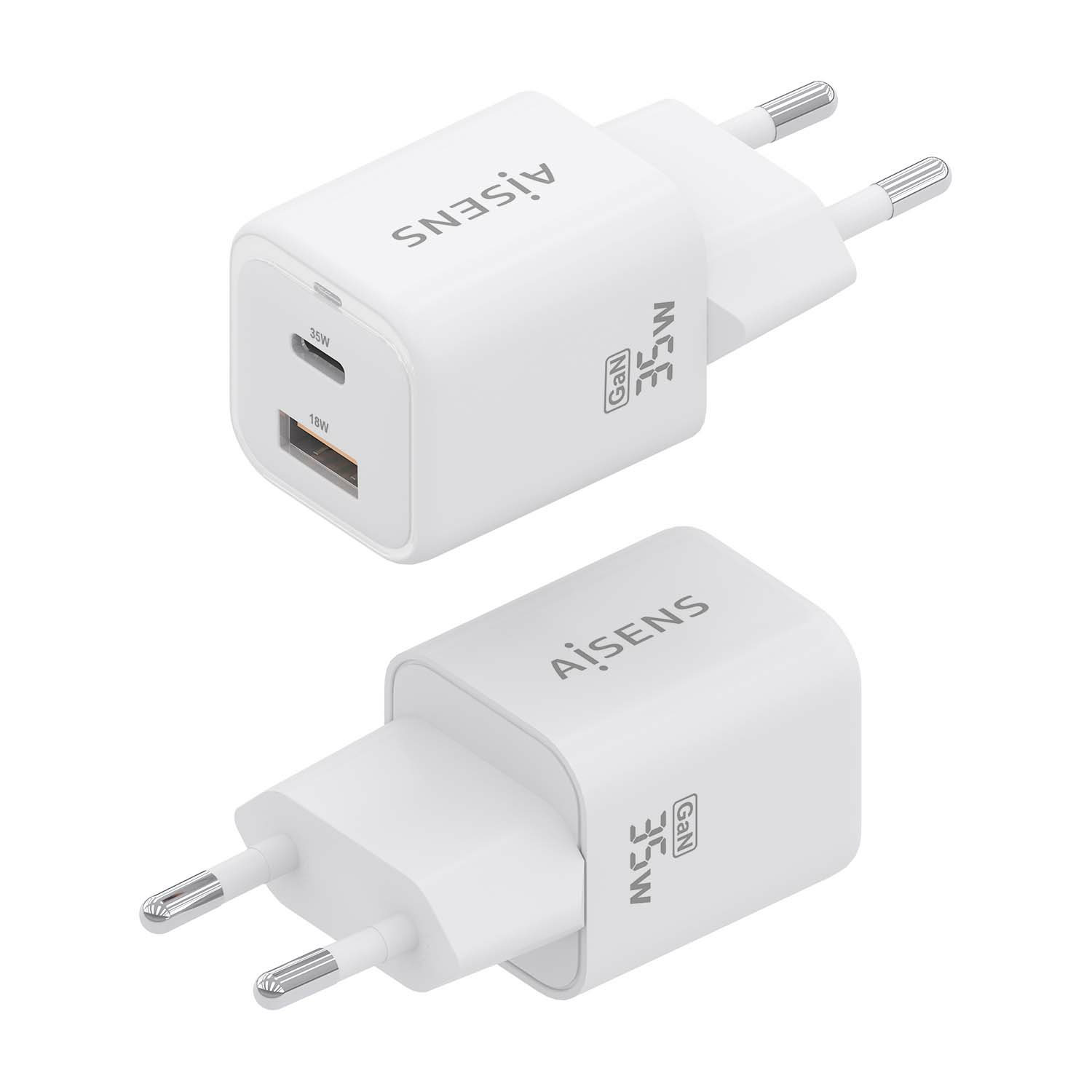

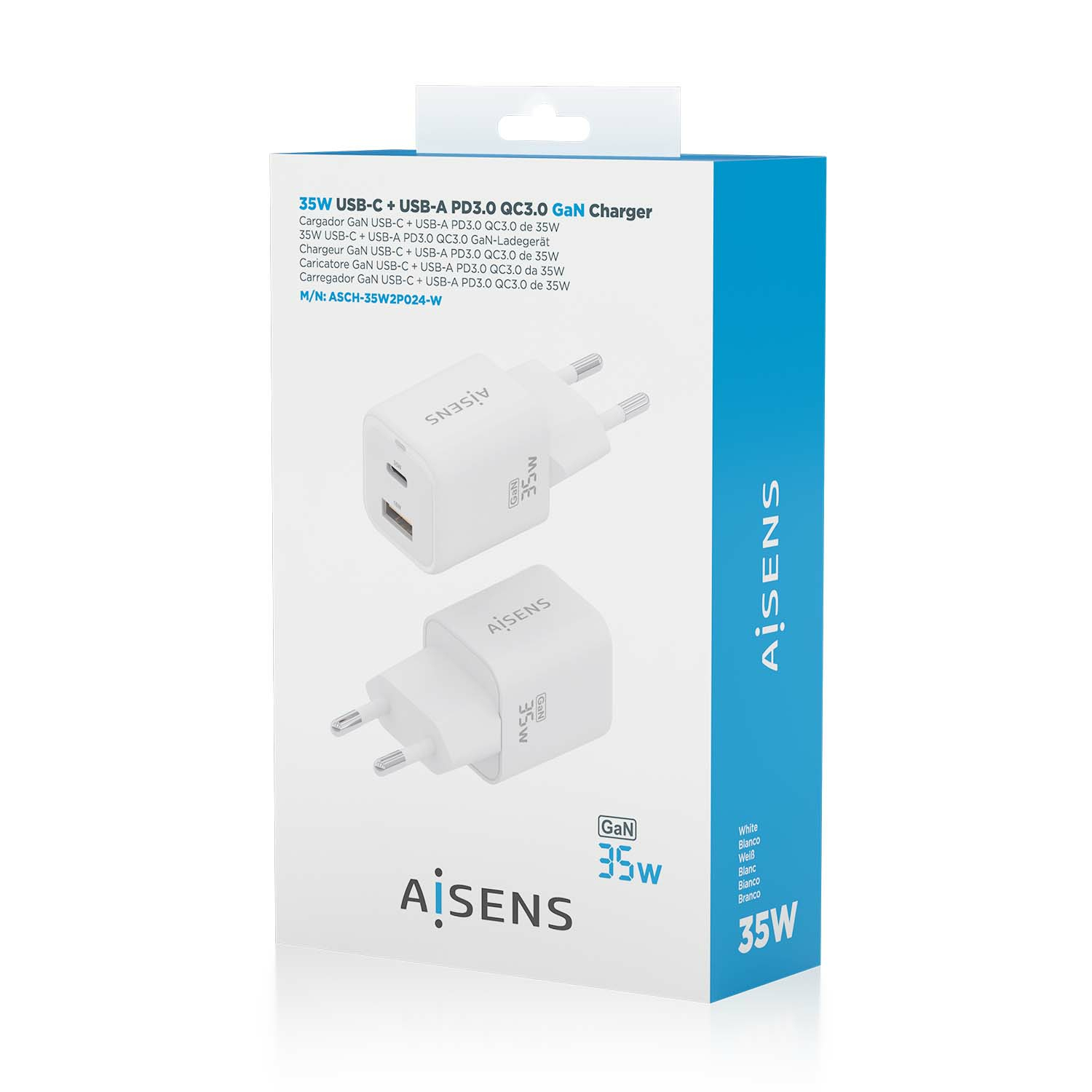

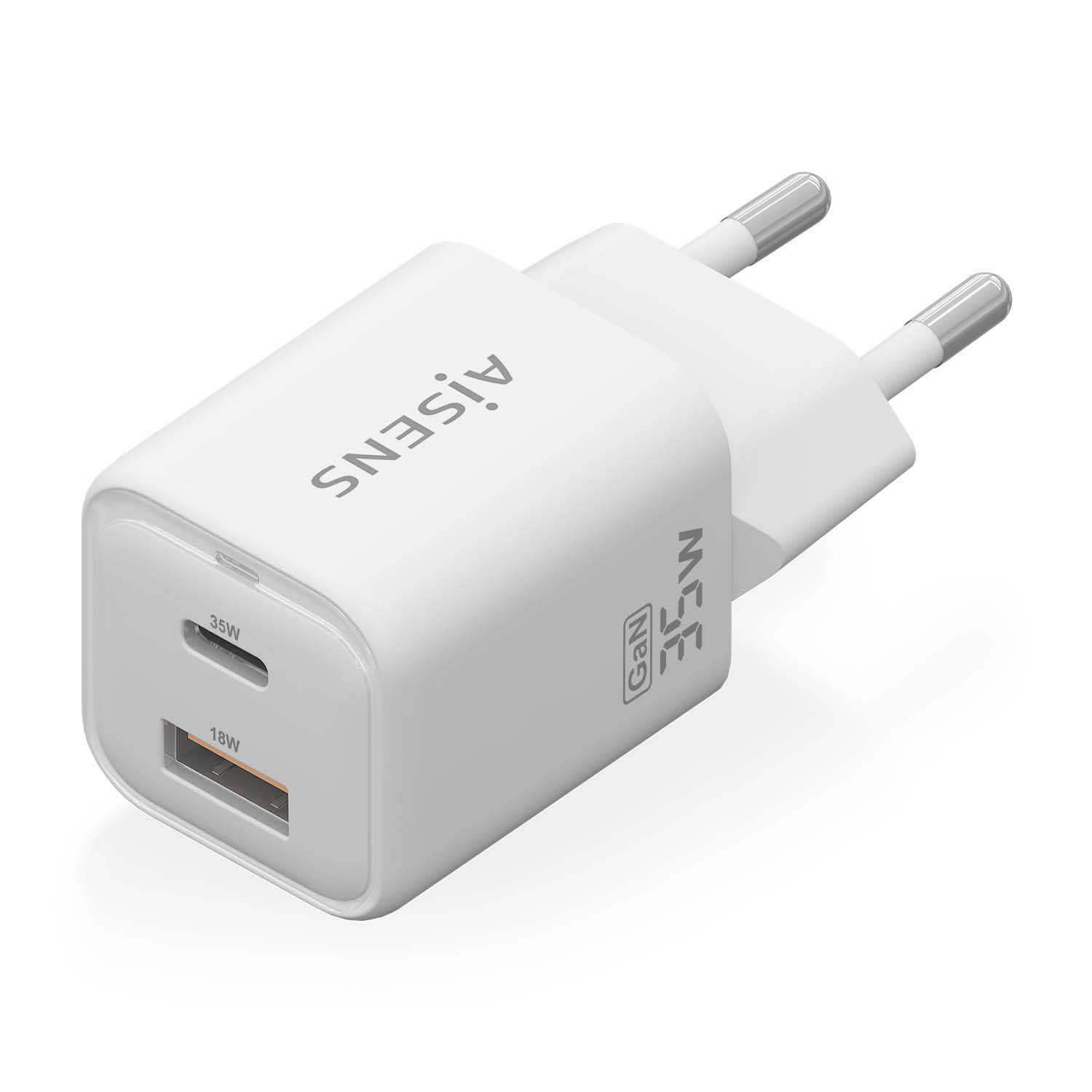

Charger Gan 35W, 1xUSB-C PD3.0 QC4.0, 1xUSB-A QC3.0, White
Model ASCH-35W2P024-WEAN 8435739900888
48 specifications
- Power35 W
- ColourWhite
- Charger typeIndoor
- Input voltage100 - 240 V
- Width31 mm
Overview
- Power
- 35 W
- Colour
- White
- Charger type
- Indoor
- Input voltage
- 100 - 240 V
- Width
- 31 mm
- Brand
- AISENS
- Category
- Mobile Device Charger
- Model
- ASCH-35W2P024-W
- Part number
- ASCH-35W2P024-W
- EAN / UPC
- 8435739900888
- Also known as
- AISENS Charger Gan 35W, 1xUSB-C PD3.0 QC4.0, 1xUSB-A QC3.0, White
Specifications
48 specifications in 9 groups
Performance
| Specification | Value |
|---|---|
| Charger type | Indoor |
| Charger compatibility | Universal |
| Power source type | AC |
| USB 2.0 ports quantity | 1 |
| USB Type-C ports quantity | 1 |
| Fast charging | Yes |
| Fast charging technology | Power Delivery 3.0, Quick Charge 3.0, Quick Charge 4 |
| Number of simultaneously connected devices (max) | 2 |
| Programmable power supply (PPS) | Yes |
| USB Power Delivery (USB PD) | Yes |
| USB Power Delivery revision | 3.0 |
Design
| Specification | Value |
|---|---|
| Product colour | White |
| Gallium nitride (GaN) transistors | Yes |
Power
| Specification | Value |
|---|---|
| Input voltage | 100 - 240 V |
| Input frequency | 50/60 Hz |
| Input current | 1.2 A |
| Maximum power | 35 W |
| Port 1 output power | 35 W |
| Port 2 output power | 18 W |
| Output current (5V) | 3 A |
| Output current (9V) | 3 A |
| Output current (12V) | 2.5 A |
| Output current (15V) | 2.33 A |
| Output current (20V) | 1.75 A |
| Port 1 output current | 3 A |
| Port 2 output current | 3 A |
| Compatible power plug types | EU |
| Power plug type | Type C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 31 mm |
| Depth | 76 mm |
Packaging data
| Specification | Value |
|---|---|
| Package width | 35 mm |
| Package depth | 84 mm |
| Package height | 129 mm |
| Package volume | 379.26 cm³ |
| Package weight | 106 g |
| Package type | Hanging box |
Packaging content
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
| AC adapter included | Yes |
| Included power plug types | EU |
| Manual | Yes |
Certificates
| Specification | Value |
|---|---|
| Certification | RoHS, CE |
Logistics data
| Specification | Value |
|---|---|
| Master (outer) case width | 270 mm |
| Master (outer) case length | 440 mm |
| Master (outer) case height | 195 mm |
| Master (outer) case gross weight | 5.3 kg |
| Master (outer) case volume | 23166 cm³ |
| Products per master (outer) case | 50 pc(s) |
Other features
| Specification | Value |
|---|---|
| Packaging content | 1 x 35W GaN Charger 1 x Multi-language User Manual |
