WSM20 Dual-band (2.4 GHz
5 GHz) Wi-Fi 6 (802.11ax) White 3 Internal
Model WSM20Part no. WSM20-GB0301FEAN 4718937628605
44 specifications
- SpeedWi-Fi 6 (802.11ax)
- TypeMesh system
- Weight254 g
- ColourWhite
- Wi-Fi bandDual-band (2.4 GHz / 5 GHz)
- Built-in processorYes
Overview
- Speed
- Wi-Fi 6 (802.11ax)
- Type
- Mesh system
- Weight
- 254 g
- Colour
- White
- Wi-Fi band
- Dual-band (2.4 GHz / 5 GHz)
- Built-in processor
- Yes
- Brand
- Zyxel
- Category
- Mesh Wi-Fi System
- Model
- WSM20
- Part number
- WSM20-GB0301F
- EAN / UPC
- 4718937628605
- Also known as
- Zyxel WSM20 Dual-band (2.4 GHz / 5 GHz) Wi-Fi 6 (802.11ax) White 3 Internal
Specifications
44 specifications in 8 groups
Design
| Specification | Value |
|---|---|
| Product colour | White |
| Product type | Mesh system |
| LED indicators | Status |
| Antenna type | Internal |
| Reset button | Yes |
Wireless LAN features
| Specification | Value |
|---|---|
| Wi-Fi band | Dual-band (2.4 GHz / 5 GHz) |
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax) |
| WLAN data transfer rate (first band) | 574 Mbit/s |
| WLAN data transfer rate (second band) | 1201 Mbit/s |
| Security algorithms | IPSec, WMM, WPA3, WPS |
| Point-to-point protocol over Ethernet (PPPoE) | Yes |
| Static IP | Yes |
| Dynamic DNS (DDNS) | Yes |
| Guest access | Yes |
Features
| Specification | Value |
|---|---|
| Built-in processor | Yes |
| Processor cores | 2 |
| Processor frequency | 0.88 GHz |
| Flash memory | 128 MB |
| Band steering | Yes |
| DHCP client | Yes |
| DHCP server | Yes |
| Parental control | Yes |
| Firmware upgradeable via | Network |
| SSID Broadcast | Yes |
| MU-MIMO technology | Yes |
Ports & interfaces
| Specification | Value |
|---|---|

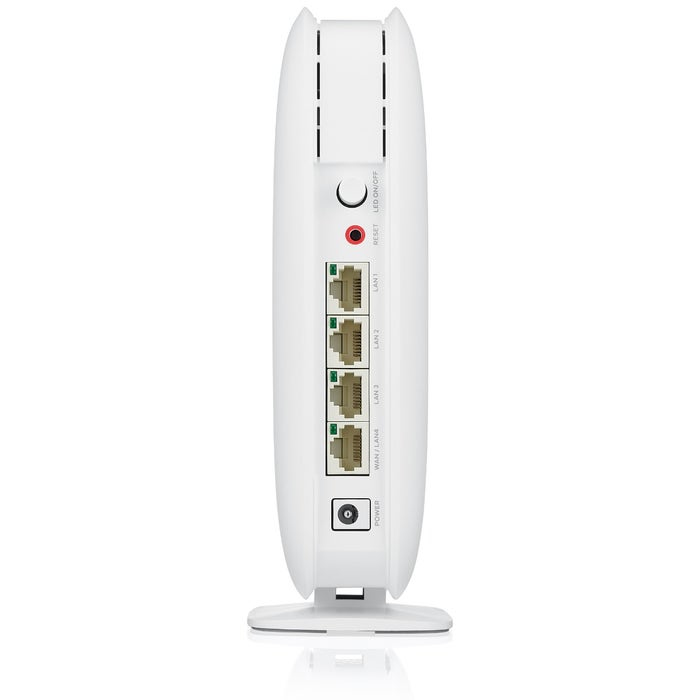

| Ethernet LAN (RJ-45) ports | 3 |
| Ethernet WAN | Yes |
| DC-in jack | Yes |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 15 W |
| AC adapter output voltage | 12 V |
| AC adapter output current | 1.5 A |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -30 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 10 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 133 mm |
| Depth | 192 mm |
| Height | 66 mm |
| Weight | 254 g |
Packaging data
| Specification | Value |
|---|---|
| Package width | 238 mm |
| Package depth | 281 mm |
| Package height | 151 mm |
| Package weight | 1.72 kg |
