Deco XE75 Pro
Model Deco XE75 ProPart no. DECO XE75 PRO(1-PACK)EAN 840030704970
65 specifications
- SpeedWi-Fi 6E (802.11ax)
- TypeMesh router
- ColourWhite
- Built-in processorYes
- Ethernet LAN (RJ-45) ports3
- AC input voltage100 - 240 V
Overview
- Speed
- Wi-Fi 6E (802.11ax)
- Type
- Mesh router
- Colour
- White
- Built-in processor
- Yes
- Ethernet LAN (RJ-45) ports
- 3
- AC input voltage
- 100 - 240 V
- Brand
- TP-Link
- Category
- Mesh Wi-Fi System
- Model
- Deco XE75 Pro
- Part numbers
- DECO XE75 PRO(1-PACK), DECO XE75 PRO(4-PACK)/KTO
- EAN / UPC
- 840030704970, 4897098684979, 4897098685006
- Also known as
- TP-Link AXE5400 Whole Home Mesh Wi-Fi 6E Unit(Tri-Band)
Specifications
65 specifications in 11 groups
Design
| Specification | Value |
|---|---|
| Product colour | White |
| Product type | Mesh router |
| LED indicators | Yes |
| Antenna type | Internal |
| Antennas quantity | 4 |

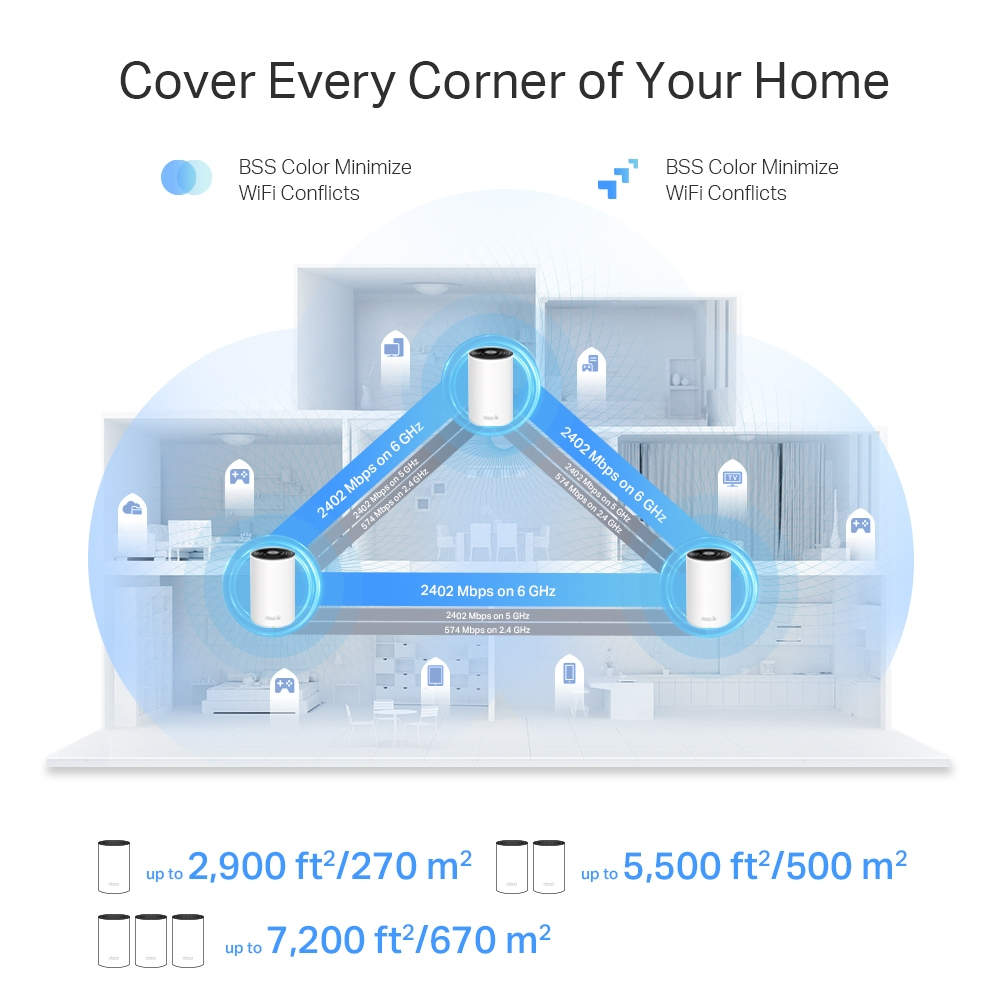

| Maximum coverage | 270 m² |
| Transmit power | FCC: <30 dBm (2.4 GHz), <30 dBm (5 GHz), <30 dBm (6 GHz), CE: <20 dBm (2.4 GHz), <23 dBm (5 GHz), <23 dBm (6 GHz) |
| Reset button | Yes |
Wireless LAN features
| Specification | Value |
|---|---|
| Wi-Fi band | Tri-band (2.4 GHz / 5 GHz / 6 GHz) |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax) |

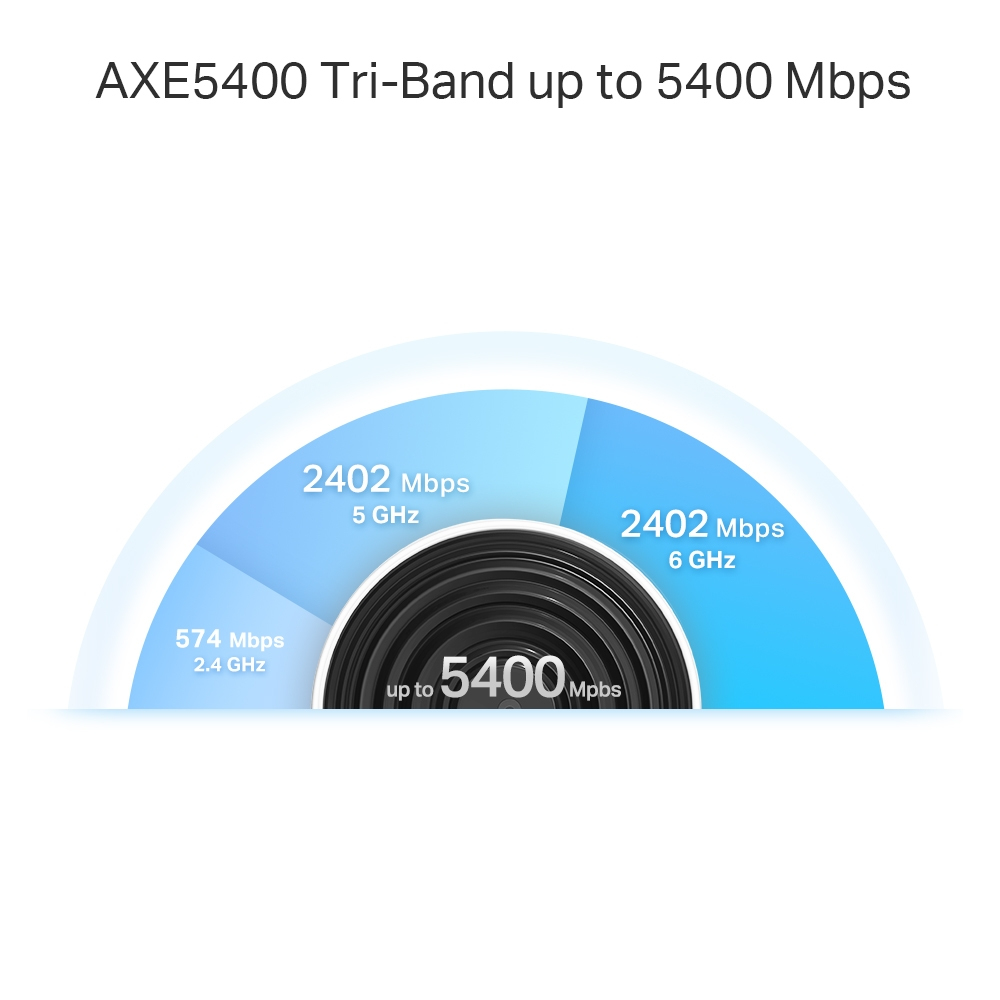

| WLAN data transfer rate (first band) | 574 Mbit/s |
| WLAN data transfer rate (second band) | 2402 Mbit/s |
| WLAN data transfer rate (third band) | 2402 Mbit/s |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Number of guest networks (5 GHz) | 1 |
| Security algorithms | WPA, WPA2-PSK, WPA3 |
| Number of guest networks (2.4 GHz) | 1 |
| Point-to-point protocol over Ethernet (PPPoE) | Yes |
| Dynamic IP | Yes |
| Static IP | Yes |
| IGMP proxy | Yes |
| IGMP snooping | Yes |
| Tagged VLAN | Yes |
| Wireless Distribution System (WDS) bridge | Yes |
| Dynamic DNS (DDNS) | Yes |
| Guest access | Yes |
| Apps supported | TP-Link Deco |
Features
| Specification | Value |
|---|---|
| Built-in processor | Yes |
| Processor cores | 4 |
| Processor frequency | 1.7 GHz |
| Quality of Service (QoS) support | Yes |
| Port forwarding | Yes |
| Firewall security | SPI Firewall |
| BeamForming | Yes |
| DHCP client | Yes |
| DHCP server | Yes |
| Universal Plug and Play (UPnP) | Yes |
| Parental control | Yes |
| Parental control features | Bedtime, Content filter, Custom profiles, Family time, Pause the Internet, Time controls, Time rewards, Weekly/monthly reports |
| MU-MIMO technology | Yes |
| MIMO | Yes |
Protocols
| Specification | Value |
|---|---|
| Supported network protocols (IPv6) | Yes |
Ports & interfaces
| Specification | Value |
|---|---|

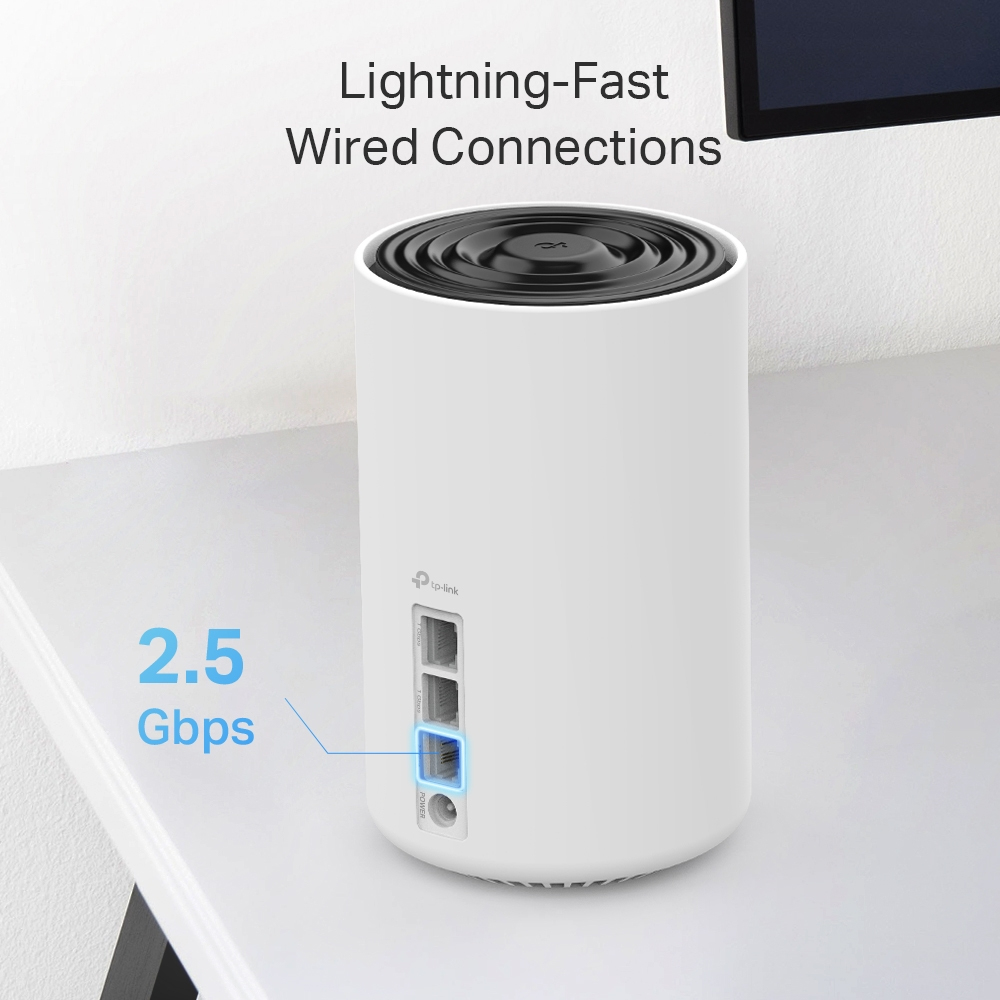

| Ethernet LAN (RJ-45) ports | 3 |
| Ethernet WAN | Yes |
| DC-in jack | Yes |
Power
| Specification | Value |
|---|---|
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| AC adapter output voltage | 12 V |
Certificates
| Specification | Value |
|---|---|
| Certification | CE, FCC, RoHS |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 60 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 105 mm |
| Depth | 105 mm |
| Height | 169 mm |
Packaging content
| Specification | Value |
|---|---|
| Number of products included | 1 pc(s) |
| AC adapter included | Yes |
| Number of units included | 1 pc(s) |
| Ethernet cable | Yes |
Packaging data
| Specification | Value |
|---|---|
| Package width | 213.5 mm |
| Package depth | 241 mm |
| Package height | 124 mm |
| Package weight | 1.2 kg |
