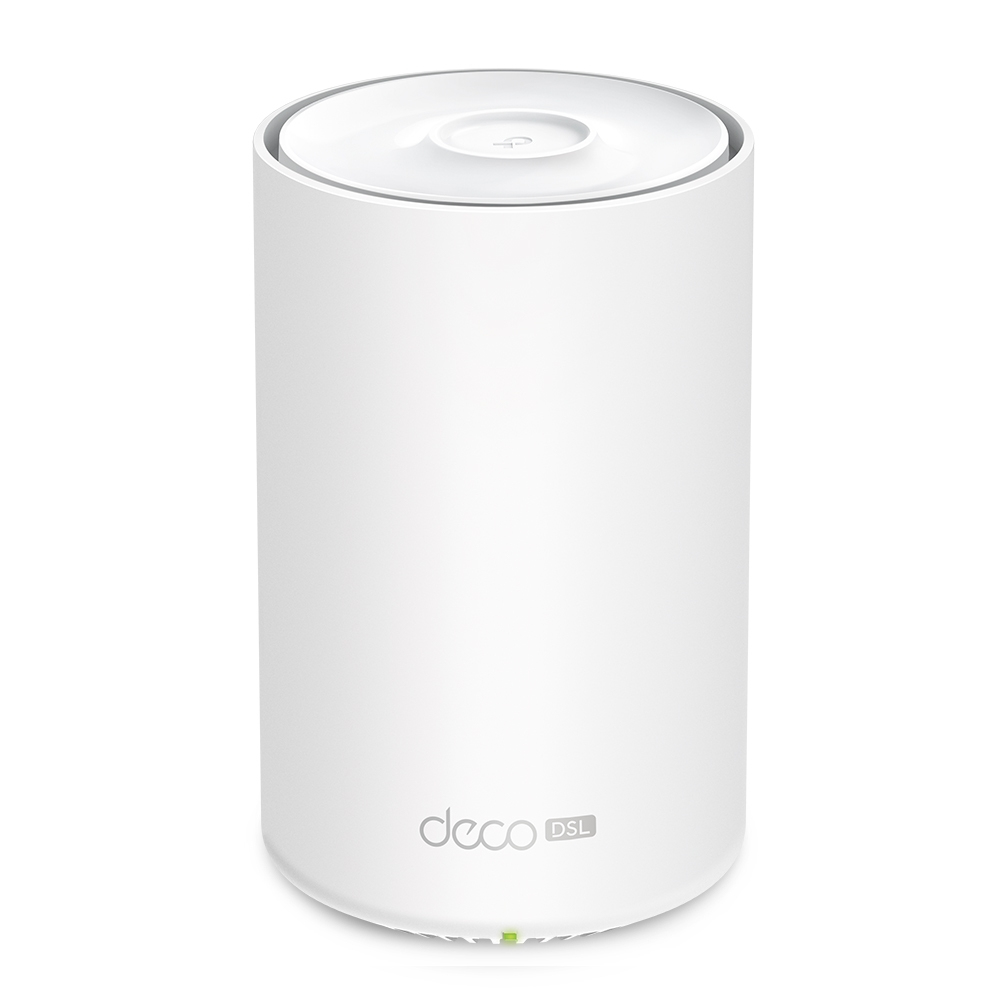

Deco X20-DSL
Model Deco X20-DSLPart no. DECO X20-DSLEAN 6935364006075
67 specifications
- SpeedWi-Fi 6 (802.11ax)
- ColourWhite
- Wi-Fi bandDual-band (2.4 GHz / 5 GHz)
- ADSLYes
- Ethernet LAN (RJ-45) ports3
- AC input voltage100 - 240 V
Overview
- Speed
- Wi-Fi 6 (802.11ax)
- Colour
- White
- Wi-Fi band
- Dual-band (2.4 GHz / 5 GHz)
- ADSL
- Yes
- Ethernet LAN (RJ-45) ports
- 3
- AC input voltage
- 100 - 240 V
- Brand
- TP-Link
- Category
- Mesh Wi-Fi System
- Model
- Deco X20-DSL
- Part number
- DECO X20-DSL
- EAN / UPC
- 6935364006075, 6935364006082
- Also known as
- TP-Link AX1800 VDSL Whole Home Mesh WiFi 6 Router
Specifications
67 specifications in 11 groups
Design
| Specification | Value |
|---|---|
| Product colour | White |
| LED indicators | Power |
| Antenna type | Internal |
| Antennas quantity | 2 |
| Number of devices supported | 150 |
| Transmit power | CE: ≤20 dBm (2.4GHz), ≤23 dBm (5GHz) |
| Reset button | Yes |
Wireless LAN features
| Specification | Value |
|---|---|
| Wi-Fi band | Dual-band (2.4 GHz / 5 GHz) |
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax) |
| WLAN data transfer rate (first band) | 1201 Mbit/s |
| WLAN data transfer rate (second band) | 574 Mbit/s |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11k, IEEE 802.11n, IEEE 802.11r, IEEE 802.11v |
| Number of guest networks (5 GHz) | 1 |
| Security algorithms | WPA, WPA2-PSK, WPA3 |
| Number of guest networks (2.4 GHz) | 1 |
| Point-to-point protocol over Ethernet (PPPoE) | Yes |
| Dynamic IP | Yes |
| Static IP | Yes |
| IGMP proxy | Yes |
| IGMP snooping | Yes |
| Tagged VLAN | Yes |
| Dynamic DNS (DDNS) | Yes |
| Guest access | Yes |
| Apps supported | TP-Link Deco |
DSL features
| Specification | Value |
|---|---|
| ADSL | Yes |
| ADSL2 | Yes |
| ADSL2+ | Yes |
| VDSL2 | Yes |
Features
| Specification | Value |
|---|---|
| Built-in processor | Yes |
| Processor cores | 4 |
| Processor frequency | 1.5 GHz |
| Quality of Service (QoS) support | Yes |
| Port forwarding | Yes |
| Firewall security | SPI Firewall |
| BeamForming | Yes |
| Transmitting power (CE) | ≤20 dBm (2.4GHz) ≤23 dBm (5GHz) |
| NAT functionality | Port Forwarding UPnP |
| DHCP client | Yes |
| DHCP server | Yes |
| Parental control | Yes |
| Firmware upgradeable via | Network |
| Supported WAN type | Dynamic IP Static IP PPPoE L2TP PPTP PPPoA IPoA DS-Lite |
| MU-MIMO technology | Yes |
| MIMO | Yes |
| Operating modes | DSL, Router, Access Point |

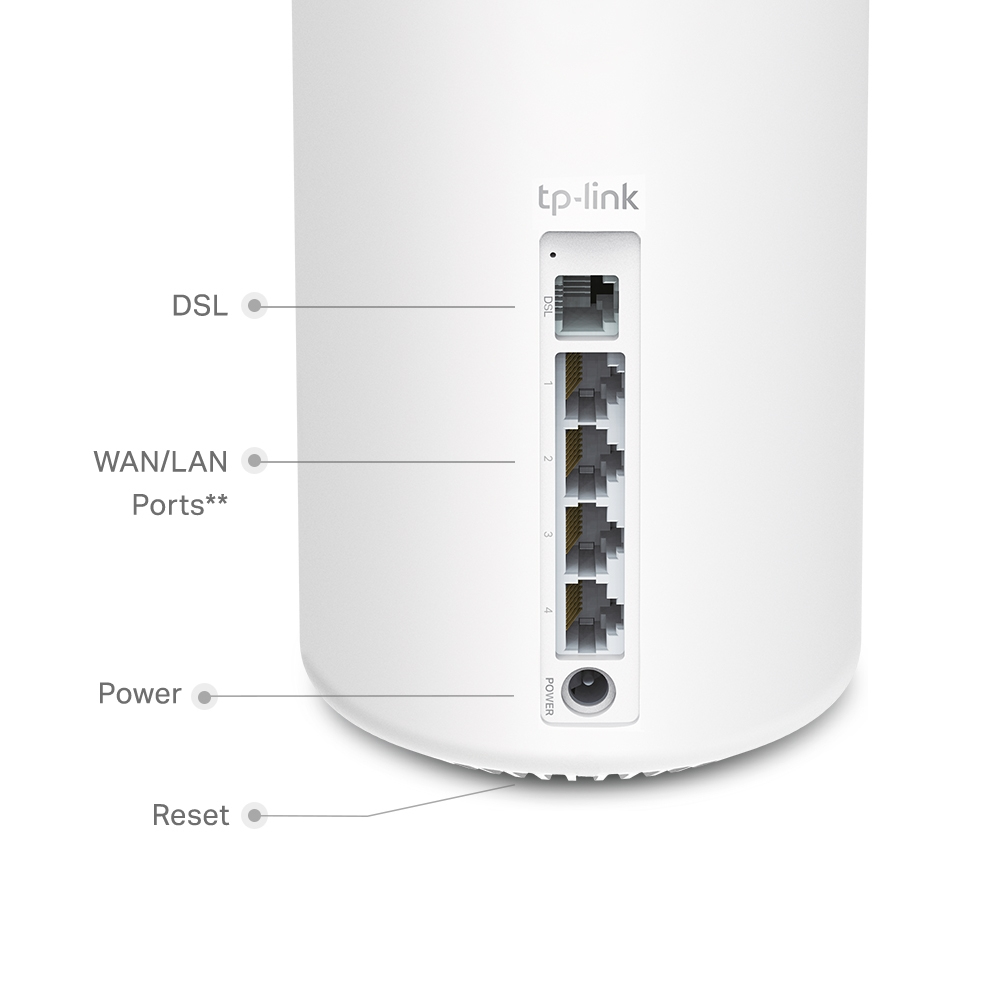

Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 3 |
| Ethernet WAN | Yes |
| DC-in jack | Yes |
Power
| Specification | Value |
|---|---|
| AC input voltage | 100 - 240 V |
| AC adapter input current | 0.6 A |
| AC input frequency | 50/60 Hz |
| AC adapter output voltage | 12 V |
| AC adapter output current | 1.5 A |
Certificates
| Specification | Value |
|---|---|
| Certification | CE, EAC, RoHS, RCM |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 60 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 105 mm |
| Depth | 105 mm |
| Height | 167 mm |
Packaging content
| Specification | Value |
|---|---|
| Number of products included | 1 pc(s) |
| AC adapter included | Yes |
| Number of units included | 1 pc(s) |
| Ethernet cable | Yes |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85171800 |
