M1300 1-PACK
Model M1300 1-PACKEAN 6971690792800
67 specifications
- Memory16 MB
- SpeedWi-Fi 5 (802.11ac)
- TypeMesh system
- Weight298 g
- ColourWhite
- Wi-Fi bandDual-band (2.4 GHz / 5 GHz)
Overview
- Memory
- 16 MB
- Speed
- Wi-Fi 5 (802.11ac)
- Type
- Mesh system
- Weight
- 298 g
- Colour
- White
- Wi-Fi band
- Dual-band (2.4 GHz / 5 GHz)
- Brand
- Cudy
- Category
- Mesh Wi-Fi System
- Model
- M1300 1-PACK
- Part number
- M1300 1-PACK
- EAN / UPC
- 6971690792800
- Also known as
- Cudy M1300 1-PACK mesh wi-fi system Dual-band (2.4 GHz / 5 GHz) Wi-Fi 5 (802.11ac) White 2 Internal
Specifications
67 specifications in 10 groups
Design
| Specification | Value |
|---|---|
| Product colour | White |
| Product type | Mesh system |
| LED indicators | System, Status |
| Antenna type | Internal |
| Antennas quantity | 4 |
| Antenna direction type | Omni-directional |
| Number of devices supported | 100 |
| Maximum coverage | 70 m² |
| Reset button | Yes |
Wireless LAN features
| Specification | Value |
|---|---|
| Wi-Fi band | Dual-band (2.4 GHz / 5 GHz) |
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| WLAN data transfer rate (max) | 1167 Mbit/s |
| WLAN data transfer rate (first band) | 300 Mbit/s |
| WLAN data transfer rate (second band) | 867 Mbit/s |
| Number of guest networks (5 GHz) | 1 |
| Security algorithms | WPA, WPA2, WPA3 |
| Number of guest networks (2.4 GHz) | 1 |
| Point-to-point protocol over Ethernet (PPPoE) | Yes |
| Dynamic IP | Yes |
| Static IP | Yes |
| IGMP proxy | Yes |
| IGMP snooping | Yes |
| Guest access | Yes |
| VPN support | PPTP/L2TP/OpenVPN/WireGuard/IPSec/Zerotier |
Features
| Specification | Value |
|---|---|
| Built-in processor | Yes |
| Processor cores | 2 |
| Processor frequency | 0.8 GHz |
| Internal memory | 16 MB |
| Flash memory | 128 MB |
| WPS push button | Yes |
| Bluetooth | No |
| Quality of Service (QoS) support | Yes |
| Port forwarding | Yes |
| Firewall security | SPI Firewall, DoS Protection, Block PING |
| BeamForming | Yes |
| DHCP client | Yes |
| DHCP server | Yes |
| Universal Plug and Play (UPnP) | Yes |
| Firmware upgradeable via | Network, USB |
| MU-MIMO technology | Yes |
| MIMO | Yes |

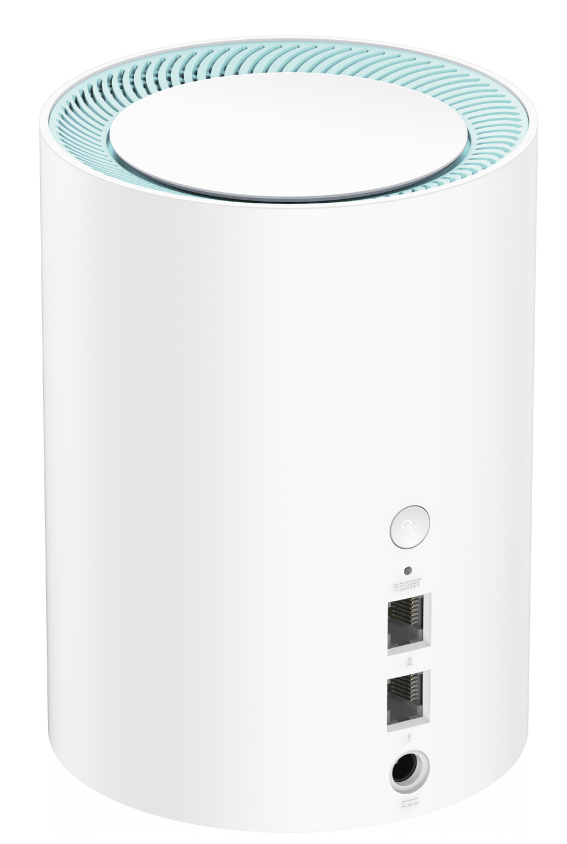

Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 2 |
| Ethernet WAN | Yes |
| DC-in jack | Yes |
Power
| Specification | Value |
|---|---|
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| AC adapter output voltage | 12 V |
| AC adapter output current | 1 A |
Certificates
| Specification | Value |
|---|---|
| Certification | FCC, CE |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 110 mm |
| Depth | 110 mm |
| Height | 154.5 mm |
| Weight | 298 g |

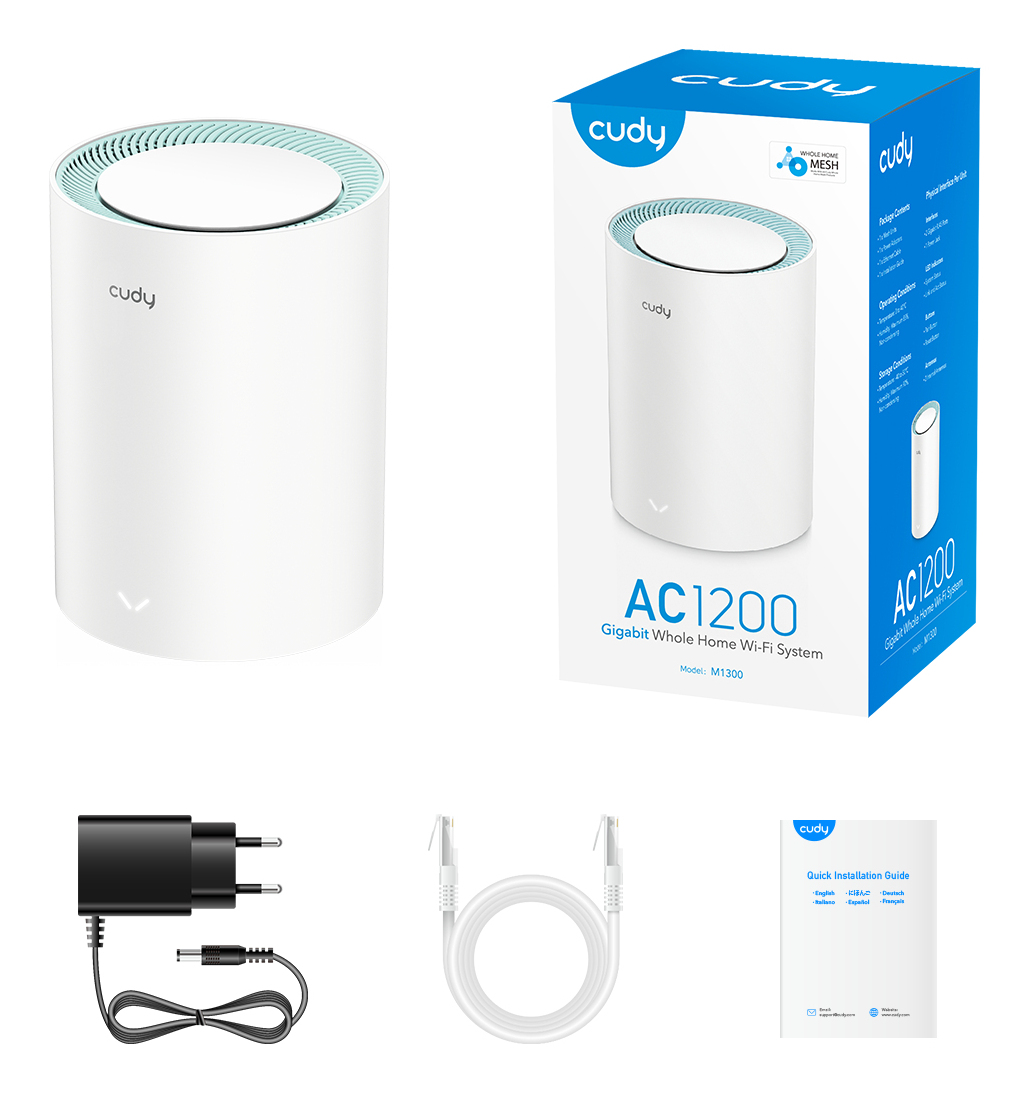

Packaging content
| Specification | Value |
|---|---|
| Number of products included | 1 pc(s) |
| AC adapter included | Yes |
| Number of units included | 1 pc(s) |
| Ethernet cable | Yes |
| Quick installation guide | Yes |
Packaging data
| Specification | Value |
|---|---|
| Package width | 145 mm |
| Package depth | 130 mm |
| Package height | 265 mm |
| Package weight | 675.6 g |
