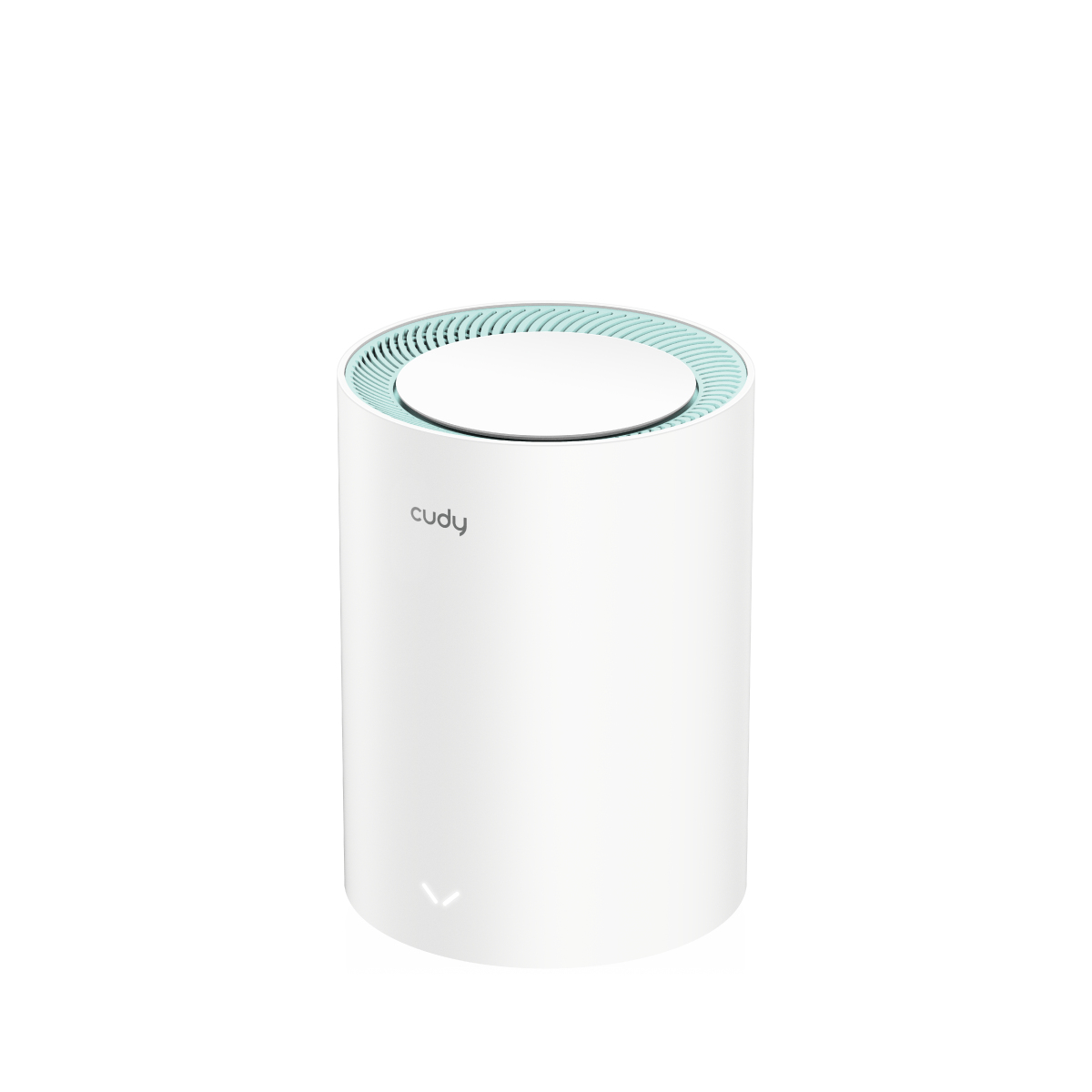

AX1500 Gigabit Mesh Wi-Fi 6 System, M1500 1-PACK 1.0
Model AX1500 Gigabit Mesh Wi-Fi 6 System, M1500 1-PACK 1.0Part no. M1500 1-PACK 1.0EAN 6971690793968
66 specifications
- Memory128 MB
- SpeedWi-Fi 6 (802.11ax)
- TypeMesh router
- Weight299.1 g
- ColourWhite
- Wi-Fi bandDual-band (2.4 GHz / 5 GHz)
Overview
- Memory
- 128 MB
- Speed
- Wi-Fi 6 (802.11ax)
- Type
- Mesh router
- Weight
- 299.1 g
- Colour
- White
- Wi-Fi band
- Dual-band (2.4 GHz / 5 GHz)
- Brand
- Cudy
- Category
- Mesh Wi-Fi System
- Model
- AX1500 Gigabit Mesh Wi-Fi 6 System, M1500 1-PACK 1.0
- Part number
- M1500 1-PACK 1.0
- EAN / UPC
- 6971690793968
- Also known as
- Cudy AX1500 Gigabit Mesh Wi-Fi 6 System, M1500 1-PACK 1.0 Dual-band (2.4 GHz / 5 GHz) Wi-Fi 6 (802.11ax) White 3 Internal
Specifications
66 specifications in 11 groups
Design
| Specification | Value |
|---|---|
| Product colour | White |
| Product type | Mesh router |
| LED indicators | System |
| Antenna type | Internal |
| Antennas quantity | 2 |
| Antenna direction type | Omni-directional |
| Reset button | Yes |
Wireless LAN features
| Specification | Value |
|---|---|
| Wi-Fi band | Dual-band (2.4 GHz / 5 GHz) |
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| WLAN data transfer rate (max) | 1201 Mbit/s |
| WLAN data transfer rate (first band) | 300 Mbit/s |
| WLAN data transfer rate (second band) | 1201 Mbit/s |
| Number of guest networks (5 GHz) | 1 |
| Security algorithms | WPA, WPA2, WPA3 |
| Number of guest networks (2.4 GHz) | 1 |
| Point-to-point protocol over Ethernet (PPPoE) | Yes |
| Static IP | Yes |
| IGMP proxy | Yes |
| IGMP snooping | Yes |
Features
| Specification | Value |
|---|---|
| Built-in processor | Yes |
| Processor cores | 1 |
| Processor frequency | 1 GHz |
| Internal memory | 128 MB |
| Flash memory | 16 MB |
| WPS push button | Yes |
| Quality of Service (QoS) support | Yes |
| Port forwarding | Yes |
| Firewall security | Yes |
| DHCP client | Yes |
| DHCP server | Yes |
| Universal Plug and Play (UPnP) | Yes |
| Parental control | Yes |
| Parental control features | Off time, Time controls, Pause the Internet, Content filter |
| Firmware upgradeable via | Network |
| MU-MIMO technology | Yes |
| MIMO | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 3 |
| Ethernet WAN | Yes |
| DC-in jack | Yes |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 10 W |
| AC input voltage | 100 - 240 V |
| AC adapter input current | 1 A |
| AC input frequency | 50 - 60 Hz |
| AC adapter output voltage | 12 V |
| AC adapter output current | 1 A |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | Federal Communications Commission (FCC), CE |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 110 mm |
| Depth | 110 mm |
| Height | 154.5 mm |
| Weight | 299.1 g |

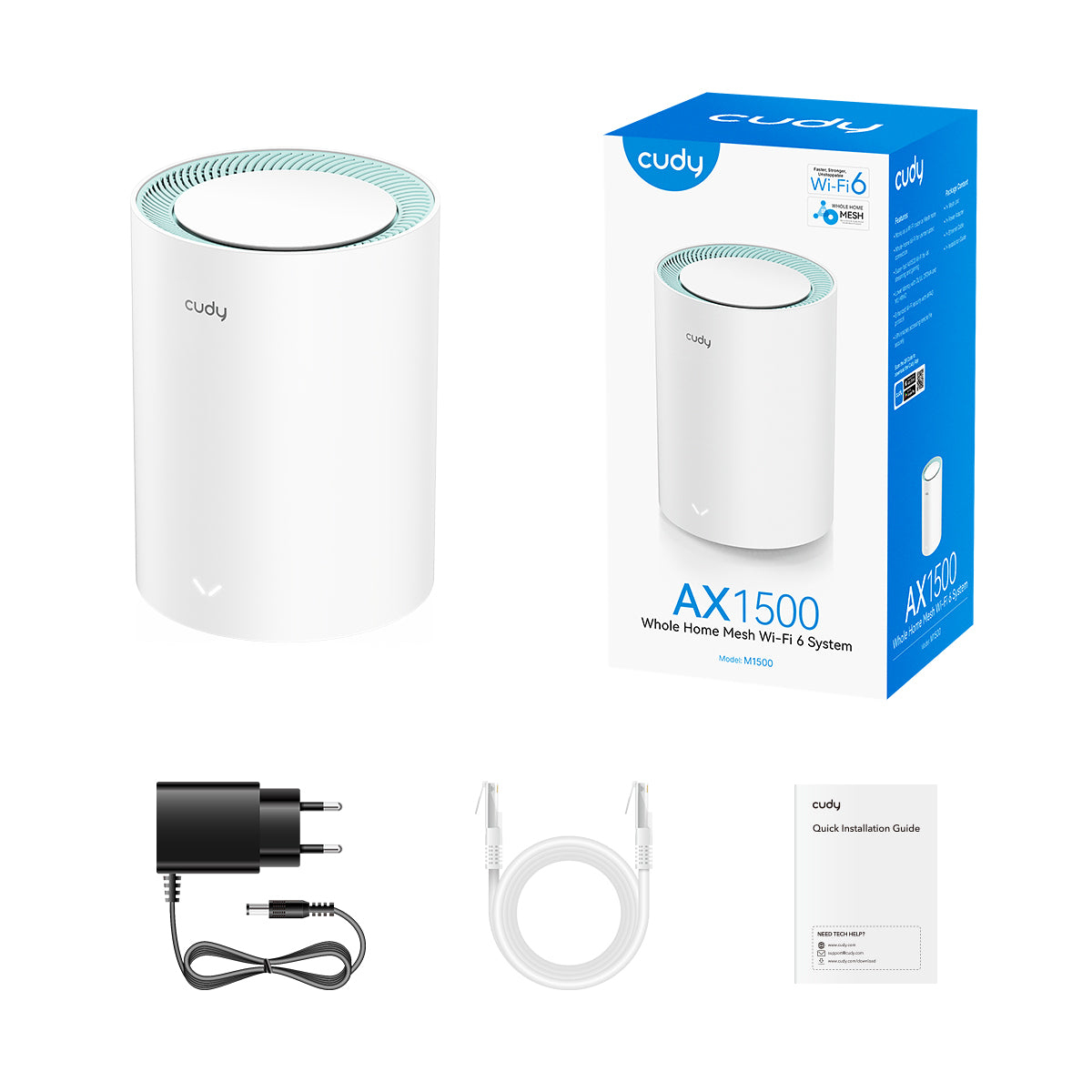

Packaging content
| Specification | Value |
|---|---|
| Number of products included | 1 pc(s) |
| AC adapter included | Yes |
| Ethernet cable | Yes |
| Quick installation guide | Yes |
Packaging data
| Specification | Value |
|---|---|
| Package width | 145 mm |
| Package depth | 130 mm |
| Package height | 265 mm |
| Package weight | 677 g |
Logistics data
| Specification | Value |
|---|---|
| Master (outer) case gross weight | 12.1 kg |
| Master (outer) case height | 260 mm |
| Master (outer) case length | 560 mm |
| Master (outer) case width | 570 mm |
