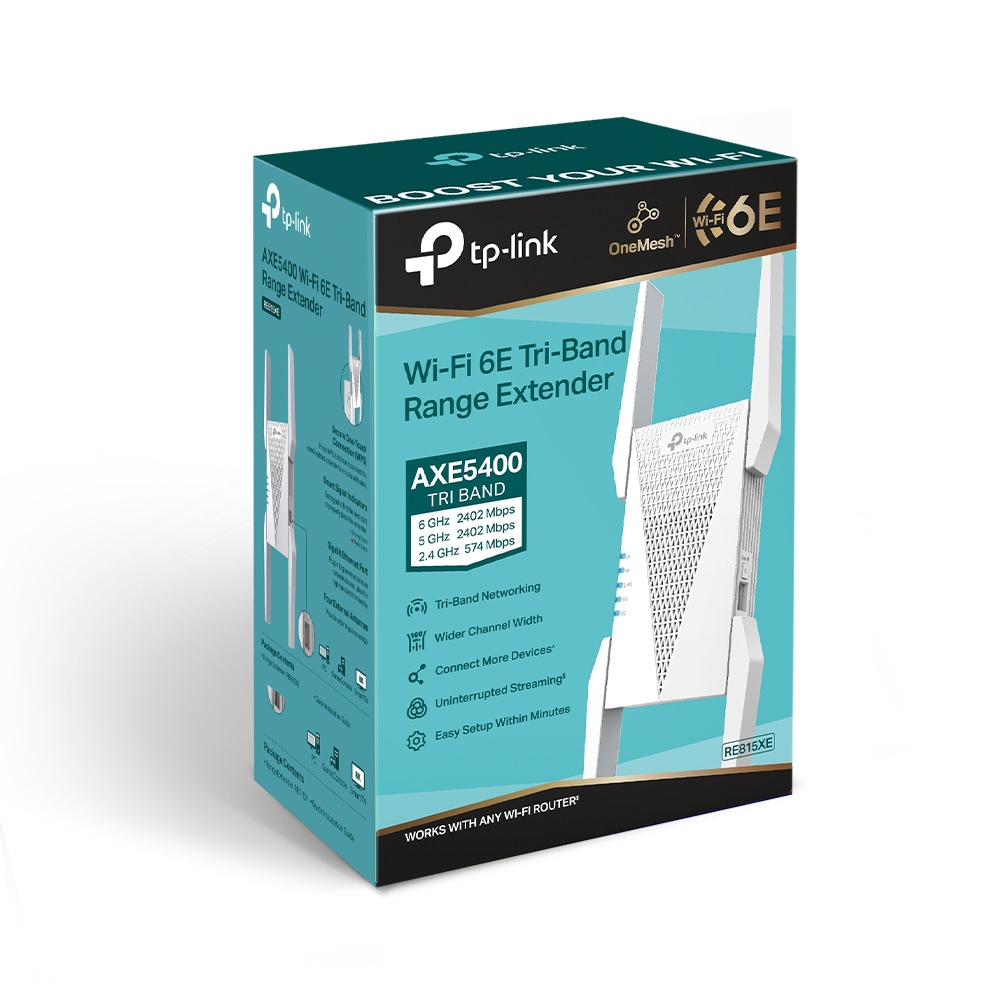

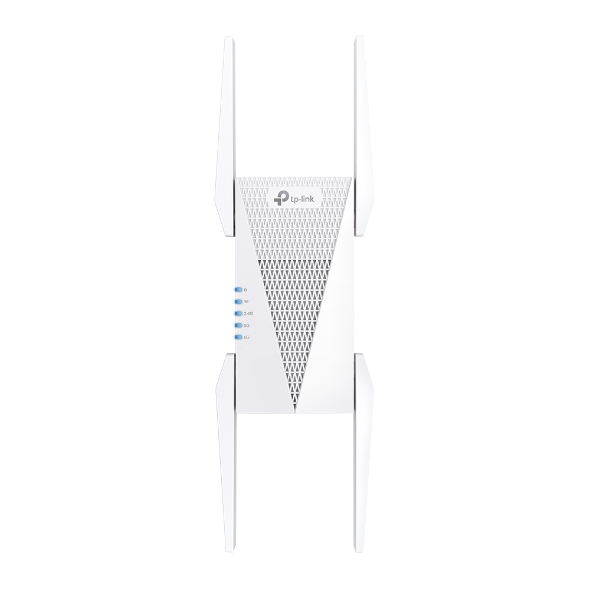

AXE5400 Mesh Wi-Fi 6E Range Extender
Model RE815XEEAN 840030707728
29 specifications
- SpeedWi-Fi 6 (802.11ax)
- TypeMesh satellite
- ColourWhite
- Ethernet LAN (RJ-45) ports1
- Power consumption (typical)23 W
- Operating temperature (T-T)0 - 40 °C
Overview
- Speed
- Wi-Fi 6 (802.11ax)
- Type
- Mesh satellite
- Colour
- White
- Ethernet LAN (RJ-45) ports
- 1
- Power consumption (typical)
- 23 W
- Operating temperature (T-T)
- 0 - 40 °C
- Brand
- TP-Link
- Category
- Mesh Wi-Fi System
- Model
- RE815XE
- Part number
- RE815XE
- EAN / UPC
- 840030707728, 4897098687680, 4897098687727
- Also known as
- TP-Link AXE5400 Mesh Wi-Fi 6E Range Extender
Specifications
29 specifications in 8 groups
Design
| Specification | Value |
|---|---|
| Product colour | White |
| Product type | Mesh satellite |

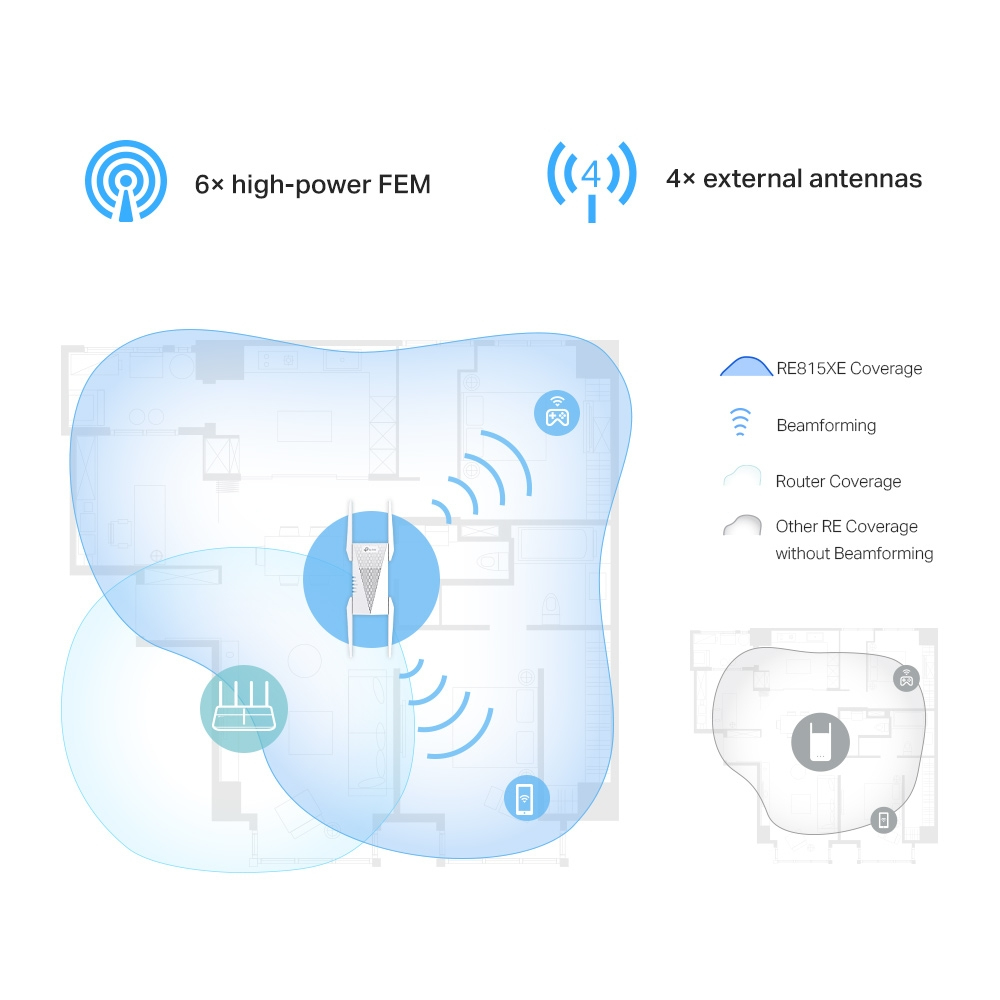

| Antenna type | External |
| Antennas quantity | 4 |
| Reset button | Yes |
Wireless LAN features
| Specification | Value |
|---|---|
| Wi-Fi band | Tri-band (2.4 GHz / 5 GHz / 6 GHz) |
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax) |

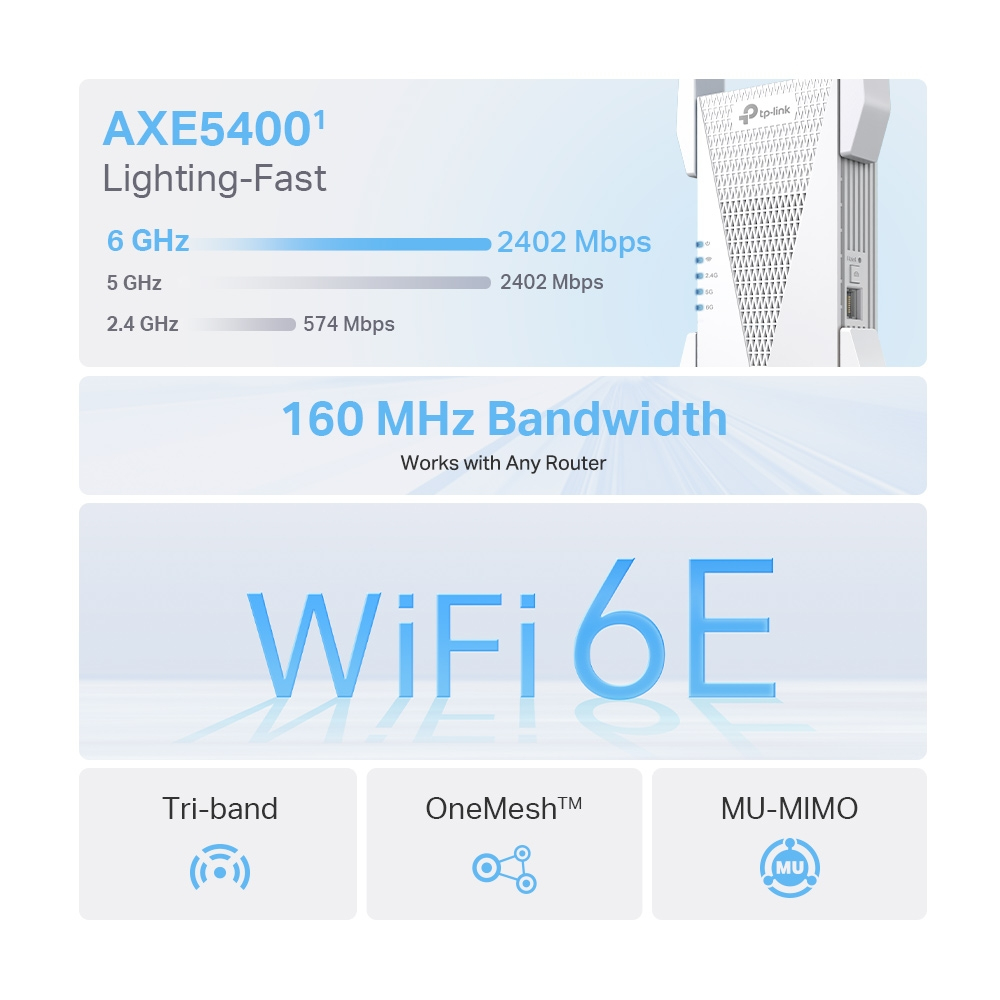

| WLAN data transfer rate (max) | 2402 Mbit/s |
| WLAN data transfer rate (first band) | 574 Mbit/s |
| WLAN data transfer rate (second band) | 2402 Mbit/s |
| WLAN data transfer rate (third band) | 2402 Mbit/s |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Security algorithms | 64-bit WEP, 128-bit WEP, WPA, WPA3 |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 23 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | Federal Communications Commission (FCC), RoHS |
| Certification | CE, RoHS |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 106.6 mm |
| Depth | 39.7 mm |
| Height | 348.2 mm |
Packaging content
| Specification | Value |
|---|---|
| Number of products included | 1 pc(s) |
| Ethernet cable | Yes |
