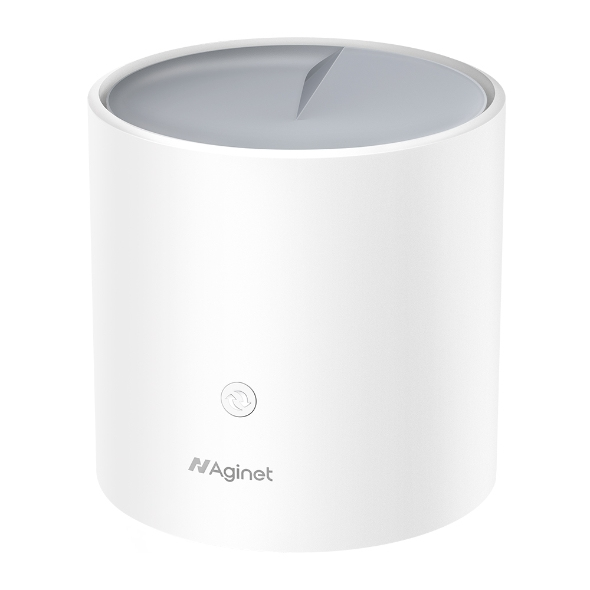

Aginet AX5400 Whole Home Mesh WiFi System
Model HX710EAN 4897098684603
40 specifications
- SpeedWi-Fi 6 (802.11ax)
- TypeMesh router
- ColourWhite
- Wi-Fi bandDual-band (2.4 GHz / 5 GHz)
- Quality of Service (QoS) supportYes
- Ethernet LAN (RJ-45) ports2
Overview
- Speed
- Wi-Fi 6 (802.11ax)
- Type
- Mesh router
- Colour
- White
- Wi-Fi band
- Dual-band (2.4 GHz / 5 GHz)
- Quality of Service (QoS) support
- Yes
- Ethernet LAN (RJ-45) ports
- 2
- Brand
- TP-Link
- Category
- Mesh Wi-Fi System
- Model
- HX710
- Part number
- HX710
- EAN / UPC
- 4897098684603
- Also known as
- TP-Link Aginet AX5400 Whole Home Mesh WiFi System
Specifications
40 specifications in 9 groups
Design
| Specification | Value |
|---|---|
| Product colour | White |
| Product type | Mesh router |
| LED indicators | Yes |
| Antenna type | Internal |
| Reset button | Yes |
Wireless LAN features
| Specification | Value |
|---|---|
| Wi-Fi band | Dual-band (2.4 GHz / 5 GHz) |
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax) |
| WLAN data transfer rate (max) | 5400 Mbit/s |
| WLAN data transfer rate (first band) | 574 Mbit/s |
| WLAN data transfer rate (second band) | 4804 Mbit/s |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Security algorithms | WPA-PSK, WPA2-PSK, WPA3 |
| Point-to-point protocol over Ethernet (PPPoE) | Yes |
| Dynamic IP | Yes |
| Static IP | Yes |
Features
| Specification | Value |
|---|---|
| Quality of Service (QoS) support | Yes |
| Port forwarding | Yes |
| Firewall security | SPI Firewall |
| Mobile operating systems supported | Android, iOS |
| Parental control | Yes |
| Operating modes | Router Mode; Access Point Mode |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 2 |
| Ethernet WAN | Yes |
| DC-in jack | Yes |
Power
| Specification | Value |
|---|---|
| AC adapter output voltage | 12 V |
| AC adapter output current | 2 A |
Certificates
| Specification | Value |
|---|---|
| Certification | CE, FCC |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 60 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 110 mm |
| Depth | 110 mm |
| Height | 114 mm |
Packaging content
| Specification | Value |
|---|---|
| Number of products included | 1 pc(s) |
| AC adapter included | Yes |
| Number of units included | 1 pc(s) |
| Ethernet cable | Yes |
| Quick installation guide | Yes |
