Deco X80-5G
Model Deco X80-5GPart no. DECO X80-5G(1-PACK)EAN 4897098687857
61 specifications
- SpeedWi-Fi 6 (802.11ax)
- TypeMesh router
- ColourBlack
- Wi-Fi bandDual-band (2.4 GHz / 5 GHz)
- Mobile network generation5G
- Built-in processorYes
Overview
- Speed
- Wi-Fi 6 (802.11ax)
- Type
- Mesh router
- Colour
- Black
- Wi-Fi band
- Dual-band (2.4 GHz / 5 GHz)
- Mobile network generation
- 5G
- Built-in processor
- Yes
- Brand
- TP-Link
- Category
- Mesh Wi-Fi System
- Model
- Deco X80-5G
- Part number
- DECO X80-5G(1-PACK)
- EAN / UPC
- 4897098687857, 6935364072865
- Also known as
- TP-Link 5G Whole Home Wi-Fi 6 Gateway
Specifications
61 specifications in 11 groups
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Product type | Mesh router |
| LED indicators | Yes |
| Antenna type | Internal |
| Antennas quantity | 16 |
| Transmit power | ≤20 dBm (2.4 GHz), ≤23 dBm (5 GHz) |
| Reset button | Yes |
Wireless LAN features
| Specification | Value |
|---|---|
| Wi-Fi band | Dual-band (2.4 GHz / 5 GHz) |
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax) |
| WLAN data transfer rate (first band) | 1148 Mbit/s |
| WLAN data transfer rate (second band) | 4804 Mbit/s |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Number of guest networks (5 GHz) | 1 |
| Security algorithms | WPA, WPA2, WPA3 |
| Number of guest networks (2.4 GHz) | 1 |
| Point-to-point protocol over Ethernet (PPPoE) | Yes |
| Dynamic IP | Yes |
| Static IP | Yes |
| IGMP proxy | Yes |
| IGMP snooping | Yes |
| Tagged VLAN | Yes |
| Wireless Distribution System (WDS) bridge | Yes |
| Dynamic DNS (DDNS) | Yes |
| Guest access | Yes |
| Apps supported | TP-Link Deco |
Mobile network
| Specification | Value |
|---|---|
| Mobile network generation | 5G |
| 4G standard | LTE-TDD & LTE-FDD |
Features
| Specification | Value |
|---|---|
| Built-in processor | Yes |
| Processor cores | 4 |
| Processor frequency | 2.2 GHz |
| Port forwarding | Yes |
| Firewall security | SPI Firewall |
| BeamForming | Yes |
| DHCP client | Yes |
| Universal Plug and Play (UPnP) | Yes |
| MU-MIMO technology | Yes |
| MIMO | Yes |
Ports & interfaces
| Specification | Value |
|---|---|

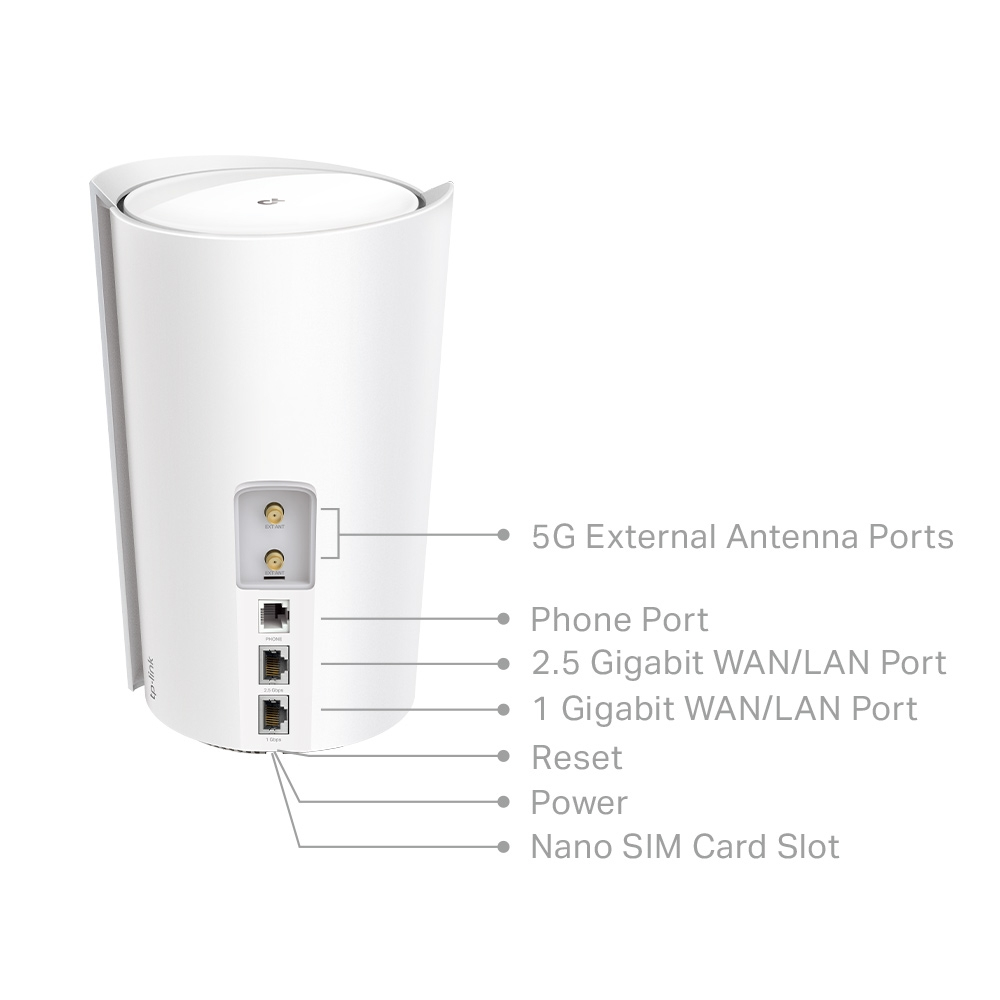

| Ethernet LAN (RJ-45) ports | 2 |
| DC-in jack | Yes |
Power
| Specification | Value |
|---|---|
| AC input voltage | 100 - 240 V |
| AC adapter input current | 1.5 A |
| AC input frequency | 50 - 60 Hz |
| AC adapter output voltage | 12 V |
| AC adapter output current | 4 A |
Certificates
| Specification | Value |
|---|---|
| Certification | RoHS, CE, RCM |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 60 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 130 mm |
| Depth | 123 mm |
| Height | 210.5 mm |

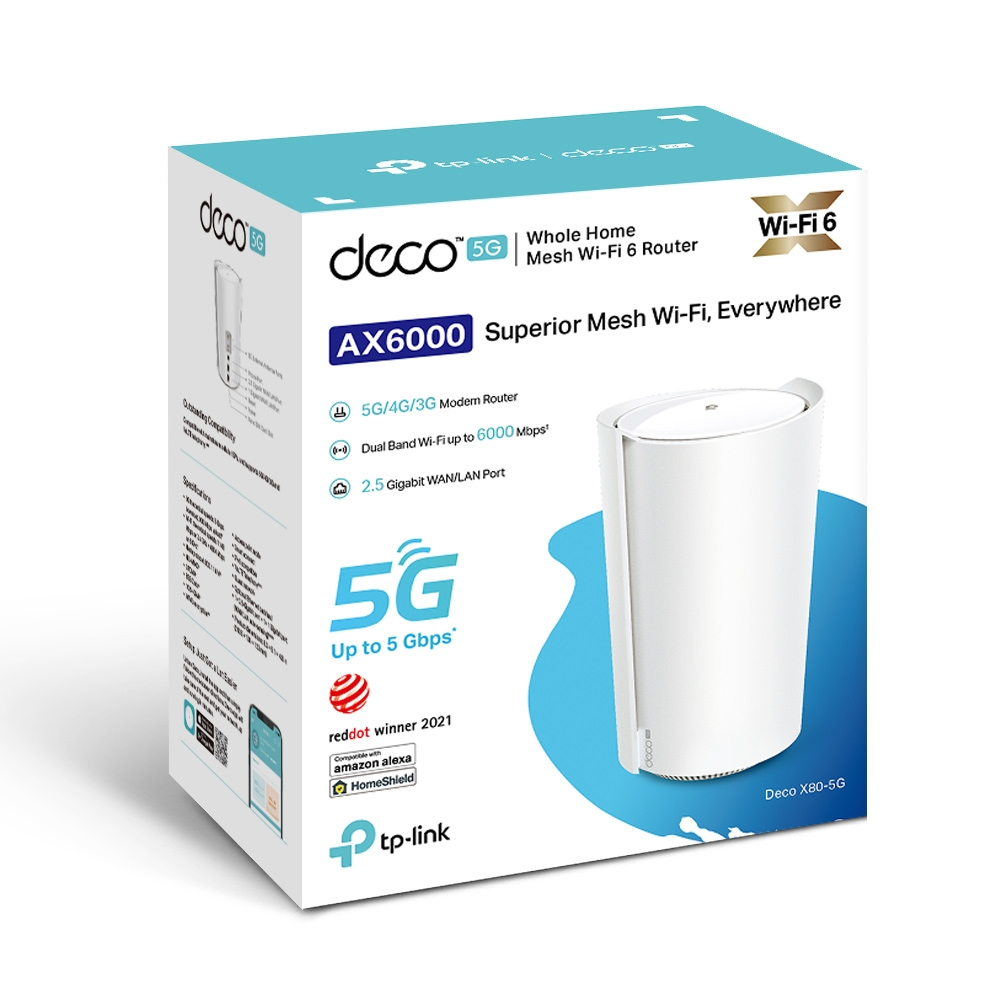

Packaging content
| Specification | Value |
|---|---|
| Number of products included | 1 pc(s) |
| AC adapter included | Yes |
| Number of units included | 1 pc(s) |
| Ethernet cable | Yes |
Packaging data
| Specification | Value |
|---|---|
| Package width | 276.5 mm |
| Package depth | 237 mm |
| Package height | 147.5 mm |
| Package weight | 2.09 kg |
